Trumpai apie prekę
Prekė: Kamera Raspberry Pi 5, 8MP IMX219, 120° matymo kampas. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Pi5-IMX219-120 Waveshare 26185

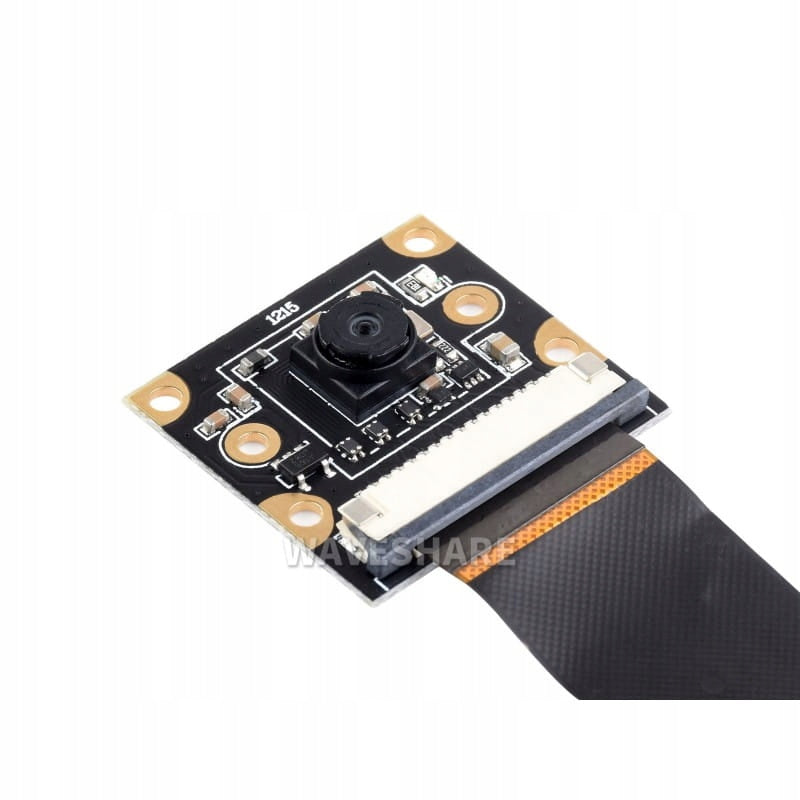

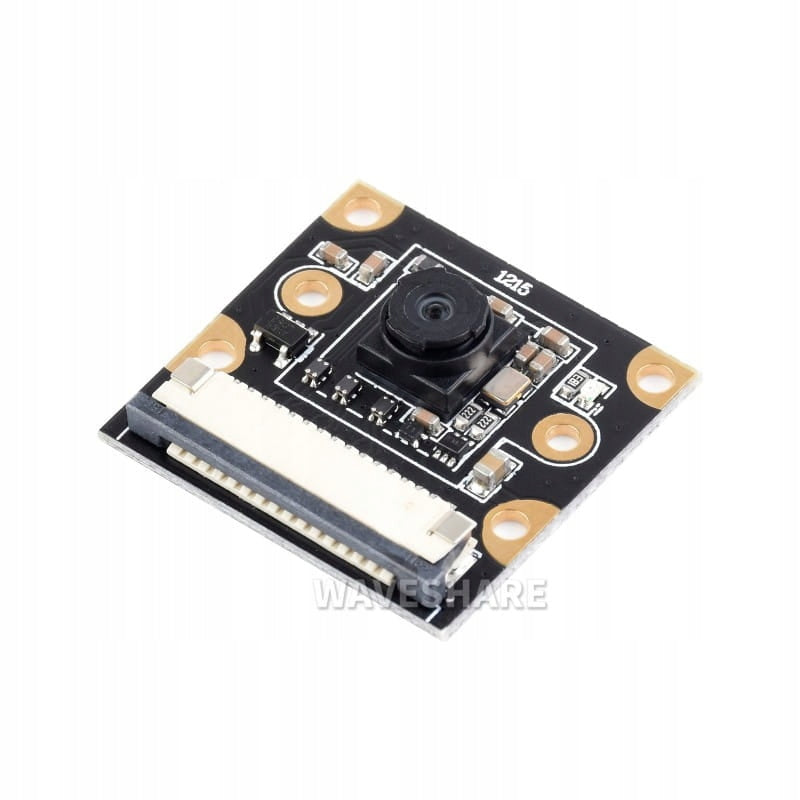

The advanced camera module IMX219, configured specifically for the Raspberry Pi 5 with a field of view of 120°, opens up wide possibilities for projects in the field of computer vision, photography and monitoring. With its 8-megapixel sensor and MIPI-CSI interface, this module guarantees high-quality imaging for a wide range of applications. The 120° field of view version allows you to capture a wider area without the need for additional equipment, which is ideal for security systems, robotics projects or educational experiments. The 200mm CSI flexible cable is supplied with the module, which ensures a simple and fast connection to the Raspberry Pi 5, maximizing the creative potential of the user.
Specification:
- Resolution: 8MP
- Sensor: IMX219
- Image resolution: 3280×2464
- CMOS Size: 1/4 inch
- Cover (F): 2.0
- Focal length: 1.79mm (120° FOV)
- Field of view: 120°
- Distortion: < 13.6%
- Lens dimensions: 6.5×6.5mm
- Mounting holes: 4 × screw holes for fastening, provide a power output of 3.3V
- Dimensions: 25×24mm
Product properties:
- 120° wide field of view: Ideal for projects requiring capturing a large area in one frame.
- High image quality: 8MP sensor IMX219 offers detailed and bright images, even in harsh lighting conditions.
- Easy integration with Raspberry Pi 5: With the included 200mm CSI flexible cable, the camera module is ready for quick connection and use.
- Minimum Image Distortion: Designed to provide the least possible image distortion, which is crucial for precise applications.
- Comprehensive use: An excellent choice for security systems, educational projects, robotics and other creative vision applications.
Examples of application:
Presentation:
Dimensions:
The Raspberry Pi shown in the photos is not part of the kit and must be purchased separately!
The set includes:
- Camera module 8MP IMX219 x1
- Flexible cable x 1
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Pi5-IMX219-120 Waveshare 26185 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Camera |
| Parametry | EAN (GTIN) | 5906358320294 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
