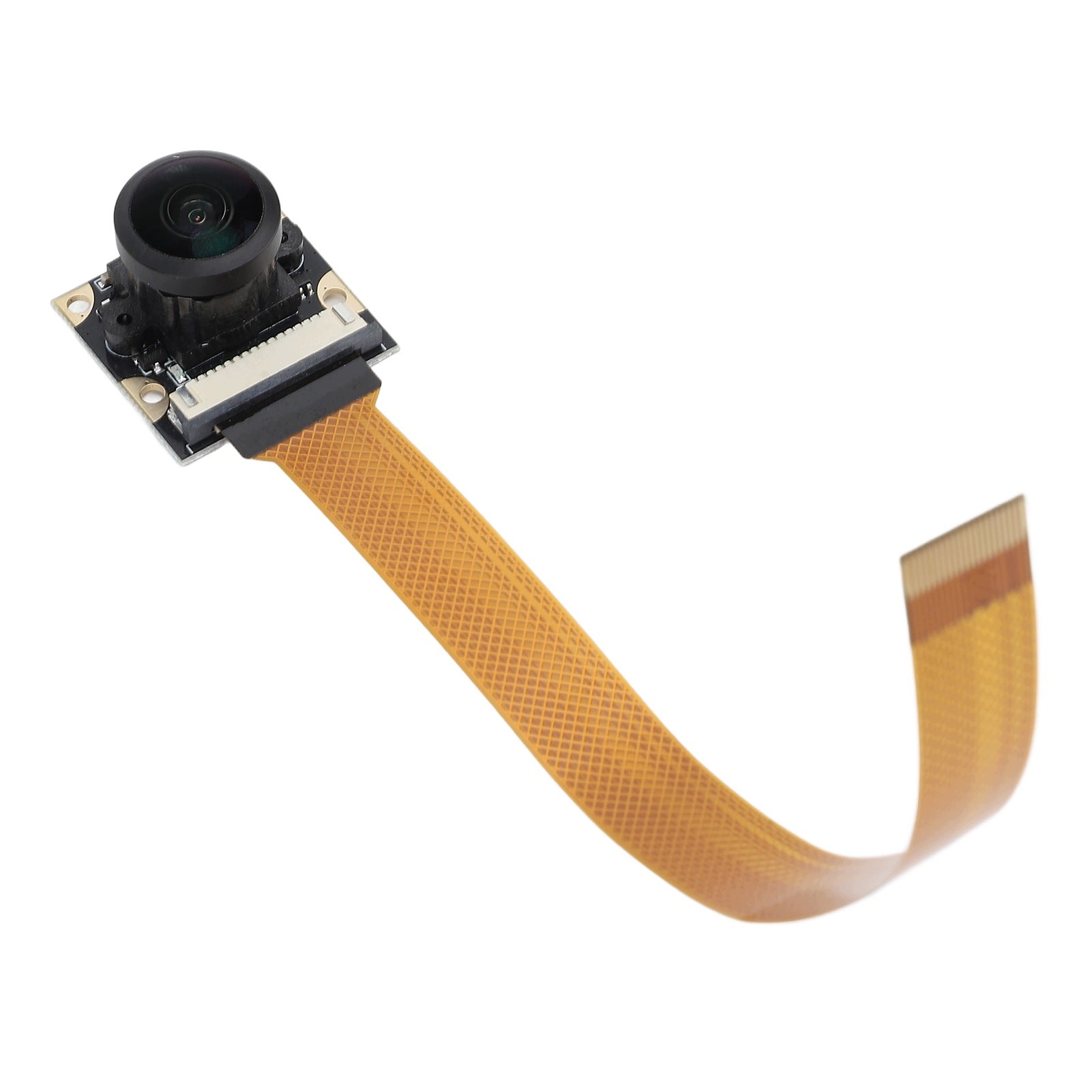

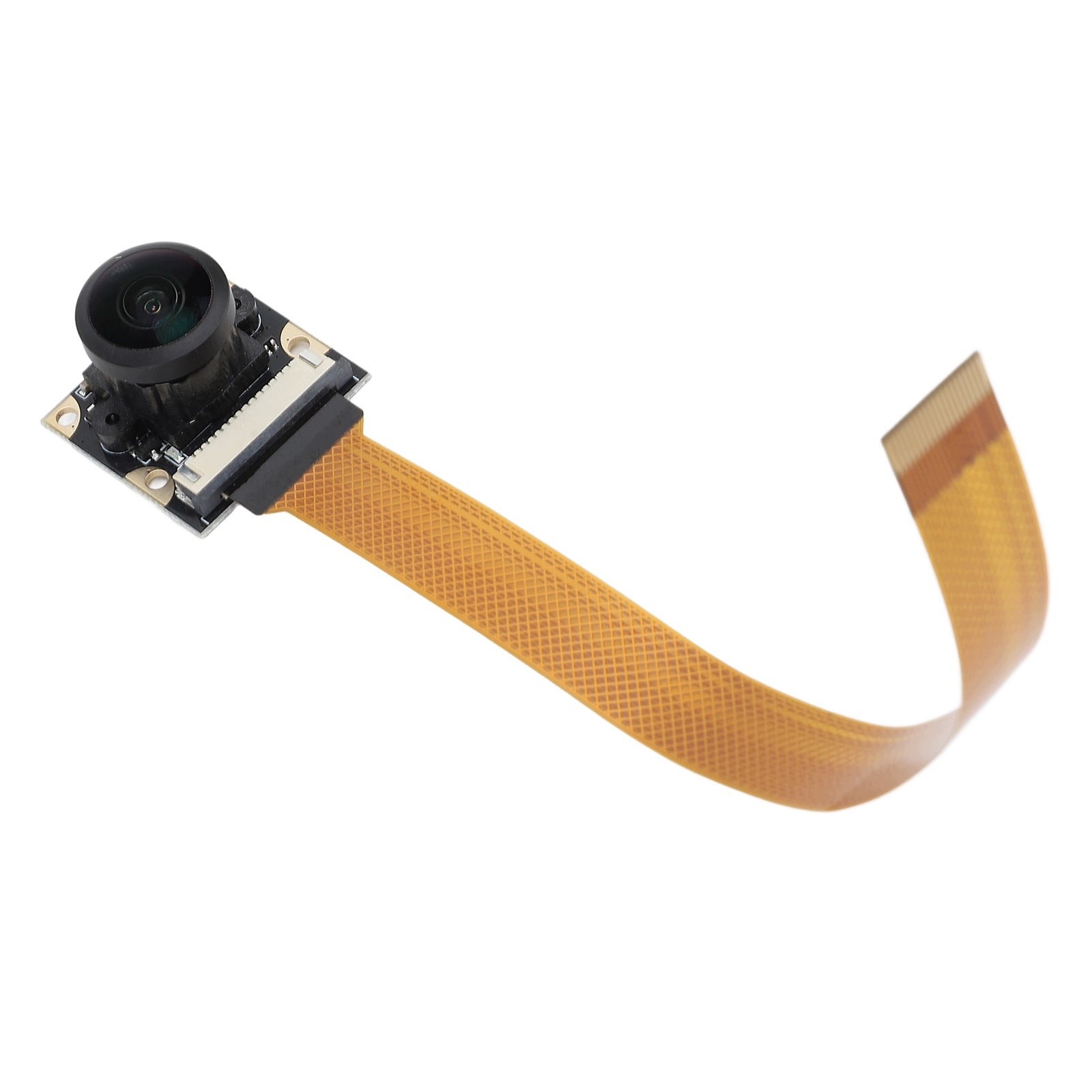

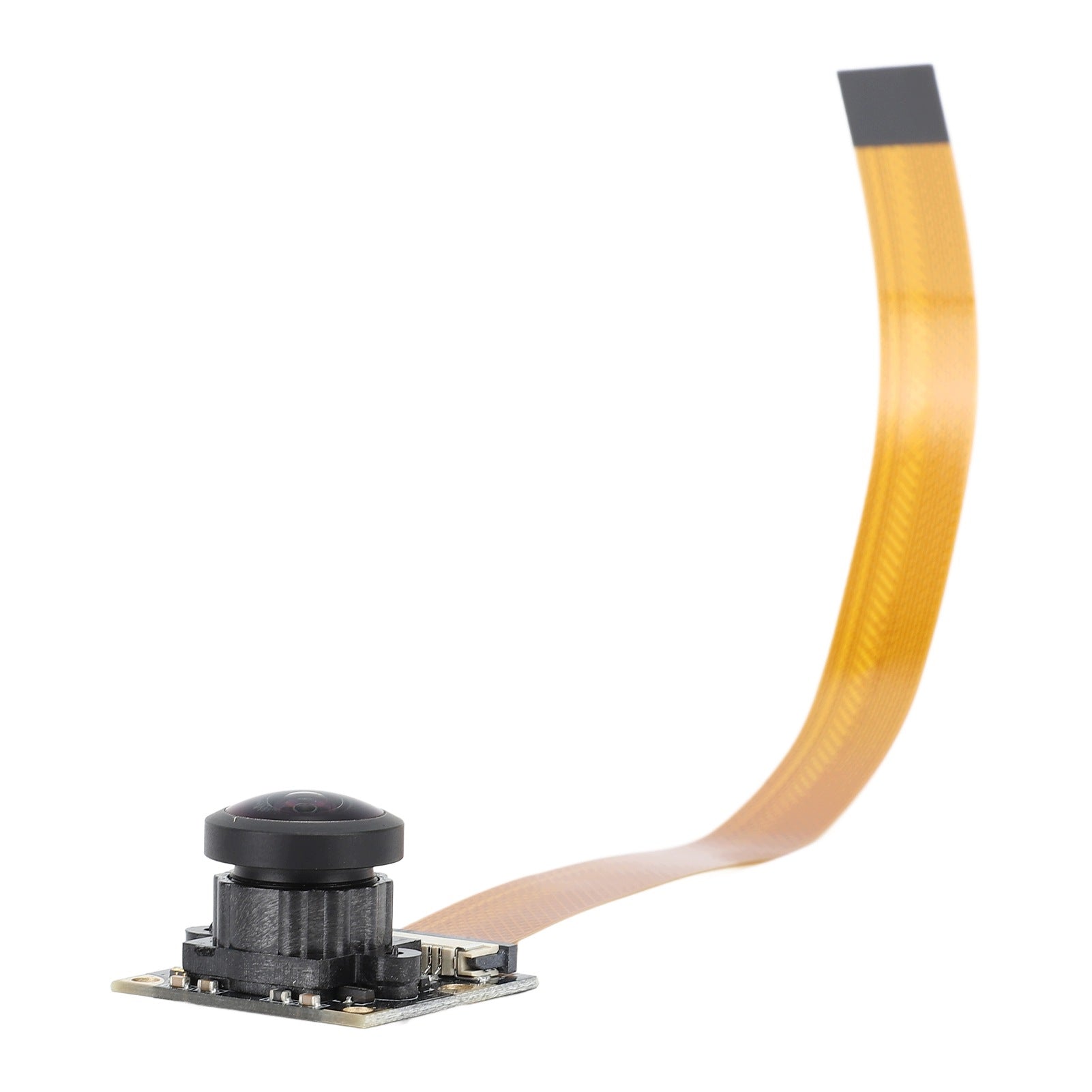

Kamera Modu Professional su OV5647 HD 1080P 220° EE jutikliu

Trumpai apie prekę

Prekė: Kamera Modu Professional su OV5647 HD 1080P 220° EE jutikliu. Kategorija: Veidrodiniai fotoaparatai.

• Gamintojas: no brand
• Modelis: 7605FGWI
• Komplektacija: not specified

Function:

1. 1080P HD: the camera mode is equipped with 5MP pixel resolution lens, 220 degree ultra wide angle, supports 1080p HD video recording, automatic world detection adjustment, clear image and true colors.

2. Strong compatibility: the camera mod is perfectly compatible with the RPi 5 and RPi zero series, there are no reports of behavior after normal operation, the camera can work idly, meeting the needs of different devices.

3. Powerful lens: HD 1080P camera mode built into OV5647 sensor with 0,72MM lens, supports manual focus, helps to get clear image.

4. Easy installation: The 1080P camera mod is mounted with standard M2x6 screws, equipped with a 15 cm cable that can be directly carried into the CSI bayonet for easy installation.

5. Temperature resistance: Replaceable camera mod can withstand working environment in the range of -20~70 degrees Celsius and ensures stable operation.

Specification:

• Article Type: Camera Mode
• Matter: ABS, optical school
• Lens Pixels: 5 MP
• Sharpening distance: 0,76 mm
• Focus Mode: Manual
• Lens angle: 220 degrees
• Screw Type: M2x6 Screws

How to use:

• 1. Turn off and unlock the RPi card: First, make sure the RPi card is turned off, then use the appropriate tool (such as a toothpick) to release the card lock in the CSI slot, allowing it to be lifted.
• 2. Install the camera ribbon cable and the connecting cable: Carry one end of the ribbon cable to the CSI interface, making sure that the cable side with metal contacts is facing the opposite corner of the interface. Then connect the camera mod connecting cable to the corresponding port on the ribbon cable.

3. Secure the camera: Correctly mount the camera mod on the RPi, making sure all connections are secure, then power on to update the camera system and driver.

List of packages:

• 1 x Camera Mode
