Kamera ArduCAM Raspberry Pi Camera Module V3, 12 MP jutiklis

Trumpai apie prekę

Prekė: Kamera ArduCAM Raspberry Pi Camera Module V3, 12 MP jutiklis. Kategorija: Priedai.

• Gamintojas: ArduCam
• Modelis: B0307

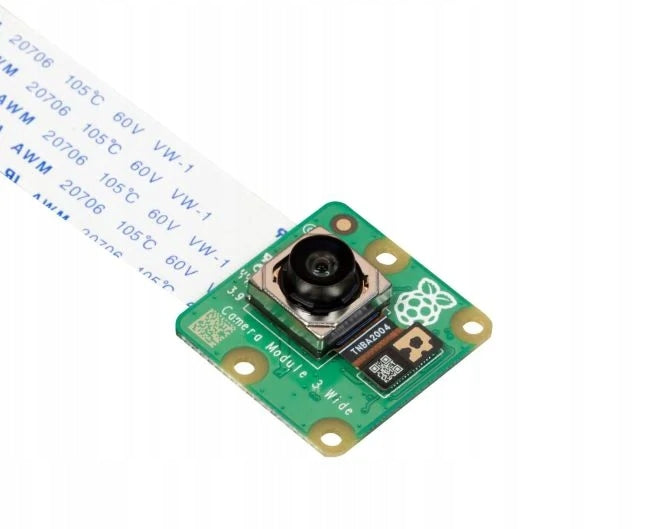

ArduCAM Raspberry Pi Official Camera Module V3 - camera with 12MP IMX708 sensor + housing

Description

Raspberry Pi Camera Module 3 is the latest official camera module from Raspberry Pi. It uses a modern sensor Sony IMX708 o resolution 11.9MP, which allows you to record video in full HD resolution and take detailed photos. Thanks to the use of Phase Detection Autofocus (PDAF) and Contrast Detection Autofocus (CDAF) technology, the image remains sharp and precisely sharpened even when changing the distance from the object.

The 102° wide-angle lens captures a large part of the scene, making the camera ideal for surveillance, wildlife photography or AI projects. The integrated IR-cut filter provides realistic color reproduction in daylight. The module is fully compatible with all Raspberry Pi models and supported by libcamera i Picamera2 libraries. The set also includes a sturdy acrylic housing, protecting the camera from damage and making it easy to install in DIY projects. It is a comprehensive and modern solution for Raspberry Pi enthusiasts.

Properties

• Sensor: Sony IMX708, CMOS, 11.9MP
• Maximum image resolution: 4608 × 2592
• Video Modes: 2304×1296@56fps, 2304×1296@30fps HDR, 1536×864@120fps
• Pixel Size: 1.4μm × 1.4μm
• Sensor image area: 6.45 x 3.63 mm (7.4 mm diagonal)
• Optical size: 1/2.43"
• Lens: 2.75 mm, F2.2, autofocus (PDAF + CDAF)
• Viewing angle: 120°(D) x 102°(H) x 67°(V)
• IR filter: Integrated IR-cut – visible light only
• Compatibility: Raspberry Pi 5, 4B, 3B+, 3, 2, CM3, CM4, CM5, Zero W, Zero 2 W
• Library support: libcamera, Picamera2
• Dimensions: 25 × 24 mm

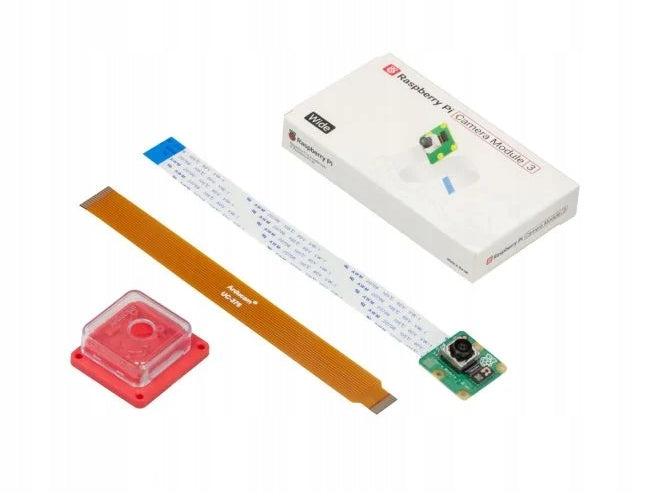

Comes with

• Raspberry Pi Official Camera Module V3
• Cable FPC 15pin-22pin, 150mm
• ABS Acrylic Housing

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	B0307
Parametry	Manufacturer	ArduCam
Parametry	Kind	Camera
Parametry	EAN (GTIN)	5902186307889
