Prekė: Jungtis RJ45/8P8C, kat.5e, UTP, lizdas-lizdas. Kategorija: Jungikliai ir koncentratoriai.
- Gamintojas: Stratos
- Modelis: 42035-2
Catalog No.: 42035
The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www. stratos . pl/pages/42035.htm

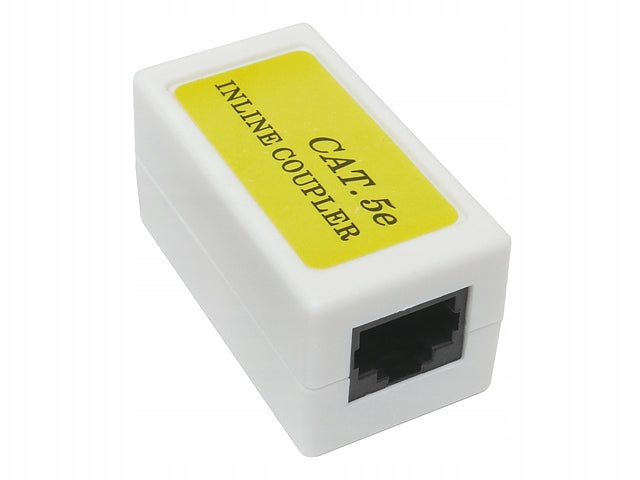

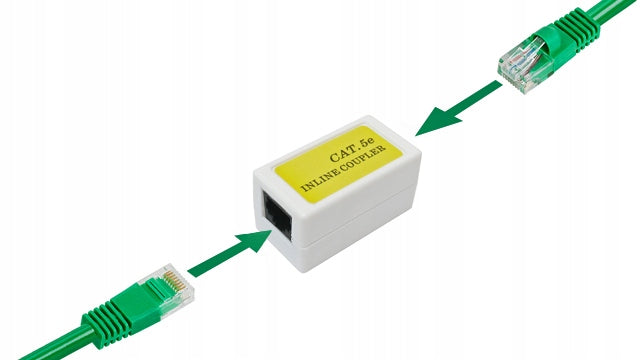

The offered connector is used to connect two UTP (unshielded) cables equipped with RJ45 plugs with transmission in the cat.5e standard (class D - 100MHz). Thanks to the connector, we can get a longer-length cable (patchcord). Another use of the connector is to replace the type of cable termination from male to female to connect the device terminated with an RJ45 plug.
Internal connections of the connector are made 1:1 i.e. In both sockets, pins with the same numbers are connected to each other - thanks to this, it is possible to accurately reproduce the pins of the connected wires. The internal connection diagram of the connector is presented in the image below:
The connector is made of white ABS, the contacts are made of copper alloy.
- Category: 5e (Class D - 100MHz)
- Material: housing - ABS, contacts - gilded copper alloy
- Connectors: 2x RJ45/8P8C female socket
- Internal connections: 1:1
- Dimensions (length/width/height): 48/26/25mm
- Weight: approx. 16g
The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Stratos |
| Parametry | Product weight with unit packaging | 0.02 kg |
| Parametry | Number of ports | 2 |
| Parametry | EAN (GTIN) | 5905247244611 |
| Parametry | Manufacturer code | 42035-2 |
