Izoliacijos varžos matuoklis SONEL MIC-10, 1000V

Trumpai apie prekę

Prekė: Izoliacijos varžos matuoklis SONEL MIC-10, 1000V. Kategorija: Detektoriai.

• Gamintojas: Sonel
• Modelis: WMPLMIC10

Insulation Resistance Meter

SONEL WMPLMIC10

✔ Measurement of insulation resistance up to 10 G thanks to measuring voltage up to 1000 V

✔ Allows you to check electrical continuity – function RCONT 200 mA

✔ Testing of starting capacitors in motors thanks to the capacitance measurement function.

✔ Selection of voltage measurement: 50, 100, 250, 500, 1000 V

The set includes:

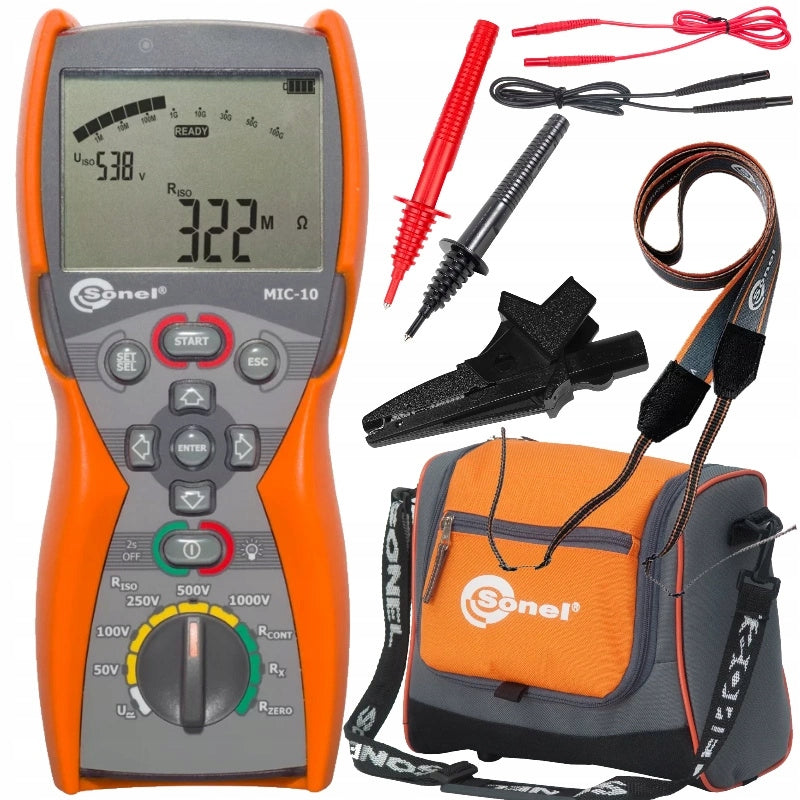

• 1 pc. Insulation Resistance Meter MIC-10
• 1 pc. Cable 1,2 m black 1 kV (banana plugs) WAPRZ1X2BLBB
• 1 pcs. Cable 1,2 m red 1 kV (banana plugs) WAPRZ1X2REBB
• 1 pcs. Probe blade black 1 kV (banana socket) WASONBLOGB1
• 1 pc. Probe blade red 1 kV (banana socket) WASONREOGB1
• 1 pcs. Crocodile black 1 kV 20 A K-01
• 1 pcs. Case M-6
• 1 pc. Shells for M-1 meter
• 1 pcs. Handle - pendant for housing type M-1 WAPOZUCH1
• 4 pcs. Alkaline battery AA LR06 (15A) 1,5 V WABATAA
• 1 pcs. Certificate calibration WADOKCK

The calibration certificate is a document issued free of charge in the production process of the meter.

It confirms the conferral of metrological properties and maintaining measurement consistency.

In the calibration certificate under the date of issue of the document there is a dotted field: “Date of commissioning”. This is the field left for the instrument user in which the date of purchase should be entered.

The entered date of purchase can be used to determine the next calibration date based on the manufacturer’s recommendation below:

Subsequent execution of the metrological confirmation (calibration) is recommended to be carried out within 12 months from the date of purchase, but no later than 24 months from the date of production / checking.

Another metrological inspection is carried out by the Research and Calibration Laboratory of Sonel S.A. companies, and the issued document is called - Calibration Certificate.

Advantages of the Sonel Insulation Resistance Meter

✔ Measurement of capacity over time of RISO measurement

✔ Low voltage measurement of circuit continuity and resistance

✔ Test of continuity of protective conductors and compensatory connections with two-way current ≥200 mA in accordance with PN-EN 61557-4

✔ Measurement of constant and alternating voltages in the range 0...600 V

Advantages of the Sonel Insulation Resistance Meter

✔ Automatic discharge of the capacity of the measured object after the measurement of insulation resistance

✔ Acoustic determination of five-second time intervals

✔ Indications of the actual voltage measured at the time of measurement

✔ Protection against measurement of objects being voltage

✔ Three-wire measurement

Examples of functionality:

✔ Check whether the object is live (measurement range up to 600 V), even if it is an overhead or cable network.

✔ You will verify the continuity of the wires, e.g. protective and compensatory connections – current not less than 200 mA in accordance with PN-EN 61557-4.

✔ You will check the capacitance of starting capacitors in household appliances and drives of all types (measurement range up to 10 µF).

What will the Insulation Resistance Meter work for?

✔ For measurements of anti-icing systems.

✔ For measurements of pre-insulated pipes.

✔ For measurements of telephone and IT cables.

What will the Insulation Resistance Meter work for?

✔ For measurements of electrical installations in apartments, houses and public buildings.

✔ For measurements of low voltage motors.

✔ For measuring home appliances.

< UL>

Durable Casing

• The handy and ergonomic casing with an **IP67** protection rating ensures the meter will not fail in the harshest environmental conditions **(humid, dusty, high temperature, etc.).**

UNBOXING Sonel MIC-10

• Link to a short video that shows all the contents of the MIC-10 kit:

Capabilities

✔️ The MIC-10 meter allows you to check **if an object is live** (measurement range up to 600 V), even if it's an overhead or cable network (measurement category CAT IV 600 V of the instrument).

✔️ **Verify conductor continuity**, e.g., protective and equipotential bonding – with a current of at least 200 mA according to standard PN-EN 61557-4.

✔️ **Check the capacitance of start-up capacitors** in household appliances and all types of drives (measurement range up to 10 μF).

Measurement functions

A- Insulation resistance measurement

• 1- Range
• 2- Resolution
• 3- Accuracy

B- Low-voltage measurement of circuit continuity and resistance

• 1- Range
• 2- Resolution
• 3- Accuracy

C- DC and AC voltage measurement

• 1- Range
• 2- Resolution
• 3- Accuracy

D- Capacity measurement

• 1- Range
• 2- Resolution
• 3- Accuracy

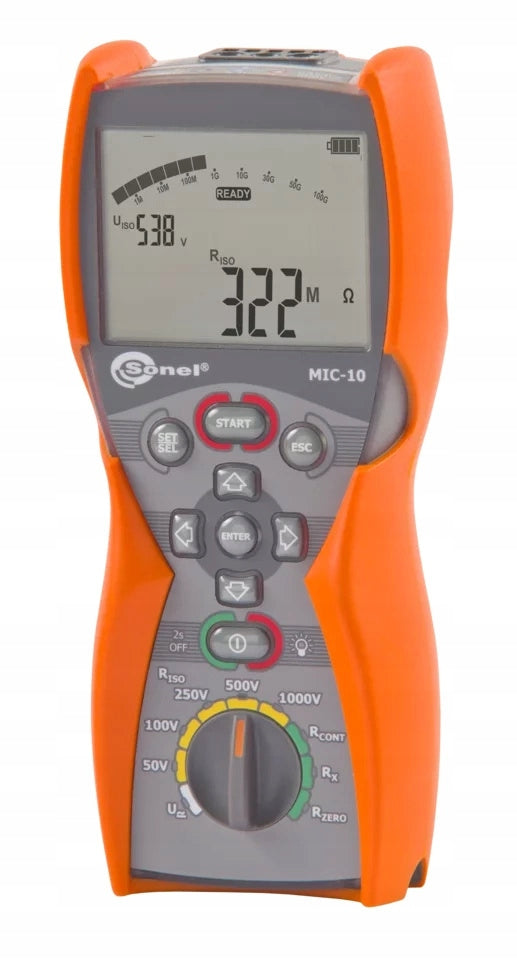

Construction of the meter

1. Measuring sockets.
2. LED.
3. Starting of the measurement procedure.
4. SET/SEL- input to the meter settings, selection of the parameter to change.
5. Move/ select: right/left, up/down.
6. Turn on and off (after holding the button for a long time) powering the meter, turning the display backlight on and off.
7. Rotating switch function- selection of measurement function.
8. Approval of selection.
9. ESC- return to the previous screen, exit from the function.

Comparison of MIC-30 MIC-10

Indication in table

1. Measuring voltage
2. Measuring range
3. ISO short-circuit current
4. Power supply
5. Memory (number of records)
6. Voltage measurement
7. Setting 3 measurement times to calculate Ab1 Ab2 PI DAR
8. Automatic measurement in the slot
9. Built-in fast charger
10. Temperature measurement
