Prekė: Išorinis CPE prieigos taškas 8dBi 2.4GHz. Kategorija: WiFi maršrutizatoriai ir prieigos taškai.
- Gamintojas: Techly
- Modelis: I-WL-CPE120
- Plotis: 88 mm
- Aukštis: 168 mm

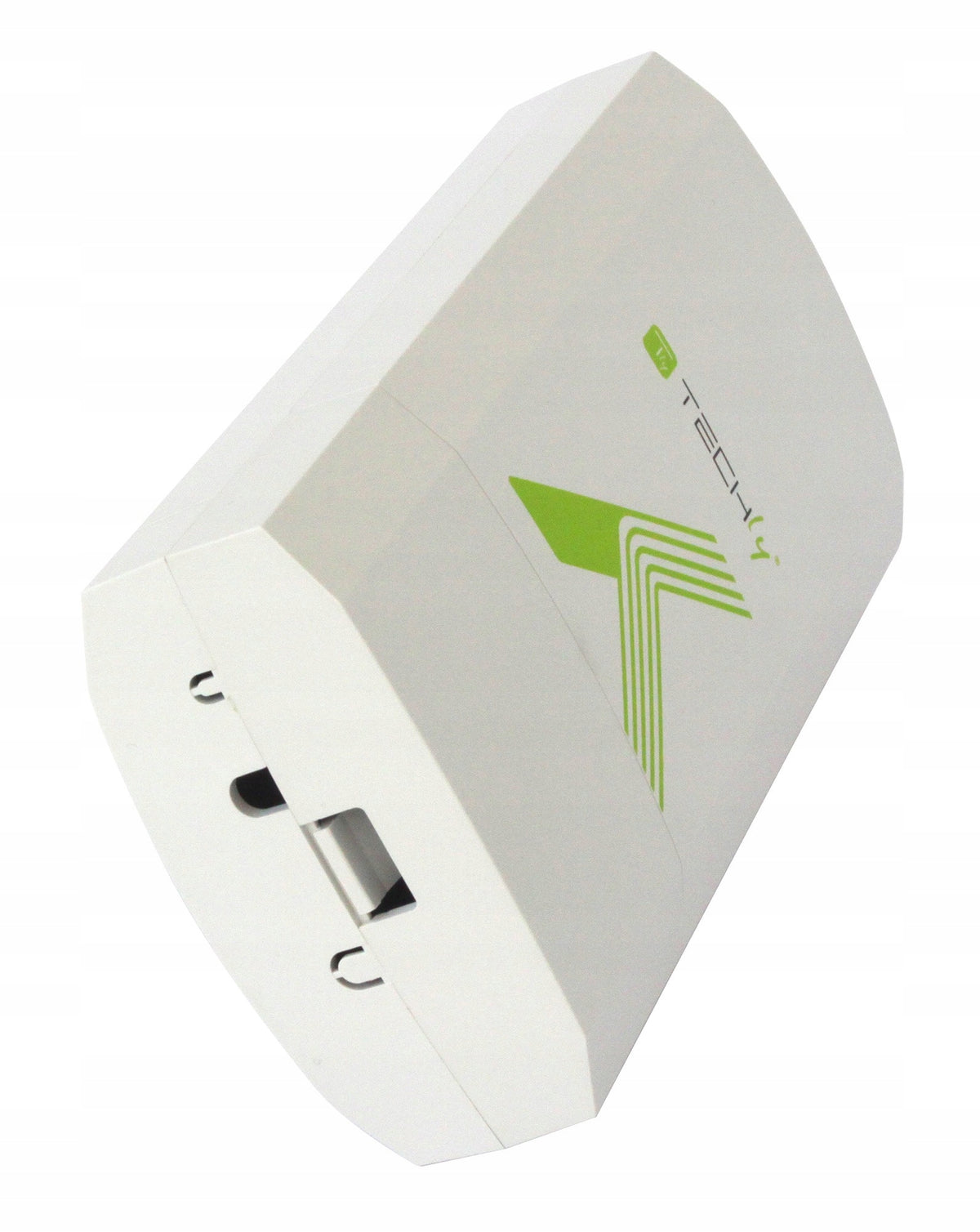

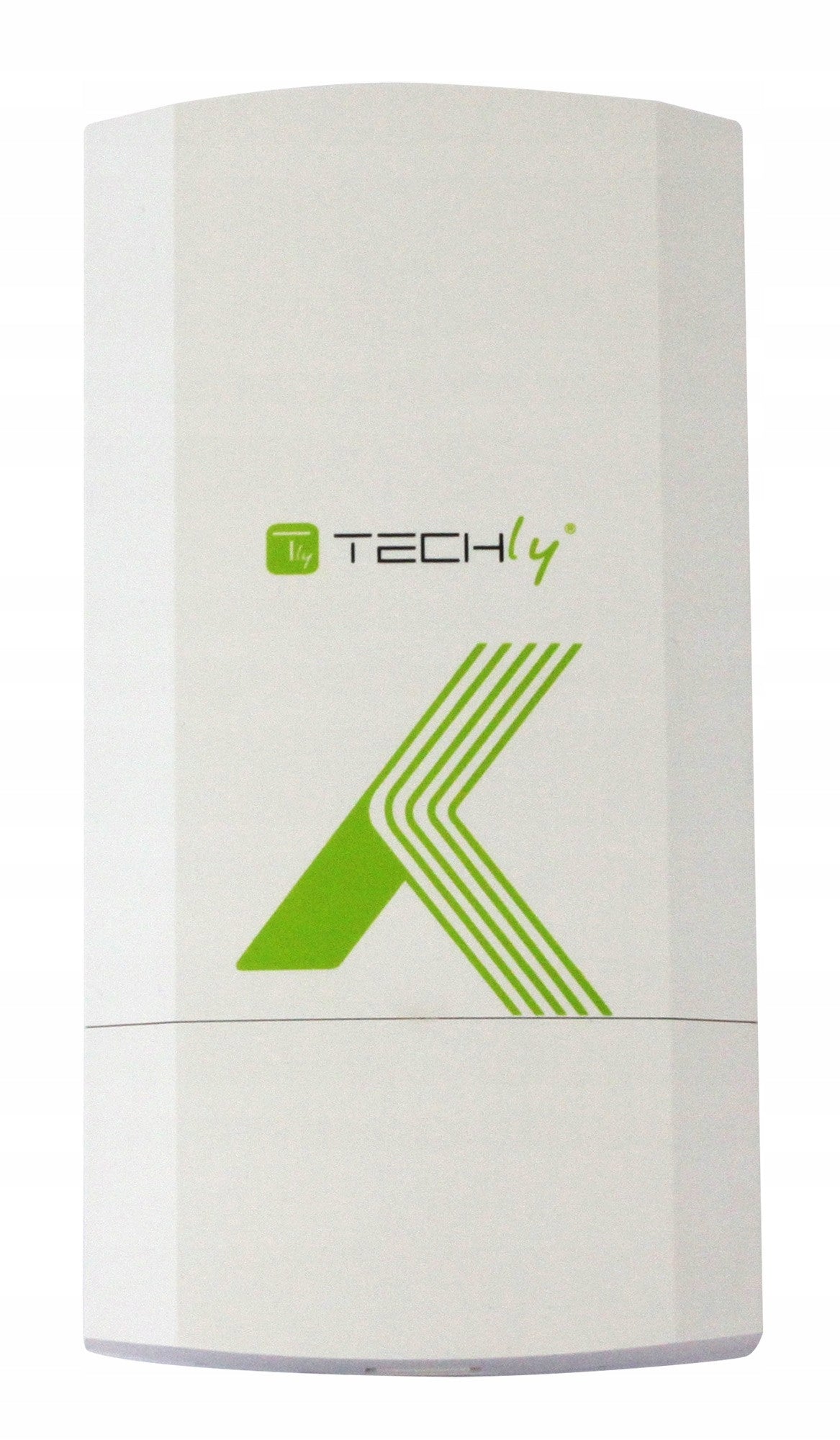

Techly I-WL-CPE120, 108446 – External CPE Device 8dBi 300Mbps 2,4GHz, Access Point / Repeater, Point-to-Point, Point-to-MultiPoint
P/N: I-WL-CPE120, 108446
Product description:
- External CPE device ideal for surveillance systems and data transmission over a wireless network
- Built-in Dual MIMO directional antenna with 8dBi gain for long-distance transmission
- Support for Point-to-Point and Point-to-MultiPoint connections allows you to adapt to the needs of individual installations
- Working in Access Point or Repeater mode
- Support 24V passive PoE power supply
- Wireless bandwidth up to 300Mbps
- Integrated Wi-Fi channel analysis tool
- Support for “Watchdog” technology
- Resistant to weathering and corrosion
- Support DC power supply or via passive PoE power supply
- Configuration via web browser or Telnet
- Suitable for wall or mast mounting
Technical parameters:
- Operating Frequency: 2,4GHz
- Bandwidth: 300Mbps
- Antenna:
- Dual MIMO 2T2R
- Gain: 8dBi
- Beam width in horizontal plane: 60° (±5°)
- Beam width in vertical plane: 33° (±5°)
- Receiver Sensitivity: MCS7: -68dbm / MCS0: -86dbm
- Transmitter Output Power: 20W
- Supported standards:
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
- Power supply:
- Passive PoE 24V, 0.5A
- Input Voltage: 12V DC, 0.5A
- Operating temperature: -30° - 55°C
- Storage temperature: -40° - 70°C
- Operating humidity: 5 – 95% RH, non-condensing
- Dimensions: 88 x 168 x 57.6 mm
- Weight: 0,548kg
- Color: White
Content of the package:
- CPE device 2,4GHz 8dBi 300Mbps
- Passive PoE Power Supply
- Network cable 1m
- Instruction
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Techly |
| Parametry | Band | 2,4 GHz |
| Parametry | Internal modem | no modem |
| Parametry | LAN port operating standard | not specified |
| Parametry | Antenna | built-in |
| Parametry | Width | 88 mm |
| Parametry | Height | 168 mm |
| Parametry | Depth | 58 mm |
| Parametry | Product weight with unit packaging | 0.55 kg |
| Parametry | EAN (GTIN) | 8051128108446 |
| Parametry | Manufacturer code | I-WL-CPE120 |
| Parametry | Model | I-WL-CPE120 |
| Parametry | Packaging status | original |
| Parametry | The highest standard supported | 802.11g |
| Parametry | Batteries included | no |
| Parametry | Mode of operation | Access Point,Repeater |
| Parametry | Wireless operation standard | 802.11n (Wi-Fi 4),802.11g,802.11b |
