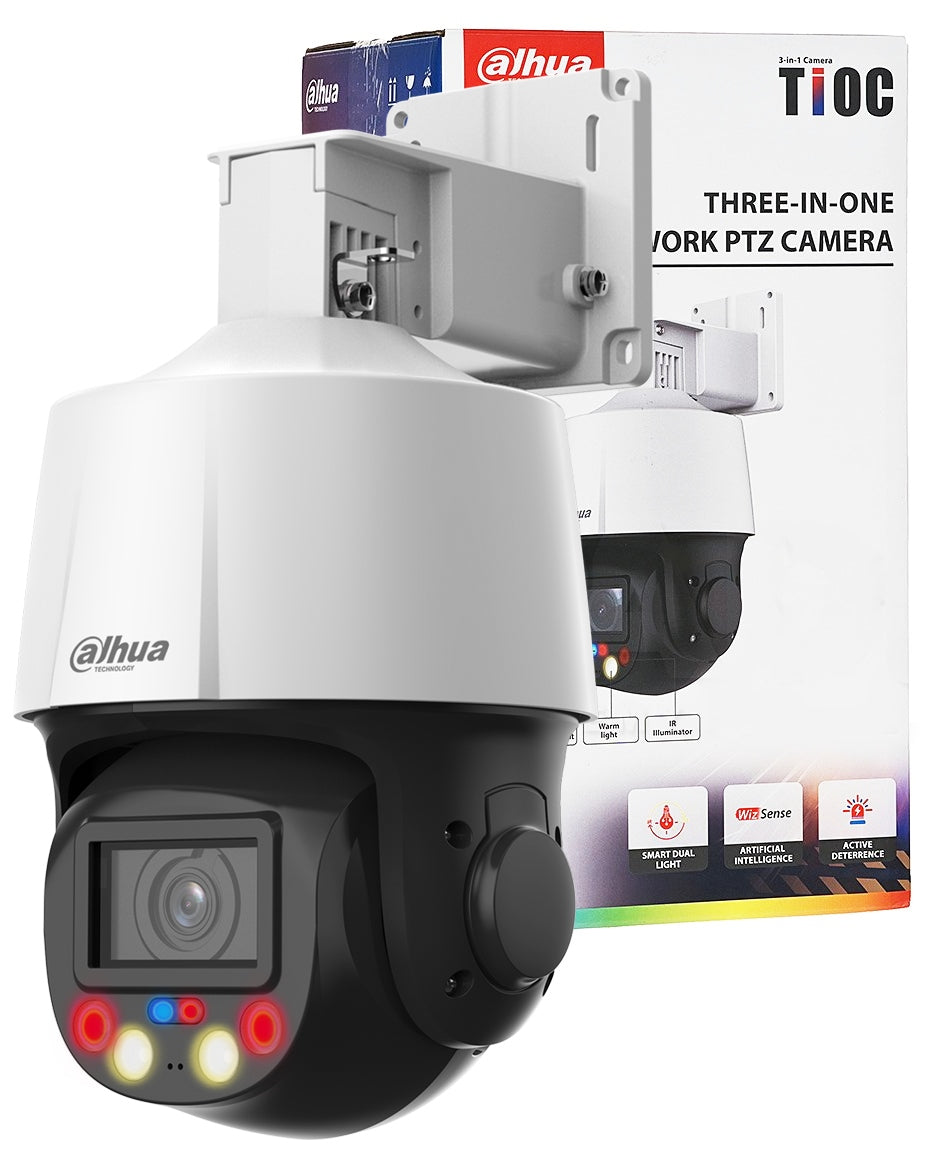

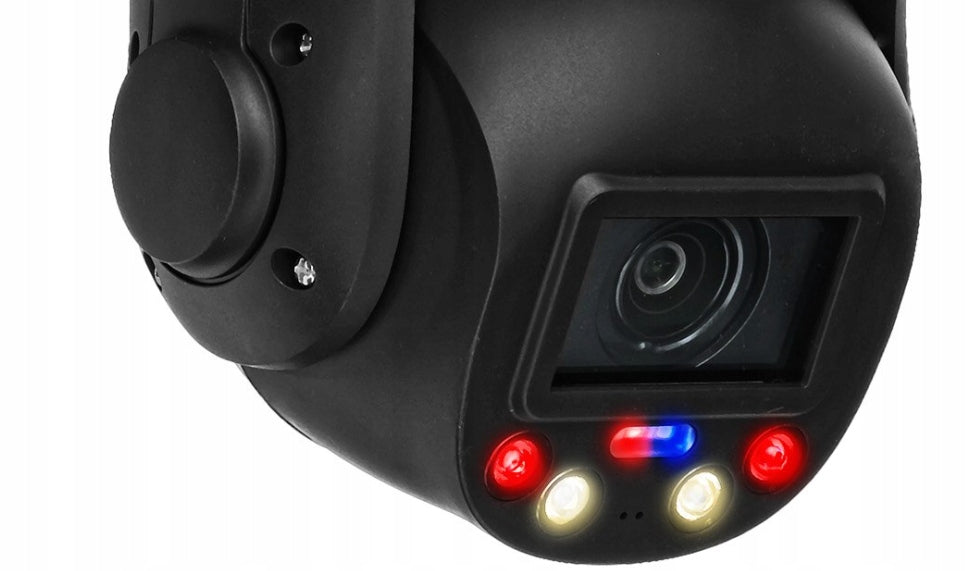

IP vaizdo stebėjimo kamera Dahua SD3E405DB-GNY-A-PV1, 4 Mpx, su automatinio sekimo funkcija, pasukama

Trumpai apie prekę

Prekė: IP vaizdo stebėjimo kamera Dahua SD3E405DB-GNY-A-PV1, 4 Mpx, su automatinio sekimo funkcija, pasukama. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: SD3E405DB-GNY-A-PV1

The high-speed IP SD3E405DB-GNY-A-PV1 camera is equipped with a 1/2.8" CMOS image converter for high image quality with a resolution of 4Mpx (2560x1440). The earthfocal lens with a focal length of 2.7-13.5mm has 5x optical zoom. Built-in infrared heater IR with a range of up to 50m allows observation at night and illumination with white (warm) light up to 30m. The camera also has a number of signal processing functions, reducing noise and improving image quality, such as: WDR120dB, AGC, HLC, BLC. The housing in the tightness class IP66 and a wide range of permissible temperatures allow the camera to work in difficult weather conditions.

Key features of the camera:

• 4MP 5x TiOC WizSense PTZ Network Camera
• Rotating
• 1/2,8" CMOS sensor 4 megapixels
• 5x optical zoom
• SMD 3.0- filtering false alarms
• Infrared range up to 50 m
• Warm light range up to 30 m
• Peripheral protection
• Face detection
• Alarm: 1 input, 1 output
• Audio: 1 input, 1 output
• Built-in microphone and speaker for two-way calls
• 12 VDC/PoE power supply
• Protection class IP66
• Sound and light alarm (red and blue lights)

Due to the fact that the camera has a wide viewing angle up to approx. 94.9° – 30.1° horizontally, using only one device, you can cover a larger area with monitoring preview and eliminate the so-called. blind spots to better secure the space around the building. The high resolution of the image makes it easy to read license plates or identify the face of a person who violates the private zone of the property. WizSense technology uses advanced image analysis capabilities focusing on people and vehicles. Such an intelligent and comprehensive solution will quickly detect potential threats increasing the level of security. Thanks to the mobile application: iDMSS / gDMSS (iOS/Android), we have the ability to view live, play recordings and receive notifications about events within the system. The DMSS platform uses a cloud connection, which allows access to the camera and its configuration from anywhere with access to the Internet from mobile and desktop devices (laptop/PC).

Camera dimensions and mounting method:

Specification:

• Image Sensor: 1/2.8-inch CMOS Sensor
• Pixel: 4 MP
• Max. Resolution: 2560 (H) × 1440 (W)
• ROM: 128 MB
• RAM: 512 MB (Mac version)
• Electronic Shutter Speed: 1/1 s to 1/30,000 s
• Scanning System: PS
• Min. Illumination: Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
• Illumination Distance: 50 m (164.04 ft) (IR); 30 m (98.43 ft) (Warm Light)
• Illuminator On/Off Control: Zoom Prio; Manual; Auto; Off
• Number of LEDs: 2 (IR); 2 (Warm Light); 1 (Red Light); 1 (Blue Light)

Lens

• Focal Length: 2.7–13.5 mm
• Max. Aperture: F1.6–F3.0
• Field of View: H: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6°
• Optical Zoom: 5×
• Focus Control: Auto; Semi-Auto; Manual
• Close Focus Distance: 1.5 m (4.92 ft)
• Aperture Control: Fixed

DORI Distance

• Detect: 270 m (885.83 ft)
• Observe: 106.6 m (349.74 ft)
• Recognize: 54 m (177.17 ft)
• Identify: 27 m (88.58 ft)

PTZ Camera

• Pan/Tilt Range: Pan: 0° to 355°; Tilt: –15° to +90°
• Manual Control Speed: Pan: 0.1°/s–36°/s; Tilt: 0.1°/s–25.8°/s
• Preset Speed: Pan: 35.7°/s; Tilt: 27.1°/s
• Presets: 300
• Power-off Memory: Yes
• Idle Motion: Presets

Intelligence

• IVS (Perimeter Protection): Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
• Face Detection: Supports face detection, snapshot, and face enhancement; Supports face cutout: face, one-inch photo; Capture strategies include real-time snapshot and quality priority.
• Auto Tracking Lite: Yes
• SMD: Yes

Active Deterrence

• Light Warning: Red and blue light warning. Flash Time: 5 s–30 s. Flash Frequency: High, medium, low
• Sound Warning: Offers 21 types of sound alarms and supports importing custom sound alarms. Sound alarm playback times can be set from 1 to 10.

Video

• Video Compression: H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (sub stream); Smart H.264+
• Streaming Capability: 3 Streams
• Resolution: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
• Video Frame Rate: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps); Sub stream 1: D1/CIF/VGA@ (1–25/30 fps); Sub stream 2: 720p @(1–25/30 fps)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• WDR: 120 dB
• HLC: Yes
• White Balance: Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural Light; Street Lamp
• Gain Control: Auto; Manual
• Noise Reduction: 2D NR; 3D NR
• Motion Detection: Yes
• Region of Interest (RoI): Yes
• Image Stabilization: Electronic (EIS)
• Defog: Electronic
• Digital Zoom: 16×
• Image Rotation: 180°
• Signal to Noise Ratio: ≥55 dB

Audio

• Audio Compression: G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

• Network Port: RJ-45 (10/100 Base-T)
• Network Protocol: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; Real Time Clock; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
• Interoperability: CGI; SDK; ONVIF (Profile S&G&T); P2P
• Streaming Method: Unicast/Multicast
• User/Host: 20 (Total bandwidth: 64 M)
• Storage: FTP/SFTP; Micro SD Card (512 GB); N/A
• Browser: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions
• Management Software: DMSS; DSS Pro
• Mobile Client: iOS; Android

Certification

• Certifications: CE: EN55032/EN55024/EN50130-4; FCC: Part 15 subpart B, ANSI C63.4-2014

Interfaces

• Audio Input: 1 channel (LINE IN, bare wire, built-in mic (mutually exclusive))
• Audio Output: 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
• Alarm Event: Motion detection/tampering; audio detection; network disconnection detection; IP address conflict detection; memory card status detection; memory space detection
• Alarm I/O: 44927
• Audio I/O: 44927

Power

• Power Supply: 12 V DC, 2 A ± 10%; PoE+ (802.3at)
• Power Consumption: Basic: 4.5 W; Max: 15 W

Operating Conditions

• Temperature: –30°C to +60°C (–22°F to +140°F)
• Humidity: ≤95%
• Protection: IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection

General

• Product Dimensions: 142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" × 9.29")
• Net Weight: 1.5 kg (3.31 lb)
• Gross Weight: 2.1 kg (4.63 lb)
