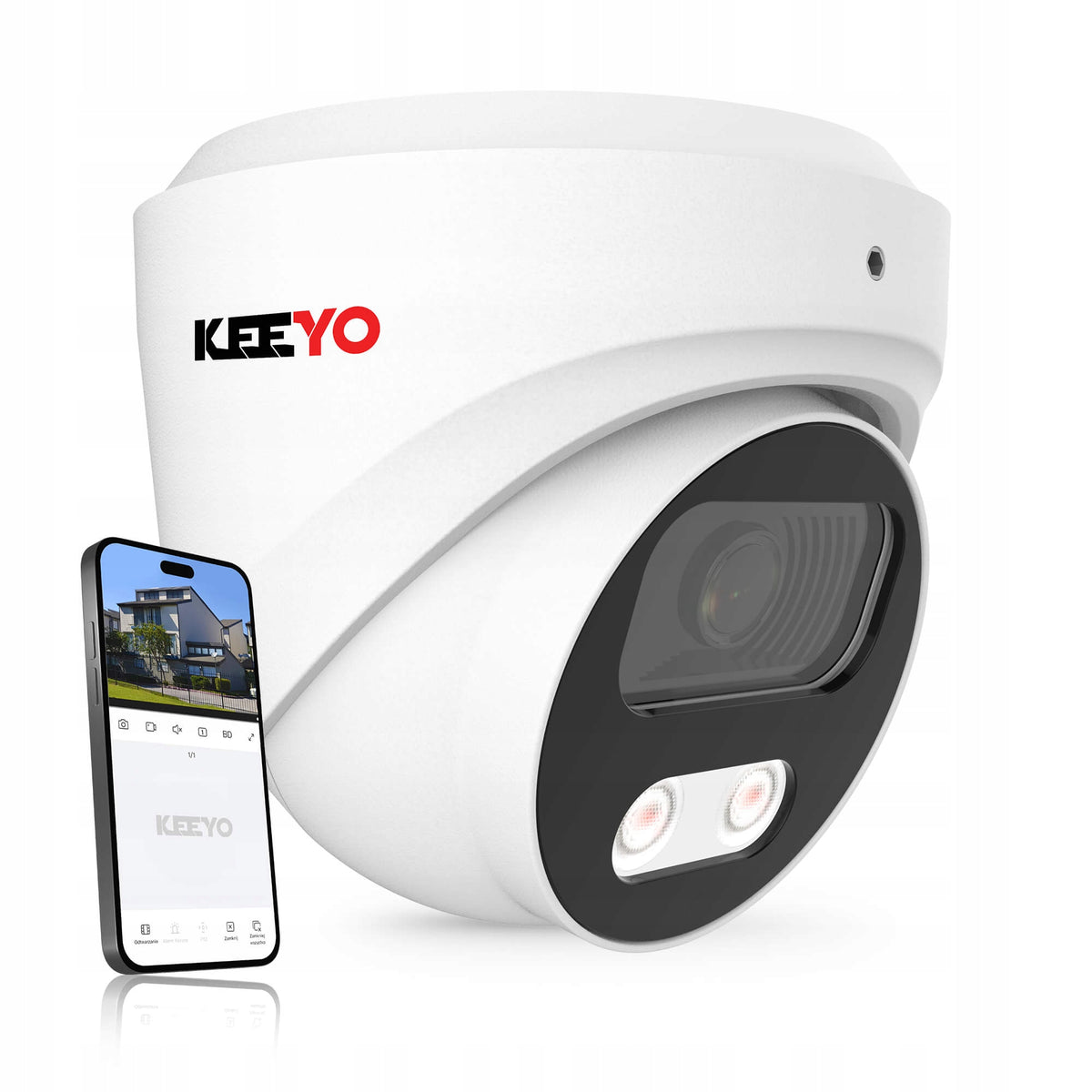

IP kamera Keeyo LV-V-IP5M25DF-B-II

Trumpai apie prekę

Prekė: IP kamera Keeyo LV-V-IP5M25DF-B-II. Kategorija: IP kameros.

• Gamintojas: no brand
• Modelis: LV-V-IP5M25DF-B-II

LV-V-IP5M25DF-B-II is a camera designed for good quality monitoring. It is a network camera, which means that the video signal is transported in digital form, making it much better quality than analog cameras. In addition, it is equipped with a digital WDR, which allows you to preserve the details of the image in dark and lightened areas. It has two infrared diodes, which are enough to illuminate most properties. In addition, it can be used as an independent monitoring device thanks to support for memory cards with a maximum capacity of 1TB.

Features of LV-V-IP5M25DF-B-II camera:

• Focal 2.8mm - Optical property of the lens for a wide viewing angle.
• Sony Converter - High-quality optical components for crystal clear video capture.
• Matrix with a resolution of 5MPx - Video material is saved in high resolution of 2616x1964.
• Night lighting with a range of 25 meters - Two high-power IR diodes that will accurately illuminate the space of your property.
• The Bitvision app is available on the Google Play Store and Apple App Store.
• Increased dynamic range - Even on the sunniest day, the video image will not lose detail in harsh light or in heavily shaded frame patria.
• PoE power supply - UTP twisted pair connected to the power supply is all you need to start the camera.
• Power supply 12V - In addition to PoE, the camera can also be powered by an optional 12V power supply.
• ROI function - The camera compresses the image to allow instant recording. This has a slight impact on its quality. Thanks to the ROI function, you can designate the area of the frame you are interested in, which the camera will keep in the best quality, while lowering it where it is not so needed.
• AI functions
• detection of an intruder
• crossing the line
• wandering
• detection of assemblies
• detection of vehicles
• intrusion into the field
• Two ways to save data - Save recordings to a recorder or memory card. The camera supports cards with capacities of up to 1TB.
• Wide viewing angle - Diagonal field of view is 128°.
• Built-in micfrophone - In addition to the image, the camera also captures the soundtrack.
• Corridor mode - Allows the use of panoramic cameras in places with a high vertical span.
• Weather resistant - The camera has an IP67 tightness class, which means that it can work in the most difficult conditions.
• Snow reduction - In harsh environments, digital cameras tend to generate noise. IP5M25TF-II reduces this noise leaving the image smooth and detailed.
• Privacy masks - There may be objects or other properties in the frame, which you can exclude from monitoring using privacy masks. Draw a black rectangle in the frame to cover a fragment of the image.
• HLC function - That is, image compensation when the light falls directly into the lens. The camera can see the entire scene even under the sun.
• WEB interface supporting popular browsers - You can log in to the camera in well-known browsers such as Google Chrome, Mozilla Firefox or Safari.
• Support ONVIF - The camera is extremely versatile. Thanks to the support of ONVIF, it cooperates with devices of many other brands.

SONY Transducer

The Sony IMX335 sensor is a 1/2.8-inch CMOS image sensor with a resolution of 5 megapixels, which provides high image quality in low light conditions thanks to STARVIS technology, enabling excellent sensitivity to light. This matrix also features high resolution and dynamic range, making it ideal for use in surveillance systems and security cameras.

High quality image

The latest technologies used in the sensor and camera sensor in combination with advanced optics provide high-quality images with excellent sharpness compared to lower-resolution cameras. The device captures in 5MPx resolution, ensuring that even the smallest detail is captured on the footage.

Automatic Day/Night Mode

Suitable for use in all lighting conditions with visibility up to 25m even in complete darkness. In addition, the Day/Night sensor switches the vision mode automatically based on the amount of light reaching the lens.

Wide dynamic range: DWDR

The use of extended DWDR image dynamics ensures the quality of recordings by detecting and introducing lighting corrections in places where there are x-rays and lack of light. Thanks to this solution, the device is able to capture the details of the contrasting image.

Remote access from desktops and smartphones

Bitvision is a simple and quick way to operate the monitoring system of your property, thanks to which you will be able to:

✅Get access to video preview and play back saved footage

✅Save fragments of the film to the memory of the smartphone

✅Configure time frame for motion detection

✅Receive notifications from motion detection or other events

✅Share your devices on other smartphones with the mobile app, e.g. family members or employees

Power Over Ethernet (PoE)

The Power over Ethernet (PoE) feature in LV-V-IP5M25DF-B-II is a technology that allows data and electrical power to be transferred to a network device using a single Ethernet cable. Thanks to this solution, cameras can be installed in places where access to power sources is limited or non-existent. PoE simplifies installation, reducing the need for additional cables and power supplies. In addition, PoE-based surveillance systems are easier to scale, as adding a new camera only requires connecting it to the PoE network. This increases the flexibility and cost-effectiveness of monitoring systems.

Support for popular browsers

WEB server in Keeyo cameras is supported by popular browsers such as Google Chrome, Mozilla Firefox or even Safari.

Accurate notifications without false alarms

The human and car silhouette detection feature in the LV-V-IP5M25DF-B-II offers significant advantages such as increased efficiency and accuracy in monitoring. It allows you to automatically recognize and track specific objects, which minimizes false positives and makes it easier to respond quickly to real threats or suspicious events, improving the overall security and efficiency of your surveillance systems.

Thanks to this detection, the camera has the ability to perform additional detection tasks. The LV-V-IP5M25DF-B-II additionally detects:

• Crossing the line
• Mistake
• Assemblies
• Invasion into the field

Built-in microphone

The built-in microphone in the LV-V-IP5M25DF-B-II allows you to record audio, which significantly increases the possibilities of surveillance and analysis of the situation. With the audio recording feature, you can better understand the context of events, identify voices, detect disturbing sounds, and monitor spaces not only visually but also acoustically, which supports a more comprehensive approach to security and real-time intervention.

Region of interest

The ROI (Region of Interest) function in the LV-IP5M25DF-B-II allows you to select and prioritize a specific area in the camera's field of view, ensuring higher image quality in that area while reducing quality in the rest of the parts. This allows you to use your camera resources and transmission bandwidth more efficiently, focusing on key locations such as entrances or cash registers.

Resistant to weather conditions

The IP67 rating ensures that the camera can be placed anywhere. Even during the most difficult weather conditions, the device guarantees trouble-free operation thanks to the high-quality materials from which the device housing is made.

Technical specification:

• Camera: LV-V-IP5M25TF-B-II

Camera

• Image converter: 1/2,8" SONY Starvis CMOS sensor with rear backlight
• Resolution: 5MP
• Image resolution: 2616x1964
• Compression: H.264/H.264+/H.265/H.265+
• Audio compression: G711A/U,AAC
• TV System: PAL/NTSC
• Electronic shutter: Auto: 1/3-1/100000
• Minimum lighting: Color: 0.006 Lux @ (F1.6, AGC ON), Black and White: 0 Lux with IR
• S/N Ratio: 60dB

Lens

• Focal and field of view: 2.8mm / 106° (horizontal), 56° (vertical), 127° (diagonal)
• Lens type: Fixed-focal
• Focus: Permanent
• Cover: F1.6

Night vision

• Assistance light: 42µ x 2PCS
• Assistance light range: 25 meters

Network

• Ethernet: RJ-45 (10/100Base-T)
• Protocols: TCP/IP,IPv4/v6, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP ,PPPoE, NTP, SMTP, UDP, SNMP,Qos,802.1x
• ONVIF: Profile S/T/G version 19.12
• P2P: Yes
• POE: IEEE 802.3af
• Main stream: 2592x1944 at 30fps
• Substream: 1280x720 at 30fps
• Browser support: Google Chrome, Mozilla Firefox, Safari
• Mobile application: Android, iOS

Functions of Ai

• Intrusion detection (based on detection of people and vehicles),
• detection of line crossings (based on detection of people and vehicles),
• presence detection (based on human detection),
• detection of human gathering (based on human detection),
• motion detection based on human detection,
• entering the area (based on detection of people and vehicles),
• leaving the area (based on detection of people and vehicles).

Camera Functions

• Day/Night: Color/Black and white
• Image configuration: Saturation/Brightness/Contrast/Sharpness, Reflection, 3DNR, White balance, Anti-shimmer, Strong light compensation
• Corridor mode: Yes
• Area of interest: Yes
• Reverse light compensation: Yes
• Wide dynamic range: Yes
• Motion detection: Yes (recognition of silhouettes of people and cars)
• Privacy masks: 3 rectangular masks
• Language: Polish

Interfaces

• Audio: Built-in microphone
• Slot microSD card: Yes (supports cards up to 1TB)

General

• Housing: Metal, IP67
• Environmental temperature: from -30° to +60° Air humidity 95%
• Power Supply: DC12V, 700mA / PoE
• Dimensions: 70 x 67.5 x 169 (mm)
• Weight: 600g

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	EAN (GTIN)	5905172107494
Parametry	Manufacturer code	LV-V-IP5M25DF-B-II
Parametry	Brand	no brand
Parametry	Model	LV-V-IP5M25DF-B-II
Parametry	Packaging status	original
Parametry	Kind	internal,external
Parametry	Certificates of conformity	CE,WEEE
