DS-2CD2383G2-LI2U/SL

Camera, 8MPx, 2,8mm lens. AcuSense, Smart Hybrid Light IR+LED 30m, LiveGuard = active deterrence

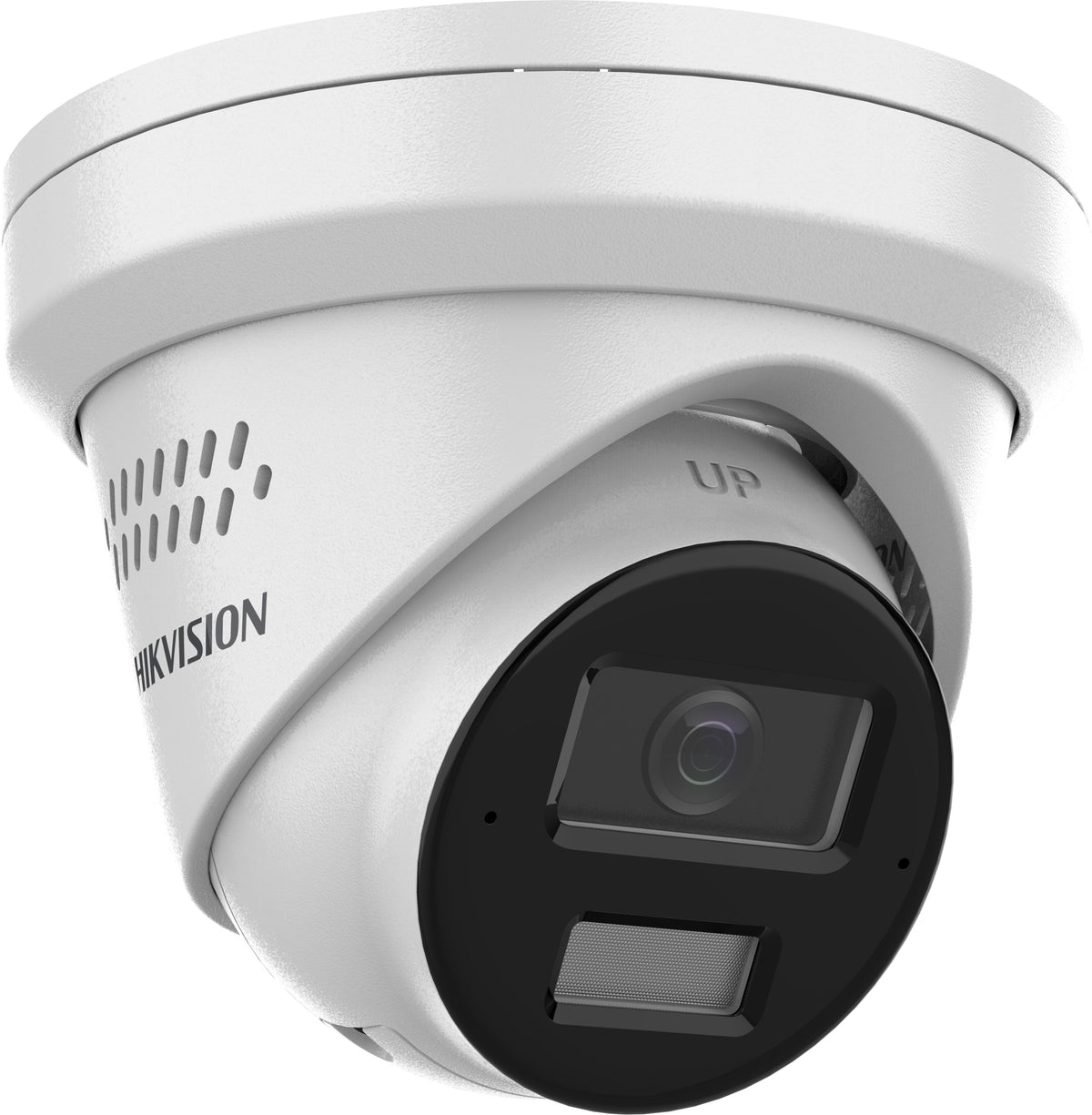

DS-2CD2383G2-LI2U/SL is a turret IP camera with a fixed lens and illuminator operating in white or infrared light technology at a distance of 30 meters. The device comes from the Hikvision Smart Hybrid Light camera series and is equipped with AcuSense technologies. The camera can work in three different night modes offering black and white image using IR diode, color when using visible light LED or SMART mode, which automatically changes IR mode to LED when human or vehicle is detected.

The DS-2CD2383G2-LI2U/SL uses a built-in white strobe light and a siren volume of up to 110 dB to actively deter intruders. The function starts automatically when a human or vehicle is detected, thanks to AcuSense technology. The alarm works preventively, increasing the security of the protected area.

• 1/2.8" Progressive Scan CMOS image sensor max resolution 8Mpx (3840 x 2160)
• 2.8mm fixed focal length lens - 108° horizontal / 59° vertical viewing angle
• Sensitivity - Colour: 0.005 Lux @ (F1.6, AGC ON)
• Wide dynamic range WDR 120dB
• Built-in IR+LED dual illuminator with a range of up to 30m
• Built-in dual microphone and speaker
• AcuSense technology
• Image compression H.265/H.264/H.264+/H.265+
• Built-in microSD card pocket up to 512GB
• Smart Hybrid Light - the use of a double illuminator
• AcuSense - object classification (human/vehicle) with false alarm filtering
• built-in 2 microphones

The smart hybrid illuminator is one of the illuminator modes used in the camera. It allows white light to be switched on only if it is detected in the detection zone of a human or vehicle. In the event that a person leaves the monitored area, the LED illuminator is switched to IR illumination after 1 minute. In addition to the mentioned mode, the user can also choose from LED mode (only white light, which allows color image at night); IR mode (infrared only) or complete switching off the illuminator.

The Live Guard feature in Hikvision cameras is an advanced active intruder deterrent system that combines sound and light signals. When motion is detected, the camera triggers a flashing LED and an audible alarm to deter a potential intruder from entering the monitored area. The system sends notifications to the user's mobile application, which allows for quick response to threats. Two-way communication is also possible, allowing you to talk to a person within camera range thanks to the built-in microphone and speaker. This makes the system more interactive and effective in security management. Thanks to Live Guard, users can effectively react to events, which significantly increases the level of security in the monitored areas

AcuSense technology, based on deep learning algorithms, now allows you to classify objects in both external and internal devices. Thanks to precise recognition, the system can filter out up to 90% of events that trigger false alarms, which significantly increases the accuracy and effectiveness of alarming and contributes to reducing labor costs.

• Detection of intrusion
• Detection of line crossing
• Detection of entry into the area
• Detection of exit from the area

Motion detection based on object recognition Motion Detection 2.0, MD2.0) – The technology based on a special algorithm first classifies objects (human/vehicle) and then in the second stage classifies motion. This allows for proper alerting regardless of the type of platform that will receive already developed alarm information, whether it is IVMS 4200, HikCentral or other Hikvision software. Thanks to the motion detection function with classification, we can count on high accuracy and effectiveness of alarming. It is enough to draw a standard motion detection grid (activity mask) and determine what type of objects are to be analyzed by the device.

even smaller bandwidth and more disk space

The HIkvision camera uses H.265+ compression to reduce network bandwidth occupancy and reduce disk occupancy in the recorder. Thanks to the use of intelligent analysis, predictive coding, background noise elimination and adaptive bandwidth control, gain over H.264 compression. At the same time, in order to maintain compatibility with other systems, it is possible to use standard H.264 compression.

allows you to manage the camera without additional configuration on the router. With HIK-CONNECT, you have the ability to remotely control all camera functions at your fingertips.

HIK-CONNECT service is designed to work as well as with NVR and Hikvision IPC cameras. Thanks to the instant warning function, you can receive instant motion detection notifications so that we can take the necessary actions to ensure the safety of your property or loved ones.

Key Features:

1. Real-time live view.
2. Playback of recorded films.
3. Instant Alerts

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 3840 × 2160
• Min. Illumination: Color: 0.005 Lux (F1.6, AGC ON); 0 Lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Day/Night: IR Cut Filter
• Camera Adjustments: Pan 0° to 360°, Tilt 0° to 75°, Rotation 0° to 360°
• Lens Options: Fixed focal: 2.8 mm
• FOV (2.8 mm): 108° (Horizontal), 59° (Vertical), 127° (Diagonal)
• Mounting: M12
• Aperture: Fixed, F1.6
• Depth of Field (2.8 mm): 1.7 m to ∞
• DORI (2.8 mm): Detect: 84 m, Observe: 33 m, Recognize: 16 m, Identify: 8 m
• Illuminator: IR + White Light, up to 30 m range, 850 nm, Smart Supplement Light
• Main Stream (50 Hz): 20 fps (3840×2160); 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
• Main Stream (60 Hz): 20 fps (3840×2160); 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
• Sub Stream (50 Hz): 25 fps (1280×720, 640×480, 640×360)
• Sub Stream (60 Hz): 30 fps (1280×720, 640×480, 640×360)
• Third Stream (50/60 Hz): 10 fps (1920×1080, 1280×720, 640×480, 640×360) — supported in some settings
• Video Compression: Main: H.265/H.264/H.264+/H.265+; Sub Stream: H.265/H.264/MJPEG; Third Stream: H.265/H.264 (conditional)
• Video Bitrate: 32 Kb/s to 16 Mb/s
• Video Profiles: H.264: Baseline/Main/High; H.265: Main
• Bitrate Control: CBR / VBR
• SVC / ROI: SVC (H.264/H.265); 1 fixed ROI (main and sub stream)
• Target Cropping: Yes
• Audio Codecs: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bitrate: 64 Kb/s (G.711); 16 Kb/s (G.722.1/G.726); 32–192 Kb/s (MP2L2); 8–320 Kb/s (MP3); 16–64 Kb/s (AAC-LC)
• Audio Sampling Rate: 8/16/32/48 kHz
• Noise Reduction: Yes
• Microphone / Speaker: Dual-array microphone; 1 speaker, max 2 W, 110 dB @ 10 cm
• Network Protocols: TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s)
• Live View: Up to 6 channels
• API: ONVIF (Profile S/G), ISAPI, SDK, ISUP
• Users: Up to 32 (administrator, operator, user)
• Security: Password, complex password, HTTPS, IP filter, audit log, basic/digest authentication (HTTP/HTTPS), TLS 1.1/1.2/1.3, WSSE and digest authentication for ONVIF
• Network Storage: NAS (NFS, SMB/CIFS), ANR; with Hikvision card: card encryption and status detection
• Client: iVMS-4200, Hik-Connect, Hik-Central
• Browser: Plug-in free viewing: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+; Local services: Chrome/Firefox/Edge 80+, Safari 13+
• Image Settings: Profile switching; Day/Night: Day/Night/Auto/Schedule
• WDR / SNR: 120 dB; ≥52 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Privacy Masks: 8 programmable polygonal masks
• Interface: 1 × RJ-45 10/100M (auto); microSD/microSDHC/microSDXC slot up to 512 GB; Reset button: Yes
• Basic Events: Motion detection (human/vehicle), video tampering, exception
• Linkage Methods: FTP/NAS/card, notification to center, email, recording, snapshot, strobe alarm, strobe light
• Deep Learning: Perimeter protection: line crossing, intrusion (human/vehicle)
• Strobe Light: SRB models: Red/Blue; Other models: White
• Power Supply: 12 VDC ±25%, 1.25 A, max 15 W (Ø5.5 mm coaxial plug); PoE IEEE 802.3at Class 4, max 18 W
• Material: Metal
• Dimensions: Ø127.3 × 96.3 mm (Ø5" × 3.8")
• Package Dimensions: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
• Weight: Approx. 590 g (with package approx. 820 g)
• Storage Conditions: −30 °C to 60 °C; RH ≤95% (non-condensing)
• Operating Conditions: −30 °C to 60 °C; RH ≤95% (non-condensing)
• Language: Polish
• General Functions: Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
• EMC Certifications: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM; ICES-003 (Issue 7); KC KN32/KN35
• Safety: CB IEC 62368-1:2014+A11; CE-LVD EN 62368-1:2014/A11:2017; LOA IEC/EN 60950-1
• Environment: CE-RoHS 2011/65/EU; WEEE 2012/19/EU; REACH (EC 1907/2006)
• Protection: IP67 (IEC 60529-2013)
