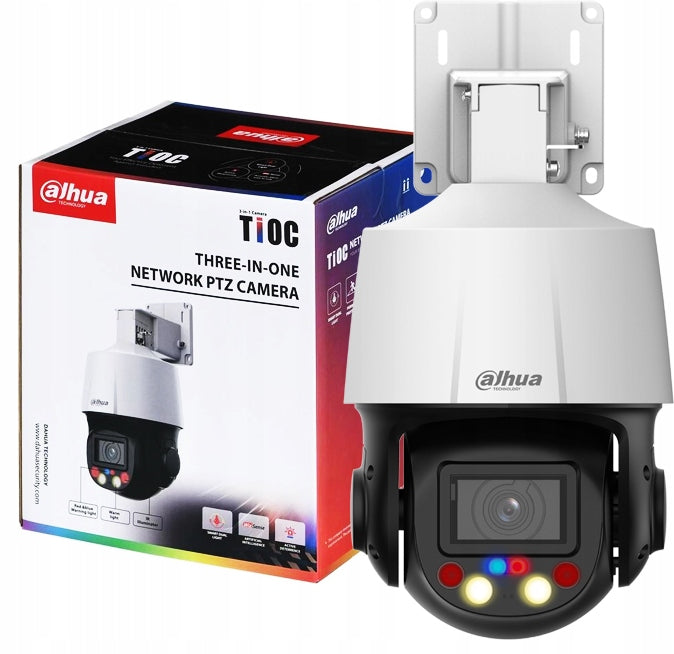

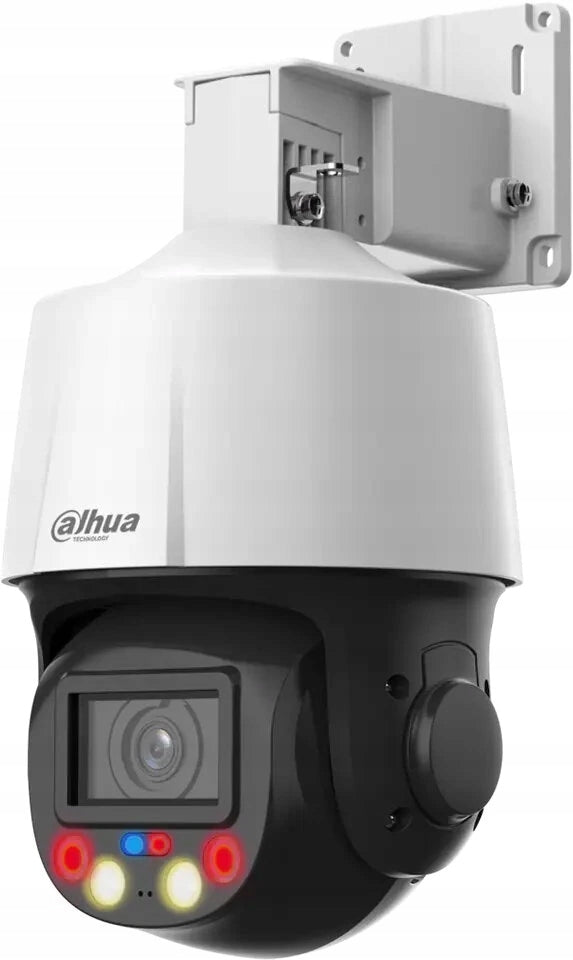

IP kamera Dahua SD3E405DB-GNY-A-PV1, 4MP, su sukiojama galvute, AI analize

Trumpai apie prekę

Prekė: IP kamera Dahua SD3E405DB-GNY-A-PV1, 4MP, su sukiojama galvute, AI analize. Kategorija: IP kameros.

• Gamintojas: no brand
• Modelis: 601300779

The high-speed IP SD3E405DB-GNY-A-PV1 camera is equipped with a 1/2.8" CMOS image converter for high image quality with a resolution of 4Mpx (2560x1440). The earthfocal lens with a focal length of 2.7-13.5mm has 5x optical zoom. Built-in infrared heater IR with a range of up to 50m allows observation at night and illumination with white (warm) light up to 30m. The camera also has a number of signal processing functions, reducing noise and improving image quality, such as: WDR120dB, AGC, HLC, BLC. The housing in the tightness class IP66 and a wide range of permissible temperatures allow the camera to work in difficult weather conditions.

Key features of the camera:

• 4MP 5x TiOC WizSense PTZ Network Camera
• Rotating
• 1/2,8" CMOS sensor 4 megapixels
• 5x optical zoom
• SMD 3.0- filtering false alarms
• Infrared range up to 50 m
• Warm light range up to 30 m
• Peripheral protection
• Face detection
• Alarm: 1 input, 1 output
• Audio: 1 input, 1 output
• Built-in microphone and speaker for two-way calls
• 12 VDC/PoE power supply
• Protection class IP66
• Sound and light alarm (red and blue lights)

Specification:

• Image Sensor: 1/2.8-inch CMOS Sensor
• Pixel: 4 MP
• Max. Resolution: 2560 (H) × 1440 (W)
• ROM: 128 MB
• RAM: 512 MB (MAC version)
• Electronic Shutter Speed: 1/1 s to 1/30,000 s
• Scanning System: PS
• Min. Illumination: Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
• Illumination Distance: 50 m (164.04 ft) (IR); 30 m (98.43 ft) (Warm Light)
• Illuminator On/Off Control: Zoom Prio; Manual; Auto; Off
• Number of LEDs: 2 (IR); 2 (Warm Light); 1 (Red Light); 1 (Blue Light)

Lens

• Focal Length: 2.7–13.5 mm
• Max. Aperture: F1.6–F3.0
• Field of View: H: 94.9°–30.1°; V: 51°–17.1°; D: 112.3°–34.6°
• Optical Zoom: 5×
• Focus Control: Auto; Semi-Auto; Manual
• Close Focus Distance: 1.5 m (4.92 ft)
• Aperture Control: Fixed

DORI Distance

• Detect: 270 m (885.83 ft)
• Observe: 106.6 m (349.74 ft)
• Recognize: 54 m (177.17 ft)
• Identify: 27 m (88.58 ft)

PTZ Camera

• Pan/Tilt Range: Pan: 0° to 355°; Tilt: –15° to +90°
• Manual Control Speed: Pan: 0.1°/s–36°/s; Tilt: 0.1°/s–25.8°/s
• Preset Speed: Pan: 35.7°/s; Tilt: 27.1°/s
• Presets: 300
• Power-off Memory: Yes
• Idle Motion: Presets

Intelligence

• IVS (Perimeter Protection): Tripwire; intrusion; fence crossing detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
• Face Detection: Supports face detection, snapshot, and face enhancement; Supports face cutout: face, single-inch photo; Capture strategies include real-time capture and quality first.
• Auto-tracking Lite: Yes
• SMD: Yes

Active Deterrence

• Light Warning: Red and blue light warning; Flash Time: 5 s–30 s; Flash Frequency: High, medium, low
• Sound Warning: Offers 21 types of sound alarms and supports importing custom sound alarms. Sound alarm playback times can be set from 1 to 10.

Video

• Video Compression: H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (sub stream); Smart H.264+
• Streaming Capability: 3 streams
• Resolution: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
• Video Frame Rate: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps); Sub stream 1: D1/CIF/VGA@ (1–25/30 fps); Sub stream 2: 720p @(1–25/30 fps)
• Bit Rate Control: CBR/VBR
• Video Bit Rate: H.264: 96 kbps–14848 kbps; H.265: 38 kbps–8960 kbps
• Day/Night: Auto (ICR)/Color/B/W
• BLC: Yes
• WDR: 120 dB
• HLC: Yes
• White Balance: Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural Light; Street Lamp
• Gain Control: Auto; Manual
• Noise Reduction: 2D NR; 3D NR
• Motion Detection: Yes
• Region of Interest (RoI): Yes
• Image Stabilization: Electronic (EIS)
• Defog: Electronic
• Digital Zoom: 16×
• Image Rotation: 180°
• Signal to Noise Ratio: ≥55 dB

Audio

• Audio Compression: G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM

Network

• Network Port: RJ-45 (10/100 Base-T)
• Network Protocol: FTP; RTMP; IPv6; Bonjour; IPv4; DNS; Real Time Clock; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; SMB; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP
• Interoperability: CGI; SDK; ONVIF (Profile S&G&T); P2P
• Streaming Method: Unicast/Multicast
• User/Host: 20 (Total bandwidth: 64 M)
• Storage: FTP/SFTP; Micro SD Card (512 GB); W
• Browser: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions
• Management Software: DMSS; DSS Pro
• Mobile Client: iOS; Android

Certification

• Certifications: CE: EN55032/EN55024/EN50130-4; FCC: Part 15 subpart B, ANSI C63.4-2014

Interfaces

• Audio Input: 1 channel (LINE IN, bare wire, built-in mic (mutually exclusive))
• Audio Output: 1 channel (LINE OUT, bare wire; built-in speaker (mutually exclusive))
• Alarm Event: Motion detection/tampering; audio detection; network disconnection detection; IP address conflict detection; memory card status detection; memory space detection
• Alarm I/O: 44927
• Audio I/O: 44927

Power

• Power Supply: 12 V DC, 2 A ± 10%; PoE+ (802.3at)
• Power Consumption: Basic: 4.5 W; Max: 15 W (illuminator + PTZ + speaker + heating glass)

Operating Conditions

• Temperature: –30°C to +60°C (–22°F to +140°F)
• Humidity: ≤95%
• Protection: IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection

General

• Product Dimensions: 142.6 mm × 140 mm × 236.1 mm (5.61" × 5.51" ×9.29")
• Net Weight: 1.5 kg (3.31 lb)
• Gross Weight: 2.1 kg (4.63 lb)
