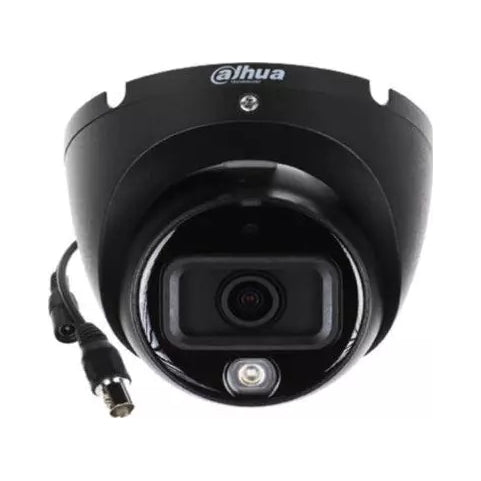

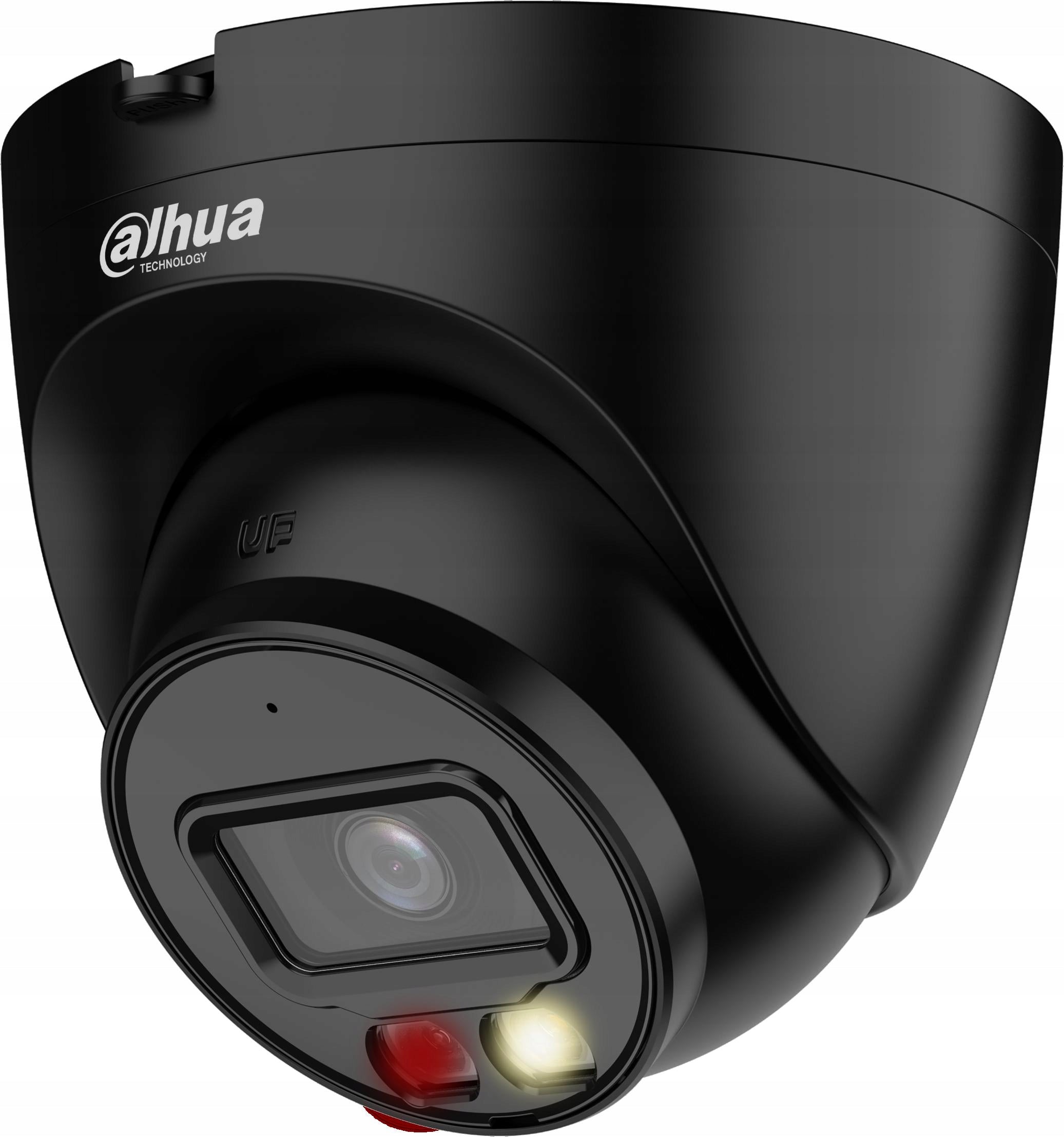

IP kamera DAHUA IPC-HDW1639T-A-IL-0280B-S6 juoda

Trumpai apie prekę

Prekė: IP kamera DAHUA IPC-HDW1639T-A-IL-0280B-S6 juoda. Kategorija: Fotoaparatai.

• Gamintojas: Dahua
• Modelis: IPC-HDW1639T-A-IL-0280B-S6 BLACK

IP DAHUA IPC-HDW1639T-A-IL-0280B-S6-BLACK

IP camera 6mpx Dahua surveillance camera - the most important features:

The 1/2,7" CMOS image converter provides excellent image quality even in low light conditions, enabling accurate monitoring in harsh environments.

The resolution of up to 6 MP guarantees exceptional image detail, while the 30 fps operation option ensures smooth and precise recordings, ideal for dynamic scenes.

Advanced H.265 compression significantly reduces bandwidth and disk space consumption, which reduces storage costs and enables longer archiving of materials.

Built-in infrared and warm lighting provides visibility at night at a distance of up to 30 meters, which guarantees safety around the clock.

The SMART encoding functions adapt to different network and storage conditions, which increases the efficiency of the system without loss of quality.

Advanced image functions (DWDR, 3D NR, HLC, BLC) optimize image quality by eliminating interference, reflections and intense light, allowing monitoring in all conditions.

The built-in microphone allows you to record audio, which increases the level of control and enables more complete analysis of events.

12 VDC/PoE power supply simplifies installation, eliminating the need for multiple cables and reducing deployment costs.

IP67 protection guarantees resistance to harsh weather conditions, which ensures the longevity of the device outside.

People detection increases the effectiveness of monitoring, automatically reacting to the appearance of people in the field of vision, which increases the level of safety.

Exceptional 6 MP Resolution for Your Safety

The Dahua IPC-HDW1639T-A-IL-0280B-S6 IP camera with 6 MPX resolution provides an exceptionally clear and detailed image, which translates into better identification of people, license plates or small details. With its high resolution, you can monitor a larger area without sacrificing quality, reducing the need for additional cameras. It is an ideal solution for customers who expect precise supervision and greater safety in places such as shops, parking lots or offices. High resolution also means more effective approximation of the image without losing detail, making it easier to analyze recordings in critical situations.

Intelligent Protection: Precise Human Detection for Better Security

The camera with the function of human detection is a modern solution that increases the effectiveness of monitoring. The device can accurately recognize the presence of people in the field of vision, eliminating false alarms caused by animals or moving objects. Thanks to this, you can be sure that the system will react only when it is really needed. The human detection function provides faster response to threats, increases the level of security and gives full control over what is happening in the monitored area.

Full Control: Camera with Built-in Microphone for Comprehensive Monitoring

The Dahua IPC-HDW1639T-A-IL-0280B-S6 IP camera with built-in microphone is an ideal solution that provides not only image but also sound, which significantly increases the effectiveness of monitoring. By recording sounds, you have a more complete picture of the situation – you will hear conversations, alarm sounds or other important sounds that can escape traditional cameras. This feature gives you an additional level of control and increases security, allowing for better event analysis. This solution is particularly useful in offices, shops and places where full registration of the situation is crucial.

Full 24/7 Visibility: Smart Lighting for Best Monitoring

The DAHUA IPC-HDW1639T-A-IL-0280B-S6 IP camera with Smart Dual Light function guarantees excellent visibility in all conditions thanks to the use of dual lighting. Integrated LEDs and infrared (IR) allow for full-color images day and night, giving you complete control over the monitored area.

Thanks to Full-Color technology, you can have a clear, colorful image around the clock – regardless of the time of day or lighting level.

The camera also offers four lighting modes that you adjust to your needs: infrared only, LED only, smart mode (IR + LED), as well as a schedule option that allows you to precisely manage the lighting, saving energy and adapting it to the conditions.

​

Easy Installation and Savings: 12 VDC/PoE power supply for your Convenience

The camera offers power over both 12 VDC and PoE (Power over Ethernet), which significantly simplifies the installation process. With PoE technology, you can transfer power and data with a single cable, eliminating the need for multiple wires. This not only reduces installation time, but also reduces implementation costs, while also providing a cleaner and more aesthetically pleasing solution. Ideal for companies that value simplicity, efficiency and cost optimization.

SMD Plus

SMD Plus Thanks to its intelligent algorithm, Dahua Smart Motion Detection technology can recognize which objects are causing motion and filter out those that are not important, allowing for accurate and effective detection of alarms.

Dahua's SMD Plus (Smart Motion Detection Plus) technology is an advanced video surveillance solution that enables you to:

• High detection precision: Distinguishes people and vehicles from other objects, reducing the number of false alarms.
• Filteration of irrelevant movements: Ignores animal-induced movements, leaves or lighting changes.
• Quick Event Search: Allows you to quickly search recordings for the presence of people or vehicles.
• Easy setup: The intuitive interface allows you to quickly set the detection function.
• Visualization of alarms: Clearly indicates whether the alarm was triggered by a human or a vehicle.

Dahua mobile app: DMSS

DMSS is a mobile surveillance application with features such as remote monitoring, video playback, push notifications, device initialization and remote configuration. Devices such as IPC, NVR, XVR, VTO, doorbells, alarm hubs and access controllers can be added. Once you sign in to your account, you can use cloud services such as cloud updates and so on. The app supports iOS 9.0 and Android 5.0 or later and can be used with 3G/4G/Wi-Fi.

DSS EXPRESS / Smart PSS lite software

• Free DSS EXPRESS / Smart PSS lite software for your computer allows you to manage the entire system.
• What’s more, the DMSS mobile application for the phone is available on most popular platforms (Android, iOS, Windows Phone) and allows remote viewing from anywhere in the world.
• An important function is also motion detection, thanks to which we will get information on the detected event.
• In addition, it has an intuitive interface and polish menu for easy use.

Technical Specifications

• Image Settings: Brightness; Contrast; Sharpness; Saturation; Gamma
• OSD Overlay: Time; channel; location; custom
• Recording Mode: Manual Recording; Motion Detection Recording; Schedule Recording; Alarm Recording Priority: Manual > Motion Detection > Schedule
• Factory Settings: One-click restore support
• User Management: Up to 20 users
• Security: Username and Password; MAC address; HTTPS; Network Access Control
• Low Light Level: Starlight
• Human Detection: Supports human classification and accurate human detection
• Smart Search: Works with Smart NVR for precise smart searches, event extraction, and event video correlation
• Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Substream only)
• Smart Codec: Smart H.265+; Smart H.264+
• Frame Rate: Main stream: 3200 × 1800@(1–20 fps)/2688 × 1520@(1–25/30 fps) Substream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *Above values are the max. frame rates for each stream; for multiple streams, these values will be subject to the total encoding capacity.
• Stream Capability: 2 Streams
• Resolution: 6M (3200 × 1800); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
• Bitrate Control: VBR; CBR
• Video Bitrate: H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
• Day/Night Mode: Auto(ICR)/Color/B/W
• BLC: Yes
• HLC: Yes
• WDR: DWDR
• White Balance: Auto; Natural; Street Lamp; Outdoor; Manual; Custom Regional
• Gain Control: Auto/Manual
• Noise Reduction: 3D NR
• Motion Detection: Off/On (4 areas, rectangular)
• Default Bitrate with Default Resolution: 4096 kbps (3200 × 1800)
• Region of Interest (RoI): Yes (4 areas)
• Smart Illumination: Yes
• Smart Dual Illumination: Yes
• Image Rotation: 0°/90°/180°/270° (Support 90°/270° rotation with 2688 × 1520 resolution and lower)
• Mirror: Yes
• Privacy Masking: 4 areas
• Language: English; Russian; Spanish
• Alarm Events: Network Disconnection; IP Conflict; Illegal Access; Motion Detection; Video Tampering; Sound Detection; SMD (Human); Security Exception
• Network Port: RJ-45 (10/100 Base-T)
• SDK and API: Yes
• Network Protocol: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Interoperability: ONVIF (Profile S & Profile T); CGI
• User/Host: 20 (Total bandwidth: 48 M)
• Storage: FTP
• Browser: IE; Chrome; Firefox
• Management Software: Smart PSS Lite; DSS; DMSS; DoLynk Care
• Mobile Client: iOS; Android
• Cybersecurity: Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; X.509 certificate generation and import; HTTPS; trusted boot; trusted execution; trusted upgrade
• Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity: ≤95%(RH), non-condensing
• Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity: ≤95%(RH), non-condensing
• Protection: IP67
• Lens Type: Fixed focal
• Lens Mount: M12
• Focal Length: 2.8 mm
• Max Aperture: F1.6
• Field of View: H: 110°; V: 58°; D: 132°
• Aperture Control: Fixed
• Minimum Focus Distance: 1.1 m (3.61 ft)
• DORI Distance: D: 63.6 m; O: 25.4 m; R: 12.7 m; I: 6.4m (D: 208.66 ft; O: 93.33 ft; R: 41.67 ft; I: 21.00 ft) *DORI (Detect, Observe, Recognize, Identify) is a standard (EN-62676-4) which defines the distance at which a viewer can ascertain the identity of a person or object with a specific level of confidence. The numbers specified in the table are not the distance of intelligent functions. For intelligent function distances, please refer to the installation and commissioning manual/design tool.
• Camera Appearance: Bullet
• Image Sensor: 1/2.7" CMOS
• Pixel: 6 MP
• Max Resolution: 3200 (H) × 1800 (V)
• ROM: 128 MB
• RAM: 256 MB
• Scanning System: Progressive
• Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
• Minimum Illumination: 0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
• Signal to Noise Ratio (S/N): >56 dB
• Illumination Distance: Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm Light)
• Illuminator On/Off Control: Auto; Manual
• Number of Illuminators: 1 (Multi-core (IR + Warm) light)
• Angle Adjustment: Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360°
• Built-in Microphone: Yes, built-in microphone
• Audio Compression: G.711a; G.711Mu; PCM; G.726
• Audio Sampling: 8 kHz; 16 kHz
• Housing Material: Metal

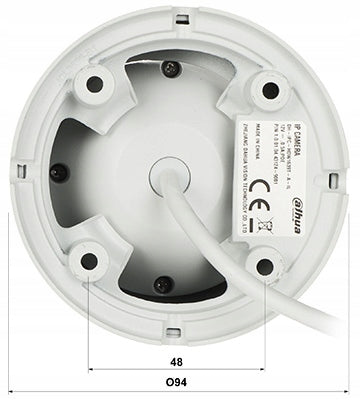

• Product Dimensions: 85.6 mm × Φ94.0 mm (3.37" × Φ3.7")
• Package Dimensions: 110 mm × 110 mm × 108 mm (4.33" × 4.33" × 4.25") (L × W × H)
• Net Weight: 0.34 kg (0.75 lb)
• Gross Weight: 0.45 kg (0.99 lb)
• Mounting: Ceiling Mount; Wall Mount; Pole Mount
• Certifications: CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
• Operating Voltage: 12 VDC (±30%); PoE (802.3af)
• Power Supply: 12 VDC/PoE (802.3af)
• Power Consumption: Basic: 2 W (12 VDC), 2.9 W (PoE); Max.: 4 W (12 VDC); 5.3 W (PoE) (H.265+ intelligence enabled + DWDR + illuminator intensity)

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	IPC-HDW1639T-A-IL-0280B-S6-BLACK
Parametry	Model	IPC-HDW1639T-A-IL-0280B-S6 BLACK
Parametry	Brand	Dahua
Parametry	Product width	9.4 cm
Parametry	Product height	8.6 cm
Parametry	Product depth	9.4 cm
Parametry	Product weight	450 g
Parametry	Product weight with unit packaging	0.45 kg
Parametry	Technology	IP
Parametry	Housing	dome
Parametry	Resolution	6 Mpx
Parametry	Signal-to-noise ratio	56 dB
Parametry	Lens	fixed-focus
Parametry	Camera waterproof rating	IP67
Parametry	Infrared range	30 m
Parametry	Functions	microphone
Parametry	EAN (GTIN)	6939554988462
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Camera type	colorful,infrared
