Inverterinis akumuliatoriaus įkroviklis 600A DIGITAL INVERTER CHARGER PRO

Trumpai apie prekę

Prekė: Inverterinis akumuliatoriaus įkroviklis 600A DIGITAL INVERTER CHARGER PRO. Kategorija: Baterijų įkrovikliai.

• Gamintojas: no brand
• Modelis: 600

INVERTER RECTIFIER WITH START-UP 600A DIGITAL INVERTER CHARGER PRO

INVERTER RECTIFIER WITH START-UP 600A DIGITAL INVERTER CHARGER PRO

Technical data:

• Model: BC-600 PRO+
• Supply Voltage: 230V/50Hz 7A
• Output voltage: 12 / 24V
• Output current: 80A
• Starting current : 600A
• Output: 5 - 80A
• Supported batteries: 50 - 800 Ah
• Degree of protection: IP20
• Insulation class: I
• Net weight : 5,5 kg
• Dimensions: 30 x 12 x 18 cm
• Length of charging cables: 1,45 m
• Power cord length: 2 m

Rectifier with two modes: Auto and Manual

This modern rectifier is the perfect solution for charging various types of batteries. It has two operating modes that provide comfort and flexibility in use:

1. Auto Mode – Intelligent automatic mode that adjusts charging parameters to the type of battery. The rectifier will automatically recognize its condition and adjust the charging process, ensuring optimal conditions for quick and safe charging. Ideal for users who value simplicity and convenience.
2. Manual mode – Manual mode allows you to manually set charging parameters such as VOLTY and AMPERY . Thanks to this, you have full control over the charging process, which is useful when you want to precisely adjust the settings to the specific needs of your battery.

Thanks to this functionality, the rectifier is extremely versatile and easy to use, both for those looking for simplicity and for those who prefer more advanced settings.

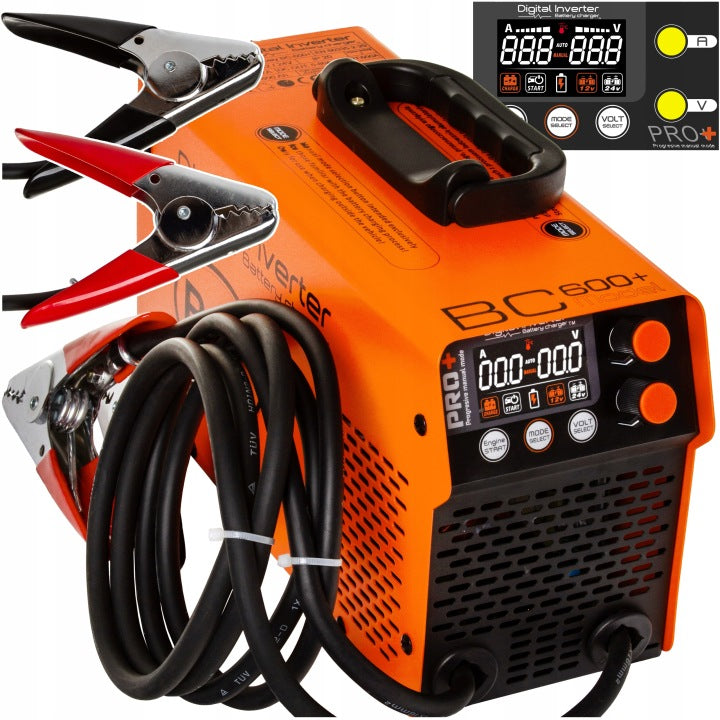

The BC-600 PRO + rectifier with charging function and start-up assistance is a professional device for charging and starting batteries with a voltage of 12V / 24V and battery capacity from 50Ah to 800Ah

Very light and handy, easy to use!!!

• Charging any type of battery.
• Smooth adjustment: V/A
• Small size and weight.
• Has a constant cooling system.

The device is designed to support the start-up of motor vehicles and machines with petrol and diesel combustion engines, having 12 V or 24 V installations. They are also used for ordinary charging of batteries.

The BJC inverter rectifier provides the possibility of effective and efficient charging and starting of both 12V and 24V batteries.

The BJC inverter rectifier is equipped with an extremely simple and clear control panel with LED display,

1. Charging current adjustment knob

2. Charging voltage adjustment knob

3. Voltage range selection button 12 / 24V

4. AUTO / MANUAL mode selection button | PRO+|

5. Charge/START mode selection button

*Orange color on the display indicates the set parameter

e.g. When the CHARGE icon lights up orange, the rectifier is set in boot mode. The sample photo on the right shows a rectifier with START/12V mode set

THICK WIRES PROVIDING MAX. EFFICIENCY AND EFFECTIVENESS

Dedicated, thick cables that do not limit the rectifier, ensuring max. efficiency and effectiveness

• Strong self-clamping frogs on springs included

Advanced technology and powerful integrated circuits were created to achieve the greatest possible efficiency and reliability of the device.

The BJC 600 starter rectifiers are ten times smaller than typical transformer starts available on the market and two or even three times more powerful.

LOOK TO THE FUTURE DON'T LOOK BACK :)

Don't be confused by appearances, designed to take up little space, be handy and compact and at the same time extremely powerful and efficient.

ATTENTION! After restarting, the rectifier always turns on in 12V mode even if it was previously set to charge or start 24V.
