Interneto signalo stiprintuvas GSM 3G 4G LTE su 2 antenomis

Trumpai apie prekę

Prekė: Interneto signalo stiprintuvas GSM 3G 4G LTE su 2 antenomis. Kategorija: Antenos stiprintuvai.

• Gamintojas: no brand
• Modelis: W002

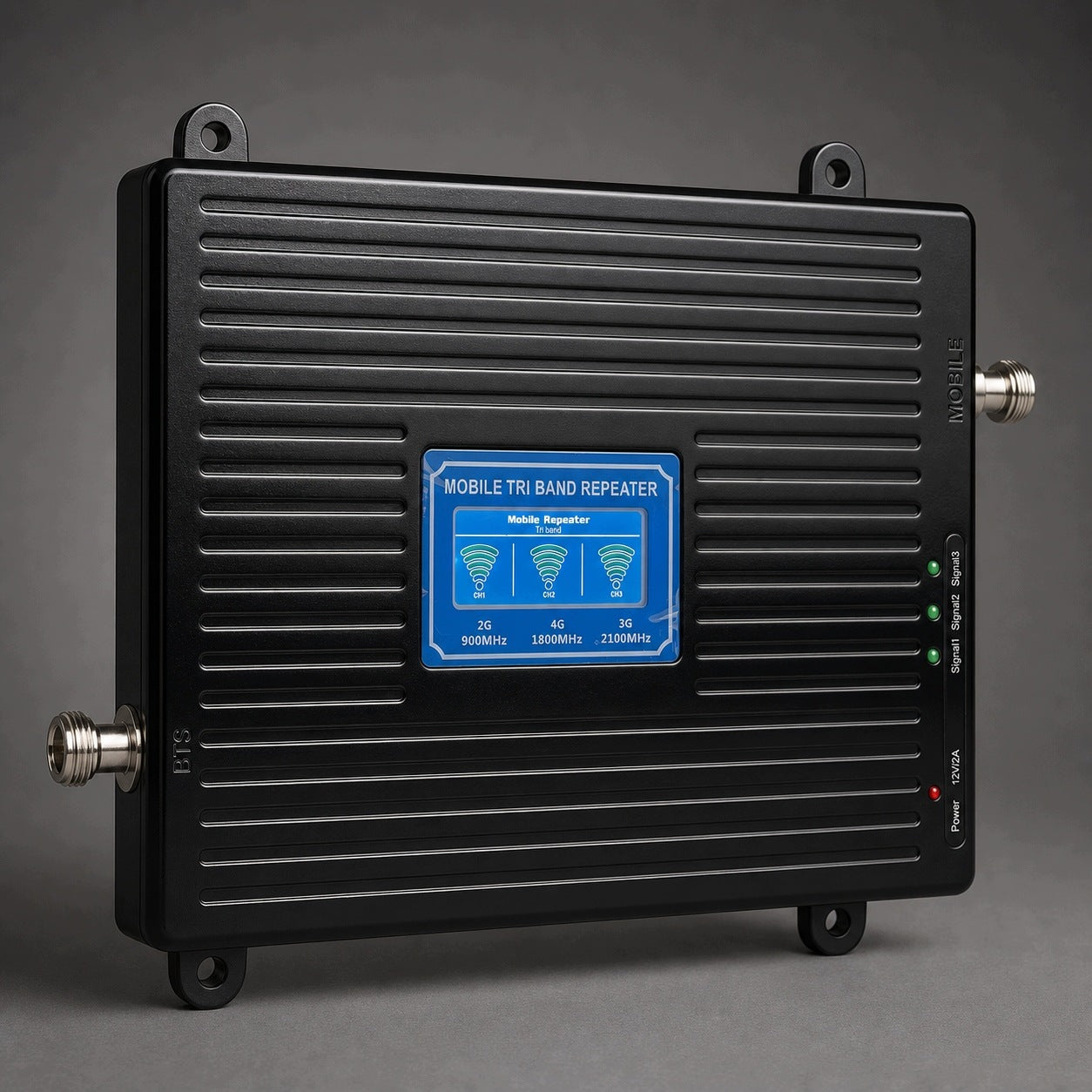

Three-band 2G/3G/4G repeater designed for professional operator installations. The kit includes a device with a screen, a logarithmic antenna, a black internal antenna, a 10 m cable, a power supply, and a metal antenna mounting kit.

The most important advantages

✅ Three supported bands – 2G 900 MHz, 4G 1800 MHz and 3G 2100 MHz.

✅ Set with two antennas – the set includes a white logarithmic antenna and a black internal antenna.

✅ Metal antenna mounting kit – angle, pressure profile, U-clamp and screws allow you to mount the antenna on the appropriate mast.

✅ 10 m cable – allows you to connect a logarithmic antenna with the main unit.

✅ Readable screen of the device – facilitates control of the operating status of the main unit.

✅ Metal housing with ribs – the design of the unit supports heat dissipation.

✅ N female connectors – standard N-Female antenna connections.

✅ Wide operating temperature range – according to the submitted specification from -25°C to +55°C.

Three bands in one device

✅ 2G 900 MHz – band marked on the device as a channel for 2G connections.

✅ 4G 1800 MHz – bandwidth marked on the device as a 4G transmission channel.

✅ 3G 2100 MHz – bandwidth marked on the device as 3G channel; service availability depends on the operator and location.

✅ Three-channel control – backlit screen and separate controls allow you to observe the operating status of CH1, CH2 and CH3.

Technical data

• Product type: three-band cellular signal repeater
• Supported standards: 2G/3G/4G
• Supported bands: 900 MHz / 1800 MHz / 2100 MHz
• Channel 1: 2G 900 MHz
• Channel 2: 4G 1800 MHz
• Channel 3: 3G 2100 MHz
• Uplink gain: 55-60 dB
• Downlink gain: 60-65 dB
• External antenna range: 800-960 MHz / 1710-2700 MHz
• External antenna gain: 11 dBi
• Maximum input power: ≤ -20 dBm
• VSWR: ≤ 2,5
• Delay: ≤ 1,0 μs
• NF noise factor: ≤ 6 dB
• Undesirable emissions: ≤ -36 dBm in the 9 kHz-12,7 GHz range
• Power consumption: 24 W
• Working temperature: -25°C to +55°C
• Antenna connectors: N female (N-Female)
• BTS connector: outdoor antenna track
• MOBILE connector: indoor antenna track
• Power supply: AC 110-240 V / DC 12 V, 2 A
• Unit dimensions: 230 × 180 × 20 mm
• Mass: 950 g

How does the kit work?

The logarithmic antenna receives an external signal and transmits it via coaxial cable to the main unit. The repeater processes the signal, and the black internal antenna distributes it on the receiving installation side. The device supports the 900 MHz, 1800 MHz and 2100 MHz bands.

What to check before choosing a set?

Before purchasing, it is necessary to determine whether a signal is available at the place of installation of the external antenna and what frequencies the operator uses in a given location. The set supports 900, 1800 and 2100 MHz bands. Installation efficiency depends on local conditions, antenna placement and professional configuration.

Where can it be applied?

After the correct selection of bands and installation by an authorized operator, the kit can be part of a signal improvement system in the home, office, warehouse, garage, outbuilding or hall. Efficiency depends on the signal available outside, the location of the antennas and the configuration of the entire system.

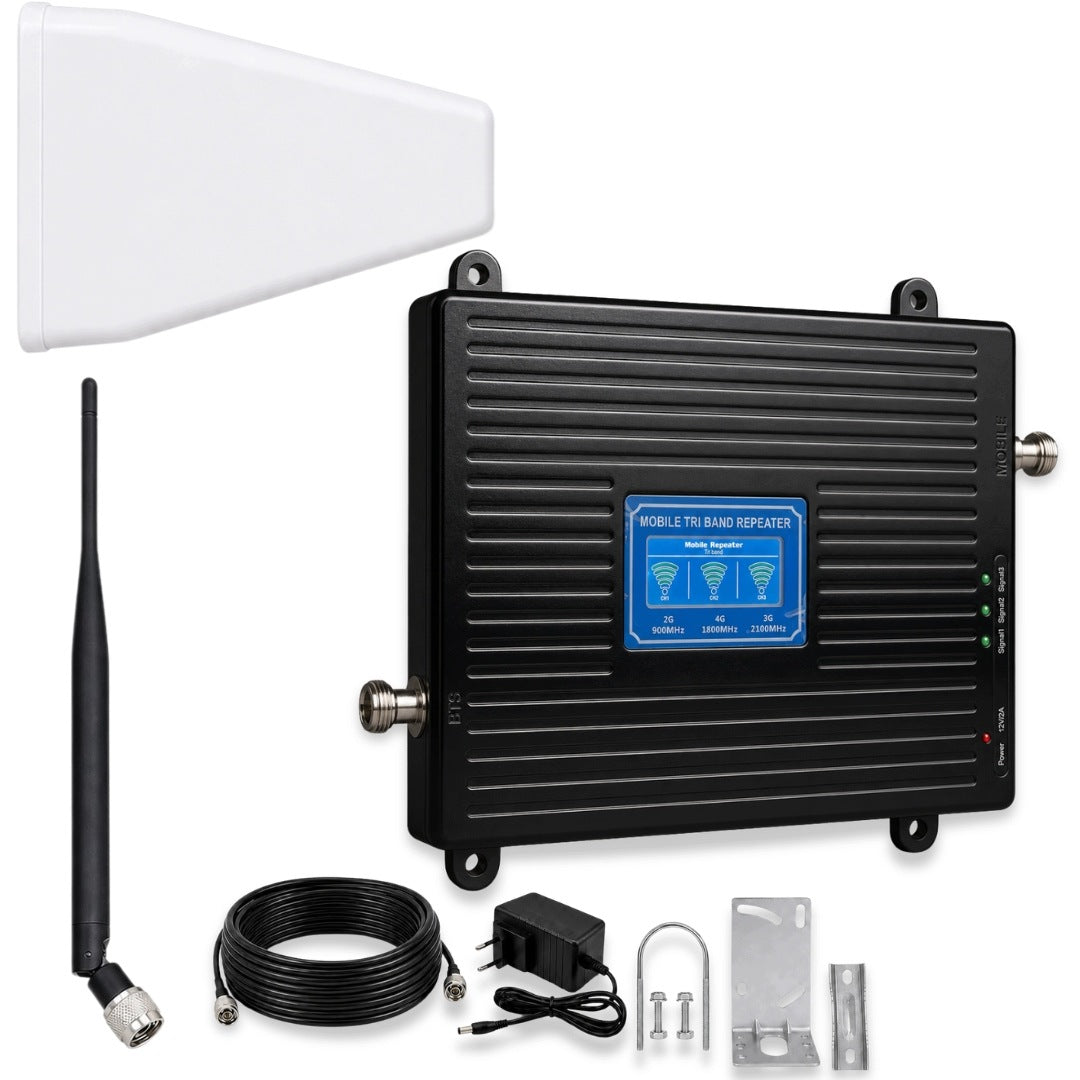

The set includes

• 1 × main repeater unit
• 1 × white logarithmic antenna
• 1 × black indoor antenna
• 1 × coaxial cable 10 m
• 1 × power supply
• 1 × metal antenna mounting kit: angle, pressure profile, U-clamp and screws

Frequently Asked Questions

Does the kit work with any operator?

It can work with an operator using one of the supported bands: 900, 1800 or 2100 MHz in a given location. Choosing an operator alone is not enough – the local frequency of the network is important.

Does the repeater guarantee improved coverage?

The effect depends, among other things, on the signal level outside, the correct setting of the directional antenna, the placement of antennas and the professional configuration of the installation.

What do BTS and MOBILE connectors mean?

The BTS connector is designed for the outdoor antenna track, and MOBILE for the indoor antenna.

Is there a mast included?

No. The kit includes a metal antenna mount, but does not include a tube or mast.
