Indukcinis šildytuvas IDEAL INDUCTOR 1,5 kW 230V

Trumpai apie prekę

Prekė: Indukcinis šildytuvas IDEAL INDUCTOR 1,5 kW 230V. Kategorija: Oro šildytuvai.

• Gamintojas: IDEAL
• Modelis: 1.5kW

INDUCTION HEATER INDUCTOR 1.5 is designed for fast, very efficient and at the same time safe heating of metal parts. It is used wherever there is a need for quick use and there is a risk of damage to the area of the heated place by the flame, e.g. upholstery, varnish, rubber hoses, electrical wires, etc. INDUCTOR 1,5 uses a modern, efficient and effective method of heating details, instruments before quenching, for defrosting, etc.

Equal, fast and stable heating of details. The surface of the heated part is only in the place required for thermal treatment and is under full control of the place where the influence of temperature is required.

High operational safety (no combustible gases) and better working conditions for service. The operator shall not be exposed to open fire, hot gases and the risk of fire and explosion when using open fire.

Lower costs associated with crew training, lower wage costs. There is no need for periodic employee training that is required when working with gases.

Low cost of purchase and operation. No costs associated with the purchase of technical gases and the lease of cylinders.

High energy efficiency.

Possibility of heating details to a temperature of 800°C and above.

DESCRIPTION:

• Reliable IGBT technology
• Easy operation and low operating costs.
• Optimal user protection, by separating the main power circuit from the main supply network
• Device made in microprocessor technology
• Automatic selection of frequency and impedance of power inverter operation
• Inductor operating frequency: 25 kHz – 60 kHz
• Overload alarm
• Cable connecting the power source to the inductor head 70 cm

EQUIPMENT:

• Fixed coils – for heating tubes, screws, sections, etc. of different diameters.
• Flexible coils – are designed for wrapping with them the material subjected to heating.
• Ferrite coils and flat coils with focus – are designed for heating flat material, sheets, etc.
• Plastic case.

ADVANTAGES:

• High mobility – weight only 4,5 kg and small dimensions – the size of a small welding machine.
• Power 1,5 kW, with high load factor.
• Easy manipulation and access – 70 cm long coil connection cable with small handle.
• Flexibility and ease of use – 1x230 V power supply, simple operation and speed of preparation.
• Versatile use - heating details of various shapes of flat, round, placed centrically or on a flat surface.
• Available at a low price modern method of workshop heating by induction method of steel elements.

APPLICATION:

• Automotive, railway and shipbuilding industries, machinery industry, repair plants, assembly workshops, district heating installers, services, etc.
• Production, repair, repair, maintenance of machinery.
• Details requiring heating: bolts, rods, profiles, sheets, bearings, housings, drive shafts, hinges, nuts, pipes, gears, bearing fitting, lambda probes, parts and components of machinery and vehicles, exhaust systems, pulleys, clamps, etc.
• Heating of instruments and details before hardening, joining, soldering, welding.
• Defrosting
• Application for the same work as for the use of propane-oxygen and acetylene-oxygen gas burners.

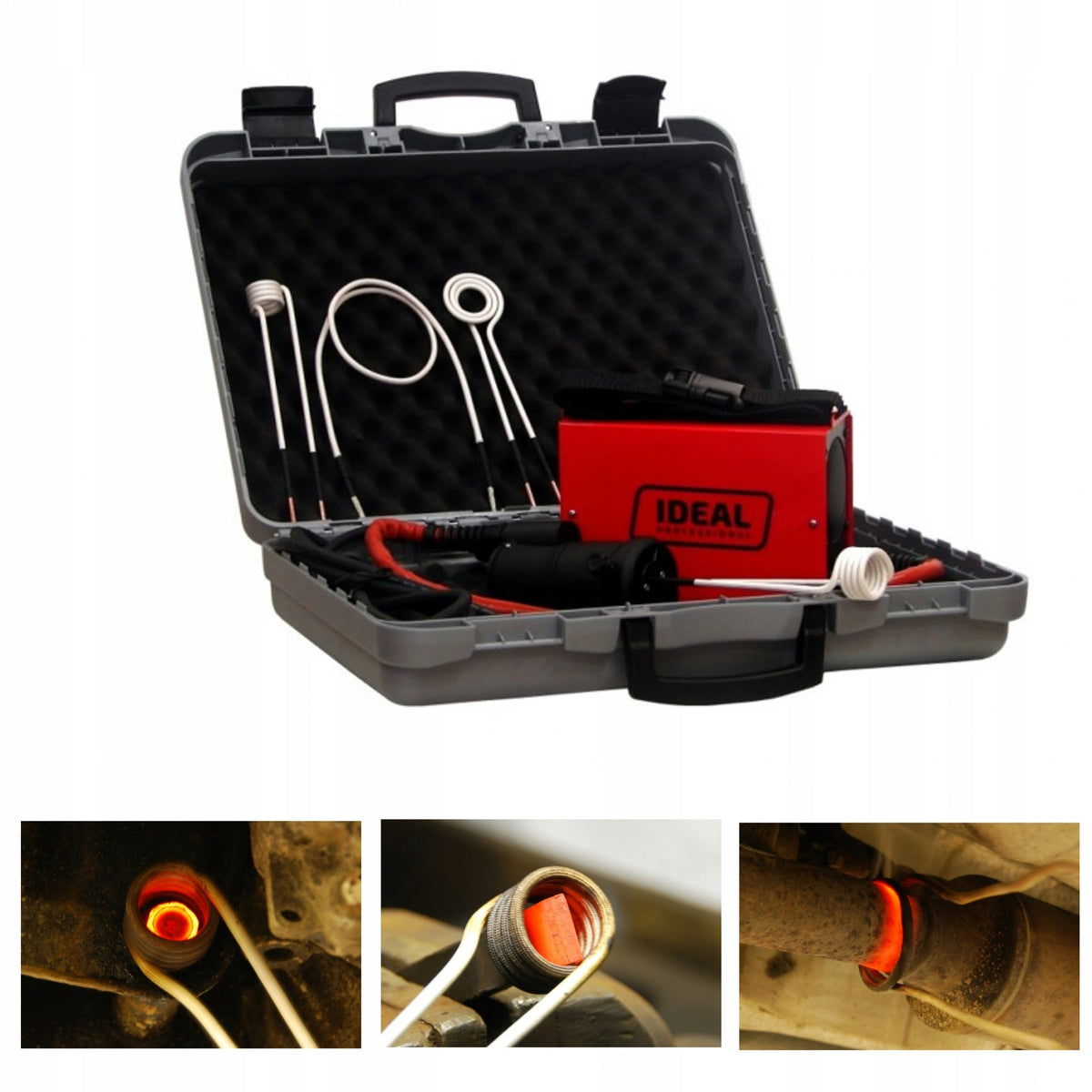

INDUCTOR 1,5 is able to heat the M20 screw or nut to 800°C in up to 15 seconds. Preparation for use is generally faster than preparation for the heating process using combustible gas burners. The induction heating process begins after connecting the heater to the 230 V socket, embedding or approaching the inductor coil to the heated detail and after pressing the button. The heat-treated detail is heated very quickly according to individual requirements even to “redness”. The white LED illuminates the heated area at the same time, making it easier to operate in dark and hard-to-reach places. Induction coils are easily replaceable and come in many sizes and different types ranging from fixed diameter round coils, flat coils to sheet metal and flexible coils with which we can wrap a detail of any surface.

TECHNICAL DATA:

Physical parameters

• Protection rating: IP 21 S
• Overall dimensions L x W x H: 200x140x75 mm

Heating parameters

• Working frequency: 25-60 kHz, automatic setting.
• Bent induction coils: YES
• Induction coil presence control: YES
• Coil burnout control: YES
• Continuous heating / coefficient: 100%
• Permanent induction coils: YES

Power supply parameters

• Power consumption P: 1,5 kVA
• Rated supply voltage: 230 V, 50/60 Hz

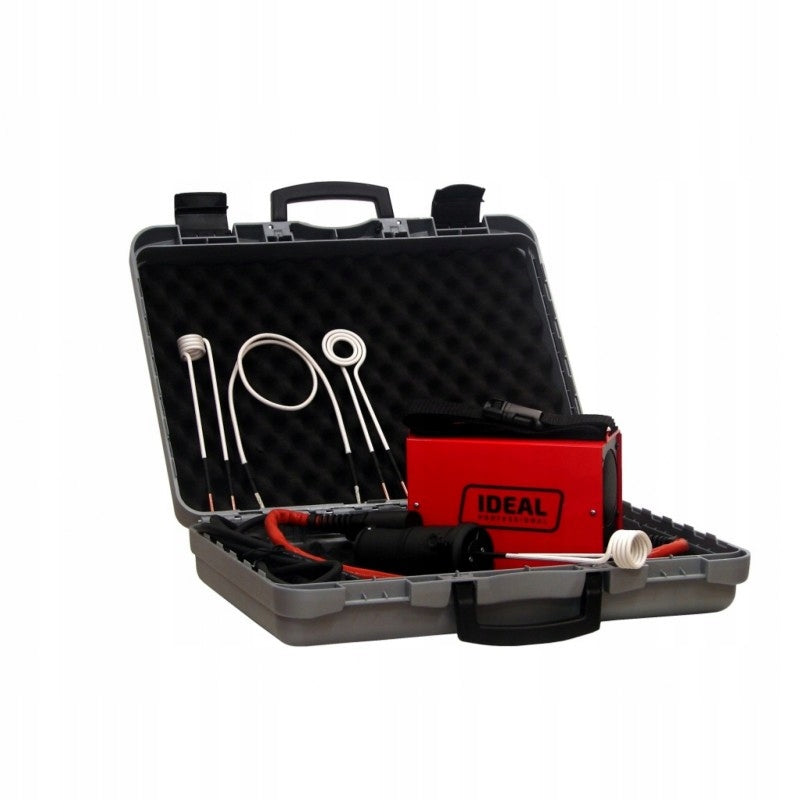

The set includes:

• INDUCTOR 1.5 to 230V INDUCTION HEATER
• Flexible cable FLEXI800, L 800mm
• Straight coil /19/220mm/M8
• Straight coil /23/220mm/M10
• Coil for peeling off slats and emblems
• Instruction in Polish

We also have all accessories available separately and more coil sizes!!!

FLEXI L=800mm FLEXIBLE CABLE

Flexible coil is an integral part of induction heaters. It is used for heating tubes, screws, irregularly shaped sections.

Application:

• details requiring heating: bolts, rods, profiles, sheets, bearings, housings, drive shafts, hinges, nuts, pipes, gears,

Length: 800mm

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	IDEAL
Parametry	Kind	electric
Parametry	Model	1.5kW
Parametry	Product weight with unit packaging	9 kg
Parametry	Manufacturer code	Nagrzewnica indukcyjna 1.5kW 230V śrub
Parametry	Energy efficiency class	brak klasy energetycznej
Parametry	Range of energy efficiency classes	no energy class
