Impulsinis akumuliatoriaus įkroviklis 6V/12V 2A/4A AMiO

Trumpai apie prekę

Prekė: Impulsinis akumuliatoriaus įkroviklis 6V/12V 2A/4A AMiO. Kategorija: Baterijų įkrovikliai.

• Gamintojas: Amio
• Modelis: DBC-4A

For each order FREE e-guides: "What you should know about paint protection and external protection after buying a new car" and "Fun facts about cats". We send the guides to the e-mail after making a purchase on our auctions.

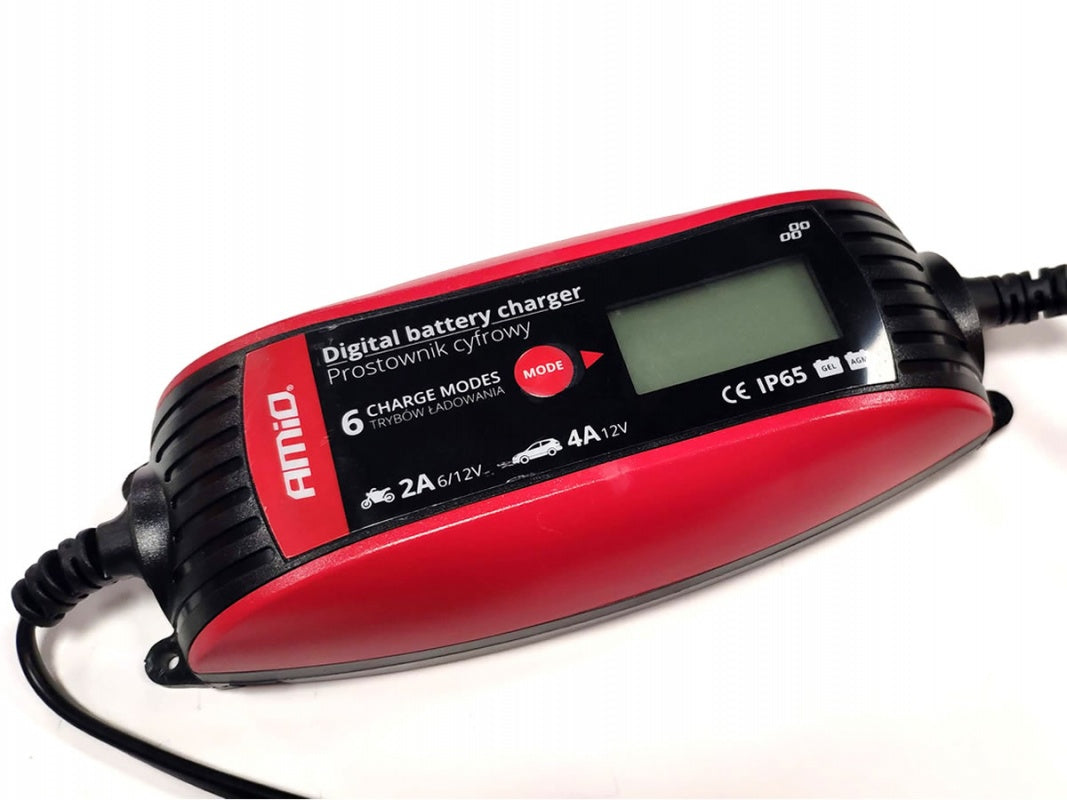

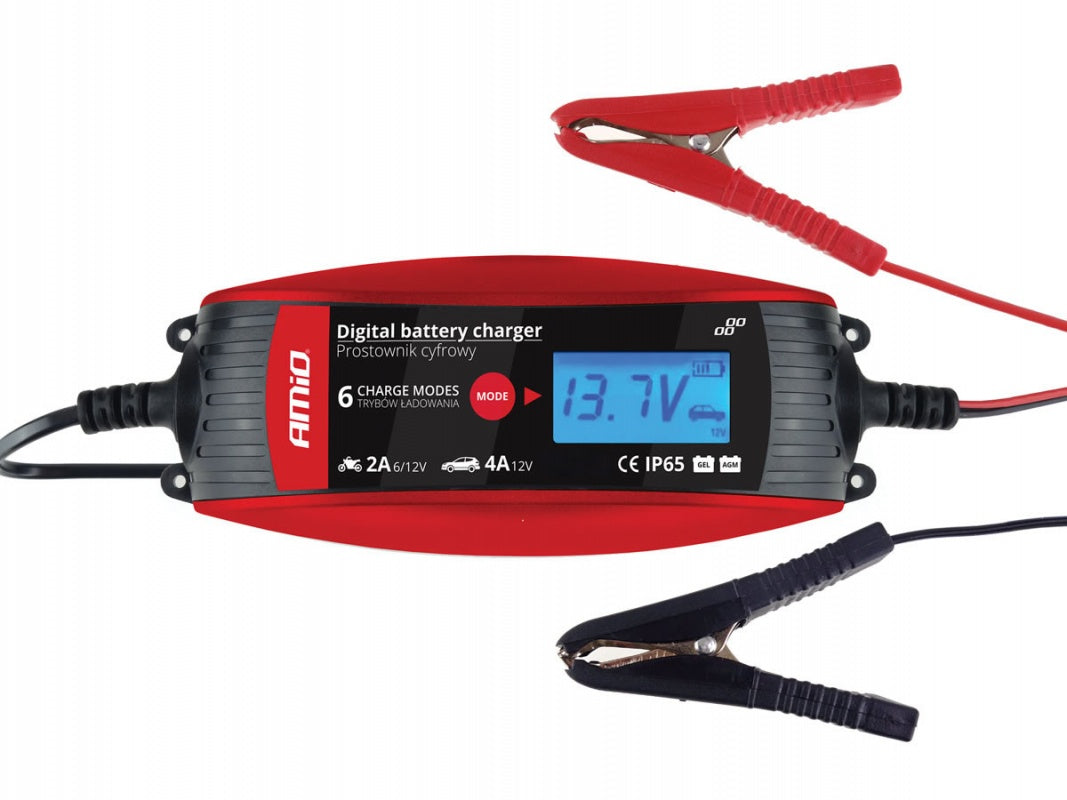

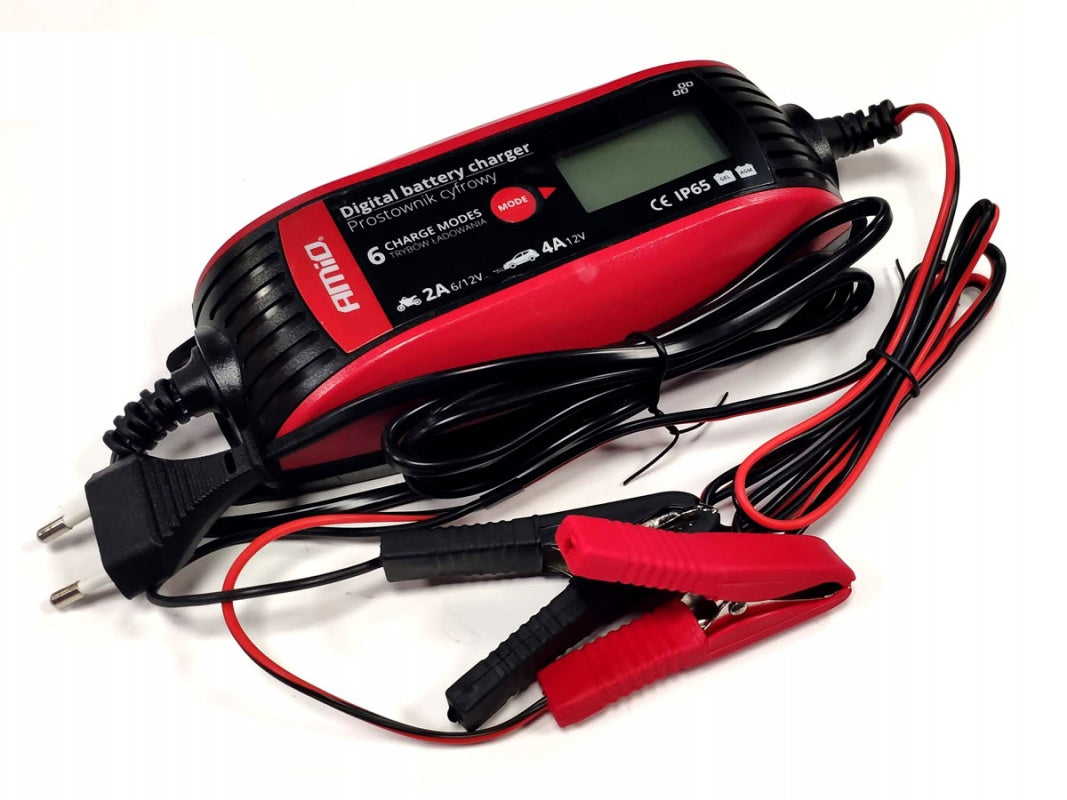

Car rectifier / impulse charger (digital) 6V/12V 2A/4A AMIO DBC-4A

(Catalog No. 02088)

The DBC-4A rectifier can charge lead-acid batteries (regular and MF), Ca/Ca, AGM and gel batteries. It is a microprocessor rectifier, made in accordance with the IP65 standard, which means resistance to dust and splashes and low pressure water jet dousing. It has protection against:

• short circuit
• reverse battery connection (reverse polarity)
• open circuit
• protection against sparks
• battery overcharging
• rectifier overload
• overheating of the rectifier

It has 6 charging modes:

6V to 14Ah batteries

• 7.2V do 2A
• 7.4V to 2A (low temperature charging)

12V to 14Ah batteries and deeply discharged

• 14.3V do 2A
• 14.7V to 2A (low temperature charging)

12V batteries over 14Ah

• 14.3V do 4A
• 14.7V to 4A (low temperature charging)

It shows the battery voltage and the degree of charge on an ongoing basis and adjusts the charging current depending on its needs. Once charged, it displays a FULL message and maintains the voltage on the battery.

Specification:

• Supply Voltage 230V 50 Hz
• Output voltage: 6/12V
• Power consumption: about 60W (1W standby)
• Maximum charging voltage:

  7.4V (for 6V batteries)

  14.7V (for 12V batteries)

• Maximum charging current :

  2A +/- 10%,

  4A +/- 10%

• Supported battery capacities:

  6V - 1,2Ah to 14Ah

  12V - 1,2Ah to 14Ah and 14Ah to 120Ah

• Degree of protection: IP65
• 6 charging programs switched by the "WORKING MODE"
• Display backlight

Gel batteries with a capacity of up to 14Ah used in motorcycles and scooters should be charged by selecting a program with the motorcycle icon on the display.

Charging with more electricity can damage the battery.

Packaging is an integral part of the product.
