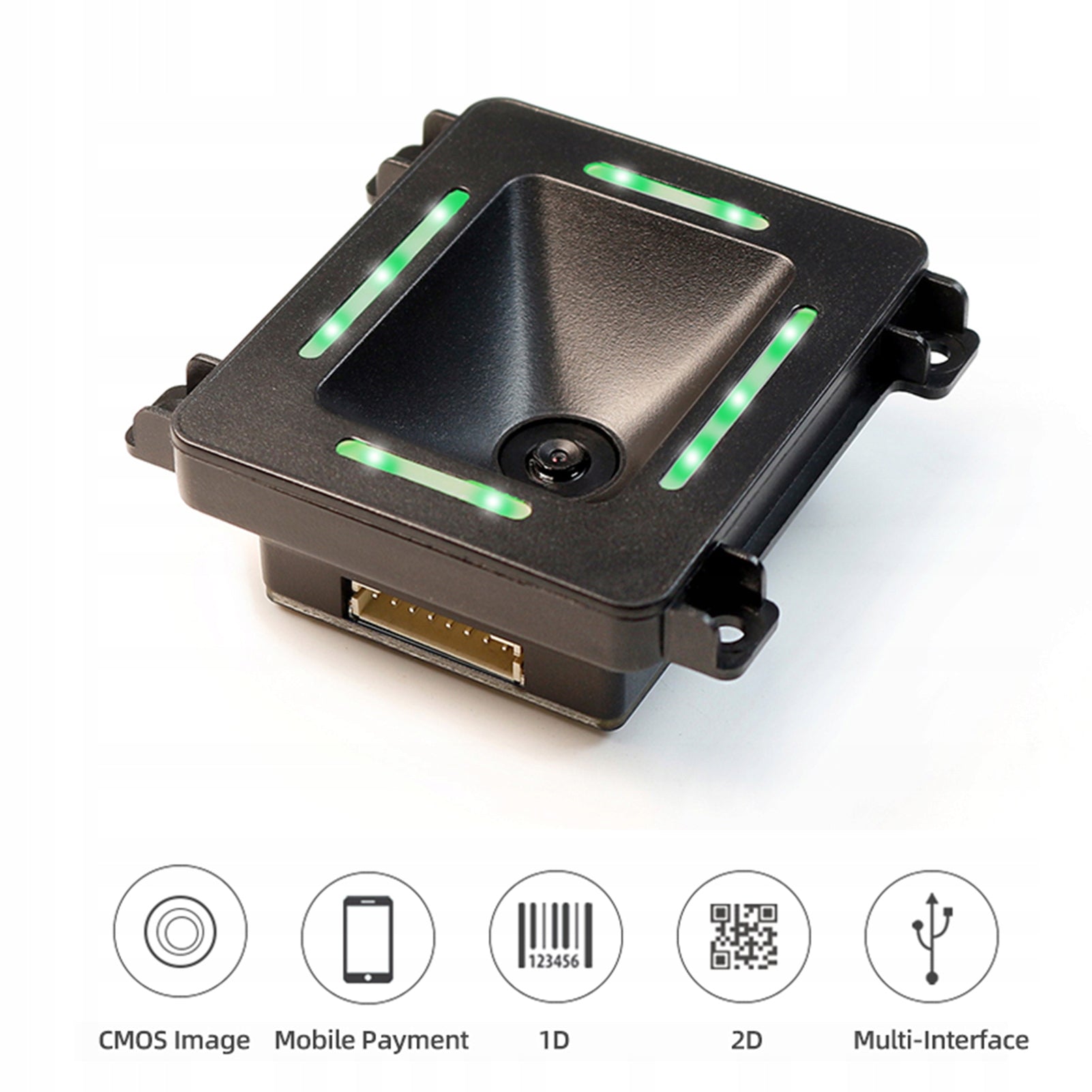

Įmontuojamas 1D 2D QR barkodų skaitytuvo UU modulis

Trumpai apie prekę

Prekė: Įmontuojamas 1D 2D QR barkodų skaitytuvo UU modulis. Kategorija: Rašaliniai ir lazeriniai spausdintuvai.

• Gamintojas: no brand
• Modelis: 3600HNLP

Function:

1. Small 1D/2D code reader, can be embedded in any device for scanning code to identify other elements using intelligent image recognition algorithm. Configurable by scanning \ U0027Configuration Code \ u0027, a module matching the light source, can run in the dark.

2. USB interface, RS-232, Wiegand, RS-485 for option. You don’t have to worry about using interface types. Also support secondary development through the SDK.

3. Linux, Android, Windows and other systems scanning module, can easily capture 1D, 2D barcodes on labels, paper and mobile phone or computer displays, confidential and accurate.

4. Decode Type: 1D-Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Code 93, Code 11, Code 128, Matrix 2 of 5, GS1-128, ISBT 128, UPC-A, UPC-E, EAN/Jan-8, EAN/Jan-13, Qlessey, GS1 Databar (RSS14), Standard 2, MSiplessey; 2d - PDF417, PDF417, QR Code, QR, Data Matrix, Aztec, Hanxi Code.

5. Built-in QR code scanning module is used for access control, channel gateway, cabinet, scan code payment, etc. And other industry equipment to get intelligent design. The performance is stable and the decoding speed is very fast.

Specification:

• Characteristics:
• Small 1D/2D code reader, can be embedded in any code scanning device to identify other elements using intelligent image recognition algorithm. Configurable by scanning "Configuration code", a module that matches the light, can operate in the dark.
• USB interface, RS-232, Wiegand, RS-485 for option. You don’t have to worry about using interface types. Also support secondary development through the SDK.
• The scanning module supports Linux, Android, Windows and other systems, it can easily capture 1D, 2D barcodes on labels, paper and mobile phone or computer displays, sensitive and accurate.
• Decode Type: 1D-Codabar, Code 39, Code 32, Interleaved 2 of 5, Industrial 2 of 5, Code 93, Code 11, Code 128, Matrix 2 of 5, GS1-128, ISBT 128, UPC-A, UPC-E, EAN/Jan-8, EAN/Jan-13, Qlessey, GS1 Batabar (RSS14), Standard 2 of 5, MSiplessey; 2D - PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec, Hanxi Code.
• Built-in QR code scanning module is used for access control, channel gateway, cabinet, scan code payment, etc. And other industry equipment to achieve intelligent design. The performance is stable and the decoding speed is very fast.
• Specification:
• Model: EP8280
• Color: Black

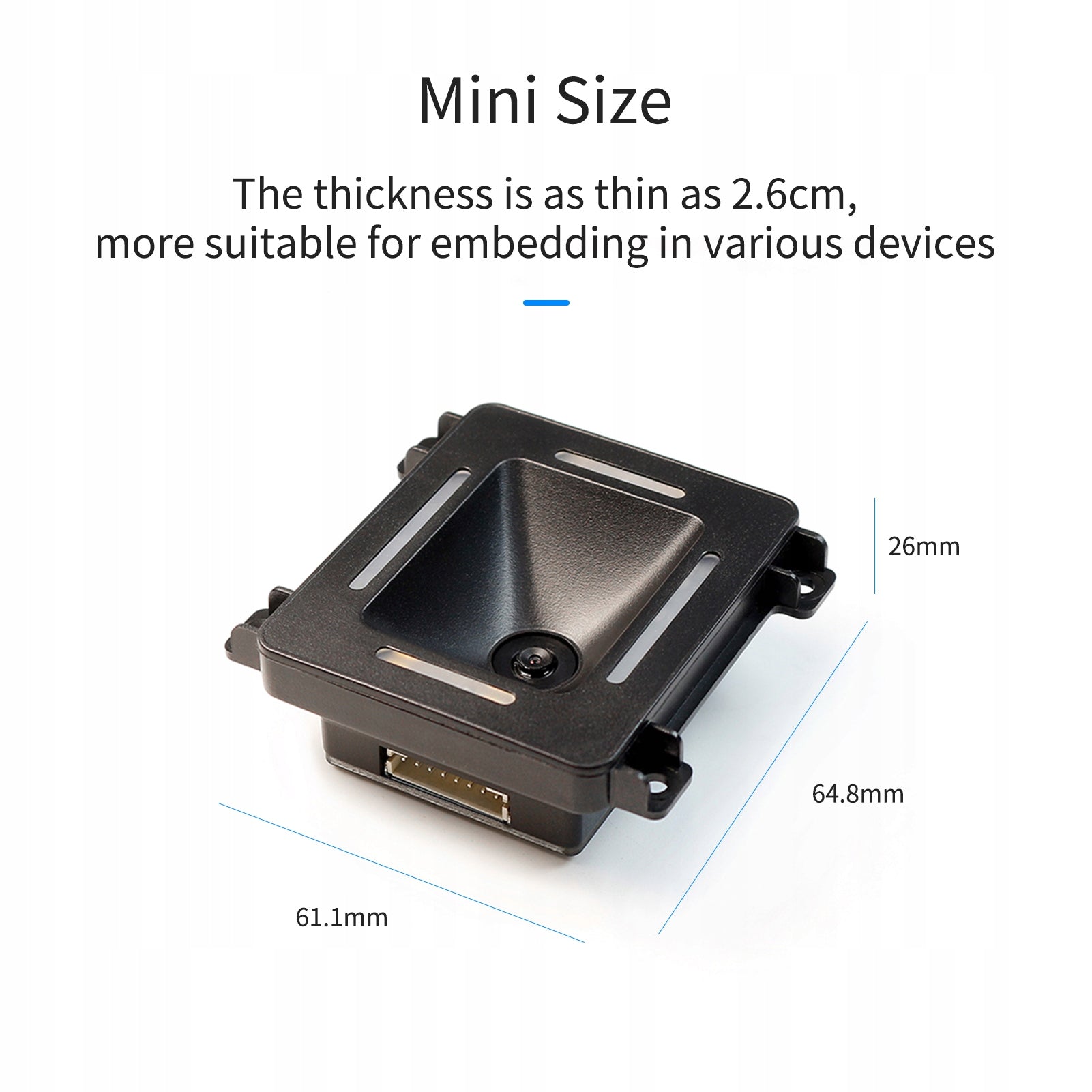

• Size: 61,1 x 64,8 x 26 mm

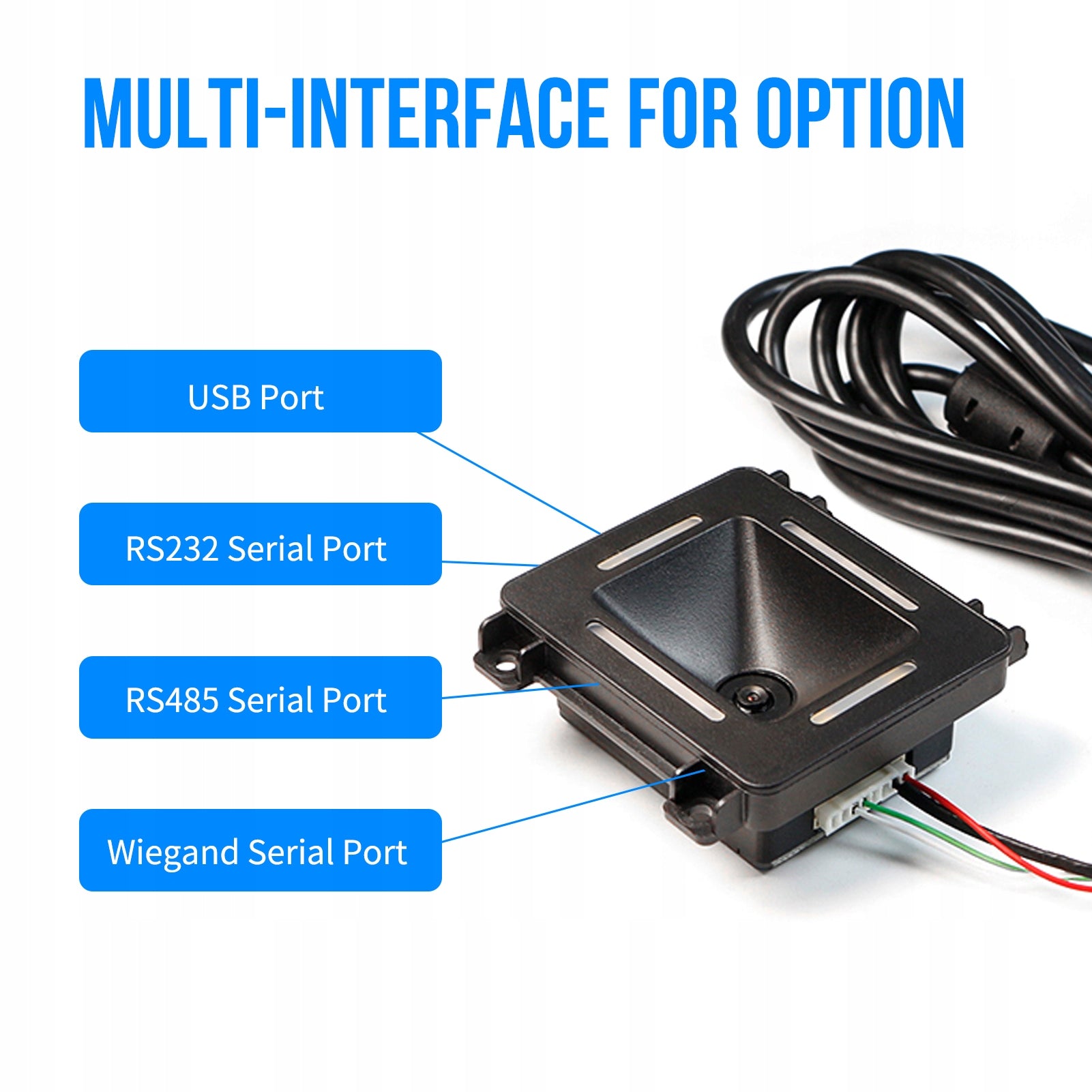

• Interface: USB/RS232/RS485/Wiegand (optional)
• Image sensor: 640x480 CMOS
• Illumination: white LED
• Decode abilities
• 1D: Codabar), (code 39), (code 32), (interleaved 2 of 5), (industrial 2 of 5), (code 93), (code 11), (code 128), (matrix 2 of 5), (GS1-128), (ISBT 128), (UPC-A), (UPC-e), (ean/january/january/january/january-1), (Qlessey), (isbt 128), (UPC-a), (upc-e), (ean/january/january-1 (GS1 Databar (RSS14), (standard 2 of 5), (MSIPlessey)
• 2d: (PDF417), (Micro PDF417), (QR code), (Micro QR), (data matrix), (Aztec), (Hanxi code)
• Typical decoding ranges
• EAN-13 (13MIL) -5 mm ~ 100 mm （Size ： 31 mm*7 mm）
• PDF417 (6mil) -5 mm ~ 65 mm （Size ： 14 mm*7 mm）
• Code39 (5 miles) -18 mm ~ 55 mm （Size ： 27 mm*8 mm）
• Data matrix (10 miles) -5 mm ~ 70 mm （Size ： 5 mm*5 mm）
• QR code (15 mm) -5 mm ~ 90 mm （Size ： 10 mm*10 mm）
• Minimum print contrast: ≥20%
• Scanning angle: Skew ± 70 °, stroke ± 70 °, Roll 360 °
• Field of view: horizontal: 74 °; ICING: 65 °
• Operating voltage: DC 5V ± 5%
• Operating temperature: -10 ℃ ~+60 ℃
• Storage temperature: -40 ℃ ~+70 ℃
• Operating humidity: 5%~ 95%（non-clining）
• Shock light: 0~100 000 LUX
• Package Size: 185x101x52mm/7.2x3,9x2 inches
• Package Weight: 85G/2,9 oz
• Packing list:
• 1 x Scanner
• 1 x Manual
•

List of packages:

•
• 1 x Scanner
• 1 x Manual
•
