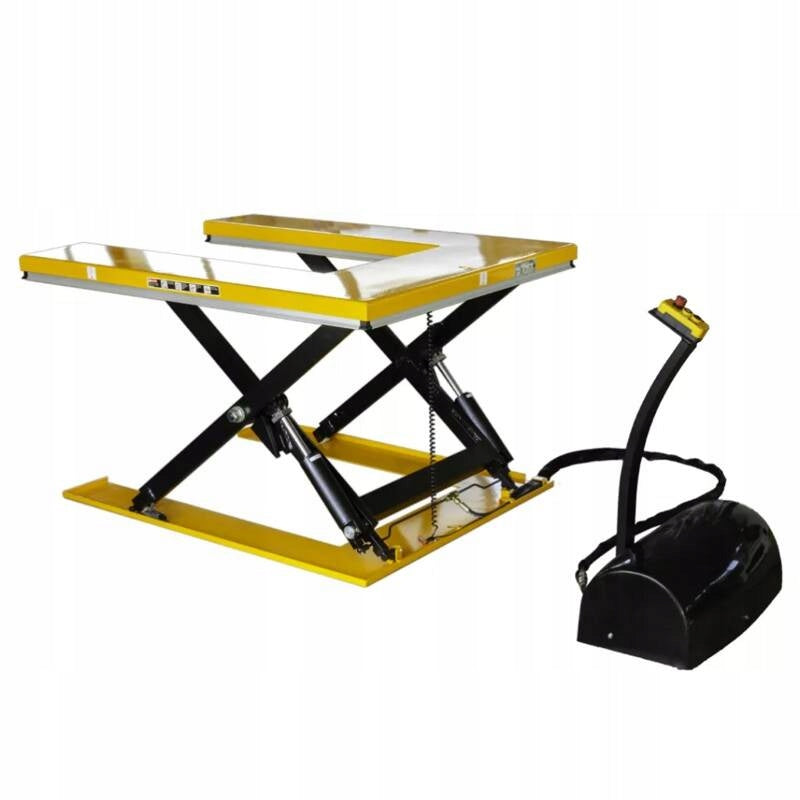

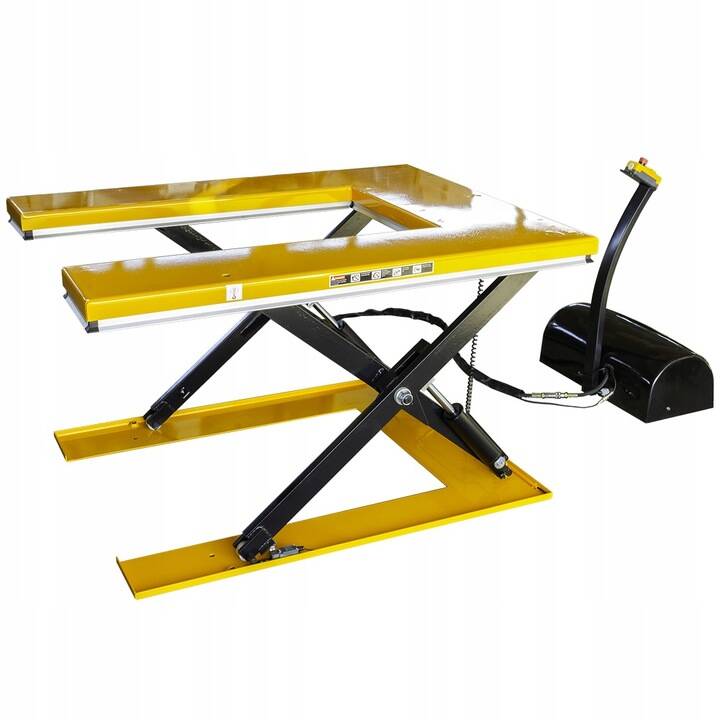

Hidraulinis žirklinis keltuvas VIBER-SYSTEM SNNU1000, 1000 kg

Trumpai apie prekę

Prekė: Hidraulinis žirklinis keltuvas VIBER-SYSTEM SNNU1000, 1000 kg. Kategorija: Žirkliniai keltuvai.

• Modelis: SNNU1000

• Professional Platform, Low Profile Scissor Lifting Table (U-Shaped) 1T

Professional scissor lifting table with low profile and load capacity of 1 ton. It's the perfect solution for workshops, garages, or anywhere you need a sturdy and reliable lifting platform.

• U-shaped lifting platform
• The platform is perfectly designed for easy placement of pallets on it, without the need for installation in the channel
• Production is carried out in accordance with applicable European standards, i.e. EN1570:1999
• Control via controller, IP54 electrical protection
• Upper platform equipped with a safety circuit to prevent impact on obstacles

Includes 3 pieces of screw-in hooks necessary to move the lift.

• Minimum height: 85mm
• Maximum height: 860mm

Features and Advantages:

• Pallet handling: Our scissor lift table is ideal for lifting heavy objects on 1200x800mm and 1200x1200mm pallets.
• Convenient Entry: With its special design, you can easily drive the pallet truck between the table platform.

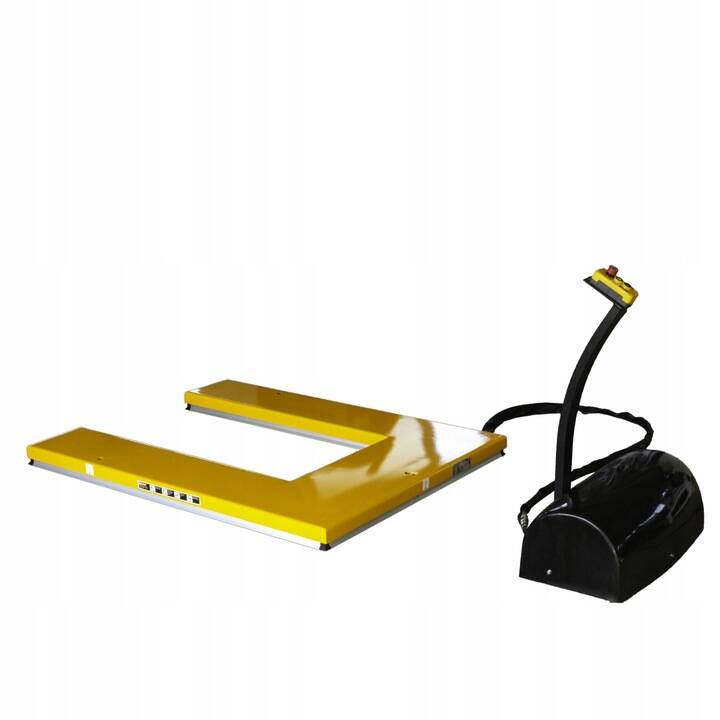

• Putting the pallet: Place the pallet on a platform with a height of 8,5cm. Suitable for any standard pallet truck.
• 86cm Height Lifting: Our lift table allows you to lift the pallet to 86cm height, making it easy to access the item on the pallet from either side.
• Versatility: An excellent choice for warehouses, warehouses, and anywhere pallet handling is crucial.

AUTO STOP System:

• Upper platform equipped with a safety circuit to prevent impact on obstacles
• Automatic automatic lowering stop system when obstacle is detected.

Technical data:

• Manufacturer: Viber System
• Model: SNNU 1000
• Lifting capacity: 1000kg
• Minimum height: 85mm
• Maximum height: 860mm
• Stroke: 775mm
• Lifting time: 25-35 seconds
• Power supply: 380V/50Hz, AC 1,1kW
• Table dimensions: 1400x1140mm
• Weight: 207kg
• Dimensions for transport: 150x120x20cm
• Shape: Letter "U"

Specifications
