Hidraulinis pavarų dėžės keltuvas 600 kg, teleskopinis

Trumpai apie prekę

Prekė: Hidraulinis pavarų dėžės keltuvas 600 kg, teleskopinis. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: no brand
• Modelis: 5907021476454

• We focus on quality, professionalism and comprehensive service of the public sector.

Dimensions:

Height: 97

Width: 62.5

Length: 73.5

Why choose our product?

Work related to the disassembly and assembly of gearboxes requires not only adequate force, but above all stability, precision and control when lifting heavy elements. The hydraulic gearbox lift has been designed as a professional support for workshops, car services and people performing advanced repairs.

The 600 kg design enables safe operation of gearboxes, drive shafts and axles. The applied hydraulic system with foot operation allows for comfortable lifting and lowering without the need for manual pumping, which increases the comfort of work and facilitates precise positioning of the element.

Adjustable support platform, lifting range of 880 – 1760 mm and mobile base on four wheels make the device allow you to efficiently perform demanding service work. It is a solution created for users who expect a stable tool for regular workshop work.

Key benefits and technologies

• Large lifting capacity of 600 kg – solid steel construction allows lifting heavy components of the drive system, such as gearboxes, drive shafts and axles.
• Transport capacity 500 kg – enables safe movement of lifted elements within the workstation.
• Lifting range 880 – 1760 mm – wide height adjustment ensures a comfortable fit for various stages of repair and installation.
• Pedal-operated hydraulics – foot control allows you to lift and lower components hands-free, leaving them free to control the positioning of parts.
• Double hydraulic piston – the design ensures effective operation of the lifting mechanism when working with heavy loads.
• Adjustable support platform – the ability to rotate 360° and tilt up to 30° allows you to precisely position the gearbox before assembly.
• Adjustable mounting plate width – allows you to adjust the support to different gearbox designs.
• Stable X-shaped base – steel construction provides secure support and limits the movement of the device during operation.
• 360° mobility – four large swivel wheels allow the lift to move easily and two brakes help to lock the position stably.
• Seal hydraulic system – a solid seal helps reduce oil leaks and ensures safe operation of the mechanism.
• Sturdy cast iron wheels – resistant wheel design allows for stable movement of the device under heavy loads.

Technical specification

• Article model number: GW-0.6
• Type: Leg operated sleeve cylinder
• Leverage: 1322 lbs / 600 kg
• Transport capacity: 1100 lbs / 500 kg
• Single or double piston: Double piston
• Minimum support height (from surface to floor): 34,6 inch / 880 mm
• Maximum support height (from surface to floor): 69,3 inch / 1760 mm
• Jump: 34,6 inch / 880 mm
• Main Material: Frame
• Net weight: 100,3 lbs / 45,5 kg

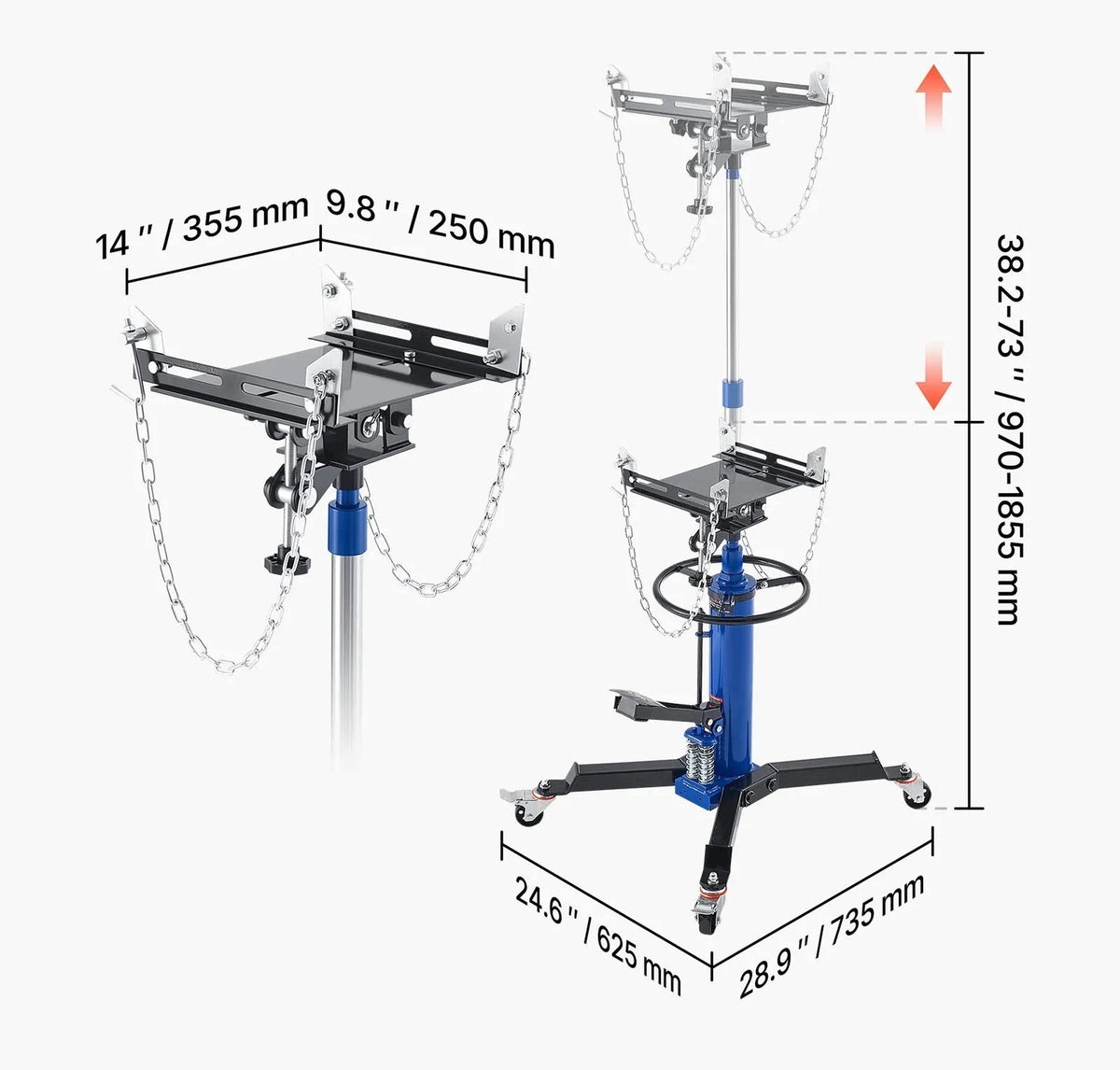

• Product dimensions: 28,9 x 24,6 x 38,2 to 73 inches / 735 x 625 x 970 to 1855 mm

Application in practice

• ⭐ Disassembly and assembly of gearboxes – a stable support platform makes it easy to set up a heavy element during service work.
• ⭐ Repairs of the drive system – lifting capacity of 600 kg allows you to operate drive shafts and axles requiring safe support.
• ⭐ Professional car workshop – mobile design allows you to conveniently move the device between workstations.
• ⭐ Service work requiring precise positioning – an adjustable platform with 360° rotation helps to precisely adjust the position of the mounted element.

Contents of the set

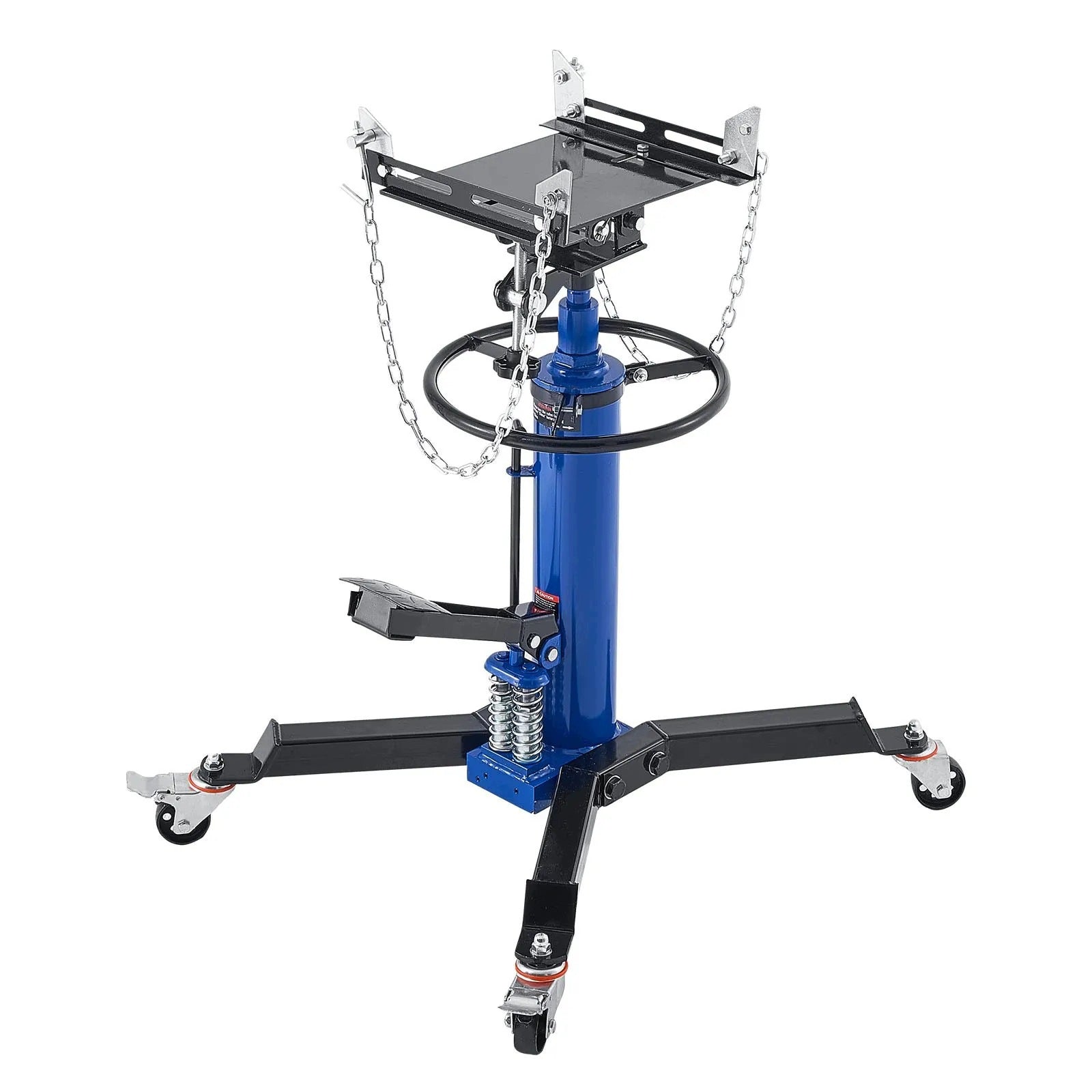

The set includes a hydraulic gearbox lift equipped with a telescopic lifting mechanism, a support platform, a pedal-operated hydraulic system and a mobile base with wheels.

Summary – choose a professional solution

When working with heavy drive system components, stability, precision of setting and safe lifting control count. This hydraulic gearbox lift combines lift 600 kg, height adjustment, double piston and solid workshop construction.

With support for foot, mobile base and adjustable support platform, the device helps you perform demanding repairs and installations more efficiently.

Choose professional workshop equipment that increases the comfort of work and provides reliable support when handling heavy components.

Mobility and stability

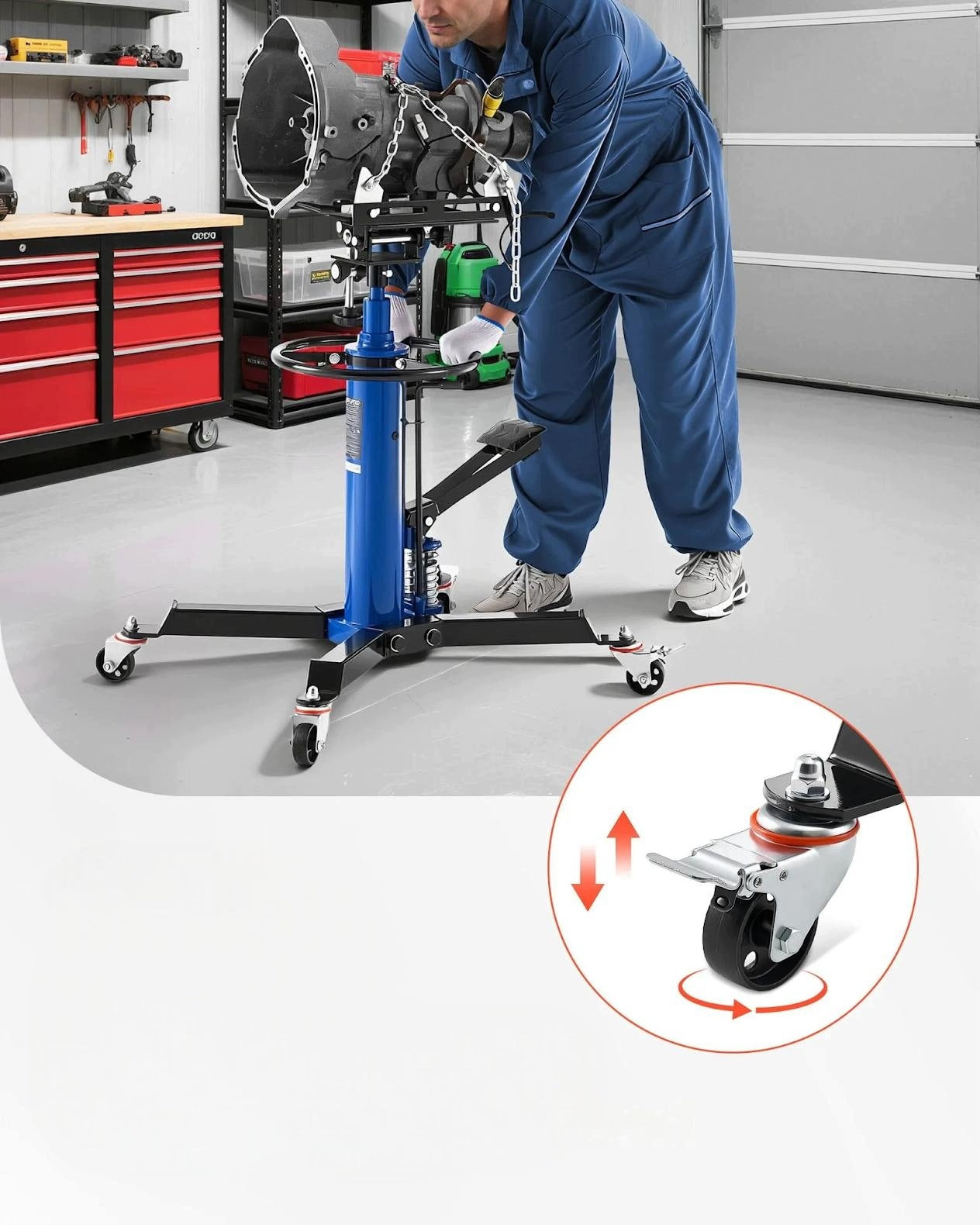

The lift is equipped with four fully swivel wheels (360°), which ensure smooth movement of the device even under heavy loads. Two of the wheels have integrated brakes, which guarantees safety and stability when working in the workshop.

Fast and efficient lifting

Thanks to the use of a two-piston system, lifting is carried out up to 1,5 times faster than in standard models. Each pedal press allows the element to be lifted by 15 mm (without load), which significantly improves performance compared to single-piston systems, offering a stroke of 10 mm.

Powerful lifting capacity for heavy-duty tasks

The device is characterized by exceptional strength, offering a maximum lifting capacity of about 600 kg. In the case of horizontal cargo transport, the permissible weight is 500 kg, which makes the lift ideal for handling heavy gearboxes in professional car services.

Precise hydraulic control

The convenient foot pedal allows for easy operation of the lift, while the two-way lock provides complete control over the process. The left rotation of the lever locks the mechanism for safe lifting, while the right rotation unlocks the system, allowing for smooth and slow lowering of the load. The working height range is from 880 mm to 1760 mm.

Fully adjustable saddle

The lift saddle offers a wide range of adjustments, allowing for a precise fit in your gearbox mounting holes. Full rotation of 360° and tilt of up to 30° is possible. The width of the platform is adjustable from about 23 cm to 32,5 cm, and two solid chains with a length of 80 cm ensure stable immobilization of the load.

We offer you a team of experienced experts, ready to provide comprehensive assistance and advice at every step of cooperation.

Trust our experience – welcome to buy!

• Sales with FV 23%
• Handling of in Poland

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Manufacturer code	5907021476454
Parametry	EAN (GTIN)	5907021476454
Parametry	Lifting capacity	600 kg
Parametry	Minimum lifting height	880 mm
Parametry	Maximum lifting height	1760 mm
