Hidraulinis cilindras 116 cm, 3 t keliamoji galia, su kėlimo platforma

Trumpai apie prekę

Prekė: Hidraulinis cilindras 116 cm, 3 t keliamoji galia, su kėlimo platforma. Kategorija: Bėgių keltuvai („Frogs“).

• Gamintojas: no brand
• Modelis: ZGYYQJDHSDG3T

Hydraulic long cylinder lift with lifting capacity of 3 tons

Sturdy and durable and a great helper

With a lifting capacity of 3 tonnes/6600 lbs and a long piston, this hydraulic lift allows you to transform your existing hydraulic lift into a convenient and fast lift. It’s a quick way to lift weights without back pain. Necessary equipment for hydraulic cranes, motor hoists and a variety of applications. Mounts directly on most workshop cranes. For vertical use only.

Lifting capacity up to 3 tons

Lifting range 66-116 cm

Reliable and durable car lift

Long labour-saving ram

Solid steel construction

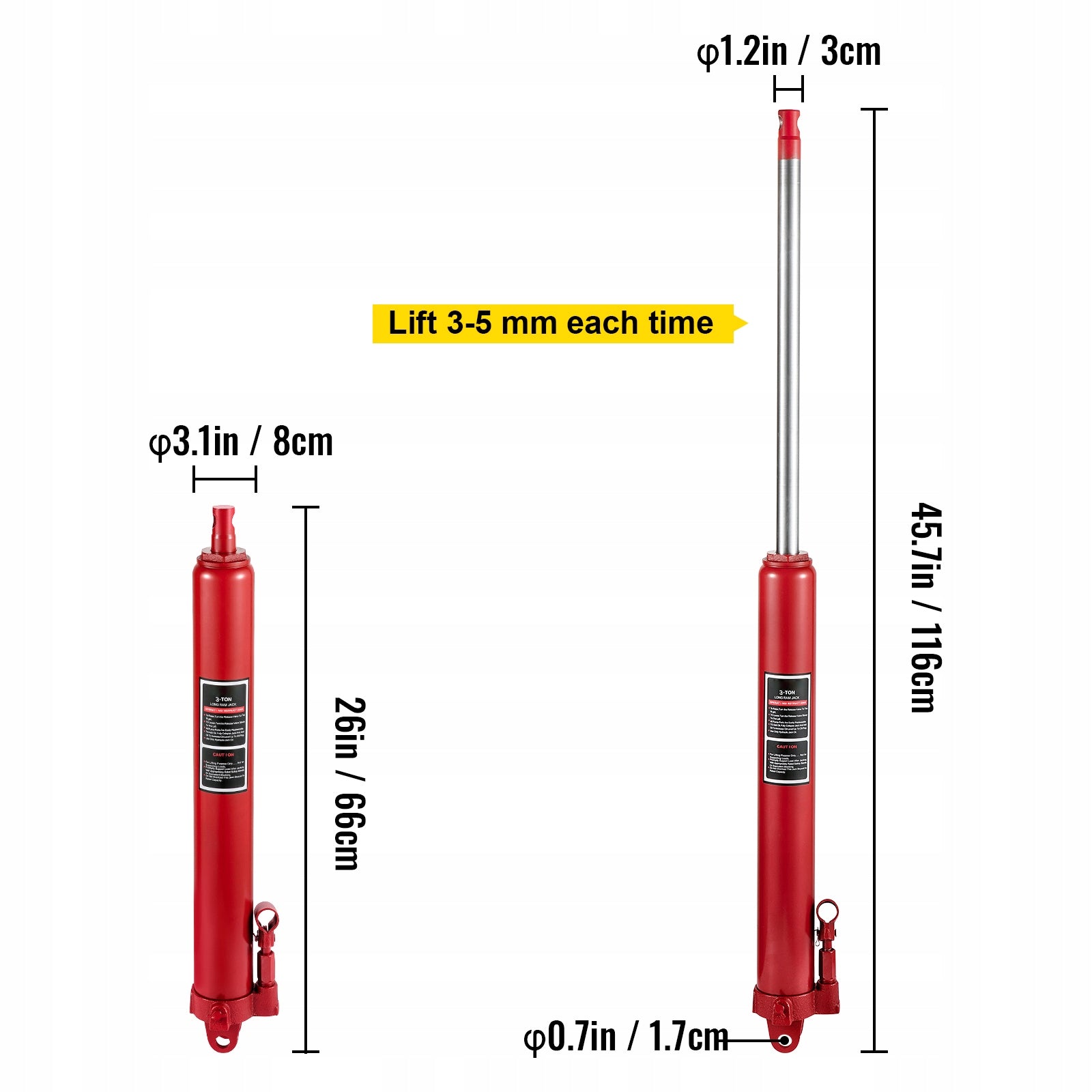

Specifications

Model: VV-CGQJD-LDJ-3T

Load capacity: 6600 lbs / 3 tons

Min. Lifting height: 26 inches / 66 cm

Maximum lifting height: 116 cm

Stroke: 19,7 inch / 50 cm

Piston rod diameter: 1,1 inches / 2,8 cm

Hole diameter: 0,7 inch / 1,7 cm

Weight: 18,3 lb / 8,3 kg

Diameter: 2,8 inches / 7 cm

Load capacity 3t

With a lifting capacity of 6600 pounds (3 t), the long lift easily handles workshop cranes, motor lifts and more. Save effort and time.

Lifting range 66-116 cm

The long lift has a lifting range of 26 to 45,7 inches (66 to 116 cm) and a large stroke of 19,7 inches (50 cm). Lift your lift with ease!

Hydraulic cylinder made of steel

Integrated oil bypass valve and overload valve, which protects the hydraulic system from overload.

Single piston pump and spade base

The pressure pump is designed to lift with minimal effort and muscle. The Clevis base allows direct mounting on most workshop cranes.

High-quality steel construction

The long actuator lift is made of durable steel for added stability. It is powder-coated, lead-free paint for a long-lasting finish.

For residential and commercial use

Our long cylinder hydraulic lift is designed for home and commercial use and is suitable for garage/shop cranes, motor lifts, and more.

Package Contents

1 x Hydraulic Long RAM Lift

1 x Handle

Key Features

Lifting capacity up to 3 tons: Transform your existing hoist into a practical and fast hoist with this 6600 lb (3 tons) hydraulic hoist. A quick way to lift weights without back pain. Necessary equipment for hydraulic cranes, motor hoists and many other applications.

Lifting range 66-116 cm: Minimum height: 66 cm. Maximum height: 45,7 inches (116 cm). The long actuator hydraulic floor lift offers a large stroke of 19,7 inches (50 cm), allowing for optimal lifting of objects weighing up to 6600 pounds (3 t). The slow release feature ensures reliability and safety.

Reliable and durable lift: The large diameter steel hydraulic cylinder requires less oil pressure to move the load, which reduces wear and extends the service life. The piston pusher is machined and polished for abrasion resistance and features a Y-shaped polyurethane seal with a support ring to prevent the load from slowly dropping or oil drifting.

Long labor-saving lift: The long lift has a practical handle with a rubberized, comfortable grip. The pin connector allows the lift to be mounted directly on most workshop cranes. And the sliding pressure pump is designed to lift the lift with minimal effort and muscle.

Sturdy Steel Construction: The sturdy frame is made of high-quality steel and meets the highest standards of quality and durability. After thorough chemical cleaning, lead-free varnish is applied, which ensures a long-lasting finish. The paint is resistant to oils, grease, and dirt, making it easy to clean.

Specifications
