Trumpai apie prekę
Prekė: Hidraulinė alyvos talpa. Kategorija: Kėlimo įranga ir priedai.
- Gamintojas: AZ
- Modelis: P-ZBIO-0003
High quality hydraulic oil tank dedicated to hydraulic power supplies, car lift pumps and other workshop equipment. Made of thick, durable and translucent plastic, which allows for very fast and convenient control of the oil level without the need to unscrew the cork.
Complete with the tank there is a dedicated, airtight filler cap in red and black. It also acts as a vent, which protects the system from minor contaminants and equalizes pressure, preventing airing of the pump.
The integrated square flange for 4 mounting screws ensures trouble-free, strong installation and perfect attachment to the valve block, which prevents any leakage of hydraulic fluid from the system.
We guarantee the highest reliability of parts available in our store. The AZ Workshop team makes sure to supply only proven spare parts for lifts, fitters and balancers. Welcome to shopping!
Technical parameters and dimensions:
To guarantee a perfect fit and safety of the system, before purchasing, we recommend a thorough verification of the dimensions of the flange and the body itself with your existing tank:

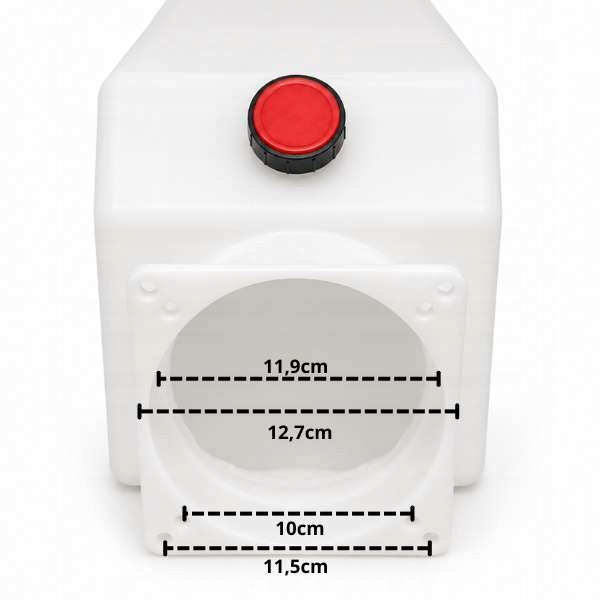

- Internal diameter of the mounting flange: 11,9 cm
- Outer diameter of inner flange profile: 12,7 cm
- Mounting hole spacing: 10 cm x 11,5 cm

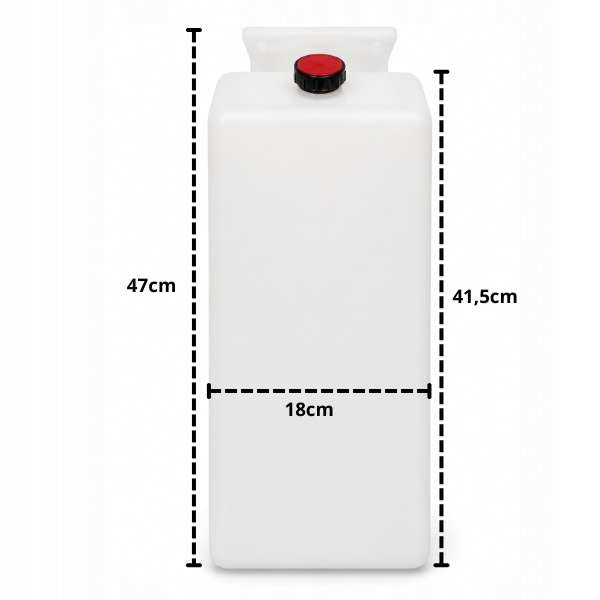

- Total height: 47 cm
- Height of the body itself (without infusion neck): 41,5 cm
- Width / depth of tank: 18 cm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | AZ |
| Parametry | Manufacturer code | P-ZBIO-0003 |
| Parametry | EAN (GTIN) | 5906817810502 |
