HDMI 2.0 ekstraktorius su TOSLINK optiniu keitikliu, AUX, HDCP, 4K

Trumpai apie prekę

Prekė: HDMI 2.0 ekstraktorius su TOSLINK optiniu keitikliu, AUX, HDCP, 4K. Kategorija: DAC keitikliai.

• Gamintojas: PAWONIK
• Modelis: JL-C1001

Connect once and listen without a combination! Our HDMI 4K HDR converter with ARC function distributes the signal: the image goes to the TV/projector, and the sound to the amplifier, soundbar or headphones – with S/PDIF optics or 3,5 mm jack. Perfect when your receiver/speakers don't have HDMI.

✅ The most important advantages:

• Audio extraction with HDMI – Toslink (S/PDIF) and AUX 3,5 mm outputs
• ARC – pull the sound from the HDMI ARC on the TV to the old receiver/soundbar 🔁
• 4K HDR passthrough – picture without loss, sound separated 💎
• Plug & Play – simple connection, ARC ON/OFF switch 🧠
• Universal compatibility – consoles (PS/Xbox/Nintendo), Apple TV, set-top boxes, laptops, TV 📺

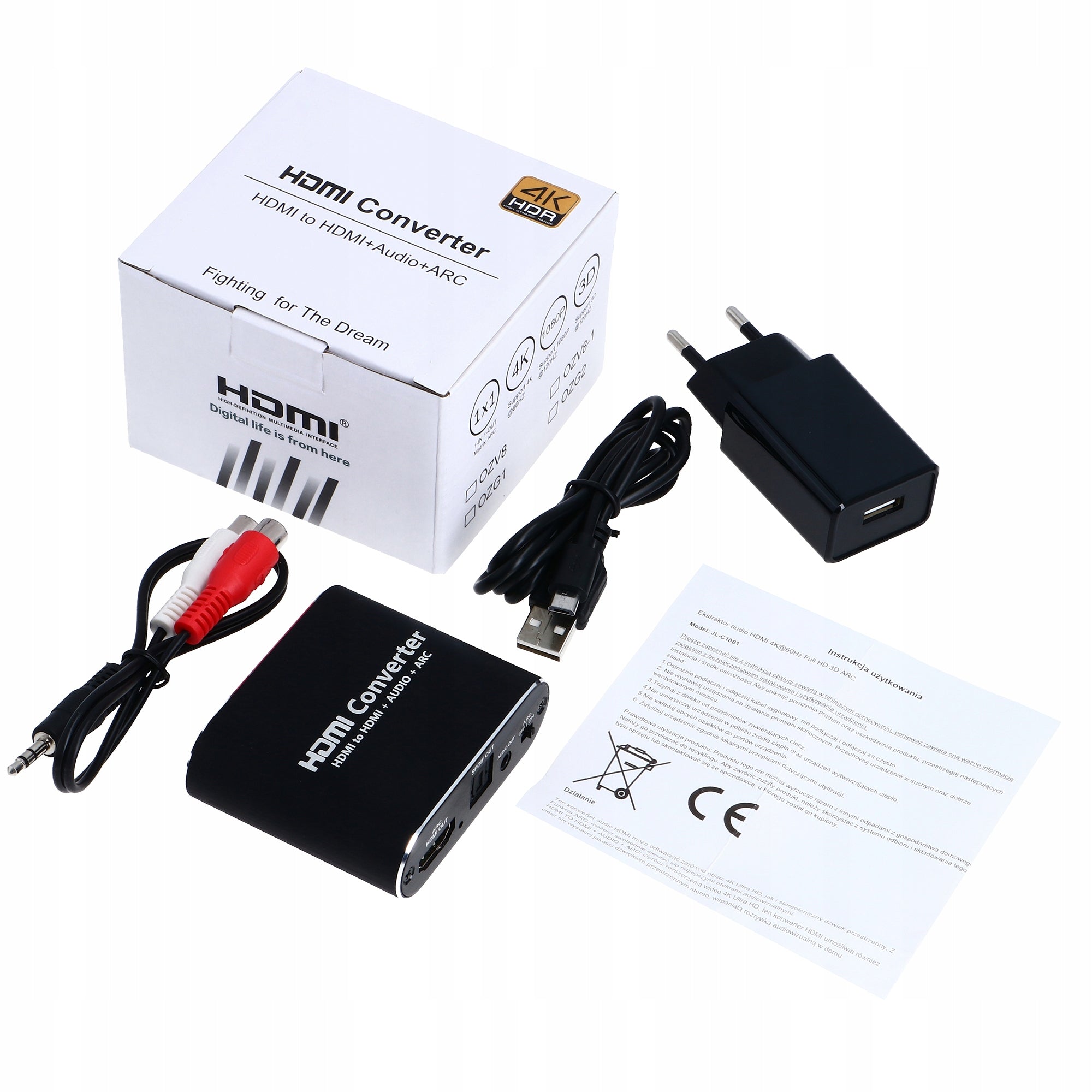

📦 Includes:

1× HDMI → HDMI + AUDIO (ARC) converter • Manual

💡 Why is it worth it? Because with one small device, you can bring older audio to life and get clear sound from Netflix/YouTube/game – without replacing the entire home theater.

🚀 Ideal for: TV with ARC, soundbars and amplifiers without HDMI, wired headphones, projectors, consoles and TV attachments.

FAQ

1. Will it extract audio from the Smart TV app (Netflix, YouTube)?

Yes – connect to HDMI ARC on TV and set ARC ON.

2. Does it work with PS5/XSX consoles?

Yes – connect the source → converter → TV; the sound will come out with Toslink or jack.

3. Do I need additional power?

It usually requires 5V USB power – if there is a cable in your version, connect it to the USB port/charger.

4. Will I get a 5.1 sound?

By S/PDIF – if the source and TV/device support (AC3/DTS). The jack 3,5 mm output is stereo.

5. Does it worsen the picture?

No – the video signal goes “pass-through” to 4K HDR.

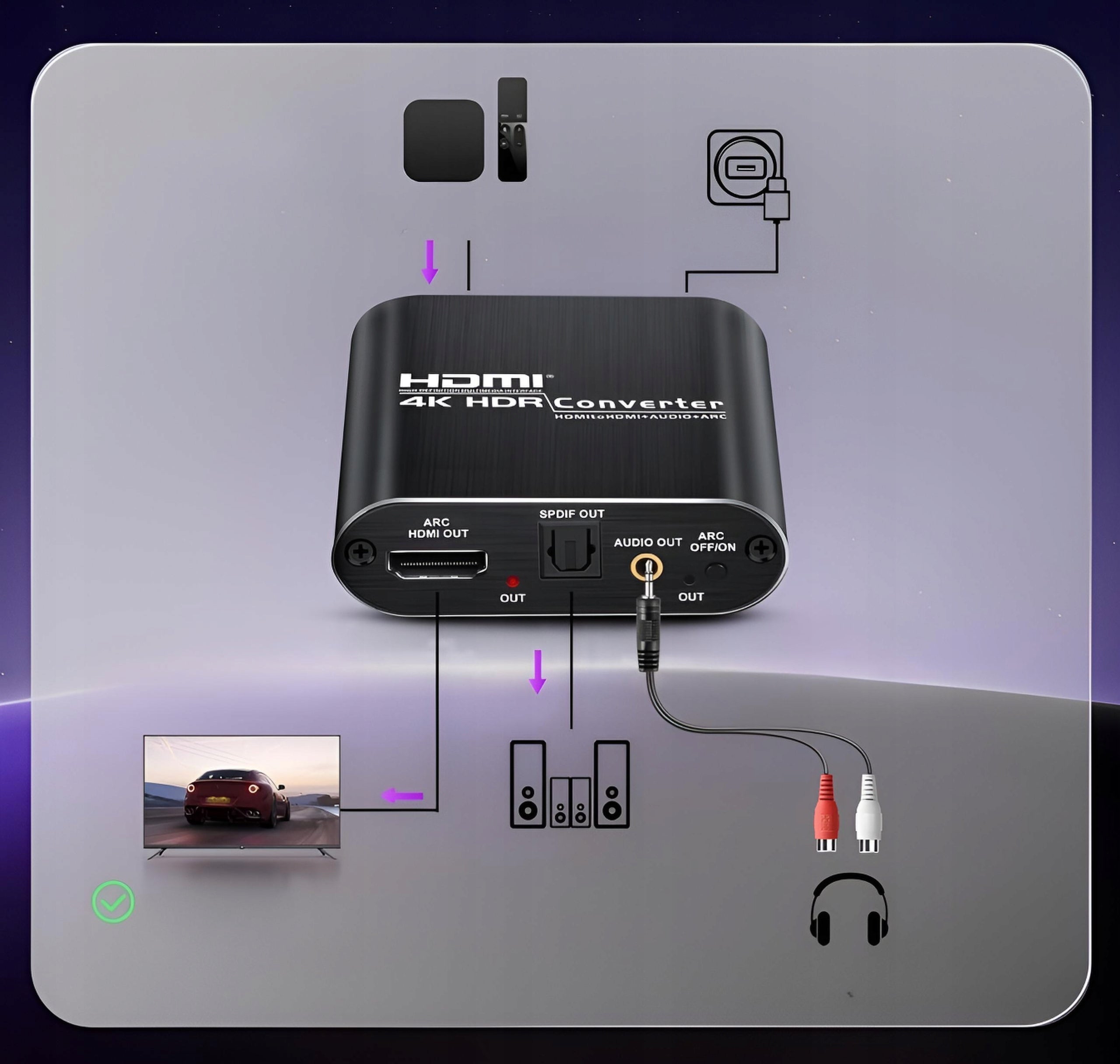

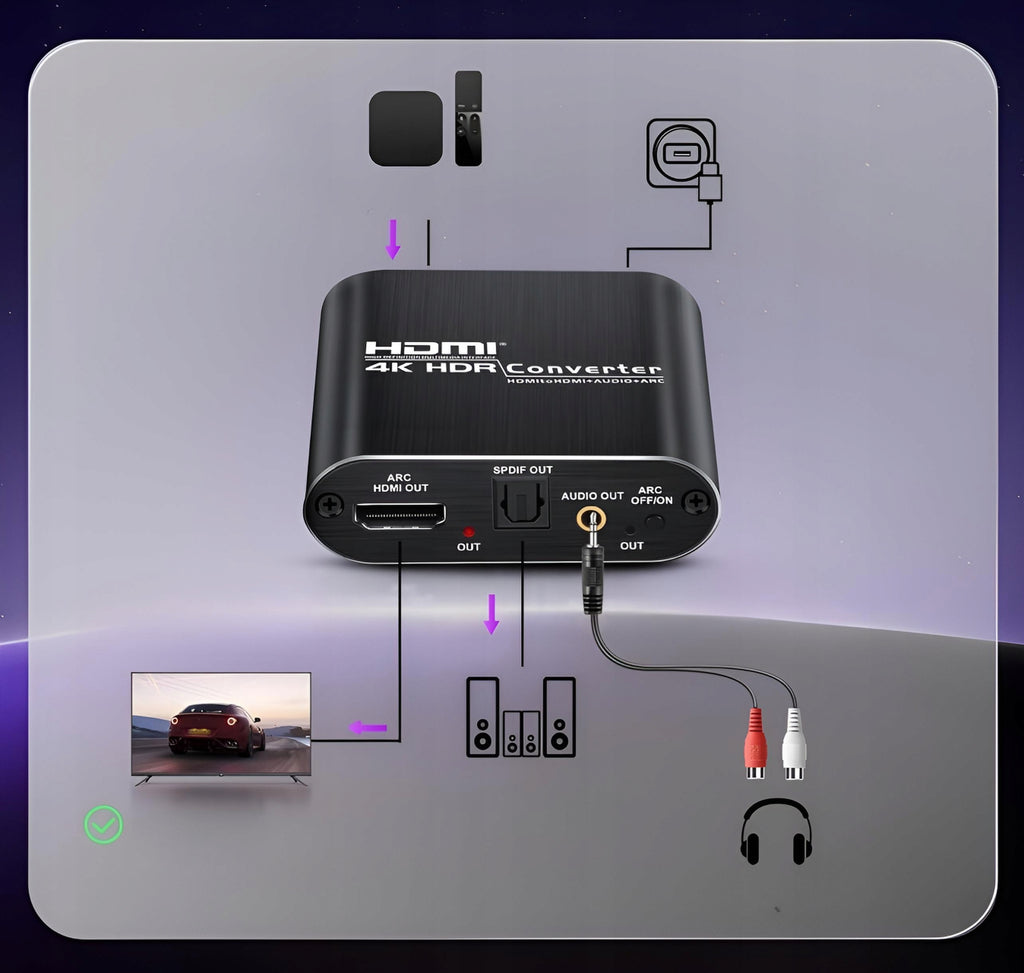

MODE 1 — HDMI AUDIO EXTRACTOR (connection instructions)

1. HDMI source (console/TV box/PC) → HDMI input in the converter.
2. ARC HDMI OUT → TV/projector — only image (4K HDR pass-through).
3. 🔊 Audio in parallel to the equipment:

   • S/PDIF (optician) → receiver/soundbar

   • Jack 3,5 mm → speakers/headphones (3,5 mm cable included)

   (both audio outputs can play simultaneously)

4. 🔌 Power supply: DC 5 V (USB). ARC switch in the OFF position — in this mode, the sound is pulled from the HDMI input.
5. ℹ No CEC – remote control remote control does not adjust the volume. HDMI OUT is not used to connect audio equipment, but to the display.

MODE 2 — ARC (TV ➝ S/PDIF / 3,5 mm)

Objective: Extract audio from the app on TV (Netflix, YouTube, DVB tuner, etc. ) and serve it on an amplifier/soundbar or headphones.

Step by step:

1. ✅ Your TV must support HDMI ARC (enable ARC in the TV menu).
2. Connect the HDMI ARC port on TV→ to the ARC HDMI OUT port on the converter.
3. ⚡ Power converter: DC 5 V (USB).
4. 🔁 Set the switch ARC = ON (red LED lights up).
5. 🎚 On TV, select sound output: HDMI ARC.

Audio outputs (active simultaneously):

• 🔊 S/PDIF (optical) → receiver / soundbar (up to 5.1)
• 🎧 Jack 3,5 mm → speakers / headphones (stereo)

ℹ Important: in ARC mode HDMI input is not needed. No CEC (remote control remote does not control volume), eARC not supported. Max. 5.1 by S/PDIF.

3 MODES OF AUDIO OUTPUT — TV / 2.0CH / 5.1CH slider

TV (PASS Mode)

➡ Transmits audio and image unchanged via HDMI to TV/projector (4K HDR).

Audio outputs in the inactive converter – no extraction.

2.0CH (Stereo)

🎧 PCM/LPCM 2.0 on outputs: jack 3,5 mm (analog) and S/PDIF (optics).

✅ Ideal for speakers/headphones, soundbars without DD/DTS decoders.

5.1CH (Surround)

🔊 Dolby Digital / DTS 5.1 via S/PDIF to receiver/soundbar (jack 3,5 mm still stereo).

❗ None 7.1.

🔧 Settings tip:

• for 2.0CH select PCM/LPCM (stereo) in the audio source,
• for 5.1CH set Bitstream/DD/DTS (if available).

ℹ S/PDIF and jack outputs can work at the same time. No CEC (remote control remote control does not control volume).

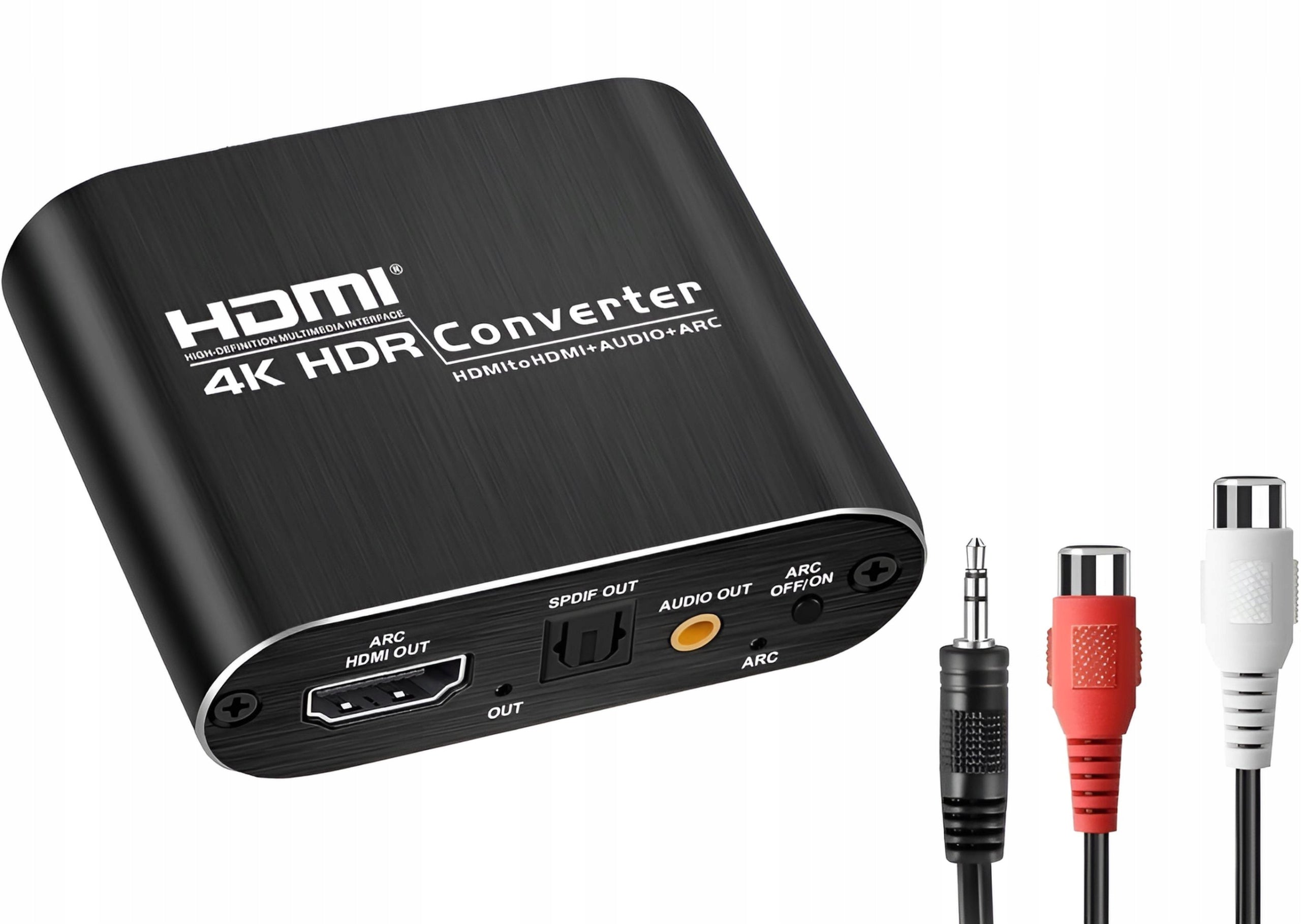

INPUTS/OUTPUTS – HOW TO CONNECT?

OUTPUT (outputs):

ARC HDMI OUT → TV/monitor – 4K60 HDR (passthrough) image.

❌ Do not connect audio equipment here (HDMI OUT is for display only).

🔊 S/PDIF OUT (optical) → receiver/soundbar (to 5.1).

🎧 AUDIO OUT 3,5 mm → headphones / speakers (stereo).

INPUT (inputs):

🎮 HDMI IN – source: console / TV box / DVD / laptop.

⚡ DC 5V – USB power supply.

🎚 TV / 2.0CH / 5.1CH switch – audio mode selection.

💡 Hints: Both audio outputs (S/PDIF + 3,5 mm) can work simultaneously; you adjust the volume on the amplifier/soundbar (no CEC).

5.1CH SURROUND — DOLBY DIGITAL / DTS

Cinematic surround sound from games, movies and Smart TV apps — via optical S/PDIF output. Ideal for soundbars and receivers.

✅ What you get:

• Up to 5.1 channels – realistic spatial effects 🎮

• Clean optical signal – no interference, no delay

• Better experience – clear dialogues, deep bass

ℹ Conditions: The source must send 5.1 (AC3/DTS) and the receiver must operate it.

🎧 Jack 3,5 mm = stereo sound.

❗ No support 7.1.

4K ULTRA CLEAR — FULL OF DETAIL ✨

Passthrough 4K@60Hz HDR — vivid colors and sharp details without compression.

Movies and TV series in cinematic quality • ? Games with full fluidity.

🖥 Ideal for TVs, monitors and 4K projectors.

⚡ Stable HDMI→HDMI connection – zero latency, zero loss.

VALID BEFORE PURCHASE

ARC – operating conditions

✅ TV must support HDMI ARC

No eARC

In ARC mode, audio is fed only to audio outputs (optical S/PDIF / jack 3,5 mm), not to TV speakers

ARC switch has memory – after restarting it returns to the last state

Product comments

🚫 No CEC – remote control remote control does not adjust the volume through this device

🔈 Both audio outputs are active simultaneously (S/PDIF + jack 3,5 mm)

🎚 Sound up to 5.1 by optical (none 7.1)

Specification (shortcut)

• Video input/output: HDMI → HDMI (pass-through)
• Image support: to 4K HDR (compatible with devices)
• Audio outputs: S/PDIF (Optical Toslink), AUX 3,5 mm (stereo)
• Functions: ARC, ARC ON/OFF switch, audio extraction from HDMI
• Compatibility: consoles, TV attachments, laptops/PCs, set-top boxes, TV/projectors
• Color: black

S/PDIF typically carries stereo PCM and compressed formats (e.g. AC3/DTS) – depending on the source and settings. The maximum image/sound parameters depend on the capabilities of the connected devices.

Parameters (under filters Allegro)

• Type: HDMI Converter / Audio Extractor
• Video standard: up to 4K HDR (pass-through)
• Inputs: HDMI
• Outputs: HDMI (passthrough), S/PDIF Toslink, jack 3,5 mm
• Functions: ARC, audio extraction
• Application: TV, soundbar, receiver, headphones
• Color: black
• Brand/Model/EAN: PAWONIK JL-C1001 5903684262830
