Grindinis radiatorius Jaga Mini HYBRID 28x200, 5,3 kW, žematemperatūris

Trumpai apie prekę

Prekė: Grindinis radiatorius Jaga Mini HYBRID 28x200, 5,3 kW, žematemperatūris. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Jaga
• Modelis: 578789213
• Plotis: 2000 mm
• Aukštis: 280 mm
• Spalva: white

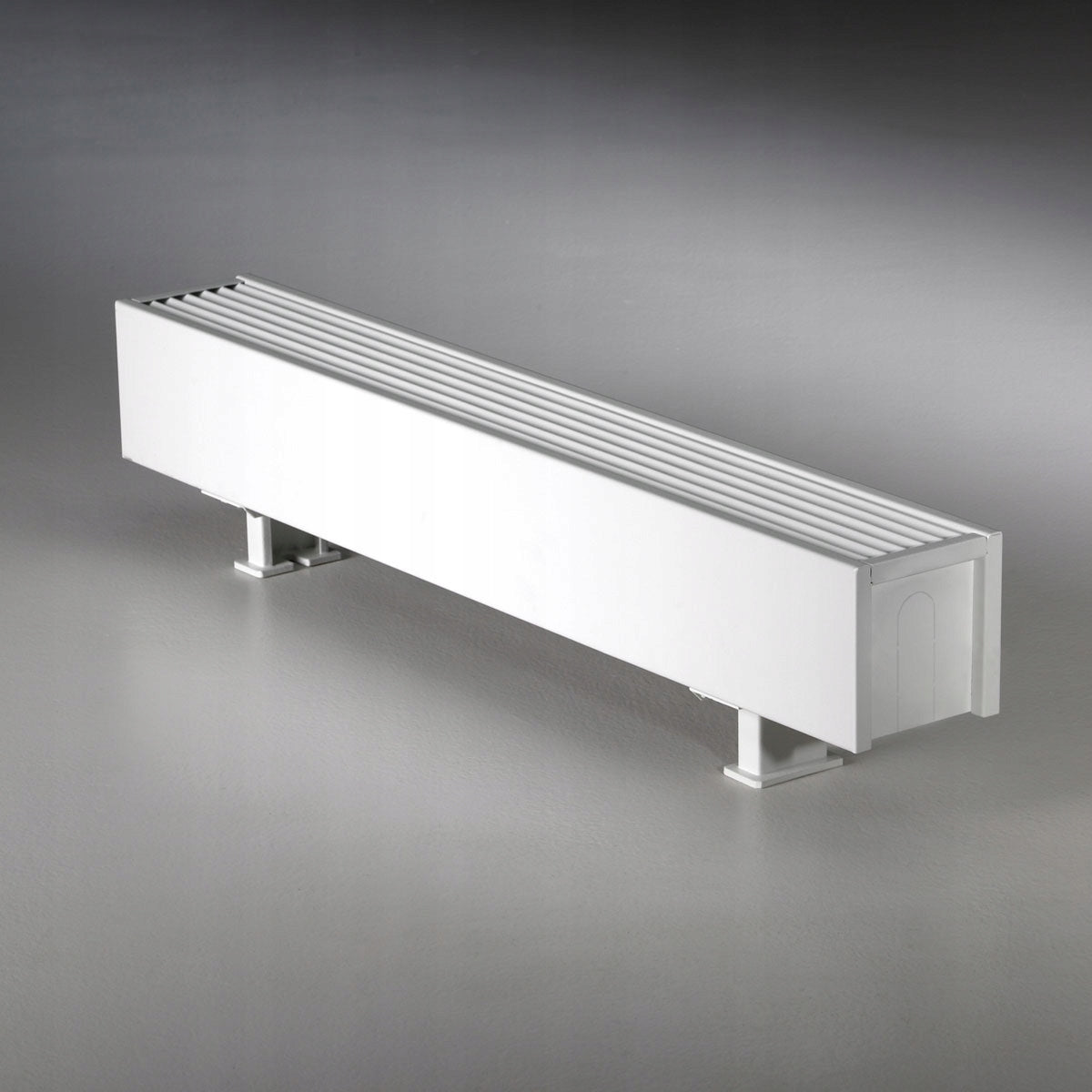

. Jaga Mini h28 x L200 - floor-standing convector heater for low-temperature installations

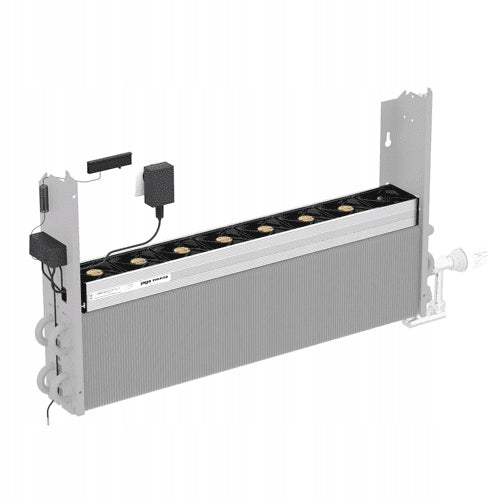

. with a copper-aluminum heat exchanger and an autonomous T21 fan system with a power of 5.30 kW.

Jaga is a company that has been constantly building its market position since 1962. The key to success in the radiator market turned out to be offering innovative products, created as a result of the constant work of teams of creative designers. Jaga tries to break the existing patterns of thinking about radiators and their use. Through continuous development and offering increasingly better products, the company truly sets new standards in the field of heating equipment. The gentle shape and smooth front panel make this radiator fit into virtually any type of interior, even antique ones.

When installing a condensing boiler or heat pump, the radiators must be larger. It is not always possible to increase the dimensions of devices due to insufficient space and often also for aesthetic reasons. The modern Jaga LowH2O system perfectly solves this problem. For wall mounting or floor mounting on legs. The small water capacity and low weight of the radiator allow it to quickly reach its full heating power, which guarantees easy control and, consequently, thermal comfort and lower heating costs.

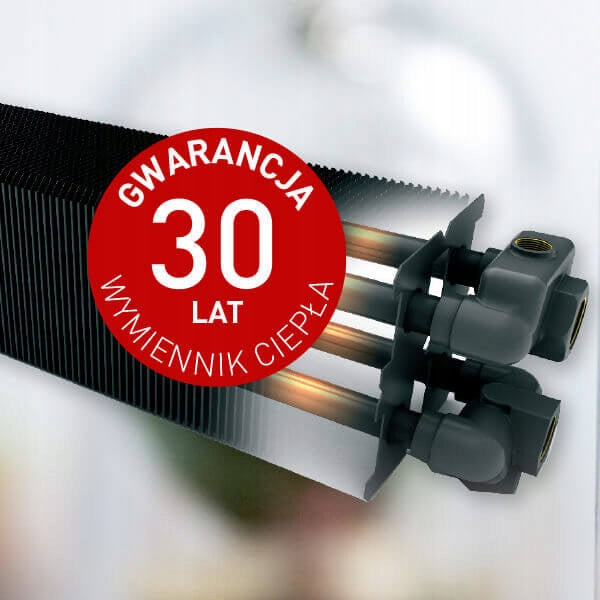

Construction: copper-aluminum

• Low-H2O technology, with a highly conductive and ultra-fast exchanger, guarantees low energy consumption and maximum heat emission.
• For heating and cooling.
• Twin exchanger for better compensation of the cold air flow falling on glass facades.
• DBH system for very low water temperatures – from 28 °C.
• Integrated valves and hidden connections.
• Safe surface temperature.
• tested at 20 bar pressure
• covered with a unique varnish that prevents dust from accumulating on the radiator elements
• it quickly reaches the appropriate temperature due to its very small water capacity
• impressive heating efficiency both at typical and extremely low supply temperatures
• the perfect combination of convection (circulation of warm air) and radiation
• the housing is finished with a durable polyester varnish with a delicate structure

in the set:

- Low H2O heat exchanger with wall brackets, mounting kit, 1/8" air vent and 1/2" plug

- partially assembled housing with left or right connection at the bottom of the radiator

Standing type

Technical data:

Height (cm): 28

Width (cm): 200

Depth (cm): 22

Exchanger: (T21)

DBH System

Radiator power according to the attachment - at temp. call. (minus 20*C) / gives temp.wew . (plus 20*C)

Power (75*C): 5300 W [at mid-fan speed]

Power (55*C): 3900W [power for low temperature. installation with a condensing boiler]

Power (45*C): 3200 W [power for low-temperature heat pump (35/45)*C]

Power (35*C): 2500 W

Working pressure: 10 bar

color: white RAL 9010

. Market price - PLN 9,600 (fixed legs)

. Our discounted price is PLN 4,800

.

Others at neighboring auctions. We also have Jagi wall radiators of different power ratings and dimensions, floor-standing radiators, channel radiators and raster grilles for them made of dozens of types of exotic wood.

. We help you optimize your order .

We also have all connection valves regardless of the direction and method of connection.

Insured delivery.

Local pickup possible.
