Trumpai apie prekę

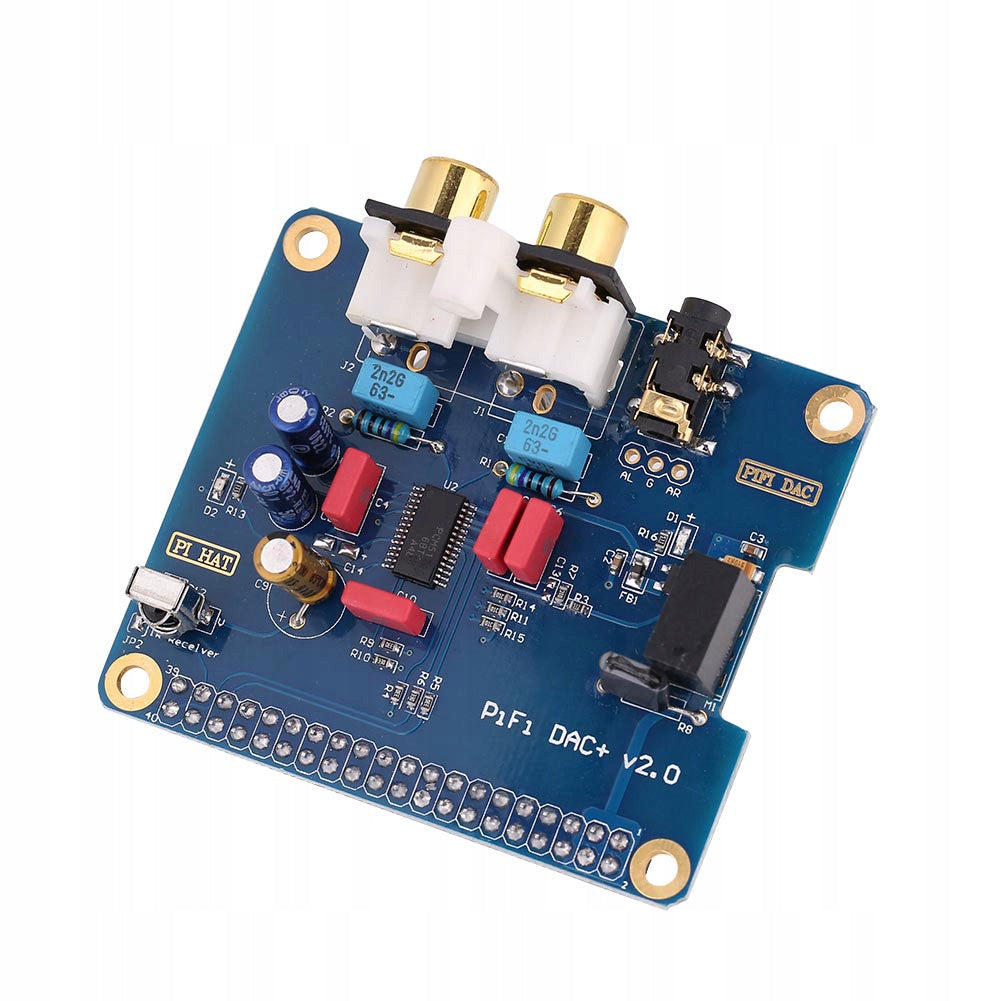

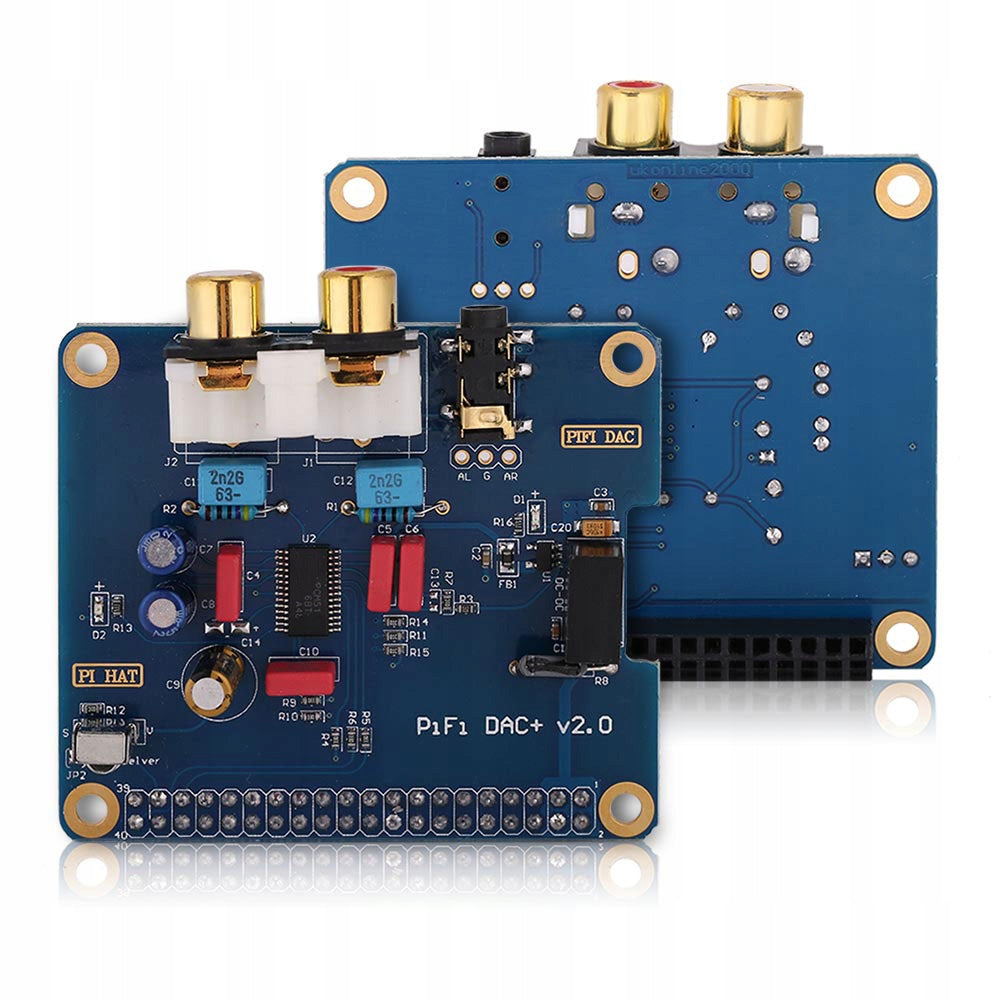

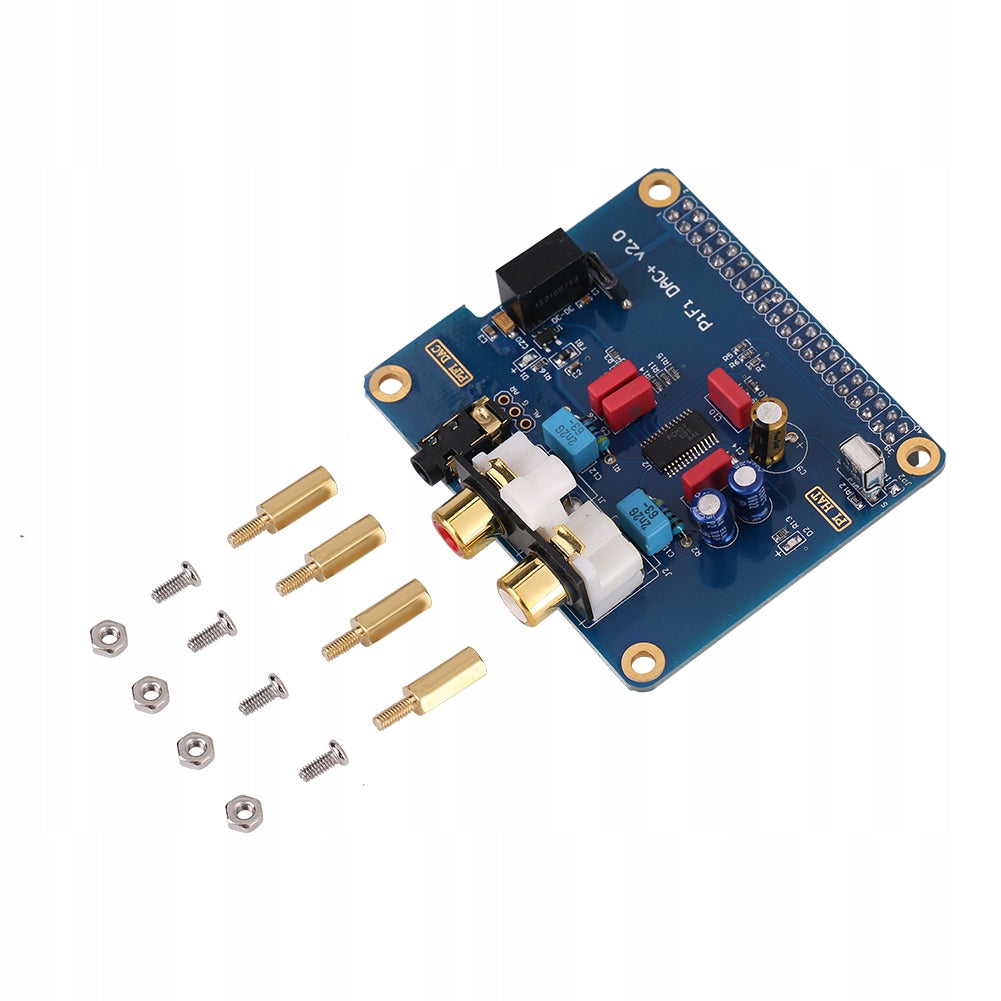

Prekė: Garso plokštė Raspberry Pi HIFI DAC, suderinama su Raspberry Pi 3 Model B, 2B, B. Kategorija: Priedai.
- Gamintojas: no brand
- Modelis: DS01467
✔ 1. Update the DAC chip using PCM5122 high-end chip, using I2S interface, and you can use i2c interface to adjust the sound volume parameters adjustment; supports 16 32-bit audio data format; Distortion and dynamics are very ideal, support high sampling rate 3
✔ 2. PCM5122 also integrated negative charge pump, output without DC blocking capacitor; ground center output 2,1 Vrms; ability to suppress very good band noise. Due to its low load up to 1K, the PCM510xA can control multiple parallel products.
✔ 3. Output ports with gold-plated dual HS terminal and gold-plated 3,5mm headset jack.
✔ 4. Insulated power supply design, make raspberry nutrition and DAC part of independent power isolation, and through the bead completely without mutual interference, get rid of the current sound.
✔ 5. Excellent compatibility raspberry pie official size PI hat, gold plated height process based on circuit board, arc wire (HIFI high-end digital-to-analog converter adopts arc wire), better guarantee signal continuity impedance, reduce signal reflection and refraction
Condition: 100% new
Sampling rate: 384KHz
- Resolution (bits): 16-32
- Digital audio interface: I2S
-SNR: 120 dB
THD: -93 dB
- Dynamic Range: 112 dB
- Supports Raspberry Pi B+, Raspberry Pi 2 Model B, Raspberry Pi 3B (64-bit)
1 x Digital sound card for Raspberry PI
1 x HIFI DAC for Raspberry PI
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | DS01467 |
| Parametry | Manufacturer | no brand |
| Parametry | Kind | Expansion board |
| Parametry | EAN (GTIN) | 7612272383694 |
| Parametry | Product weight with unit packaging | 0.1 kg |
| Parametry | Batteries included | no |
