Frezo mašina Mafell DDF 40 MaxiMax komplektas

Trumpai apie prekę

Prekė: Frezo mašina Mafell DDF 40 MaxiMax komplektas. Kategorija: Frezavimo staklės.

• Gamintojas: Mafell
• Modelis: 918626

Technical data:

• Depth of drilling: 0 – 40 mm
• Drill spacing: 32 mm
• Tool holder Ø: 8 mm
• Maximum drill diameter Ø: 12,2 mm
• Minimum drill diameter Ø: 3 mm
• Scope of cutting angles: 0 - 90°
• Rotary speed: 8000 1/min
• Power consumption: 900 W
• Short chip extraction diameter Ø: 29 mm
• Weight: 2,8 kg
• Dimensions (W x L x H): 145 x 300 x 164 mm
• Universal motor: 230 V / 50 Hz

Description

• The new DDF 40 stud introduces greater ease and efficiency in accurate drilling of stud holes. Its hallmarks are a wide range of applications, a new ergonomic design for easy operation and absolutely even, stable connections.
• In the workshop or on the assembly, no other hand-held power tool can create connections of such high quality.
• When making corner joints, partitions or rows of holes, the DDF 40 offers not only the precision of a stationary machine, but also the cost savings associated with the use of standard wooden pegs.
• In addition, the double doweling technique allows you to achieve exceptional stability already at the stage of dry assembly.

Application:

• Row of holes
• Drilling of connectors
• Ideal for connecting furniture bodies, frame structures, drawers and stairs both in the workshop and at the customer
• For joining solid wood, slats and wooden boards
• For connections on wooden pegs at d. 3 - 12 mm

Benefits:

• With the knob and scale, you can accurately adjust the tilting foot of the stud to a height of 62 mm. Typical dimensions can be set using a turret bumper.
• Two spring-loaded retaining pins in the motherboard allow the user to drill holes at a constant distance of 15,5 mm from the edge of the material; repeatable drilling without any measurements or marking.
• The ergonomic motor housing, with a molded handle at the front and a hump at the back, provides the operator with excellent grip on the device regardless of the work performed, while optimally transferring force to the machine.

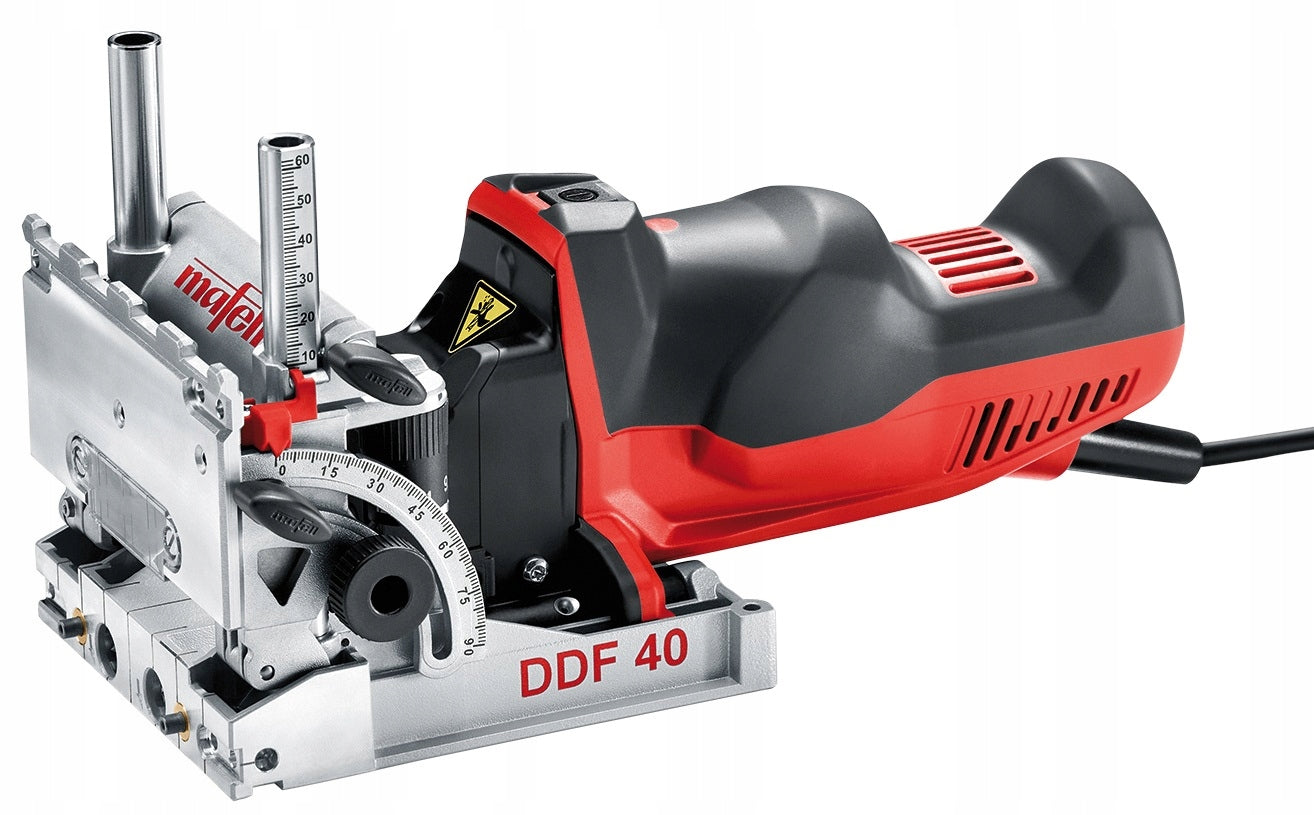

DDF 40 is a slim-fitting machine with a flat base plate. It creates a practical connection on wood studs with ease of use as with classic drills.

The patented alignment system with spring-loaded retaining pins in the base plate has been adapted to the new SA 320 set of side examples. They allow you to drill a pair of holes and repeat this operation - at a great distance from the reference edge - very easily and without the need to mark the material.

The 32 mm spacing between the holes is a standard used by professionals on a daily basis, while other joining systems require additional tooling. DDF 40 allows you to make a row of holes and mounting holes with a spacing of 32mm. So all the furniture is easy to assemble.

The proven double doweling technique prevents the elements from twisting after assembly. As a result, leveling items is unnecessary.

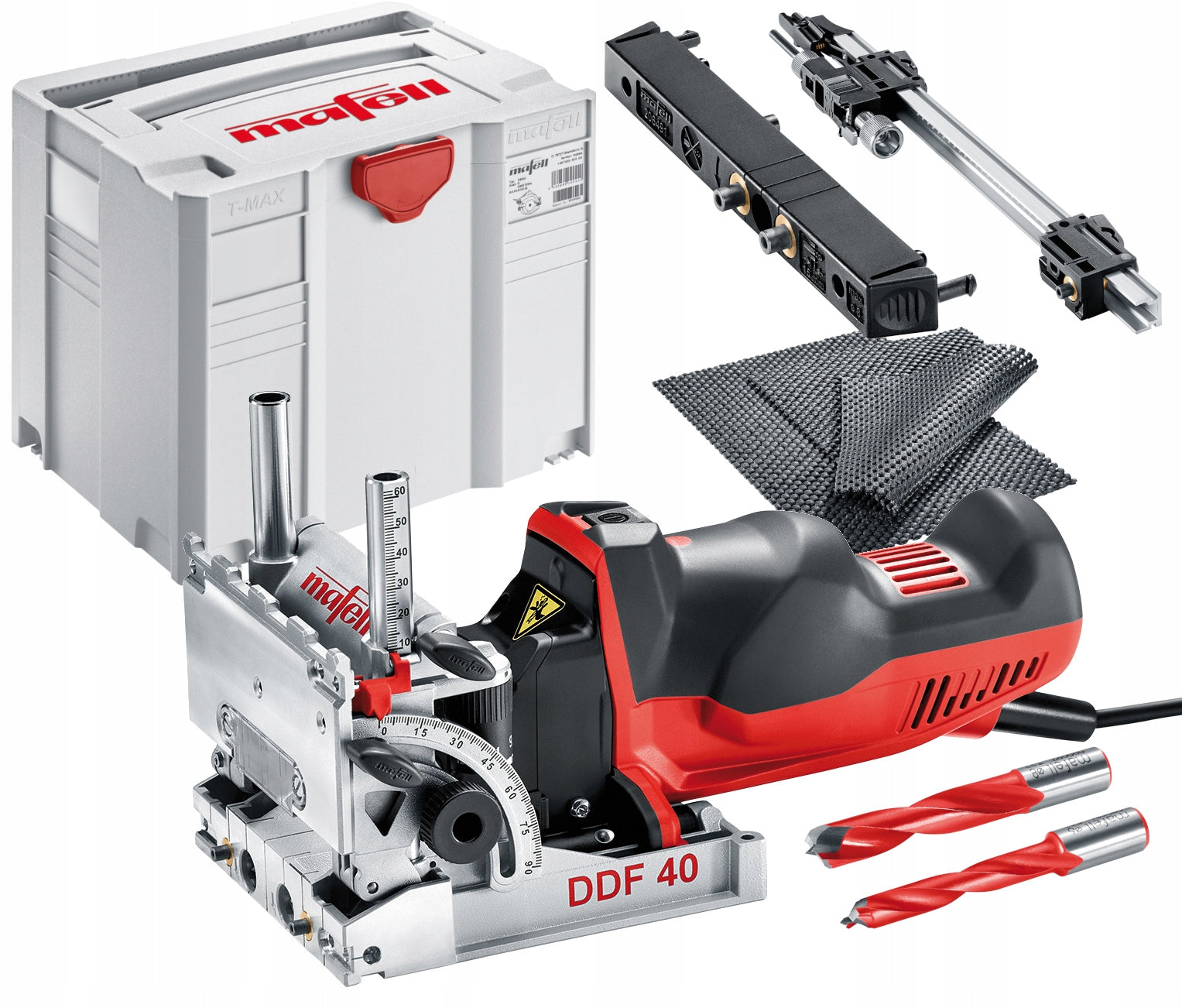

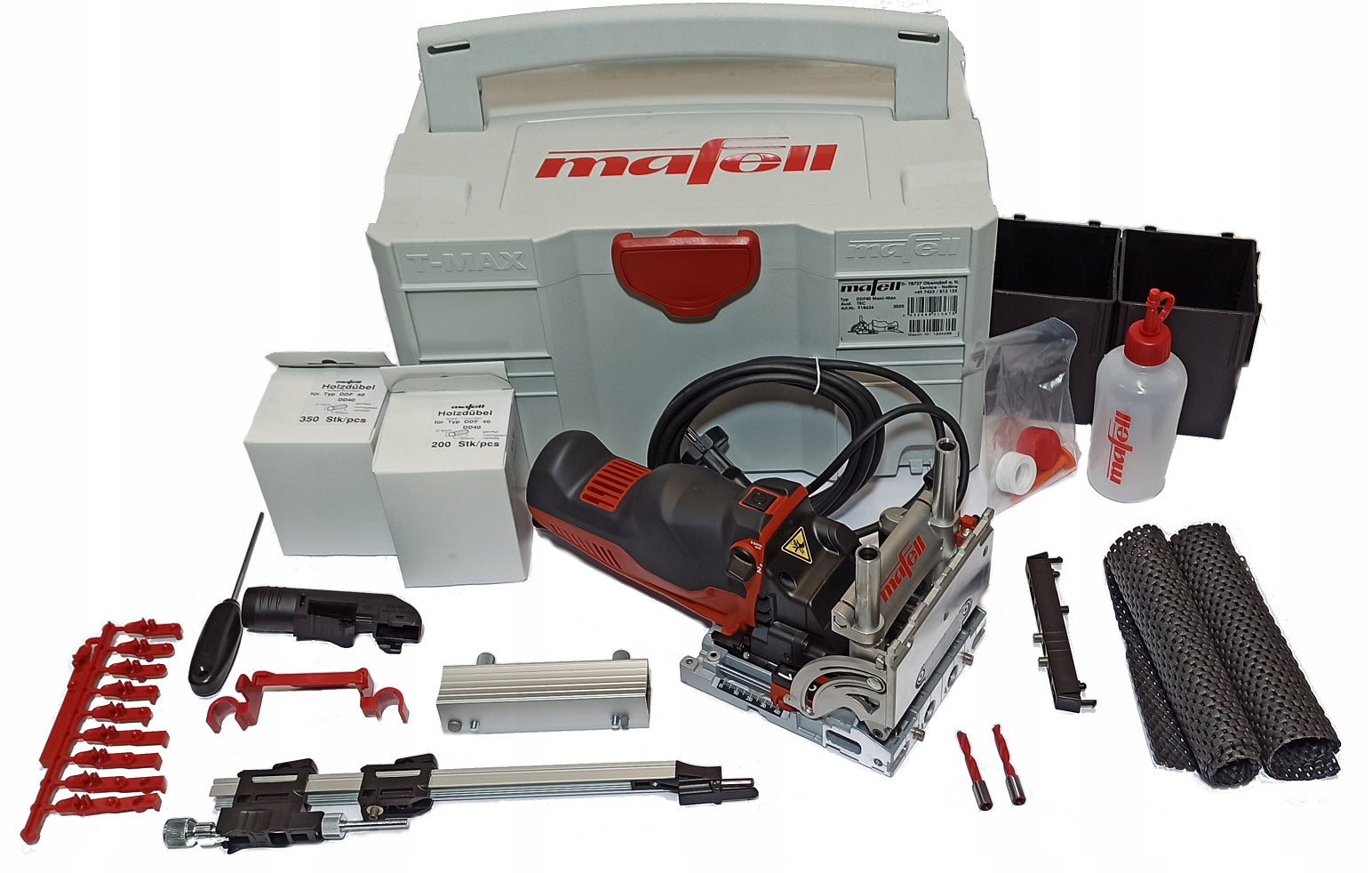

• Mafell DDF 40
• 1 additional support ZA
• 1 set of ZAG tax bumpers
• 1 set of side sampler SA 320(206490)
• 1 Additional bumper for LA strips For drilling in thin strips in the range of 14-18 mm. (206491)
• 2 drill bits HW d. 8 mm (090097)
• 2 drill bits HW d. 6 mm (090096)
• 2 anti-slip mats (095063)
• In the T-MAX system
• User manual
