Trumpai apie prekę
Prekė: Frezavimo staklės CNC graviravimo staklės LF Advanced 1 PikoCNC su stalu. Kategorija: Frezavimo staklės.
- Gamintojas: LF
- Modelis: Advanced 1
Want to start your adventure with CNC?
Do you have an idea for a product made of aluminum, plastic or wood but do not know how to make it?
Do you want to provide services on a CNC machine that generates a fast return on investment?
If you have no experience with CNC, nothing is lost.
When you buy our machine syou have free service!
We will also advise you on technical issues - how to make a material attachment,
what preliminary parameters of the machine to set, we will help in the selection of tools.
Videos showing the work of our machines are available on our YouTube channel:
https://www.youtube.com/channel/UCkK028tlXeQCWP0cRM2PGwQ/featured

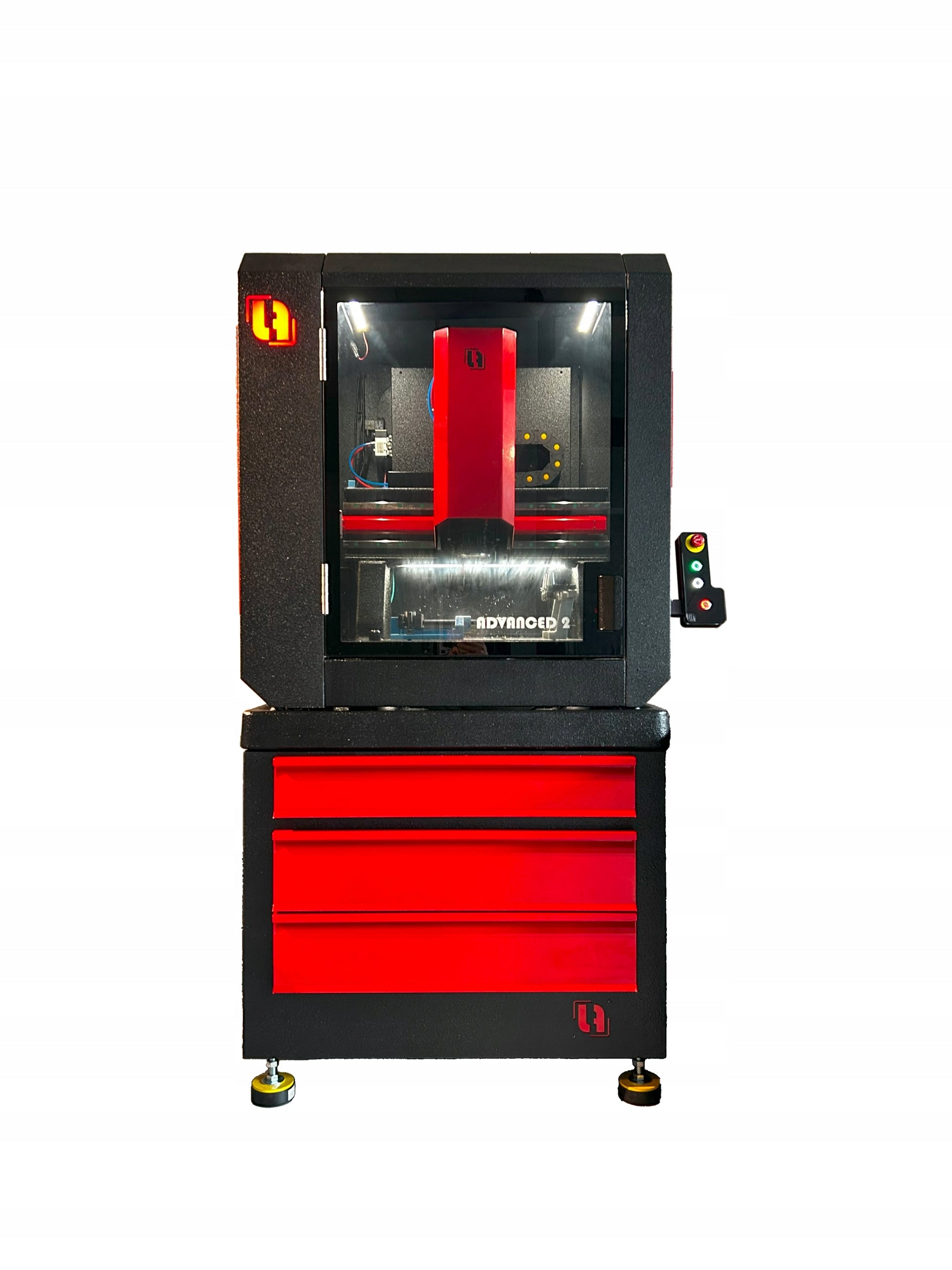

We present our latest CNC milling machine distinguished by an incredibly rigid construction entirely made of cast iron!
Set with case and table!
Our machine has a large working area of 300x300x200 (XYZ)
However, due to its construction - fixed gate with through table along the Y axis, we can place any long element.
The machine has a monolithic cast iron T-table for convenient and secure fastening of elements.
The milling machine can easily handle the processing of plastics, aluminum alloys, wood, wood-like products, steel.
The milling machine is completely cast in Poland using our innovative forms!
Thanks to the use of effective drives on ball screws, we obtain high speed and accuracy of machining.
The milling machine is perfect for milling, engraving, making 2D and 3D surfaces.
The machine has inductive sensors on all axes.
In addition, we add a tool height sensor to the machine for free!
A Windows computer is enough to operate the machine.
The milling machine has a reliable spindle of Italian production, of which revolutions are controlled directly from the program.
It is also possible to connect the fourth rotary axis.
Technical data:
- Working field: 300x300x200mm
- Construction: cast iron
- Drive transfer: 16x10 ball screws
- Linear bearing: Hiwin trolleys
- Guides: Hiwin 20
- Gate clearance: 200mm
- Working speed: 7 000mm/min.
- Spindle power: 2,2kW
- Spindle rotation: 500 – 18 000 rpm. /min.
- Spindle mounting: ER 20
- Drives: stepper motors 1,89Nm
- Material mounting: T-groove table 10mm
- Communication with computer: communication via LAN
- Electrical power supply: 230V AC
- Control: PikoCNC
- Housing: steel housing with tempered and glued glass for increased work safety
- Lighting: The machine has LED lighting at the spindle and under the gate as well as at the top of the housing
Table under the machine:
The table is made partly of cast iron. It has elements to mount a dedicated milling machine. It is equipped with a chip drawer, two tool drawers, two recesses, key holders for frames. Additionally, the bottom of the table is a bathtub with coolant and pump operating in a closed circuit.
Milling machine equipment, which can be ordered additionally:
- 4 rotary axis
- Servona drives
- Hybrid engines
- Stronger spindle up to 5,6kW
- ATC spindle 9kW
- Linear or rotary tool magazine
- Extraction brush
- Oil mist
When ordering, you receive:
- Advanced 1 milling machine tested in our quality department
- Technical documentation
- CE declaration
- Operating instructions
- Support of our technical department
- Warranty and post-warranty service
Together with the machine we provide a set of documents: DTR, CE
More information about the machine can be obtained by writing to us.
Our offer includes CNC milling machines of other dimensions with aluminum, steel and cast iron construction. Equipped depending on the version with servo drives or stepper motors and intuitive control systems.
Welcome to our other auctions!
Our offer includes CNC milling machines of other dimensions with steel and cast iron. Equipped with servo drives or stepper motors and intuitive control systems depending on the version.
We invite you to our other auctions where you will find a machine for your needs!
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | LF |
| Parametry | Milling machine type | other |
| Parametry | Power supply | mains |
| Parametry | Maximum power | 2400 W |
| Parametry | Manufacturer code | Advanced 1 |
| Parametry | EAN (GTIN) | 5904463170131 |
| Parametry | Batteries included | no |
