FPV kamera BetaFPV Air, analoginė 600TVL, Tiny Whoop, CMOS 16:9

Trumpai apie prekę

Prekė: FPV kamera BetaFPV Air, analoginė 600TVL, Tiny Whoop, CMOS 16:9. Kategorija: Dronai ir multikopteriai.

• Gamintojas: BetaFPV
• Modelis: Air II 16:9

16:9

16:9 Ultra-light FPV Analog Camera

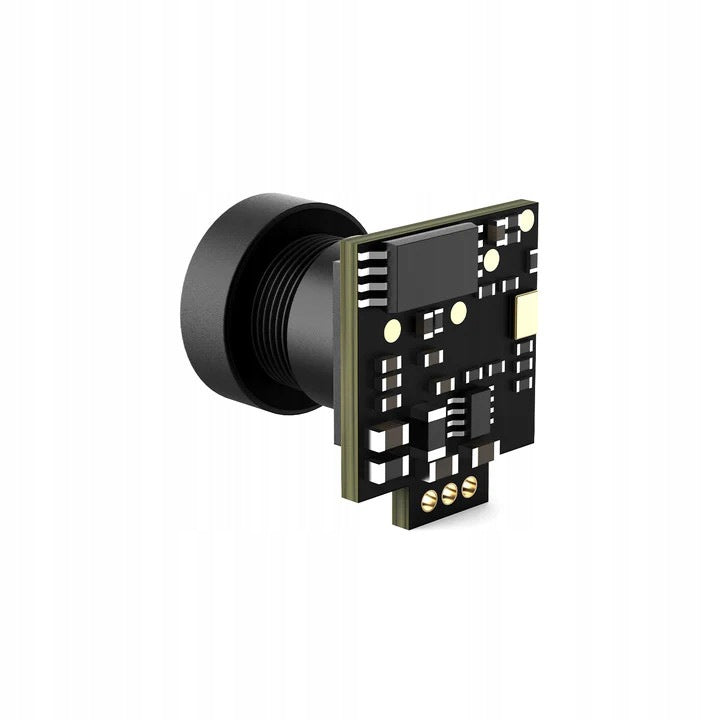

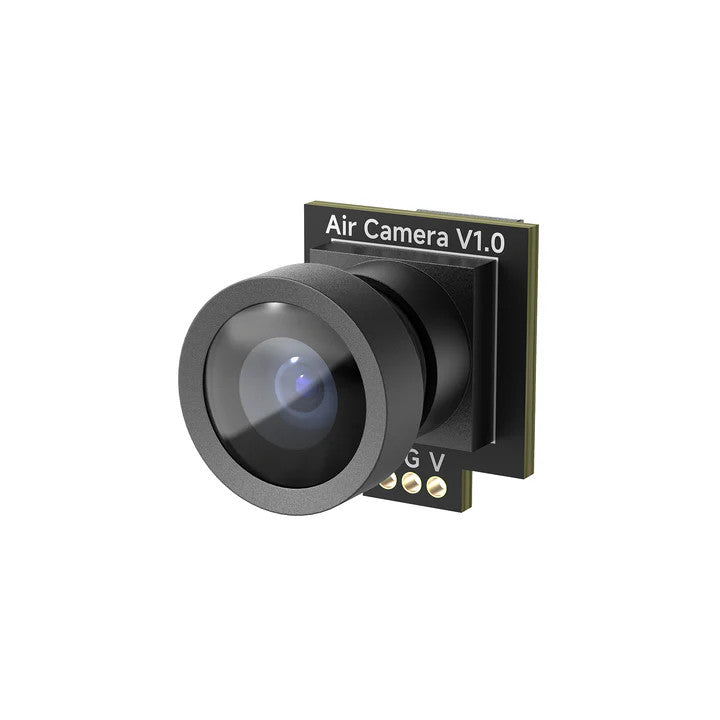

The BetaFPV Air Camera 16:9 is a 600TVL analog camera designed for Tiny Whoop light drones. The weight of 1,48 g reduces the load on the structure, and the wide field of view of 173 degrees makes it easier to observe obstacles during dynamic flight.

The most important features

• Image format 16:9 - wide image matched to compatible FPV goggles
• Field of view 173 degrees - good visibility of obstacles on the sides of the flight path
• Resolution 600TVL - analogue image signal in NTSC standard
• Sensor CMOS 1/4,5 inch - compact design and low power consumption
• Glass lens - greater scratch resistance than plastic lens
• Weight 1,48 g - a solution for ultra-light FPV constructions
• Power supply 5-12 V DC - cooperation with the appropriate power output of the flight controller

Wide field of view 173 degrees

The 16:9 variant provides a wide horizontal image that makes it easy to spot gates, walls, and obstacles on the sides of the drone. This is especially useful during racing and freestyle flights in tight spaces.

Before purchasing, check if your used goggles or FPV monitor support a 16:9 aspect ratio. On a screen designed exclusively for 4:3 format, the image can be stretched.

Technical specification

• Manufacturer: BetaFPV
• Model: Air Camera
• Variant: 16:9
• Type: analog FPV camera
• Image system: NTSC
• Resolution: 600TVL
• Sensor: CMOS 1/4,5 inch
• Field of view: 173 degrees
• Signal-to-noise ratio: 40,59 dB
• Electronic shutter: automatic
• AGC gain control: automatic
• Power supply: 5-12 V DC
• Power consumption: 60 mA at 5 V
• Connection: JST 0,8 mm
• Cable length: 40 mm
• Dimensions: 11 x 13 x 12,5 mm
• Mass: 1,48 g
• Lens material: glass

Contents of the set

• 1 x FPV BetaFPV Air Camera 16:9
