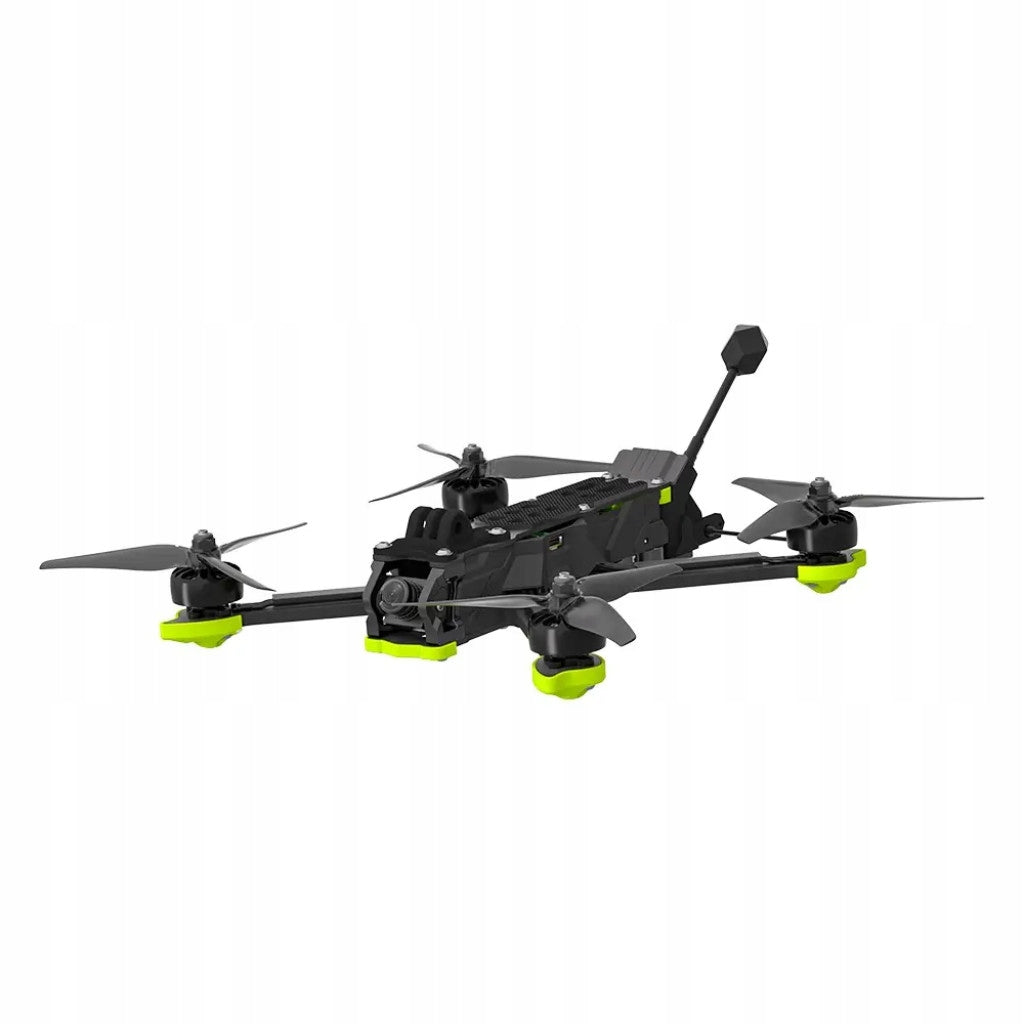

FPV dronas iFlight Nazgul XL5 ECO V1.1 6S

Trumpai apie prekę

Prekė: FPV dronas iFlight Nazgul XL5 ECO V1.1 6S. Kategorija: Dronai ir multikopteriai.

• Gamintojas: no brand
• Modelis: iFlight Nazgul XL5 ECO V1.1 6S | Dron FPV |

High-performance FPV drone for freestyle

The iFlight Nazgul XL5 ECO V1.1 6S is a modern drone class - 5 inches, designed for pilots looking for high performance at an affordable price. The True-X design provides stable and predictable handling, which is crucial when performing freestyle stunts. The analog version offers minimal delays in image transmission, allowing full control of the machine even at speeds up to 190 km/h. This model is a continuation of the proven nazgul5 series, which has gained recognition for its durability and excellent volatile properties.

Advanced electronics and BLITZ ATF435 controller

At the heart of the iFlight Nazgul XL5 Eco unit is an advanced electronics stack from the BLITZ series. Flight controller BLITZ ATF435 guarantees precise signal processing and system stability, cooperating with an efficient ESC controller. The drive is provided by BLITZ E55S, i.e. the 2-6s 55a controller, which easily copes with high power consumption during dynamic maneuvers. Thanks to the use of modern components, the nazgul xl5 eco 6s is ready to fly almost immediately out of the box, offering parameters found in professional racing machines.

Transmission power and video system 6s analog

The eco analog version is equipped with a powerful BLITZ 1.6W VTX video transmitter. Such a high output power (up to 1600mW) allows for a very long range and stable signal even in difficult terrain or behind obstacles. Analog 6s is a system proven and appreciated for its ease of use and compatibility with most FPV goggles on the market. Iflight also took care of proper cooling of components, which makes the 1.6W VTX work stably during long flight sessions, providing a clear view from the on-board camera. The dual antenna of the ELRS* receiver provides stable dual band communication, eliminating the risk of interference in complex environments.

* ELRS (short for ExpressLRS) is a revolutionary, free open-source radio remote control system. It is used for wireless communication between the apparatus (pilot) and the model – most often a FPV drone or airplane.

Rugged V1.1 frame and XING-E Pro engines

The design of the v1.1 XL5 ECO frame is characterized by thoughtful arrangement of components and high rigidity. The drone uses the legendary XING-E Pro 2207 1800KV engines, which in combination with the 6s power supply generate a powerful thrust. The frame allows for easy installation of the GoPro sports camera, which allows you to capture professional shots from the air. The Nazgul also has an integrated antenna mount and a robust XT60 connector, which is standard in this power class. The whole has been designed so that any repair after a collision is quick and trouble-free.

Expandability and functional hardware

The iflight nazgul xl5 eco v1.1 drone offers a wide field for personalization. The motherboard has mounting holes 30.5x30.5 and 20x20, which allows you to replace components with others in the future. The manufacturer has also provided space for an optional GPS module, which increases safety during flights in the open. The set includes proven Nazgul F5 propellers that provide great responsiveness. For added safety, it is worth equipping the machine with an external buzzer, which makes it easier to find the drone in high grass after an unplanned landing.

Technical specification

• Parameter: Value
• Flight Controller: BLITZ ATF435
• RPM regulator (ESC): BLITZ E55S 55A 4-in-1
• Engines: XING-E Pro 2207 1800KV
• VTX Transmitter: BLITZ 5.8G 1.6W (Analog)
• Power Supply: 6S LiPo (1300-1500mAh recommended)
• Maximum speed: Up to 190 km/h
• Weight (without battery): 427 g
• Frame diagonal: 245 mm
• Receiver: Integrated ELRS 2.4GHz

Key advantages

Efficient 6S: System Provides a huge supply of power necessary for freestyle and fast flights.

Powerful VTX 1.6W: Guarantees stable video signal even in harsh field conditions.

Durable construction V1.1: Frame designed for impact resistance and easy service.

Precise control: Thanks to the use of a modern ATF435 controller and F5 propellers.

Ready to expand: Support for additional accessories such as GPS or HD cameras.

The product is a proposal for:

FPV pilots looking for a proven BNF (Bind-N-Fly) machine in analogue standard.

People who want to start their adventure with freestyle on professional 6S equipment.

Users who need a drone with a long video range to explore the terrain.

Hobbyists looking for a solid base for mounting a GoPro camera for cinema shots.
