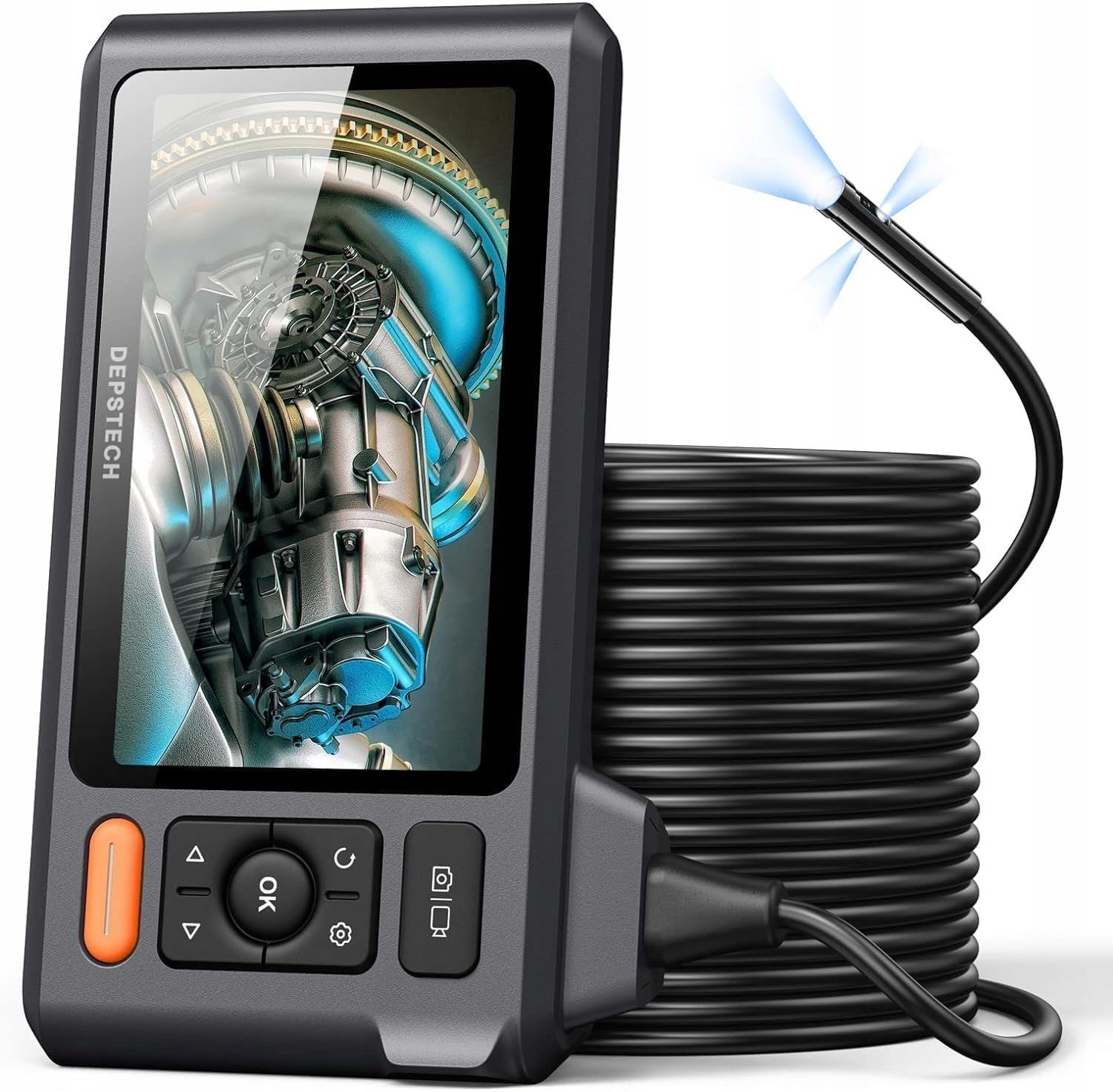

Endoskopinė kamera 15M, triple lens, 5'' IPS, 1080P, IP67, LED

Trumpai apie prekę

Prekė: Endoskopinė kamera 15M, triple lens, 5'' IPS, 1080P, IP67, LED. Kategorija: Endoskopai.

• Gamintojas: DEPSTECH
• Modelis: DS520TL

The DEPSTECH DS520 inspection camera is designed to control hard-to-reach areas in your home, workshop and industrial applications. Triple lens, large IPS screen 5", semi-rigid cable 15 m and IP67 resistance facilitate inspection of pipes, motors, walls, ventilation and technical installations.

The device works on its own, without the need to connect the phone.

THE MOST IMPORTANT ADVANTAGES

✅ Triple 2,0 MP Lens

✅ 1080p image resolution

✅ Large 5" IPS screen

✅ Front and side view

✅ Split screen function

✅ 180° rotation of the image

✅ Semi-rigid cable 15 m

✅ IP67 waterproof

✅ Adjustable LEDs

✅ Plug & Play support

✅ Accessories with hook and magnet

✅ Possibility to connect to a computer

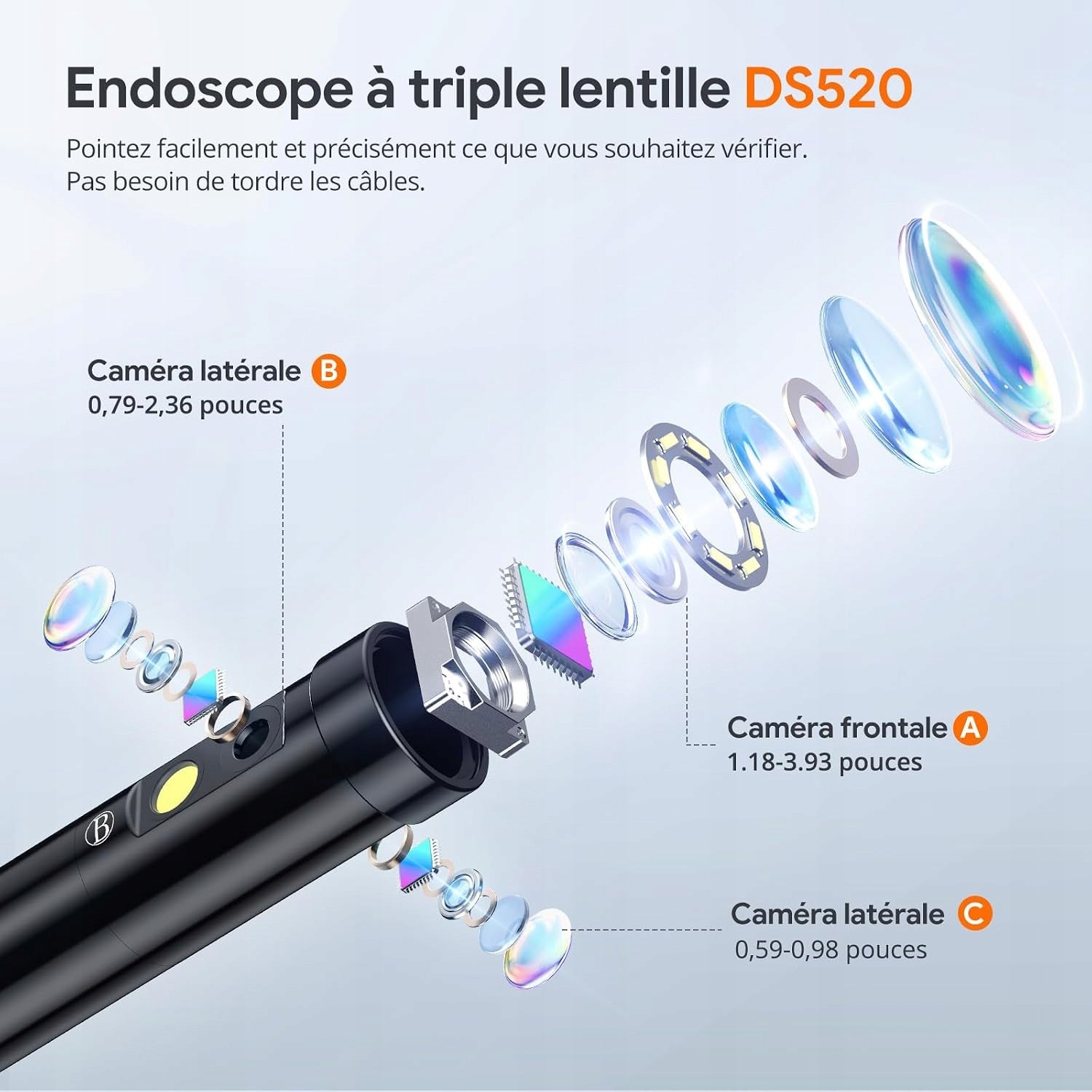

TRIPLE LENS

The camera is equipped with three lenses that allow you to observe space from different directions.

You can use:

✔ front view,

✔ side view,

✔ split screen view.

This solution helps to more accurately assess the condition of the interior of the pipe, engine compartment, ventilation duct or other hard-to-reach space.

SPLIT SCREEN FUNCTION

Split image mode allows you to observe more than one direction at the same time.

Thanks to this, you do not have to rotate the entire cable to check the side surfaces.

The 180° rotation button makes it easy to adjust the view to the current position of the camera.

FULL HD 1080P IMAGE

Triple lenses with a resolution of 2,0 MP provide detailed images in 1080p quality.

The camera will work well when detecting:

✔ cracks,

✔ dirt,

✔ corrosion,

✔ leaks,

✔ congestion,

✔ loose or lost items.

Image quality depends on the distance from the observed object, lighting and conditions inside the controlled space.

LARGE 5" IPS SCREEN

The built-in 5 inch IPS screen allows you to observe the image in real time.

The large display makes it easy to:

✔ precise camera guidance,

✔ assessment of details,

✔ rapid detection of obstacles,

✔ work without using the phone.

SEMI-RIGID CABLE 15 M

The 15 meter long cable combines flexibility with appropriate rigidity.

This allows it to be guided by:

• pipes,
• channels,
• walls,
• engine compartment,
• ventilation ducts,
• hard-to-reach technical spaces.

The coiled design makes it easy to store and reuse the cord.

WATERPROOF IP67

The camera tip has been adapted to work in a humid environment.

The IP67 rating allows it to be used, among others, in:

✔ pipes,

✔ drains,

✔ moist channels,

✔ air conditioning systems,

✔ places exposed to splashes.

The unit with the screen should not be submerged in water.

ADJUSTABLE LED LIGHTING

LEDs at the lens improve visibility in dark spaces.

Brightness adjustment allows you to adjust the light to the conditions and reduce reflections from glossy surfaces.

FOCUS RANGES

Front lens: about 3 to 10 cm

Side lens 1: approximately 2 to 6 cm

Side lens 2: approximately 1,5 to 2,3 cm

To get a clear image, keep the observed element within the appropriate focus range.

SIMPLE PLUG & PLAY OPERATION

The camera is ready to work when it is started.

The large buttons make it easy to:

✔ changing the lens,

✔ lighting adjustment,

✔ rotation of the image,

✔ taking photos and recordings,

✔ menu service.

It is not required to install the app on your phone.

ACCESSORIES FOR MINING OBJECTS

The included hook and magnet help to extract small items from hard-to-reach areas.

They can be useful for finding:

✔ screws,

✔ nuts,

✔ keys,

✔ metal parts,

✔ other small items.

WIDESPREAD USE

The DEPSTECH DS520 camera is suitable for:

🚗 control of engines and cars,

🚿 inspection of pipes and drains,

🏠 control of walls and construction spaces,

❄ diagnostics of air conditioning and ventilation,

⚙ servicing of machines,

🔧 workshop work,

🏭 industrial applications,

🛠 renovation and installation works.

TECHNICAL SPECIFICATION

Brand: DEPSTECH

Model: DS520

Type: endoscopic / inspection camera

Number of lenses: 3

Resolution: 1080p

Matrix resolution: 2,0 MP

Display: IPS, 5 inches

Cable length: 15 m

Cable design: semi-rigid

Camera tightness class: IP67

Split screen function: yes

Image rotation: 180°

Photo mode: manual

Exposure control: manual

Color: black

Connection to computer: yes

LED lighting: adjustable
