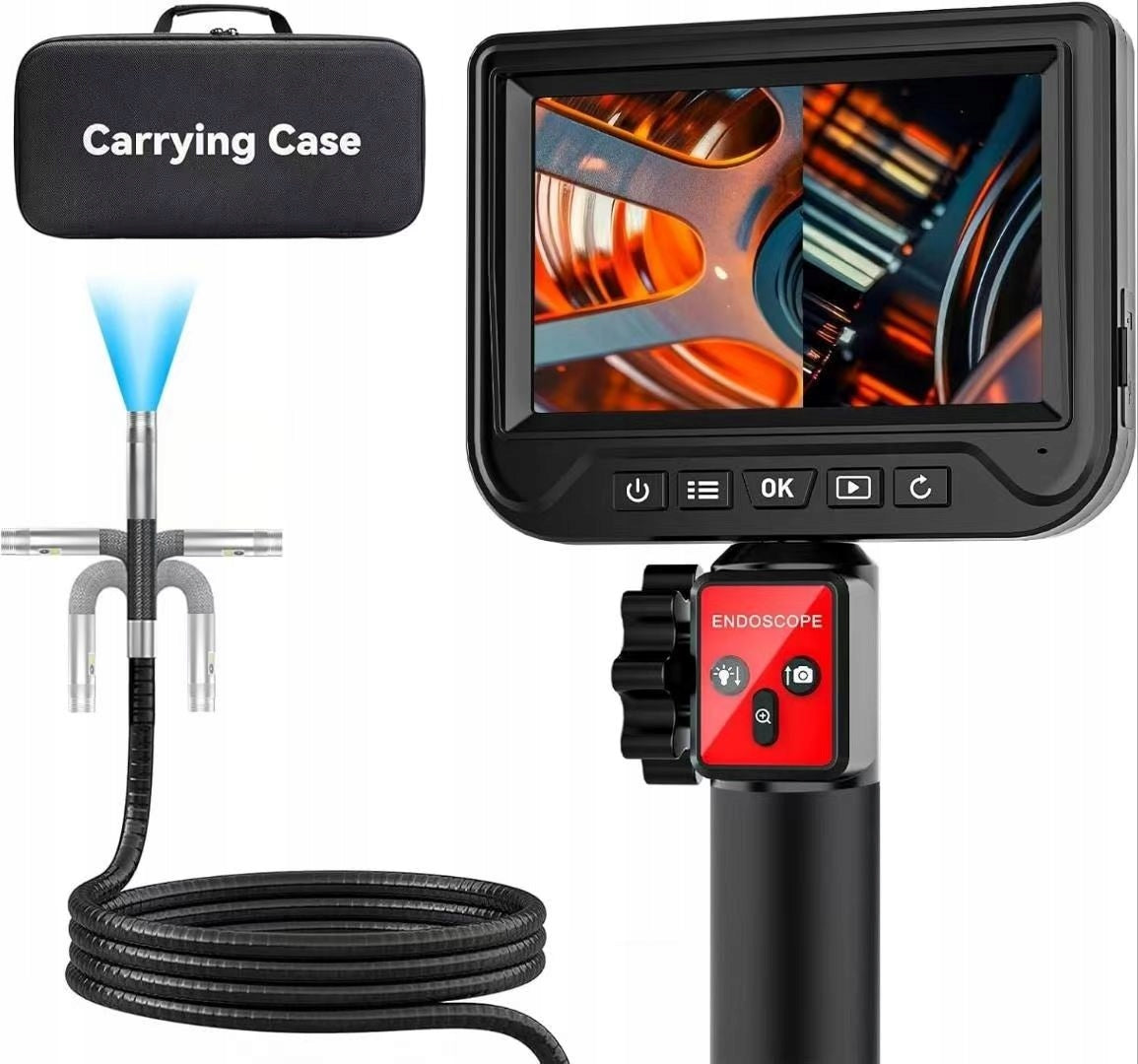

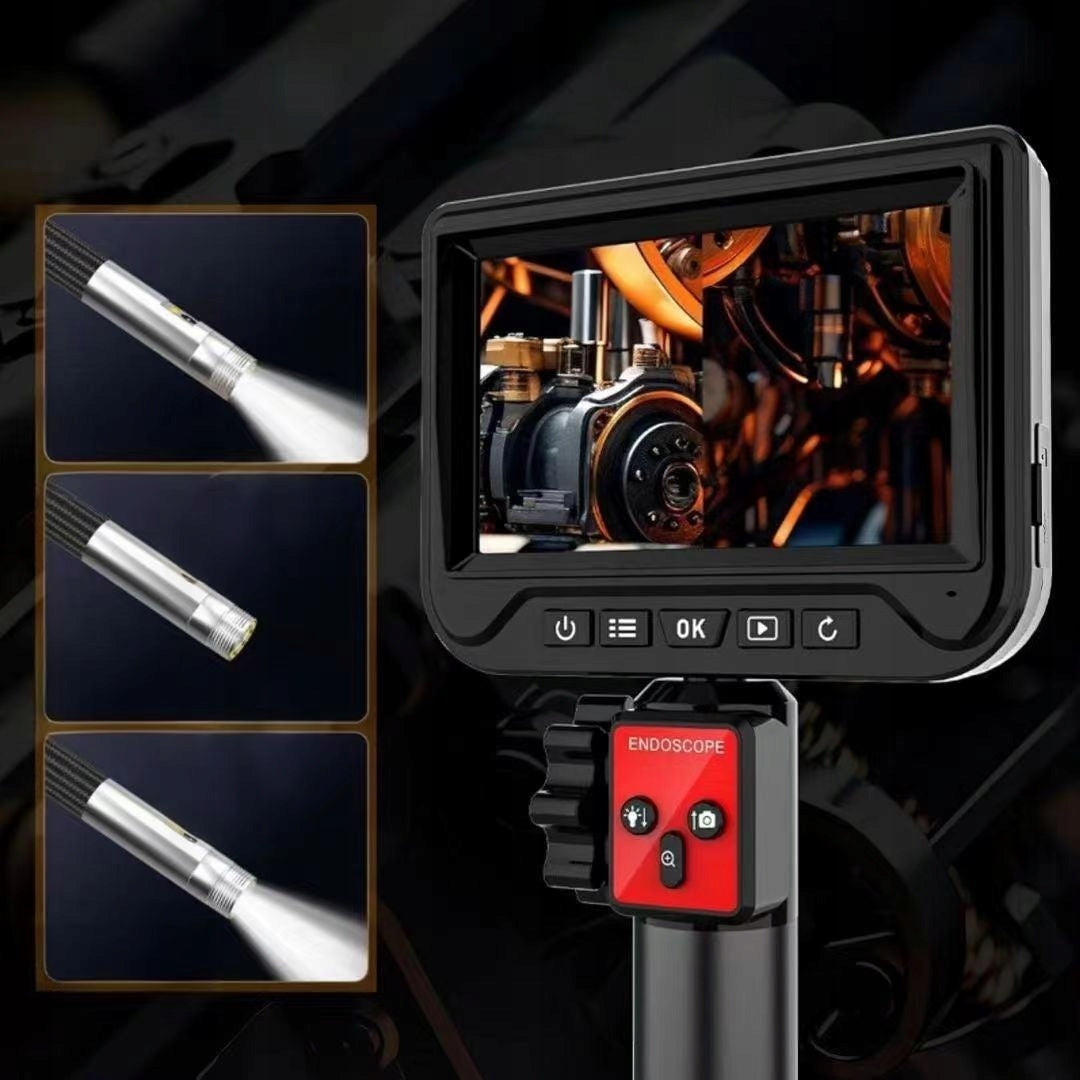

Endoskopinė apžiūros kamera 1080p 5" 2.7m IP67

Trumpai apie prekę

Prekė: Endoskopinė apžiūros kamera 1080p 5" 2.7m IP67. Kategorija: Endoskopai.

• Gamintojas: no brand
• Modelis: AZ-T50M-2W-3M

🖥 FULL HD 1080P – video recording and shooting

🧵 Articulated flexible cable 2,7 m

💧 IP67 waterproof head

✳ Full HD 1080P image (1920 × 1080) – clear, detailed live view of even very small details

✳ Two-way articulated flexible cable 2,7 m (180°) – full control in curved channels

✳ Special knob that allows you to adjust the position of the head with the camera - the perfect positioning of the camera in the place where we need it

✳ Slim front camera 6 mm – easy access to very narrow spaces

✳ Digital zoom 3× – more detailed analysis

✳ Large 5” LCD display – convenient operation without phone, apps and Wi-Fi

✳ 360° image rotation in live view mode – correct image orientation in each position

✳ 8 LEDs with adjustable brightness (3 levels) + the possibility of turning off the lighting

✳ IP67 waterproof head – safe operation in humid environments

✳ Display of the operating temperature of the camera head – an information function that increases the safety of use. This is not an ambient temperature measurement

✳ Overheating protection – camera and electronics protection

✳ 5000 mAh battery – up to approx. 6 hours of operation on a single charge

✳ Taking photos and recording videos (JPG / AVI) on memory card – quick inspection documentation

✳ Ergonomic manual design → Sure grip and comfortable operation

▫ Brand: Ataz

▫ Model: AZ-T50M-2W-3M / T50M

👍 Professional manual industrial endoscope designed to control narrow, curved and hard-to-reach spaces. Ideal for applications in automotive, machine service, technical installations, ventilation, plumbing and industry.

👍 m.in is working. when inspecting car evaporators, combustion chambers, collectors, catalysts and sensors.

👍 High quality Front camera FULL HD 1080P with CMOS 2 MP sensor provides sharp and stable image.

👍 Lens diameter 6 mm, focus depth 3 to 10 cm and view angle 70° allow you to quickly locate the fault without disassembling the elements.

👍 A special knob placed on the handle of the endoscope allows you to electrically control the head with the camera located at the end of the cable.

👍 Thanks to this, we can easily perfectly position the camera and reach places where standard, rigid endoscopes without head adjustment will not see anything.

👍 With one click you save photos (JPG) or record video (AVI with H.265 compression) directly to the MicroSD (TF) / MicroSDHC card with a capacity of up to 32 GB.

👍 With one click you save exactly what you see on the screen – the perfect solution for fault documentation, service reports, customer consultations or subsequent analysis. You don’t have to memorize or translate anything “in words”

👍 The camera tip has built-in LED with the ability to adjust the brightness in 3 levels, which facilitates inspection in dark and narrow places (pipes, gaps, machine interiors).

💧 The slim tip of the camera meets the IP67 standard, making it suitable for working in humid environments (pipes, drains, installations).

❌ Note: water resistance applies only to the camera head and cable, not the entire device.

👍 Built-in 5000 mAh battery provides up to 6 hours of operation. Charging via USB-C takes approx. 2,5 hours. The device can also work when charging (e.g. with powerbank).

The set includes:

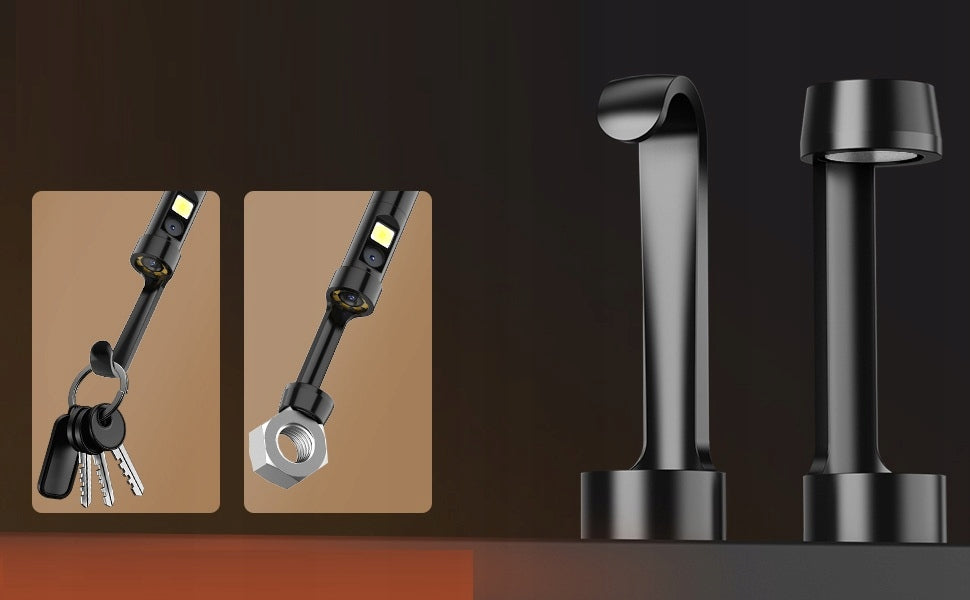

🪝 Hook – for pulling and moving small elements

🧲 Magnet – for the recovery of metal objects (e.g. screws)

⚙ Technical specification:

• Type: Industrial Handheld Endoscope / Inspection Camera
• Camera: 1 × front
• Matrix: CMOS 2 MP
• Resolution: 1920 × 1080 (HD)
• Camera Diameter: 6 mm
• Depth of field: 3 – 10 cm
• Viewing angle: 70°
• Lighting: 8 × LED
• Cable length: 2,7 m
• Cable type: Electrical, Articulated (180°)
• Display: 5” LCD
• Digital zoom: 3x
• Image Rotation: 360° (live view)
• Data storage: on MicroSD / MicroSDHC card up to 32 GB
• Battery: 5000 mAh
• Working time: approx. 6 h
• Charging time: approx. 2,5 h
• Waterproof: IP67 (head and cord)

⚙ Included:

• 1 × Endoscope
• 1 × USB-A cable → USB-C (USB-A – for connection to an external power source: charger, powerbank, computer / USB-C – connector in the endoscope)
• 1 × Tip with magnet
• 1 × Tip with hook
• 1 × Protective cap
• 1 × Protective case with carrying handle

⚠ Important information

• ❗ The displayed temperature refers to the work of the camera head and electronics of the device
• ❗ This is not a measurement of ambient temperature or test object
• ❗ IP67 waterproof applies only to camera head and cable, not the whole device
• ❗ microSD (TF) memory card is not included – only required if you want to save photos and videos, it must be purchased separately

Brand new product, in original packaging.

Product code (SBcode): SB11259

Specifications
