Elektroninis magnetinis kampamatis su lazeriniu atstumo matuokliu

Trumpai apie prekę

Prekė: Elektroninis magnetinis kampamatis su lazeriniu atstumo matuokliu. Kategorija: Kampamačiai.

• Gamintojas: JYIPure
• Modelis: KĄTOMIERZ ELEKTRONICZNY
• Plotis: 60 mm
• Medžiaga: aluminum

LASER PROTRACTOR DIGITAL INCLINOMETER RULER LASER RULER USB RECHARGEABLE INCLINOMETER BASE MAGNETIC GONIOMETER MAGNET ANGLE SIGHT

——FUNCTIONS——

1. DOUBLE FUNCTION – LEVEL AND ANGLE TIP:This versatile tool combines a level and angle meter in one device, enabling accurate horizontal, vertical and angular measurements for a wide range of tasks.
2. ONE-BUTTON UNIT SWITCH AND RELATIVE/ABSOLUTE MODES:Effortlessly switch between angle and tilt units with the touch of a button. The gauge supports both relative and absolute measurement modes, providing flexibility and accuracy for any project.
3. AUTOMATIC SHUTDOWN AND CLEAN LCD DISPLAY:The LCD display automatically rotates, making it easy to read in any orientation, and the tool saves battery by automatically shutting off after 30 seconds of inactivity, which ensures energy efficiency.
4. MAGNETIC FUNCTION AND PRECISE MEASUREMENTS:Equipped with built-in magnets, this tool easily attaches to metal surfaces, providing stable and precise measurements for all your leveling and angle measurement needs.
5. TYPE-C CHARGING PORT AND DURABLE DESIGN:Equipped with a Type-C charging port for fast charging, this meter is made of durable materials for long-lasting performance, while also being compact and lightweight for easy portability.

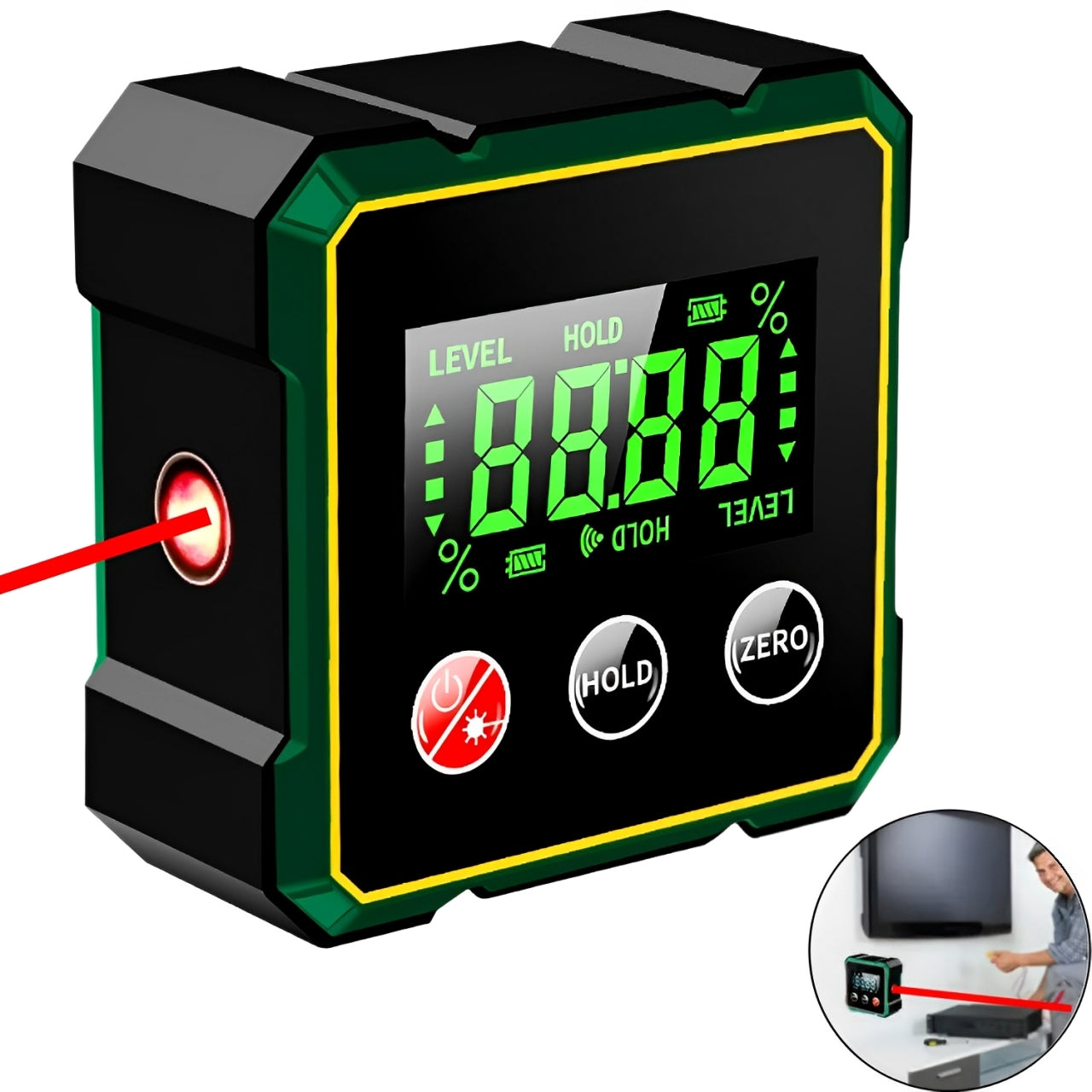

Inclinometer with laser digital display

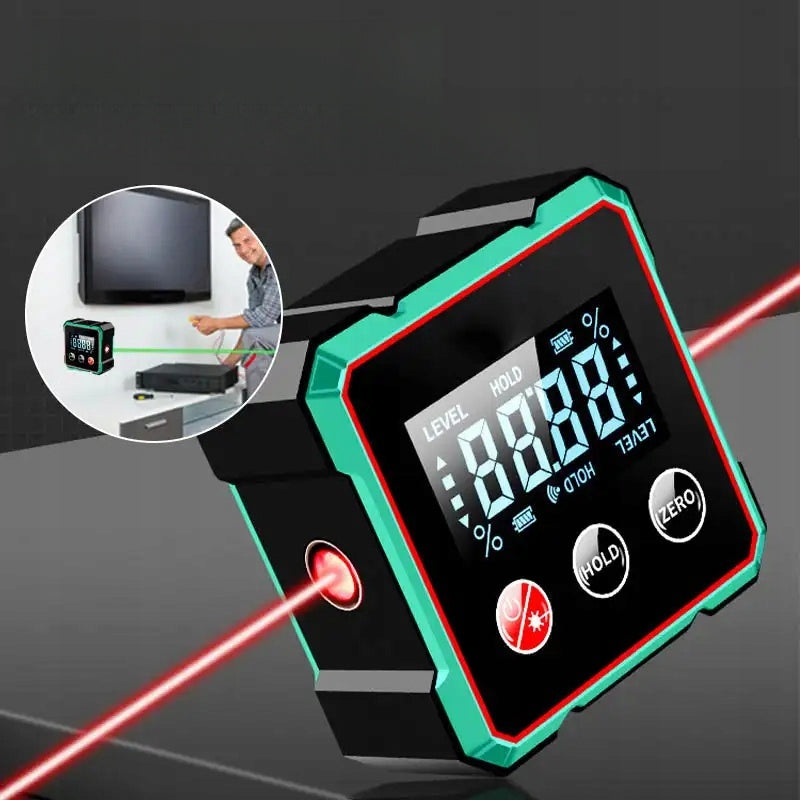

Double Sided Horizontal Laser Lines

Digital inclinometer display = inclinometer + level

Both sides contain strong magnets.

Any measurement 360°

4X90° measurement, measurements all around without blind spots make measurements more efficient and faster

①4*90° multidirectional measurement

② All four sides are reference surfaces

Inverted numbers are automatically reversed for easy reading

Changing angle and inclination with one click

Change units of measurement with one click

① Degree °

②Slope %

Relative and absolute measurement modes

Default absolute measurement mode

①Absolute measurement

When the instrument is turned on, it should be placed in any plane. The data displayed on it is the angle relative to the horizontal plane (the slope box has been calibrated to an absolute zero horizontal position before leaving the factory)

②Relative measurement

The slope field allows you to set a plane of any inclination as a reference plane and use this reference plane to measure the angles of other planes relative to that plane. The specific steps are as follows:

1. After turning on the device, place the inclinometer on the measuring reference surface (to display the angle relative to the horizontal plane).
2. Press the “Reset” button briefly and the value on the screen will change to “0,00°”
3. Place the inclination box on the plane to be tested, or rotate the reference plane by a certain angle. The value displayed on the screen is the angle relative to the reference plane.

Direct charging of lithium battery via USB

Very long battery life

No battery replacement required

Automatic shutdown, energy saving and durability

The screen will turn off if there is no response within 30 seconds and the device will turn off automatically if there is no response within 3 minutes.

Small size, multiple functions, easy operation

Easy to handle and carry

①One word laser

②Press briefly to turn on; press long to turn off

Short press once: turn on the right laser

Short press twice: turn on the left laser

Short press three times: turn on the double-sided laser

Short press four times: turn off the laser

③Data holding (short press: holding key/inclination angle %)

Unit conversion button (press and hold for two seconds: tilt conversion %)

④Reset button to zero

⑤Data storage

⑥Horizontal plane

⑦Slope symbol

⑧Battery power

⑨Direction of inclination

SPEC

• Frame Material: Aluminum Alloy
• Size: 62*60*33mm
• Type: Digital angle sight (with laser)
• Magnet Type: Double-sided magnet
• Accuracy: ±0,2°
• Battery: 3,7V Lithium Battery
• Charger Interface: DC5V 400mA (Type C)

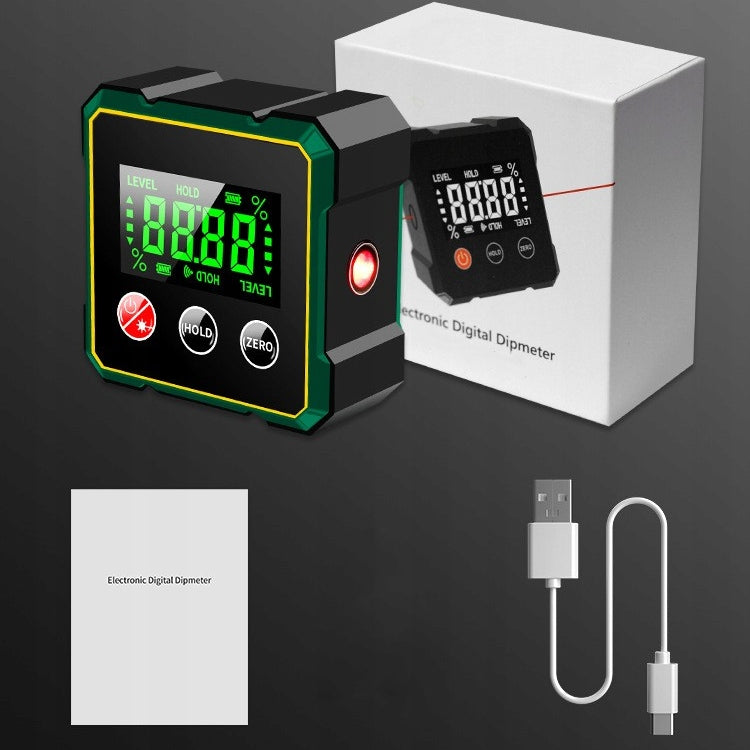

Package includes: 1* magnetic digital angle sight with electronic laser

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	digital protractor
Parametry	Brand	JYIPure
Parametry	Product weight with unit packaging	0.32 kg
Parametry	Manufacturer code	KĄTOMIERZ ELEKTRONICZNY
Parametry	EAN (GTIN)	6972452282089
Parametry	Packaging status	original
Parametry	Material	aluminum
Parametry	Batteries included	yes
Parametry	Accuracy	2°
Parametry	Width	60 mm
Parametry	Length (mm)	60
Parametry	Intended use	construction,ciesielskie,carpentry,markings,other
Parametry	Additional features	Automatic Shut-Off,Data Hold,Laser,Magnetic,Adjustable,Scale,Zero Setting,built-in spirit level,Display
