Elektrinis konvektorinis šildytuvas Thermoval T18 EB, 1000 W, elektroninis valdymas

Trumpai apie prekę

Prekė: Elektrinis konvektorinis šildytuvas Thermoval T18 EB, 1000 W, elektroninis valdymas. Kategorija: Konvektoriniai radiatoriai.

• Gamintojas: Thermoval
• Modelis: T18 ED 1000
• Plotis: 520 mm
• Aukštis: 4750 mm
• Spalva: white

Electric heating — manufacturer

We are pioneers and experts in the market of electric heating products for both residential and industrial construction.

• Over 20 years on the market are thousands of sold products and completed projects.
• The experience gained is a guarantee of usability, safety and expected benefits for customers.
• Thanks to our products, the house becomes a friendly place to which you always want to come back.
• Intuitiveness and ease of use are the benefits that our solutions provide.

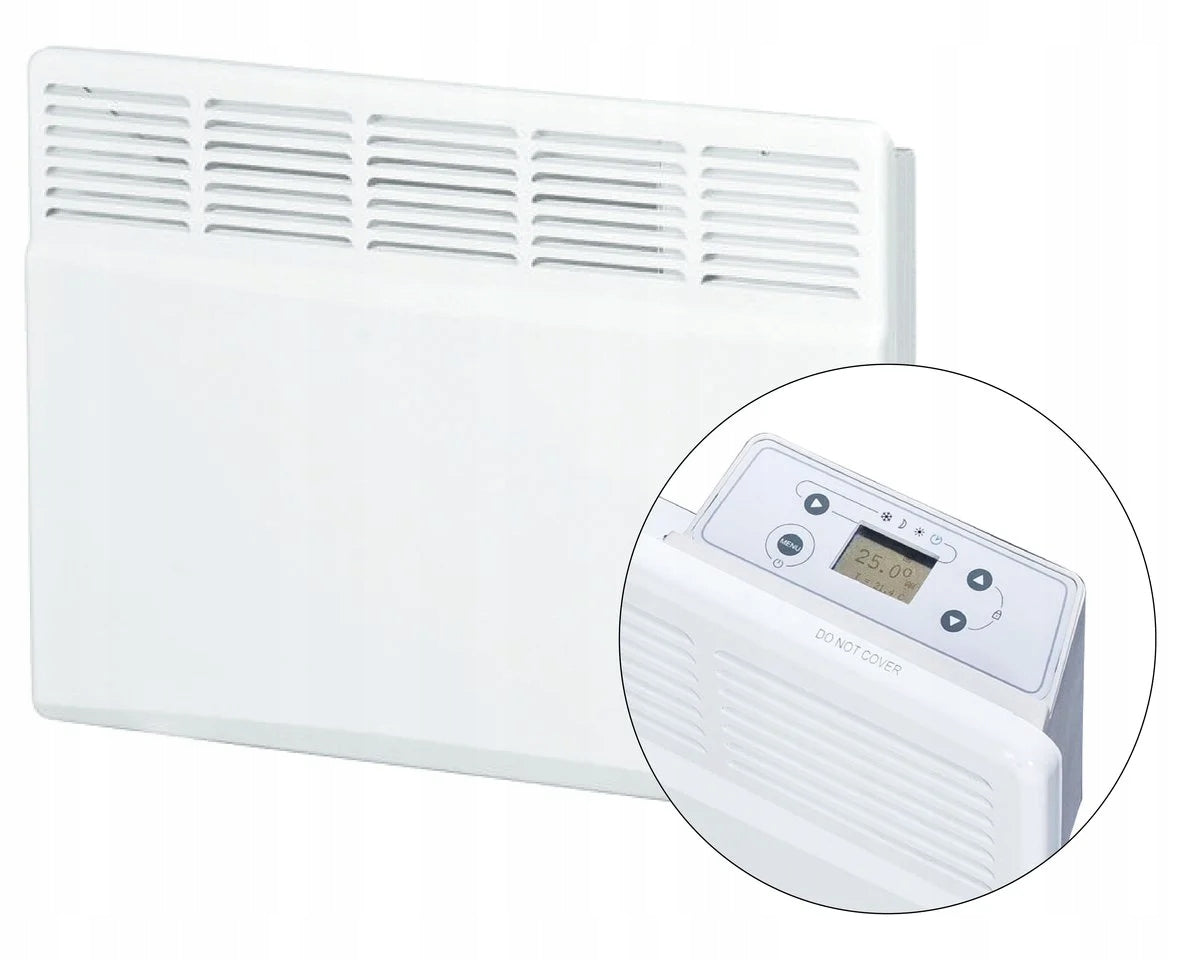

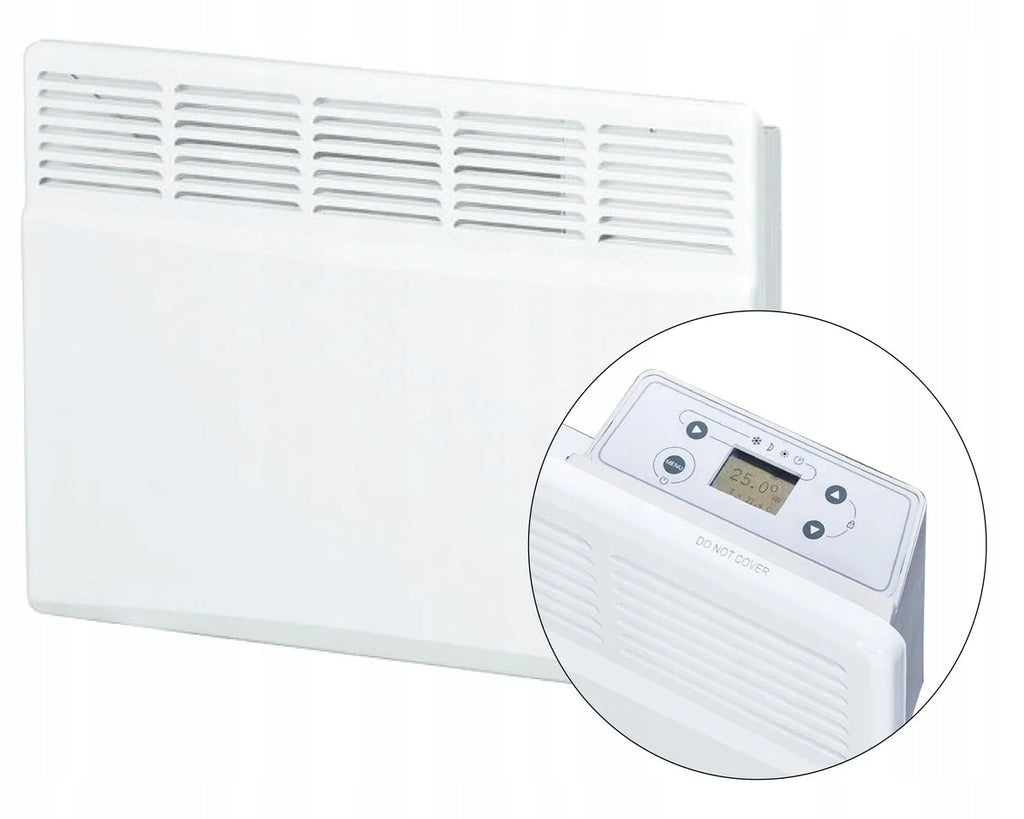

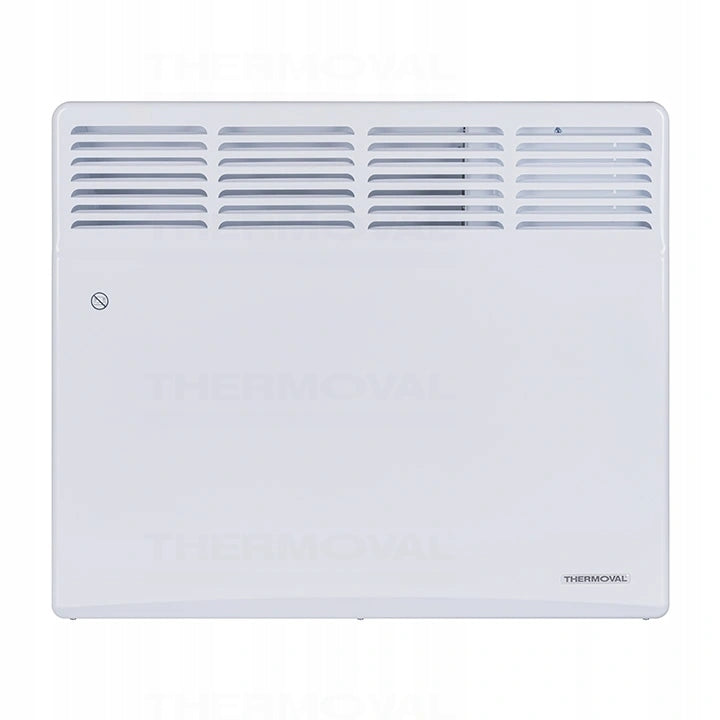

Convector radiator T18 ED

1000 IN

The T18 ED series convector heater, with a weekly programmer, is suitable for use in all types of rooms.

They meet ERP/EKOPROJEKT standards, because they are equipped with an electronic thermostat, a weekly programmer allowing for separate settings of heating periods and temperatures, tailored to the needs of the user on all days of the week, the "open window" detection function.

Heaters have a system of adjusting the heating power to maintain the temperature in the room (electronic triak relay).

Memory of five weekly factory programs plus three weekly individual programs.

Backlit LCD screen, mechanical or sensor control.

The heating element is a bayonet heater with a heat sink.

Additional properties are:

• anti-freeze function,
• manual operation mode,
• thermal fuse,
• air sensor,
• electronic sensor network switch.

These are typical radiators for wall mounting.

Temperature control range from +8 to +28°C, hysteresis 0,5°C, ambient temperature from 0 to +35°C.

Technical data

• Mounting method: wall
• Air outlet: Front side
• Control panel location: From above
• Temperature control: 8-28
• Color: White
• Width: 530 mm
• Height: 450 mm
• Depth: 90 mm
• Weight: 4,3 kg
• Degree of protection (IP): IP24
• Protection class: II
• Overheating protection
• With timer switch
• Protection against freezing
• Digital indicator
• With self-adaptation
• Cover opening sensor
• Purpose: heating rooms
• Application: inside buildings
• Installation: on the wall
• Supply voltage [V]: 230 / 50 Hz
• Heater power [ W ]: 1000
• Power cord, length [ m ]: 1.5
• Power cord: ended with plug
• Heating element: low temperature heater
• Degree of protection: IP24
• Housing material: powder coated steel
• Additional equipment: wall mounts
• Type of control: manual with sensors
• Control type: programmable
• Operation based on the parameter: temperature reading
• Equipped with sensors: electronic, air
• Software: factory programs
• Screen: backlit, LCD
• Functions: anti-freeze, open window, manual mode

Content of packaging

• 1 pc - radiator
• 2 pcs - mounting bracket, wall mounted
• 1 pc - instruction manual
• 1 pc - warranty card printing

Key features and benefits:

• Heating power from 0,5 kW to 2,0 kW – adapting to different needs
• Temperature range +8°C to +28°C – precise control
• Electronic thermostat and programmer – convenient weekly settings
• Baynet heater with heat sink – fast heating and durability
• TRIAC relay – energy-efficient operation
• Protection rating IP24 – moisture resistance
• Additional features: anti-freeze mode, open window detection, settings memory
• Simple wall mounting – mounting kit included
