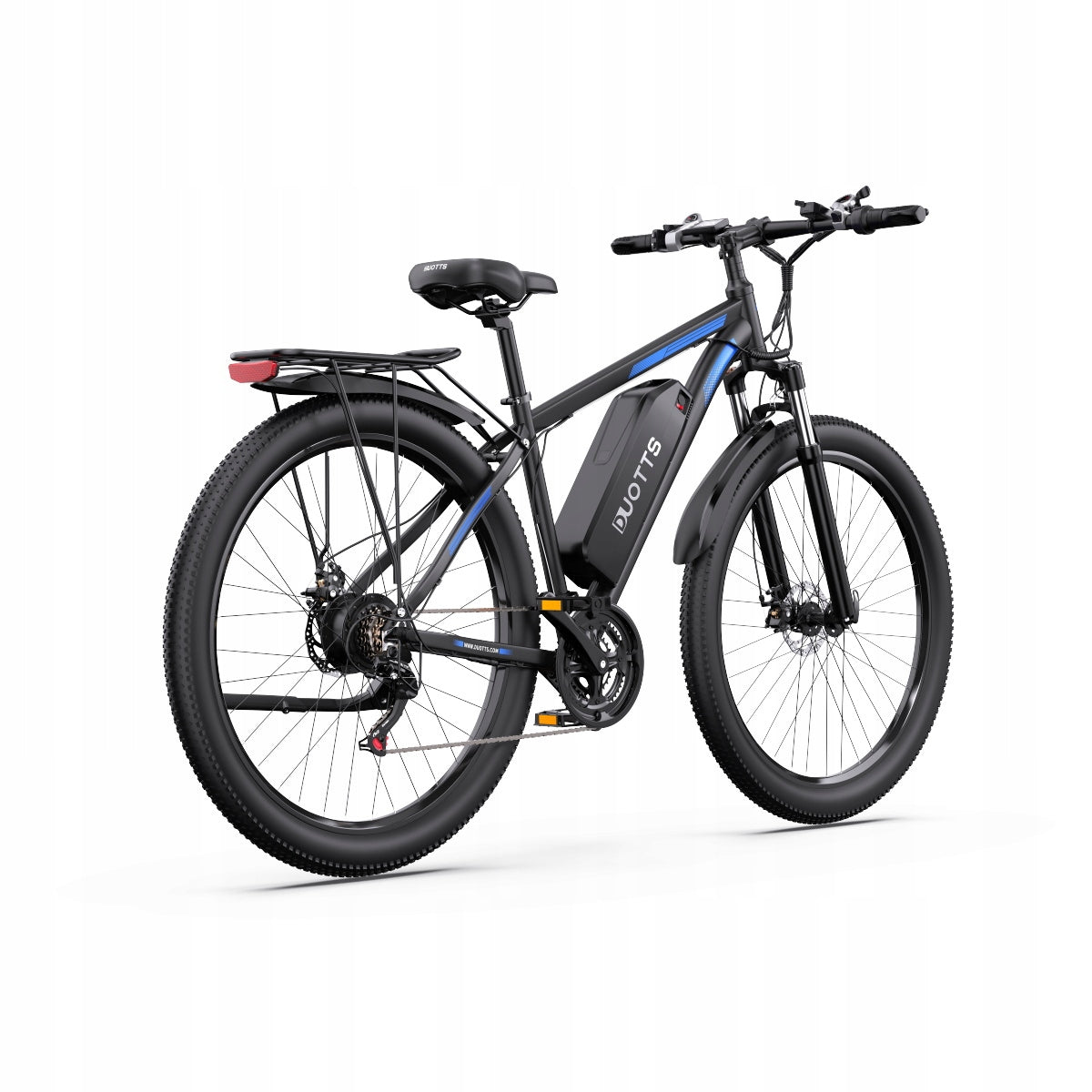

Elektrinis dviratis DUOTTS C29, 1000W, 15Ah, iki 55 km/h, bekelės

Trumpai apie prekę

Prekė: Elektrinis dviratis DUOTTS C29, 1000W, 15Ah, iki 55 km/h, bekelės. Kategorija: Elektriniai automobiliai.

• Gamintojas: Duotts
• Modelis: 9324657688260 1000W 55km/h 48V15AH
• Svoris: 26.49 kg
• Spalva: black

electric vehicle -DUOTTS C29

Embark on adventures into the unknown and immerse yourself in the beauty of nature. Whether you’re craving exciting mountain rides or prefer quiet urban exploration, the lightweight Duotts C29 750W electric vehicle (1000W peak) is your ideal companion.

• 750 W, peak power 1000 W
• Range 80-100 km
• Maximum torque 65 Nm
• Duotts 48V 15Ah battery
• Maximum speed 55 km/h
• Maximum load 120 kg

Specification

• Frame: All aluminum alloy
• Brake: Front and rear disc brake
• Front fork: Shockproof aluminum front fork
• Range: 80 to 100 km (assisted mode) (Actual performance may vary depending on temperature, road conditions, weight, etc. )
• Speed: 55 km/h (When the speed limit is set to 25, the motor will stop delivering power at the specified maximum speed. You can still drive above a certain maximum speed using pure muscle strength. This limit is set in accordance with local regulations)
• Net weight: 26,5 kg
• Product Size: 1840*715*1130mm
• Tyre size: 29*2,1 inch
• Assisted Intelligence: 0 to 5 levels of pedaling assistance
• Driveway angle: Maximum driveway angle 30° (suitable for medium urban inclinations)
• Waterproof level: IPX4 (protection against light rain or splashing rain, but inability to rinse directly or be exposed to rain)
• Engine: GT-S03 48V 750W peak 1000W
• Torque: 65 Nm
• Battery: KT-E26 48V 15AH
• Battery Charger: 54,6 V 2 A
• Charging time: 6-8 hours
• Sensor: Speed sensor
• Throttle: Electric semi-throttle
• Screen: S869/48V
• Smart connection: supports Bluetooth APP connection, can be connected via DUOTTS APP
• Transmission: Shimano MF-TZ500
• Suspension: Front suspension only, no softtail rear suspension and cushion seat
• Brakes: Left and right brakes with detachable, front and rear disc brakes
• Brake disc: disc diameter 160mm
• Recommended height 170-200 cm
• Load capacity up to 120 kg

New version of C29 rear light with large K-code light, automatic always on, does not support brake light effect

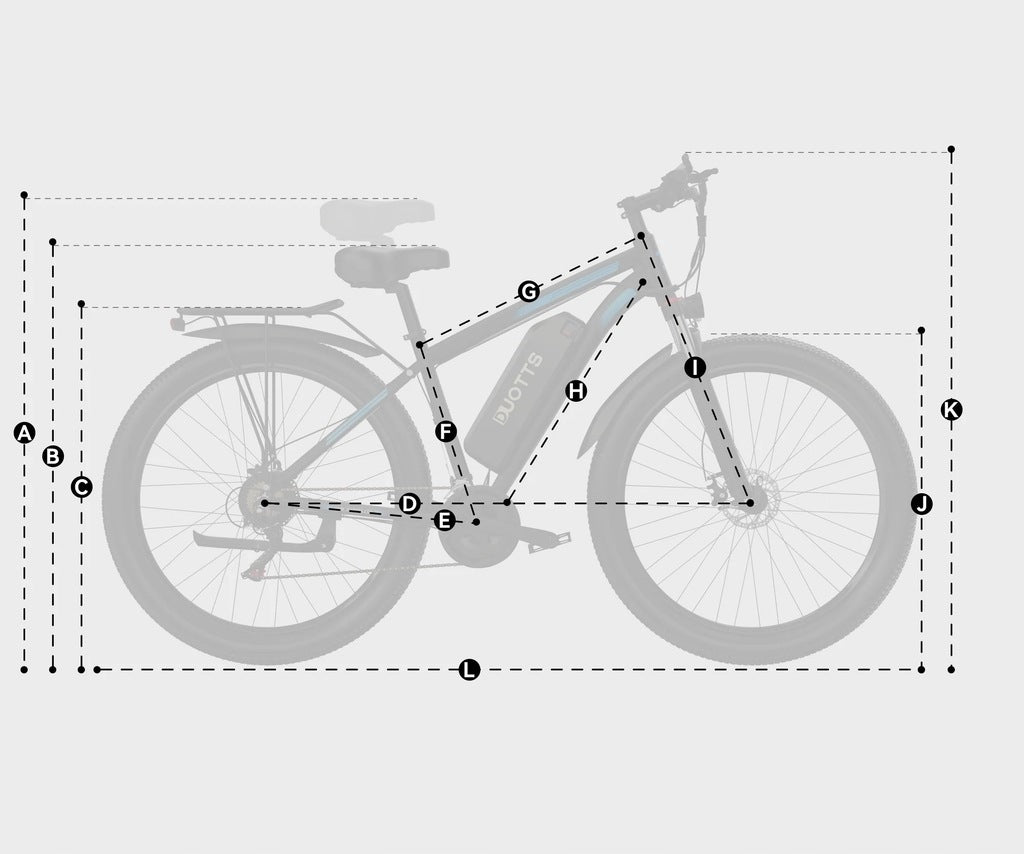

• A. Seat height (maximum) 110 cm
• B. Seat height (minimum) 85 cm
• C. Height of rear luggage compartment 79 cm
• D. Wheelbase 110 cm
• E. Rear tube rear triangle 44 cm
• F. Seat tube 39 cm
• G. Upper pipe 54 cm
• H. Bottom pipe 66 cm
• I. Front fork 62 cm
• J. Wheel height 72 cm
• K. Height 102 cm
• L. Length 179 cm

High Capacity 48V/15Ah Battery

Course, lights, front fork

The DUOTTS C29 offers three driving modes. Equipped with 15AH battery, the range can be 80-100 kilometers. The headlights illuminate the road in front of the vehicle, while the lightweight, all-aluminum front fork with shock absorption provides a safer and more comfortable ride.

The newly upgraded C29 can connect to a mobile phone app (DUOTTS) via Bluetooth.

Our LCD display provides additional information such as operating time, special travel distance, current frequency, selected level of assistance, etc.

More powerful 750W(peak 1000W) motor

With a 750W (peak 1000W) brushless motor, this state-of-the-art motor not only delivers tremendous power, but also features maximum efficiency, seamlessly combining speed with quiet operation. Easily overcome climbs, heavy loads or the need for higher speeds. Whether you're commuting to work in the city or tackling rough mountain trails, enjoy a smoother, effortless ride.

3 operating modes

Pedal mode, assist mode, purely electric mode.

21-speed derailleurs from SHIMANO. 3 gears in the pedal crank hub, 7 gears in the rear freewheel wheel!

Specifications
