Trumpai apie prekę
Prekė: Ekranas 7" IPS 720x1280, jutiklinis, DSI, Waveshare, Raspberry Pi. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: 7-DSI-TOUCH-A Waveshare 30323

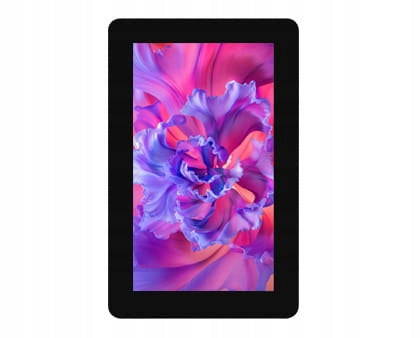

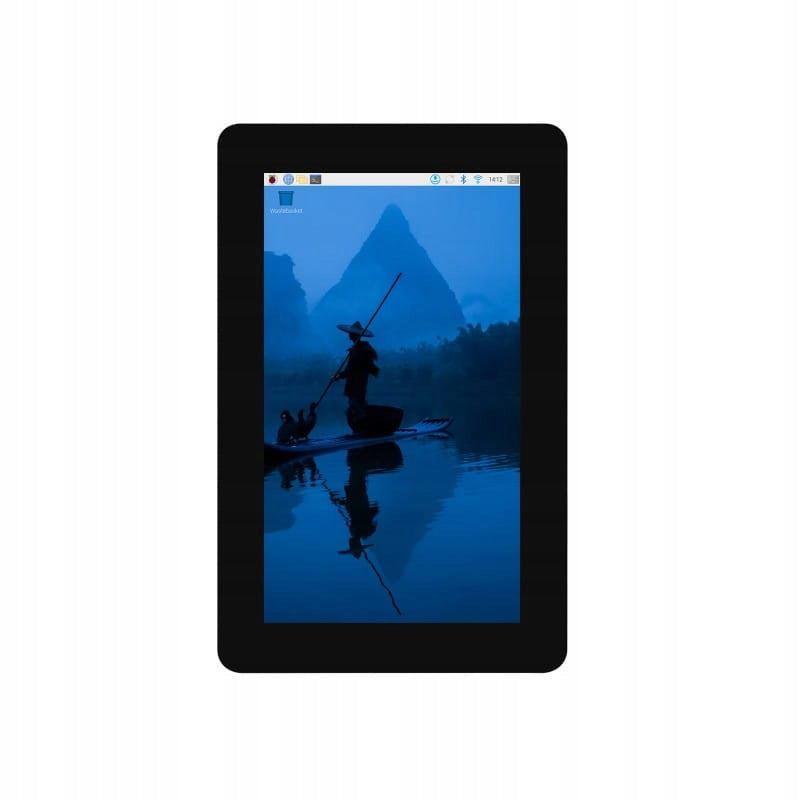

Waveshare 7-DSI-TOUCH-A is a high-quality touchscreen display designed to work with the Raspberry Pi.
The DSI interface ensures a fast and stable connection, leaving HDMI and GPIO ports free.
The most important features
- Screen diagonal: 7 inches
- Resolution: 720 x 1280 pixels
- Panel: IPS with wide viewing angles
- Touch screen: capacitive, support up to 10 touch points
- Surface: 6H hardness tempered glass with anti-imprint coating
- Connection: DSI interface, power supply via GPIO
- Compatibility: Raspberry Pi 5 / CM5 / 4B / CM4 / 3B+ / 3A+ / 3B / CM3+ / CM3
- Refresh rate: up to 60 Hz
- Backlight control: the ability to adjust the brightness by the software

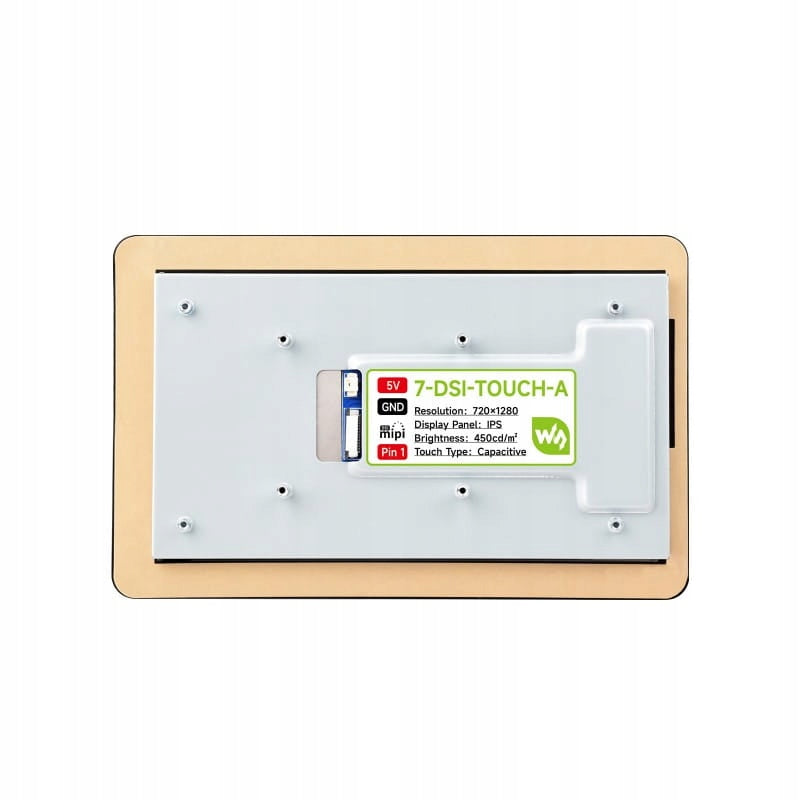

Display interface
Even thinner and space-saving – the total thickness of the display is only 9,3 mm.
Example of connection with Raspberry Pi 5 and Raspberry Pi 4
Operation with ESP32-P4
Dimensions
Contents of the set
- 7-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm
- MX 1.25 2PIN to 2.54 3PIN
- FFC 22PIN cable ~200mm
- Screws
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | 7-DSI-TOUCH-A Waveshare 30323 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5906358321369 |
| Parametry | Packaging status | original |
| Parametry | Batteries included | no |
