Trumpai apie prekę
Prekė: Ekranas 2.13" E-Paper E-Ink Raspberry Pico. Kategorija: Priedai.
- Gamintojas: WaveShare
- Modelis: Pico-ePaper-2.13-B Waveshare 19588

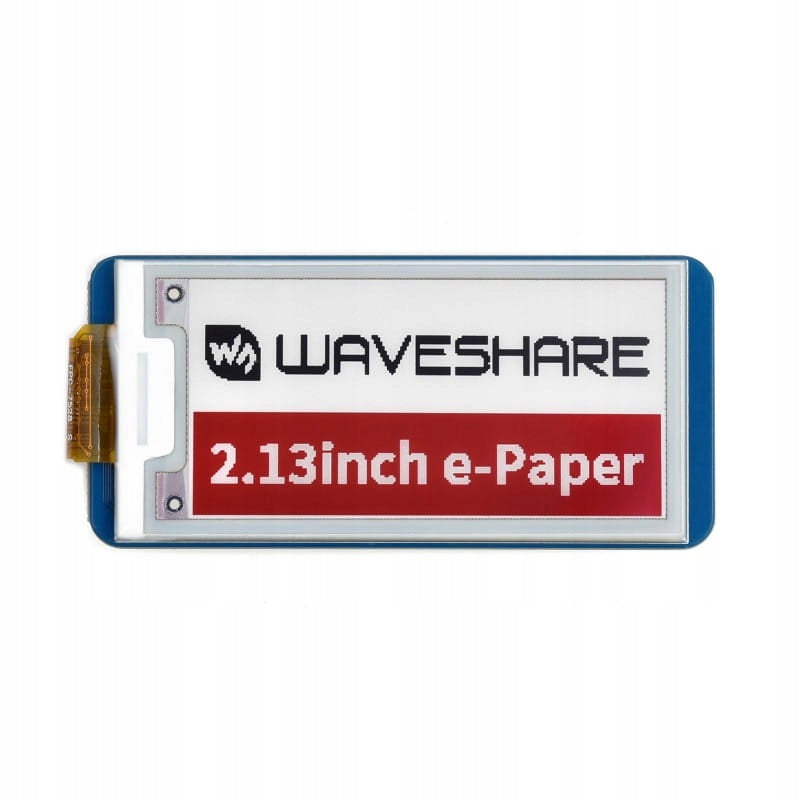

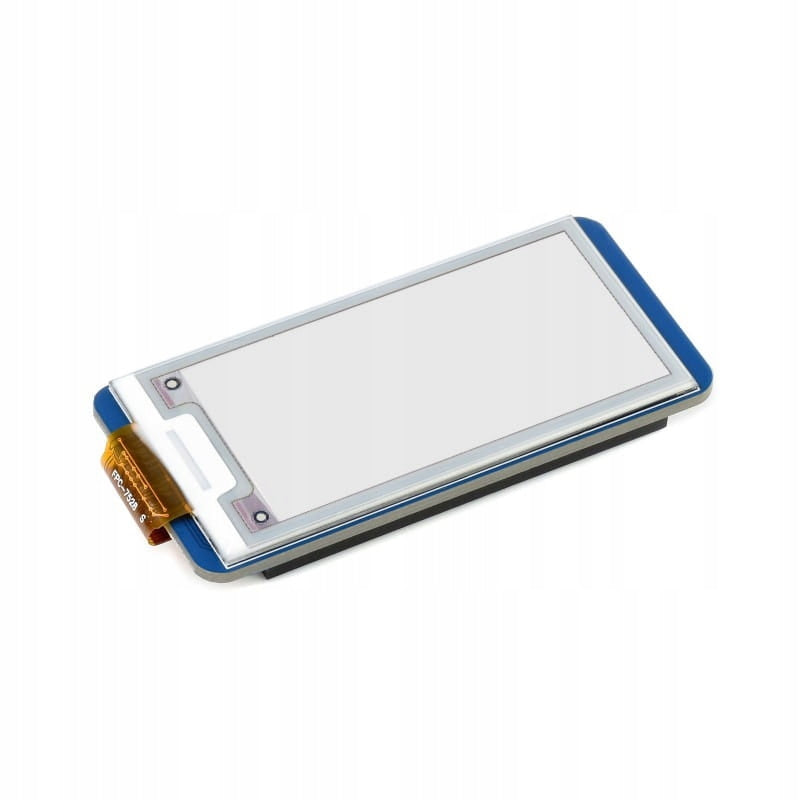

Module with e-ink e-paper display 2.13" displaying the last image even after power disconnection. Dedicated to work with Raspberry Pi Pico.
⭐ Display with a resolution of 212x104 operated via SPI bus, with white background and pixel colors red or black.
✅ Module specification:
- Display type: E-ink,
- Color: white background, pixele red or black
- Diagonal: 2.13"
- Resolution: 212x104 pixels
- Display dimensions: 48.55 × 23.71mm
- Pixel size: 0.229 × 0.228mm
- Angle of view: >170°
- Power consumption in standby mode: < 0.01uA
- Time needed to refresh the entire display: 15s
- Communication: SPI
- Standard connectors to fit Raspberry Pi Pico boards
- Available support examples for Raspberry Pi Pico: C/C++ and MicroPython
▶ Mounting method on Raspberry Pi Pico
▶ Description of leads
▶ Dimensions
✅ Set includes:
- Display 2.13" E-Paper E-Ink for Raspberry Pi Pico, 212×104, Red / Black / White, SPI x 1
❗ Raspberry Pi Pico not included ❗
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | Pico-ePaper-2.13-B Waveshare 19588 |
| Parametry | Manufacturer | WaveShare |
| Parametry | Kind | Display |
| Parametry | EAN (GTIN) | 5904978304137 |
