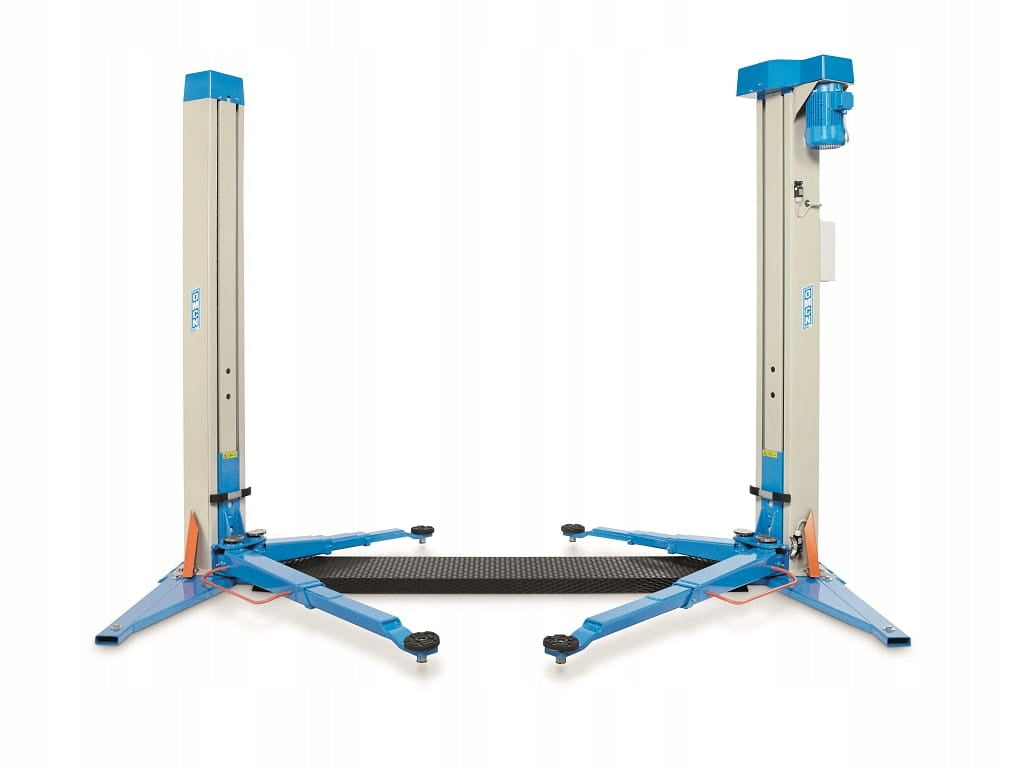

Dvipostis keltuvas OMCN 199/DELTA, iki 3,5 t

Trumpai apie prekę

Prekė: Dvipostis keltuvas OMCN 199/DELTA, iki 3,5 t. Kategorija: Keltuvai stulpams.

• Gamintojas: no brand
• Modelis: 199/DELTA

LIFT OMCN 199/DELTA:

• Electro-mechanical lift made of the highest quality.
• For passenger cars, off-road vehicles, short and medium-sized vans.
• Support units integrated into the columns for increased safety and durability. They move on self-lubricating rolling rollers, this ensures very good adhesion, less wear than when using slides. This solution also ensures quiet movement of the device.
• The design on the frame does not require an ideal substrate.
• Drive transmission with a high-quality chain.
• Asymmetrical arms mounted in twisted columns make it easy to get in and out of the car without having to roll it.
• Screw made of high quality steel.
• The working nut made of bronze increases safety and trouble-free service life.
• Automatic nut lubrication system.
• Automatic locking of the arms when lifting and unlocking in the lower position.
• Designed specifically for fast service services, where the most important is the time of getting in and out of the car.
• Frame from a reputable Italian manufacturer.
• The lift is certified for load reversibility - i.e. If necessary, you can raid the vehicle in the opposite direction, lift it and continue to work safely.

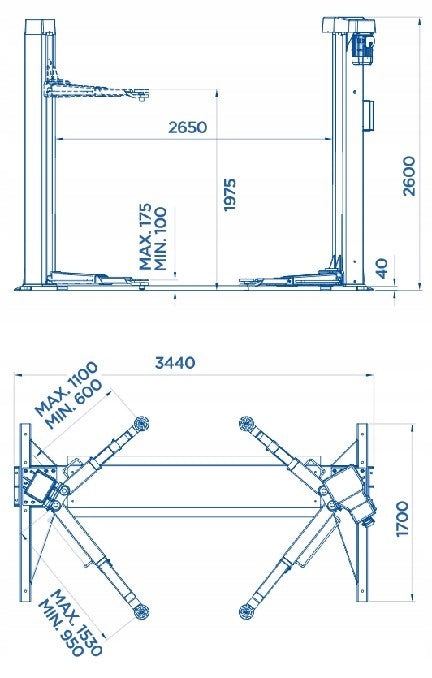

TECHNICAL DATA OF OMCN 199/ALPHA:

Leverage: 3500 kg

Supported cars: small passenger cars, passenger cars, long passenger cars, off-road cars, short vans, medium vans

Electro-mechanical lifter connected by a bottom on the frame, allowing installation on a weaker ground: yes

Mechanical lifting synchronization: yes

Columns twisted by 30o for easy disembarkation from the vehicle: yes

Distance between columns: 2650 mm

Shorter arm range: 600-1100 mm

Longer arms range: 950-1530 mm

Ability to extend arms: no

Width of lift: 3440 mm

ID: 4031748 lift height adjustable with swivel stand: 100-175 mm

- Subwoofer lift height: 1975 mm

Height of lift: 2600 mm

Power supply: 400 V/50 Hz

Engine power: 4,0 kW

Weight of lift: 850 kg

Catalog number: 203-019932

Requirements for the preparation of the substrate for the installation of lifts:

The lift shall be mounted on an even, leveled surface capable of carrying the working load, i.e. lift with load. Minimum requirements for flooring:

a) Concrete used: R'bk 250 (B-25) or higher

b) Minimum floor thickness without any divisions, component pieces (uniform) : 15 cm (recommended 25 cm)

c) Upper and lower reinforcement with steel welded mesh Φ4 x 150 mm or similar, with an eye of not more than 250 mm. Distance between the outer plane of the concrete and the mesh (top and bottom) not more than 25 mm2

d) Surface load capacity not less than 1,3 kg/cm

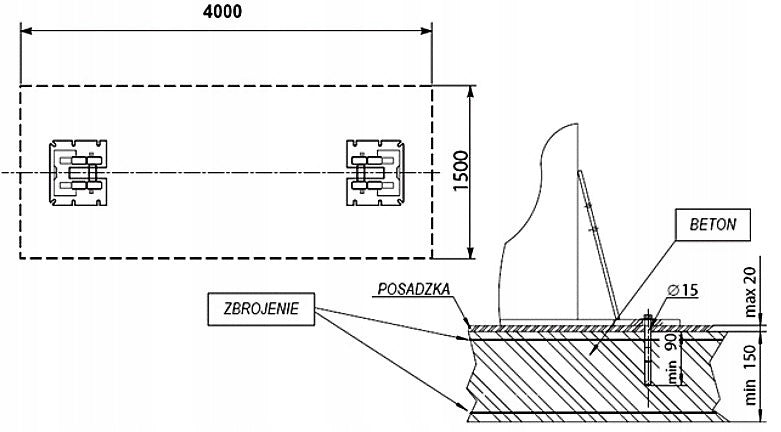

The above requirements must be met for an area of at least 4,00 x 1,50 m (Fig. ) without cracks and expansion joints.

If the lift is used on its own support frame, no reinforcement is required, other requirements as above.

ATTENTION! In order to properly perform the installation of the lift, it is required to make the floor in accordance with the instructions provided. In the event that the substrate is prepared improperly, we reserve the right to charge the lift user with the costs of re-access and installation.
