DVB-T2 COMBO MUX8 LTE 4K antžeminė TV antena su stiprintuvu ir maitinimo šaltiniu

Trumpai apie prekę

Prekė: DVB-T2 COMBO MUX8 LTE 4K antžeminė TV antena su stiprintuvu ir maitinimo šaltiniu. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-08 + WZMACNIACZ + ZASILACZ
• Spalva: silver

▶ Directional COMBO antenna for receiving free DVB-T / DVB-T2 terrestrial television.

▶ The 20 dB antenna amplifier helps to improve reception in places with weaker signal.

▶ 12 V power supply included — antenna ready for operation when connected.

▶ Supports VHF + UHF band and receives MUX-1 / MUX-2 / MUX-3 / MUX-4 and MUX-8.

▶ Reception range up to 160 km — under favorable conditions and with the correct antenna setting.

▶ LTE filter reduces interference from mobile networks.

✅ DVB-T2 / HEVC / 4K – compliant with the current standard

▶ Supports DVB-T / DVB-T2 with H.265 / HEVC compression.

▶ Allows you to receive channels in Full HD and 4K quality if they are broadcast in a given location.

▶ A TV or set-top box supporting this standard is required to receive DVB-T2/HEVC.

✅ LTE filter – less signal interference

▶ Built-in LTE filter reduces interference from mobile networks, including LTE 800 MHz.

▶ Can be helpful near buildings, GSM masts and base stations.

✅ Simple installation

▶ All mounting hardware is matched to the antenna.

▶ Assembly of the antenna is simple and does not require specialized tools.

✅ Connecting the antenna with the amplifier

▶ Mount the antenna outside — preferably as high as possible, e.g. on the mast, balcony or facade.

▶ Set the antenna to the nearest DVB-T / DVB-T2 transmitter.

▶ Connect the 20 dB antenna amplifier to the antenna output.

▶ Then connect the antenna cable.

▶ At the end of the cable, mount the 12 V power supply with separator and connect it to electricity.

▶ Connect the output from the separator to the TV or DVB-T2 decoder.

▶ Run automatic DVB-T / DVB-T2 channel search.

✅ How to set up an antenna to receive MUX-8

The TAMDEL TAZ-08 antenna has two reception paths:

• larger VHF dipole – used to receive MUX-8

• smaller UHF dipole – used to receive MUX-1 / MUX-2 / MUX-3 / MUX-4

If MUX-8 is transmitted in vertical polarization at a given location:

▶ Turn the larger VHF dipole 90° – position it vertically.

▶ Do not rotate the entire antenna – just change the position of the VHF element.

▶ MUX-1 / MUX-2 / MUX-3 / MUX-4 channels will continue to be received in horizontal polarization.

▶ The pictures below show the horizontal and vertical setting of the VHF element.

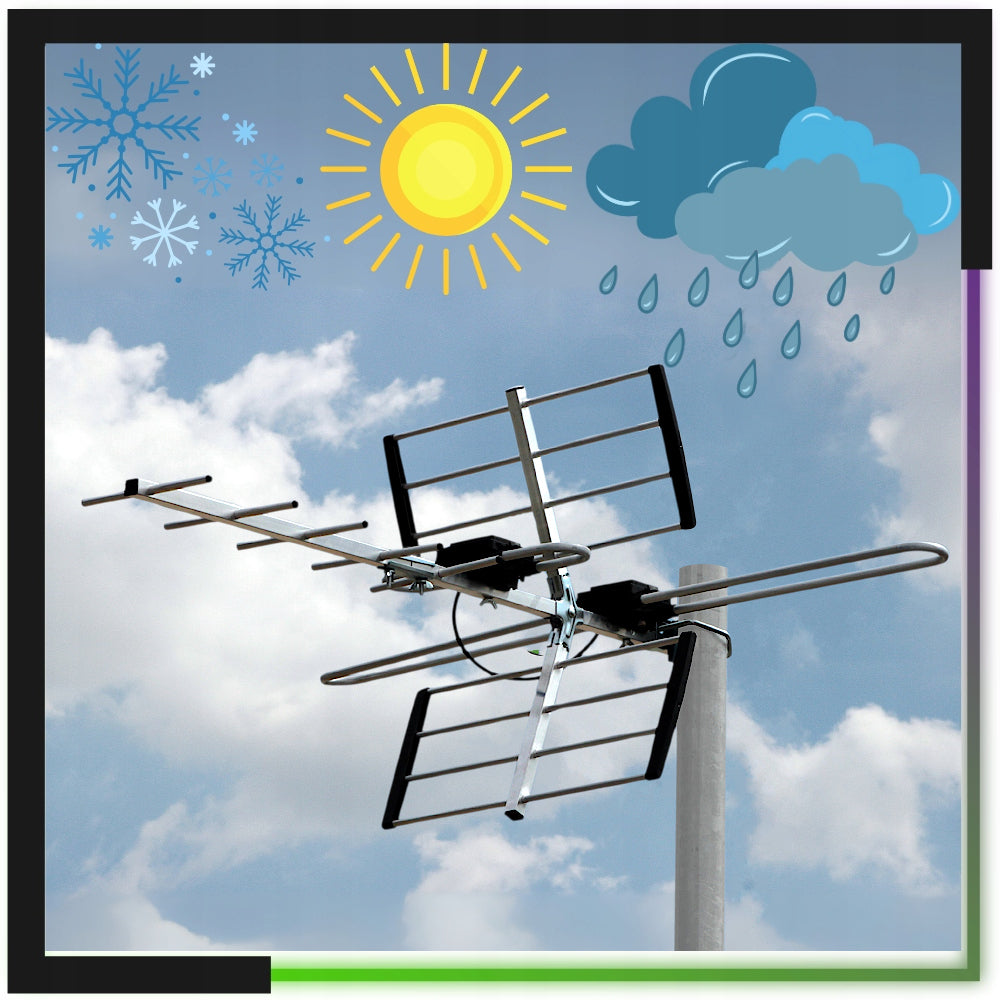

✅ Weather resistant

▶ Aluminum construction — lightweight and corrosion resistant.

▶ Antenna box protects the antenna connection from moisture.

▶ Design adapted to external mounting — for working in rain, sun and changing weather conditions.

▶ The antenna can be mounted on a mast, balcony or facade.

✅ Technical specification – TAMDEL TAZ-08 (with 20 dB amplifier)

Antenna type: directional, external, active

Compatibility: DVB-T / DVB-T2 / HEVC H.265

Supported bands: VHF + UHF

LTE filter: yes

Multiplexes: MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

Assembly: mast, balcony, facade

Impedance: 75 Ohms

Working channels: 5 – 57

Frequency range: VHF 168 – 230 MHz / UHF 470 – 790 MHz

Antenna gain (passive): VHF 6 to 8 dB / UHF 14 to 16 dB

Signal amplifier: to 20 dB

Scope of operation of the amplifier: 5 – 862 MHz

Total reinforcement of the set: to approx. 26 to 36 dB depending on bandwidth

Reception range: up to 160 km in favourable conditions

12V power supply: input 100 – 240V / output 12V 100mA

Separator: yes

Power supply cable length: 1 m

Certificates: CE, RoHS

📏 Antenna dimensions and mounting method

▶ Detailed antenna dimensions are shown in the graphic.

▶ Mounting bracket fits masts with a diameter of 2 – 5 cm.

▶ Antenna length after unfolding: approx. 80 cm.

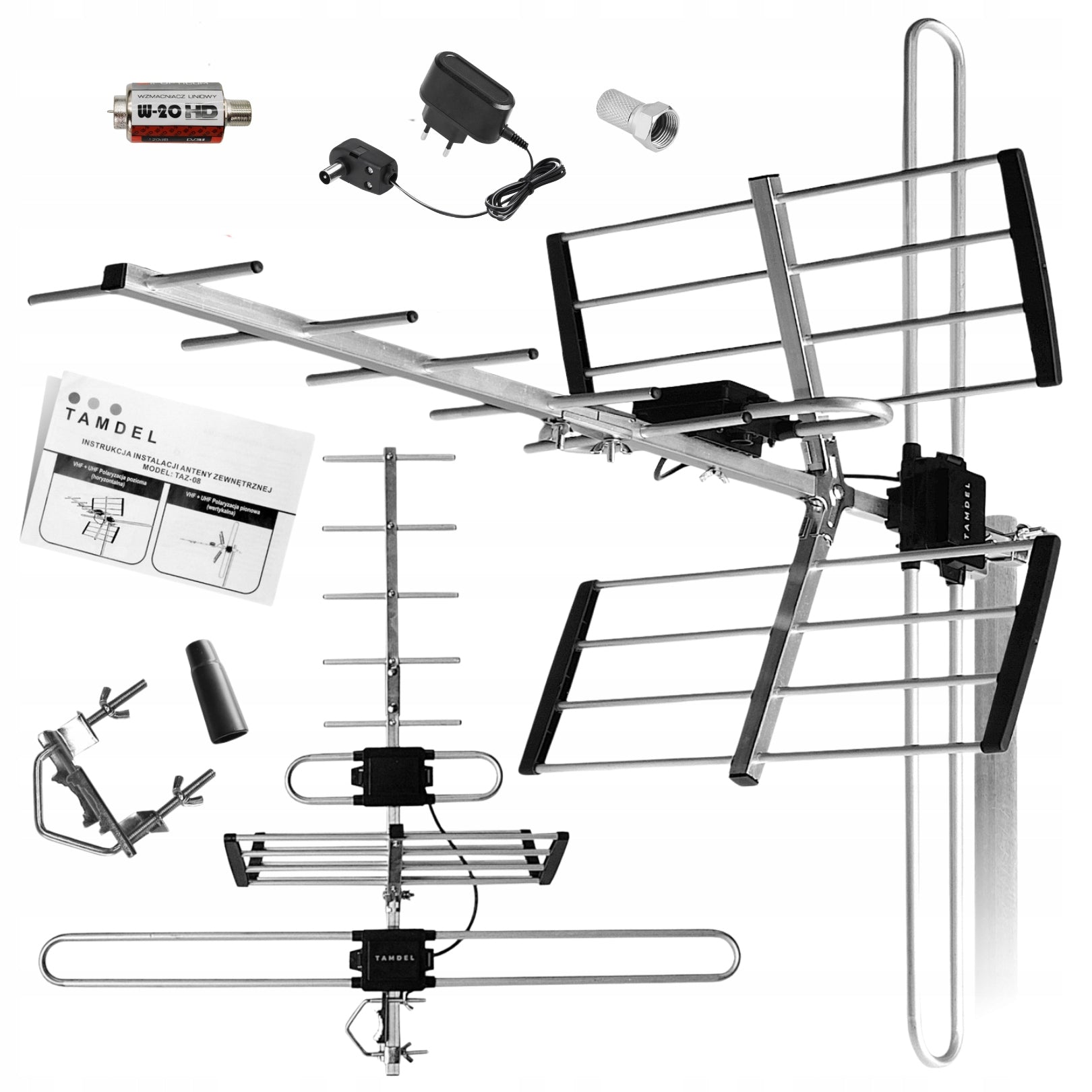

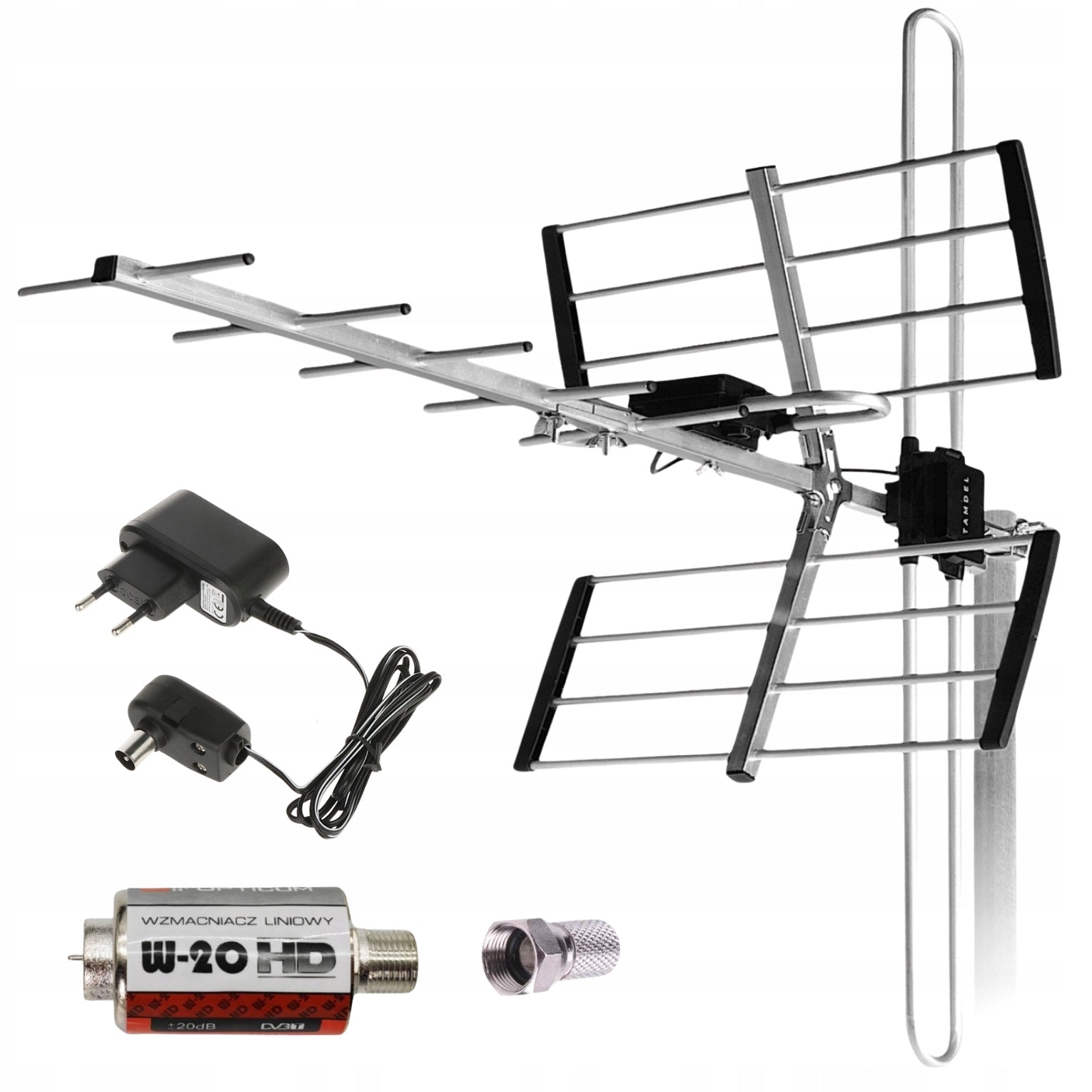

✅ Set includes

▶ External directional antenna TAMDEL TAZ-08

▶ Mounting kit — screws and mast holder

▶ Antenna amplifier 20 dB

▶ 12 V antenna power supply with separator

▶ F plug with gasket for connecting the cable

▶ Instructions for assembly in Polish

▶ Original manufacturer packaging
