Dūmų generatorius ir nuotėkio testeris XRD-301S automobiliui 12V

Trumpai apie prekę

Prekė: Dūmų generatorius ir nuotėkio testeris XRD-301S automobiliui 12V. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: S300

Quickly find even the smallest leaks!

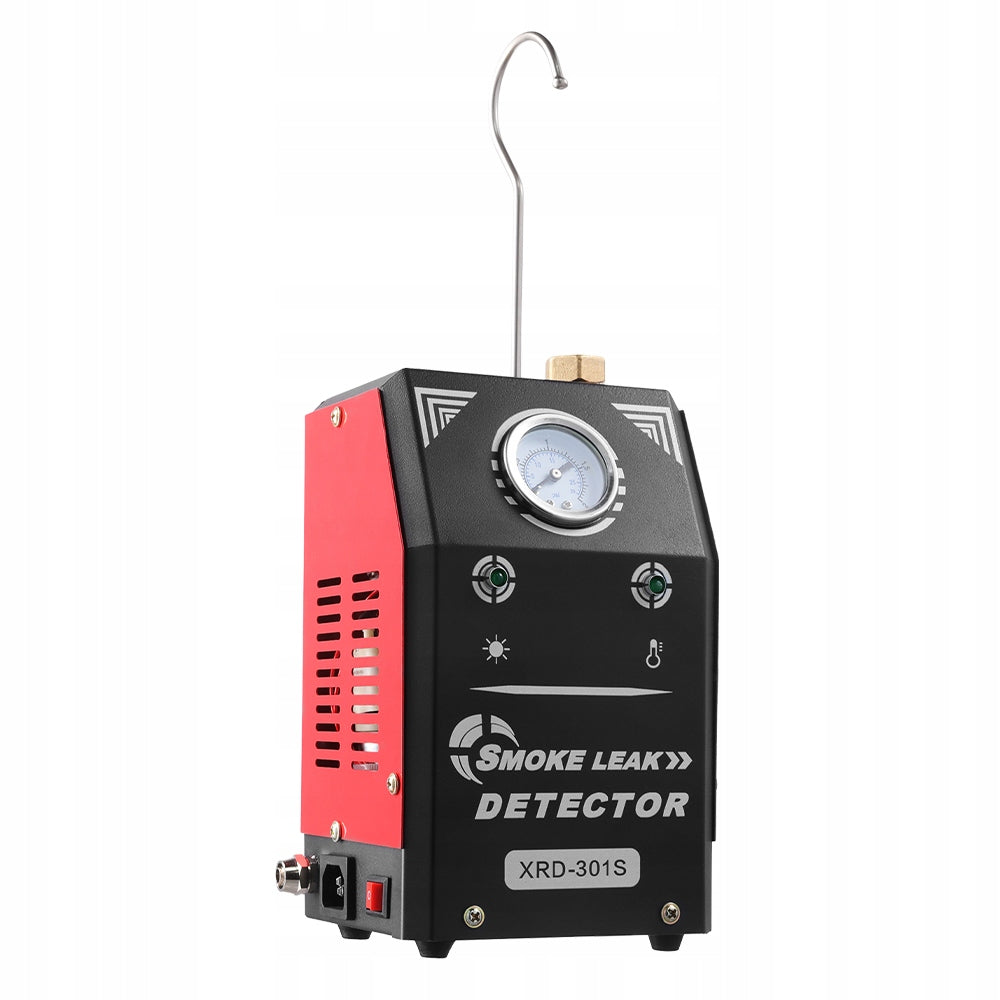

PODOFO XRD-301S is a professional diagnostic smoker designed to detect leaks in automotive systems. The device generates dense, safe smoke, which allows you to quickly locate leaks in the pipes, intake, vacuum, exhaust or EVAP system.

It is an indispensable tool for both professional workshops and amateur mechanics who want to quickly and effectively diagnose defects without costly disassembly of elements.

The most important advantages

✅Fast location of leaks without dismantling components

✅Dense and highly visible smoke for easy diagnosis

✅Built-in pressure gauge for pressure control

✅ 12 V power supply – cooperation with car installation

✅Compact and robust design

✅Easy operation even for novice users

✅Wide set of adapters and accessories

✅Protection against overheating

Functions

✅Built-in air pump: the smoke machine has a built-in air pump, which eliminates the need for an external air source, allowing you to carry out tests anywhere and czasie.Aby effortlessly start testing, just add about 15ml of oil (not included).

✅Multifunctional: Suitable for a wide range of tests including EVAP systems, vacuum leaks, low pressure turbocharger leaks, intake manifolds, cooling/EGR/titanium systems and more. It can be used in cars, motorcycles and various other vehicles

✅Quick detection: The device generates dense smoke within just 10-20 seconds of starting, providing enough power output to detect even the smallest leaks, ensuring quick and accurate identification of the problem

✅Light and portable: Weighing just 2,5kg, the Automotive Car smoke machine is compact, easy to store and transport, making it an essential tool for any car owner.

✅User-friendly: Thanks to its simple and intuitive interface, the device has low input barriers, so that even novice users can quickly start working

✅Intelligent protection: The smoke tester leak detector is equipped with overheating and freezing protection. It turns off automatically if the temperature exceeds 75°C and provides protection against freezing up to -20°C, ensuring the safety of both the equipment and the operator

User manual for the device PODOFO XRD-301S

How to use a diagnostic smoke?

Step 1 – Refill the test fluid

Pour about 15 ml of oil/smoke generation fluid into the tank of the device.

Step 2 – Connect the power

Connect the device terminals to the 12 V DC battery:

• red clamp → positive pole (+)
• black clamp → negative pole (-)

Once connected, the device is ready to go.

Step 3 – Connect the chip

Connect the smoke pipe to the element or wire you want to check for tightness. Use the included sealing adapters if needed.

Then:

• turn on the device,
• Activate the smoke generation function.

Step 4 – Leak detection

The test system will be filled with thick smoke. Observe the places where the smoke comes out – they indicate:

• leaky wires,
• damaged gaskets,
• cracks in the components,
• leaky connections.

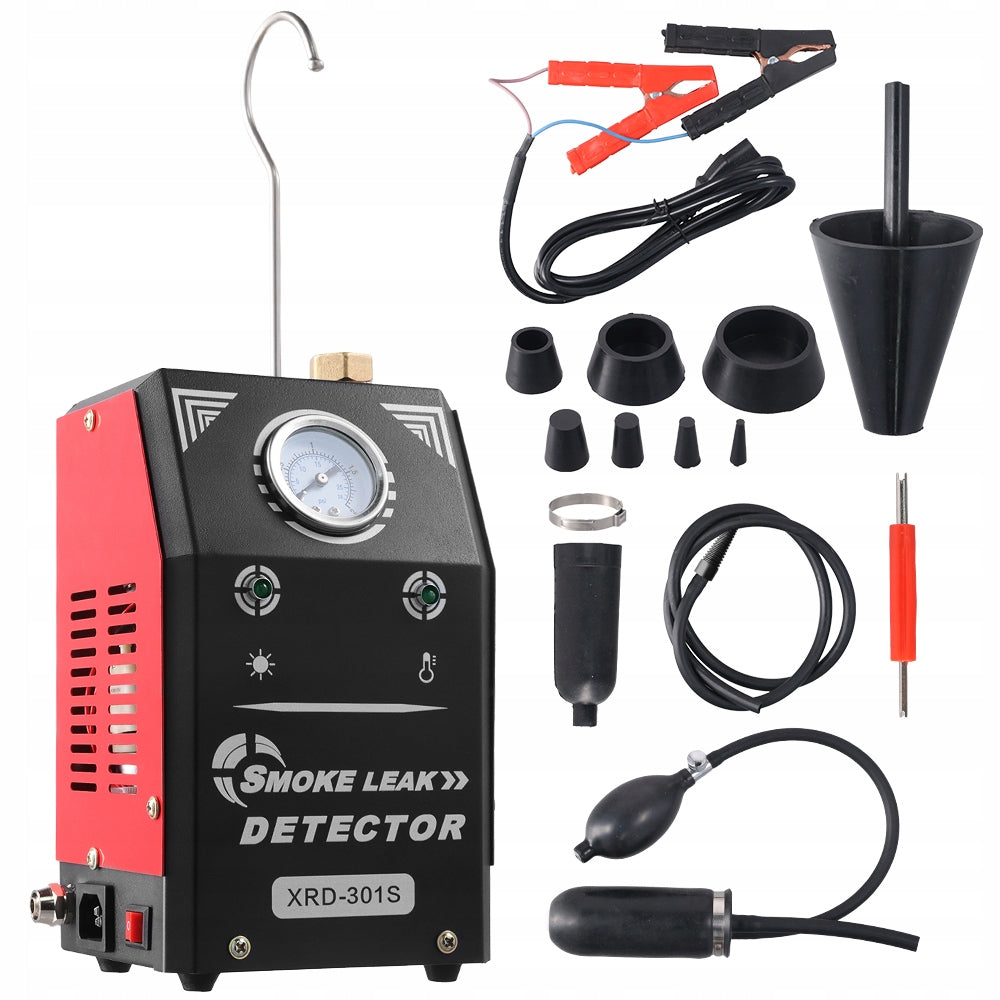

Contents of the set

✔ Diagnostic smoke blower PODOFO XRD-301S

✔ Power cord with battery terminals

✔ Smoke supply line

✔ Hand pump with pear

✔ Set of conical sealing adapters

✔ Mounting Hook

✔ Service wrench/screwdriver

Specifications
