Dokas LMP SuperDock 2, 15 jungčių, USB4 Thunderbolt, HDMI, DP, USB-A, 2,5 GbE, SD

Trumpai apie prekę

Prekė: Dokas LMP SuperDock 2, 15 jungčių, USB4 Thunderbolt, HDMI, DP, USB-A, 2,5 GbE, SD. Kategorija: Dokavimo stotelės.

• Gamintojas: LMP
• Modelis: 26770

LMP SuperDock 2 is a comprehensive solution - docking station - USB4 and Thunderbolt 40 Gb / s with 15 ports providing smooth data transfer, high-resolution video connectivity, audio and fast and reliable network access via a single USB4 or Thunderbolt 40 Gb / s connection. Thanks to the Intel JHL8140 chipset, LMP SuperDock 2 is fully compatible with Thunderbolt 3, Thunderbolt 4 and Thunderbolt 5. Equipped with a 130W power supply, the SuperDock 2 delivers up to 100W (Power Delivery 3.0) to any laptop that can charge via USB4 or Thunderbolt 3, 4 or 5, such as the MacBook Pro/Air. SuperDock 2 is compatible with macOS and Windows OS.

A total of 8 USB ports - 4 on the front and 4 on the back - allow you to connect almost any USB peripheral to your host computer. Speeds range from high-speed 10 Gbps to 5 Gbps and up to USB 2.0 (480 Mbps) for low-speed peripherals such as keyboard and mouse. USB-A and USB-C ports also provide up to 7,5W (BC1.2 1,5A) of power to charge your iPhone or other USB-C devices.

SuperDock 2 has 2 HDMI, DisplayPort and USB-C ports with DP Altmode. DisplayPort (DP 1.4) and USB-C DP Altmode video ports can reach resolutions up to 8K at 30 Hz or 5K at 120 Hz, while HDMI (HDMI 2.0) are capable of supporting 5K at 60 Hz. Dual monitors in extended mode are supported with a choice between Video 1 (HDMI #1), Video 2 (HDMI #2 or DP), and Video 3 (USB-C DP Altmode). The video signal is transmitted via the DP Altmode protocol, so you should check the video support of external monitors by the host (restrictions on the number of external monitors via DP Altmode may apply).

The 2,5 Gbps (RJ45) network port with the latest Realtek chipset (RTL8156B) provides a fast and reliable network connection. It is a simple plug'n'play solution with automatic network bandwidth detection as well as Wake-On-LAN support.

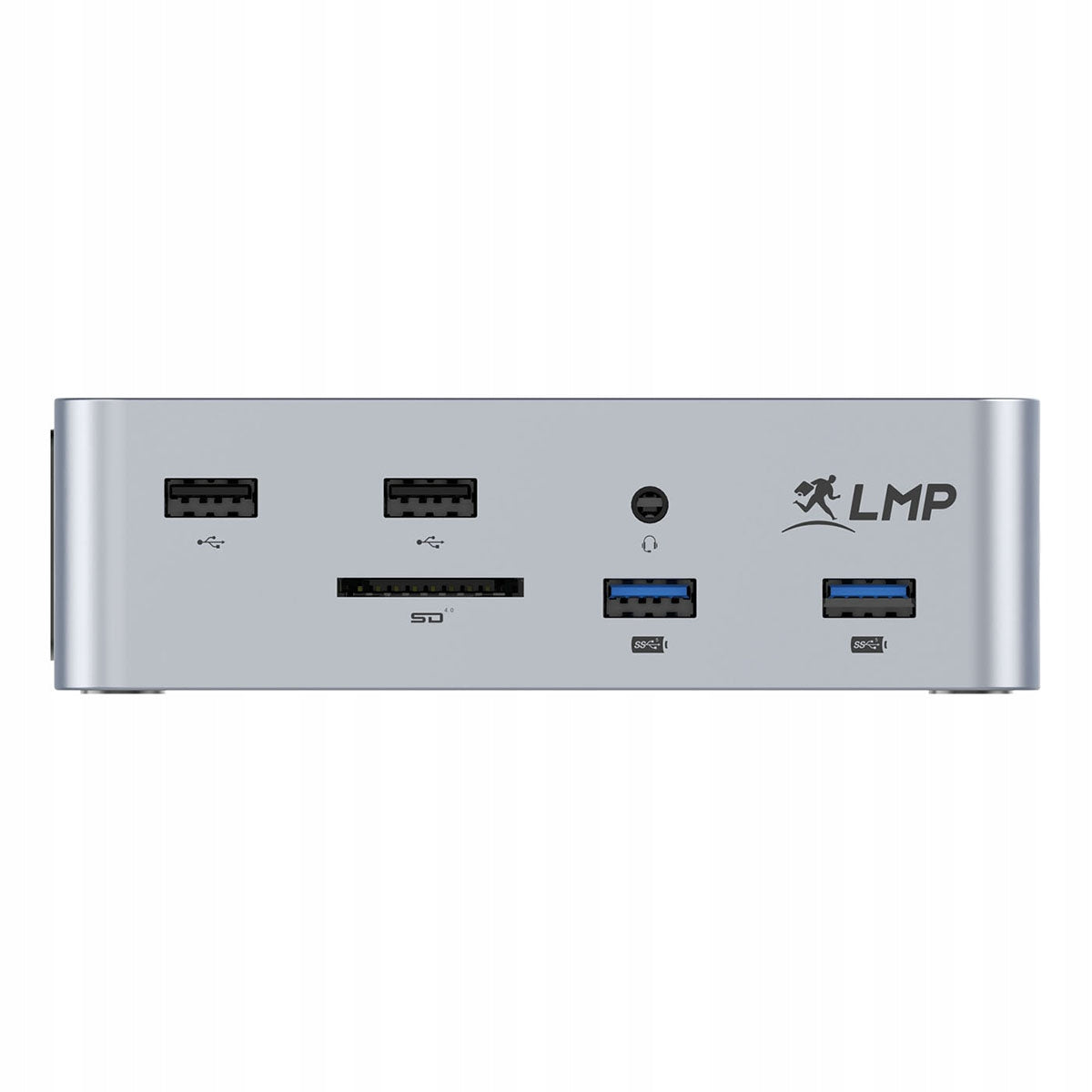

On the front there is an easily accessible SD card slot (SD 4.0 UHS-II) and audio input/output (jack 3,5 mm). The Kensington Security Slot secures the SuperDock 2, and the on/off button on the back helps save energy when the device is not in use. The set includes a USB4 / Thunderbolt 40 Gbps cable with a length of 0,8 m, so that the SuperDock 2 station can be placed at the right distance from the workplace. Made of high-quality aluminum with an anodized surface finish, the SuperDock 2 station can be positioned horizontally or vertically, adding functionality and elegance to any setup.

Technical specification:

• Host Connection Type: USB4/ Thunderbolt (40 Gbps) compatible with Thunderbolt 5, Thunderbolt 4, and Thunderbolt 3
• Video ports: 2x HDMI 2.0 (up to 5K@60 Hz), 1x DisplayPort 1.4 (up to 8K@30 Hz or 5K@120 Hz), 1x USB-C 10G DP Altmode (up to 8K@30 Hz)
• Data ports: 3x USB-C 3.2 Gen2 (10G), 1x USB-A 3-2 Gen2 (10G), 2x USB-A 3.2 Gen1 (5G), 2x USB-A 2.0 (480 Mb)
• Network ports: 1x Ethernet 2,5 Gbps (10/100/1000/2500 Mbps)
• Audio ports: 1x audio input and output (3,5 mm)
• Memory card reader: SD 4.0
• Color: Space Gray
• Material: Aluminum
• Power Supply: External, 135 W, 110 - 240 V
• Product Dimensions: (W) x H x D. ) 13,4 x 4 x 10,3 cm
• Product weight: 417 gr
• Package Dimensions: (W) x H x D. ) 19,2 x 16,8 x 8,5 cm
• Package Weight: 1252 gr
• Package contents: LMP USB4 SuperDock 2 docking station, USB4 cable (0,8 m), power cable 3-plug EU cable (1,2 m), Power adapter (1,2 m cable)
• Notes: Before disconnecting the power supply or connection to the host, disconnect all connected devices. Support for two monitors via DP Altmode protocol. Check the host specifications for support for external monitors. It is not compatible with Apple USB SuperDrive. During use, it can emit heat. It can emit heat during use.
