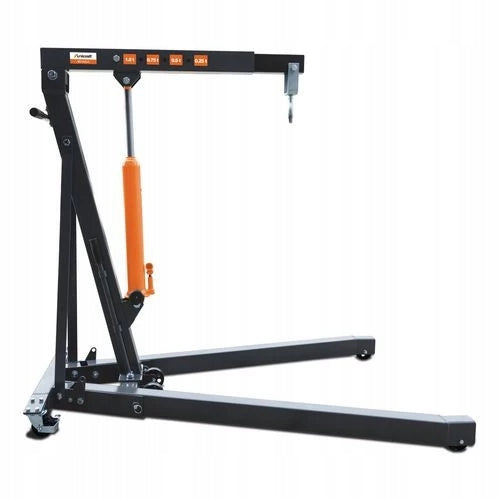

Dirbtuvinis kranas WK 1003 LP 6201424 UNICRAFT

Trumpai apie prekę

Prekė: Dirbtuvinis kranas WK 1003 LP 6201424 UNICRAFT. Kategorija: Variklių stovai ir kėlimo kranai.

• Gamintojas: Unicraft
• Modelis: 6201424

Product description:

• Crane boom adjustable in four positions, load capacity depending on the range

• Low driveway height thanks to recessed load rollers

• Two steel swivel casters with parking brake for maximum flexibility and stability

• Protection on the boom arm

• Save storage space with foldable foot tubes

• Can be quickly assembled and disassembled

Technical data:

• Load capacity: 1 t

• Load capacity: Load capacity is 0,25, 0,5, 0,75 or 1 t depending on boom length

• Boom length: 1170 / 1080 / 990 / 900 mm

• Lifting height min: 25 millimeters

• Maximum lifting height: 1900 millimeters

• Dimensions and weights:

• Clearance: 110 mm

• Folded length: 670 millimeters

• Folded width/depth: 620 millimeters

• Folded height: 1540 mm

• Length approx.: 1515 mm

• Width/depth approx.: 980 mm

• Height approx.: 1375 mm

• Weight approx.: 65 kg

Specifications
