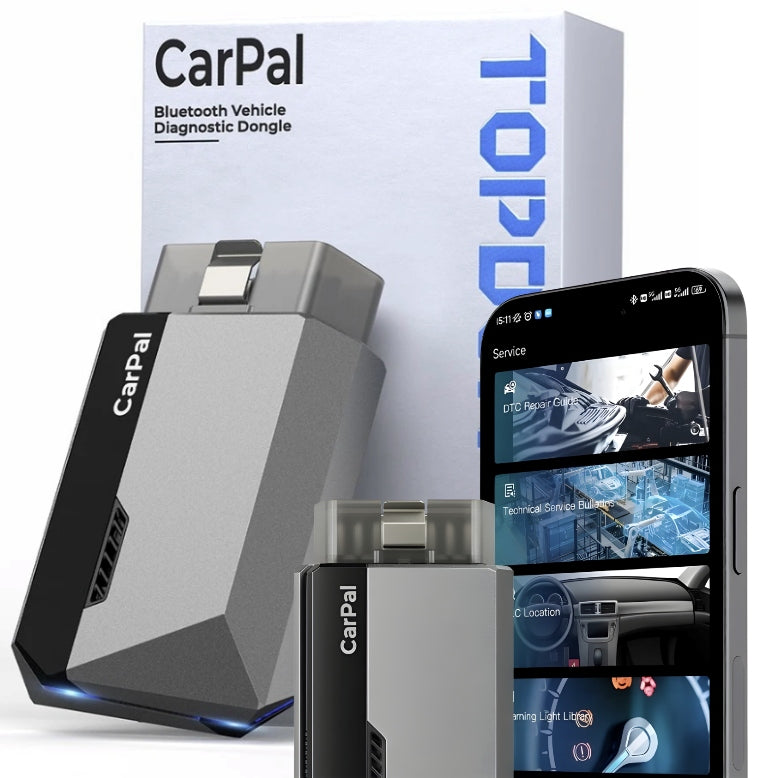

Diagnostinis testeris TOPDON CarPal+ OBD2 visų sistemų palaikymas

Trumpai apie prekę

Prekė: Diagnostinis testeris TOPDON CarPal+ OBD2 visų sistemų palaikymas. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Topdon
• Modelis: carpal

TOPDON CarPal OBD2 is a powerful Bluetooth device and smartphone app that can help diagnose faults.

TOPDON CarPal is a surprisingly powerful scanner

It offers a full-vehicle scan, premium functionality, and several important features. The CarPal itself is a Bluetooth dongle that connects to the OBD2 diagnostic port found in all cars. This interface then communicates with the CarPal application, which acts as the brain and controller of the system. The purchase price includes a dongle with annual access

Vehicle performance test

Do you want to know how fast your car accelerates from 0 to 100 km/h?

TOPDON CarPal uses vehicle speed data to monitor and record accelerations from 0 to 100 km/h. This can also be helpful in diagnosing the overall performance and efficiency of the vehicle with the throttle fully open.

To use TOPDON CarPal, you need three things:

Once you have installed the app on your phone or tablet and set up your account, connect CarPal to the OBD2 (DLC) port on your vehicle and follow the instructions displayed in the CarPal app. To keep everything running smoothly, you need a stable internet connection (mobile or Wi-Fi) and download a digital catalog for each vehicle brand you plan to scan

Once connected, the CarPal app offers several different ways to interact with your vehicle.

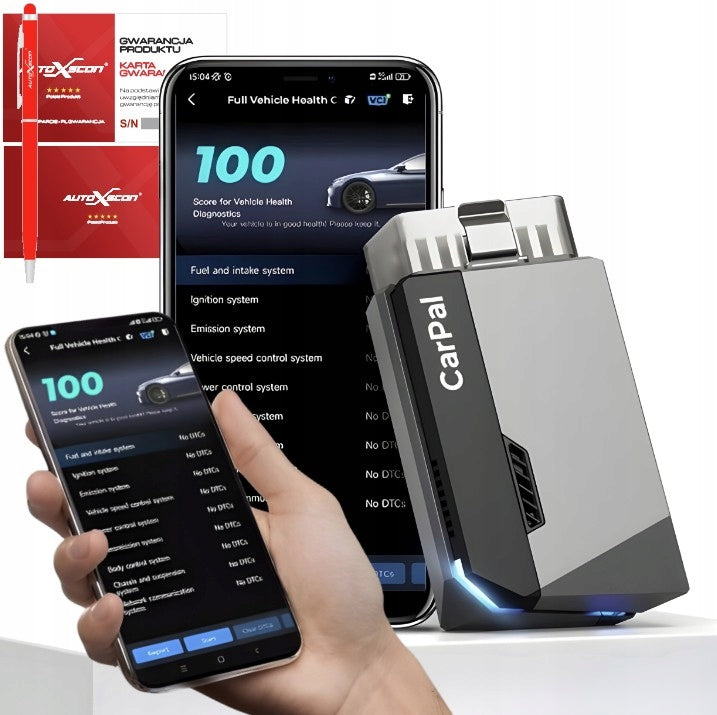

Whole vehicle scanning

While early OBD2 cars had one or two computers (also called modules), modern vehicles use separate computer modules for each possible system. Engine, gearbox, air conditioning, radio, suspension, airbags and other safety systems, ABS system – whatever you want. Many low-cost OBD2 scanners support only the simplest systems.

However, TOPDON CarPal can scan every module in your car.

Whole-vehicle scanning allows the CarPal application to find each computer module in the vehicle and report any pending, current or saved errors or diagnostic codes in each module. The CarPal app then generates a DIY insight report, which can also be sent digitally via email.

• CarPal for iOS 11.0 or later
• CarPal for Android 7.0 or later
• CarPal (OBD2 Bluetooth scanner dongle)
• CarPal app installed on your iOS or Android device

• 4 in 1 Live Data

  If you are a more experienced DIYer, TOPDON CarPal allows users to access your vehicle's live data while your vehicle is running.

  Generally, if there is a sensor in the vehicle collecting data – O2,wheel speed, coolant temperature,gearbox temperature, engine speed,fuel injection corrections, ignition drop counters and others – you will be able to watch at the same time,record and play back up to four separate data streams,which can improve the diagnostic process and check if anything goes beyond the normal parameters.

  Ready I/M

  The I/M Readiness function informs you whether the vehicle is ready to pass an exhaust emission test or SMOG. In practice, modern cars check various emission sensors (O2 sensors), EVAP sensors, etc. ), to make sure they are on and working properly.

  If your vehicle fails this test or if the monitors have not yet turned on due to a recent battery disconnection, you may need to repair or continue driving before proceeding with the emissions test. If these systems or monitors fail completely, the Check Engine light will often light up.

6 service functions

CarPal includes six “necessary reset functions” that are helpful during vehicle maintenance. These include:

Battery tester

Because modern vehicles have never been so dependent on computers, efficient electrical systems – the combination of alternator and battery – are crucial to maintaining the proper functioning of the vehicle. TOPDON CarPlay offers a built-in battery testing feature that will alert you when the battery is too old or weak, so you never wake up in the morning with a dead battery.

Work

In the CarPal service menu you will find four different functions —

• Download the CarPal app is required (Android 7.0 or later, iOS 11.0 or later)
• 1 year service included in the purchase price (after this date 29,99 USD/year)
• AutoVIN identification
• Battery testing and monitoring
• Record and play back 4-in-1 live data stream
• 6 vehicle functions (oil reset, throttle adaptation, EPB reset, BMS reset, TPMS reset, DPF regeneration)
• Acceleration tests (measurement of times 0 to 60 miles per hour, etc. )
• I/M readiness tests (will your vehicle pass the emissions test? )
• OBD Diagnostic Fault Code Repair Guide (DTC)

• Service Bulletins (TSB)
• OBD Diagnostic Fault Code Repair Guide (DTC) : tips and suggestions on the importance of error codes and how to fix the problem(s)
• Service Bulletins (TSBs) : the database of the most frequently issued TSBs for a given vehicle, which can help in diagnosis and repair
• DLC locator : where is the OBD2 diagnostic port in my vehicle?
• Library of warning lights : a glossary of the most common warning lights on vehicle dashboards
• Oil Reset : Resets the oil monitor and/or service reminder controls
• TPMS Reset : Calibrates the tire pressure monitoring system after rotation or installation of new tires
• Reset EPB : Resets electronic parking brakes after replacing pads
• BMS Reset : Resets the battery management system after installing a new battery
• Adaptation of throttle : Re-calibration of throttle (often required after battery replacement)
• DPF filter regeneration (for diesel engines): helps keep the diesel particulate filter (DPF) clean
• DLC locator (where is the OBD2 diagnostic port in my vehicle? )
• Library of Warning Lights
• Supports 98% of vehicle models produced between 1996 and 2023
• Bluetooth 5.0
• Connection range: 10 m

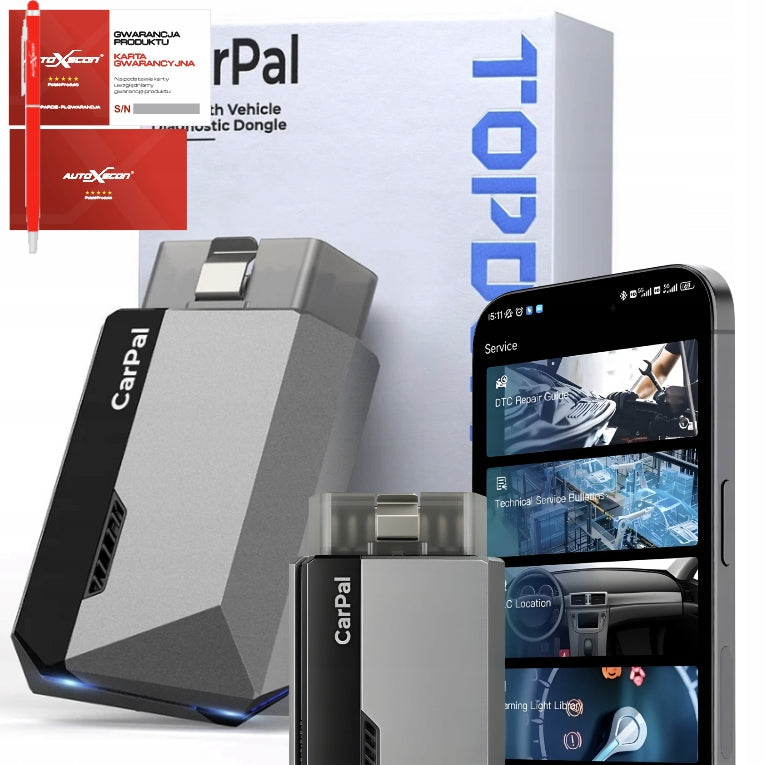

The set includes:

1. TOPDON CARPAL head with subscription and updates for 1 year of software (works on Android and iOS)
2. Cardboard packaging CARPAL
3. Warranty card AUTOXSCAN
4. Pen for touch screens AUTOXSCAN

Specifications
