Diagnostinis kabelis OBD2 INPA ISTA K+DCAN DIS NCS BMW V5

Trumpai apie prekę

Prekė: Diagnostinis kabelis OBD2 INPA ISTA K+DCAN DIS NCS BMW V5. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: K&M
• Modelis: OBD2 BMW INTERFEJS

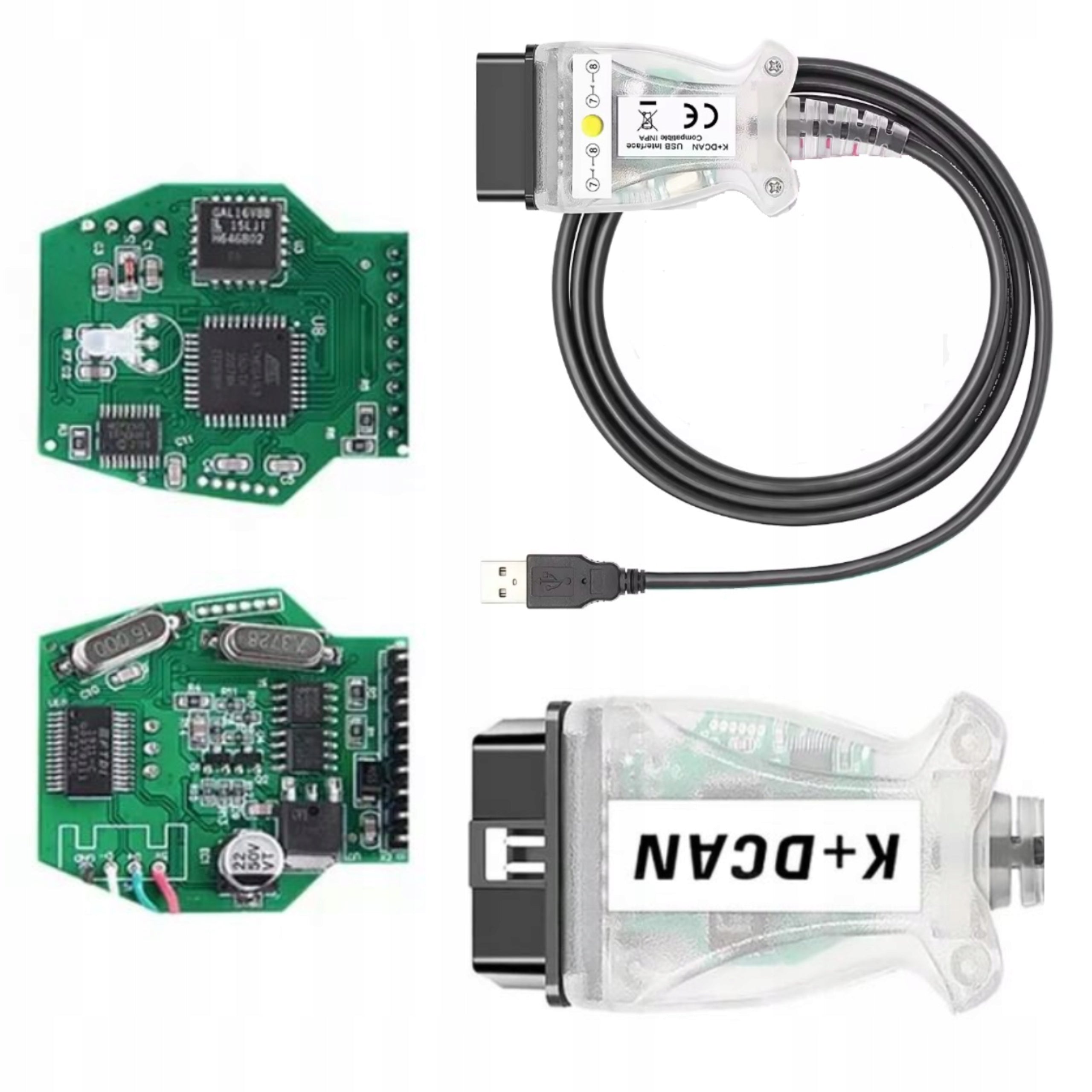

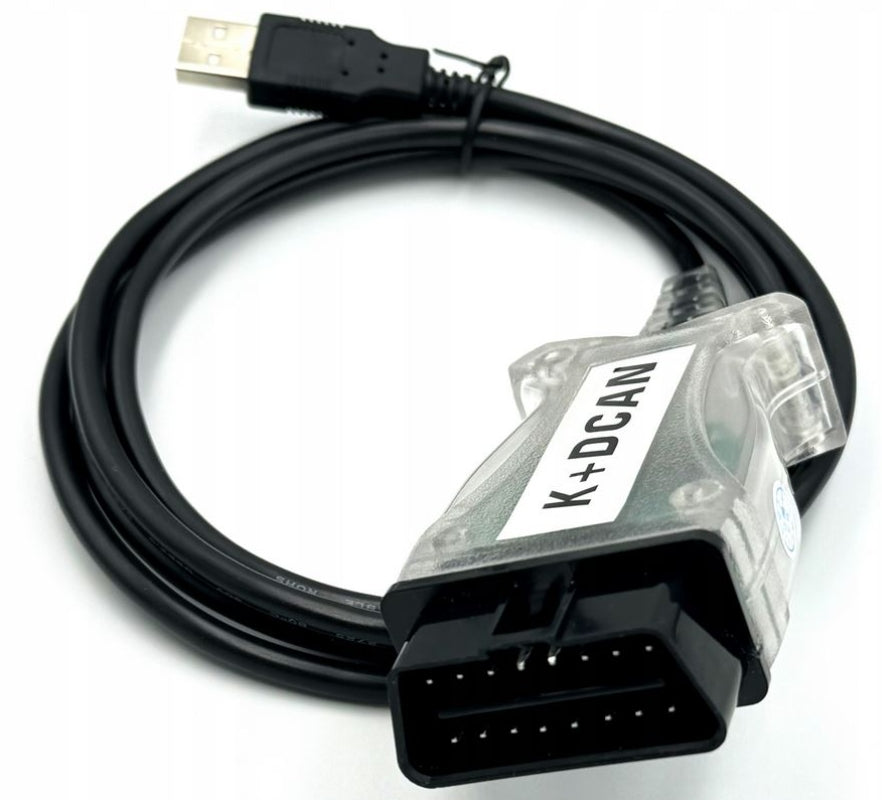

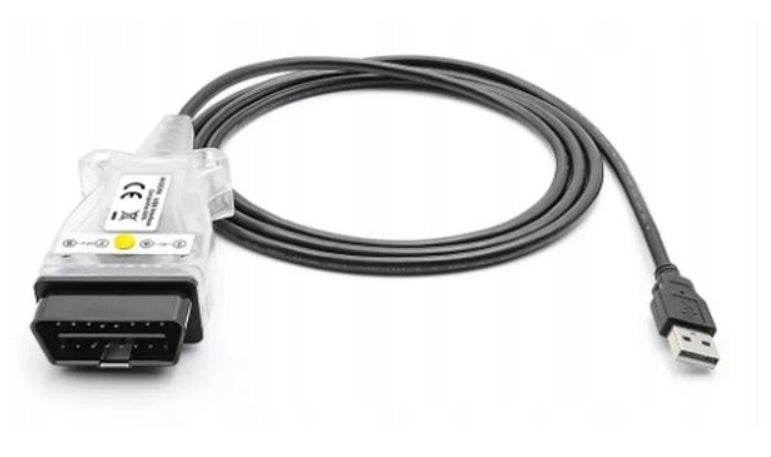

DIAGNOSTIC CABLE INTERFACE OBD2 INPA ISTA K + DCAN DIS NCS

The interface supports BMW E series vehicles

The most important features of BMW K + DCAN:

✅ Compatible with BMW vehicles from 1998 to 2013 i.a. BMW E46, BMW E60, BMW E90, BMW E92 and many more,

✅ Built-in and working switch between K-lines - so that it supports every E-series vehicle for older BMW vehicles, you may need a PIN20 adapter,

✅ Some interfaces from the previous version had a developing switch, which in the current model has been improved,

✅ It has active ignition detection functions, which makes the program work more stable and does not interrupt operation,

✅ True DCAN - you can easily diagnose the engine, but also the rest of the modules.

✅ Reading and removing errors: engine, gearbox, ASC, DSC, safety systems, lights and more,

✅ Deleting service inspections,

✅ Preview of the actual parameters of engine operation (LIVE DATA): revolutions, temperatures, boost pressure, flowmeter,

✅ Checking the operation of individual elements e.g. starting fans, fuel pump test, dashboard operation test,

✅ Adaptation of new functions,

✅ Launching hidden functions,

✅ Change of vehicle settings: i.a. automatic opening, closing of the door at a given speed,

Supported protocols by device:

• Standard BMW ports (BMW-OBD interface)
• Low K-CAN transmission (100 kbit/s)
• High level of D-CAN and PT-CAN transmission (500 kbit/s)

Programs compatible with this interface:

• INPA (Edibas package - all versions)
• ISTA D
• ISTA P
• NCS-Expert Tool
• WinKFP
• Toolset32
• DIS, TIS
• BimmerCode
• BimmerLink
• Bimmer-tool
• Bimmer-tool lite
• Ms4x flasher
• Test0
• MS41 QuickFlash
• Siemens MS41 Flash Tool
• And much more!

Thanks to the switch, we can "bridge" pin 7 of 8, which allows you to connect to all models of the E series (older and newer) and MINI.

The switch system has been improved.

The cable does not have a permanent power on "ON" or ignition; it works in real time when it is turned on in the vehicle. The interface detects the true ignition position when it is activated.

Supported BMW models:

✅ BMW Series 1: E81, E87

✅ BMW 3 Series: E36, E46, E90, E91, E92, E93

✅ BMW 5 Series: E39, E53, E60, E61

✅ BMW 6 Series: E63, E64

✅ BMW 7 Series: E38, E65, E66

✅ BMW 8 Series: E31

✅ BMW X series: E53, E83, E70, E71

✅ BMW Z series: E52, E85

✅ MINI: R50, R52, R53, R56

✅ Rolls Royce (older than 2007)
