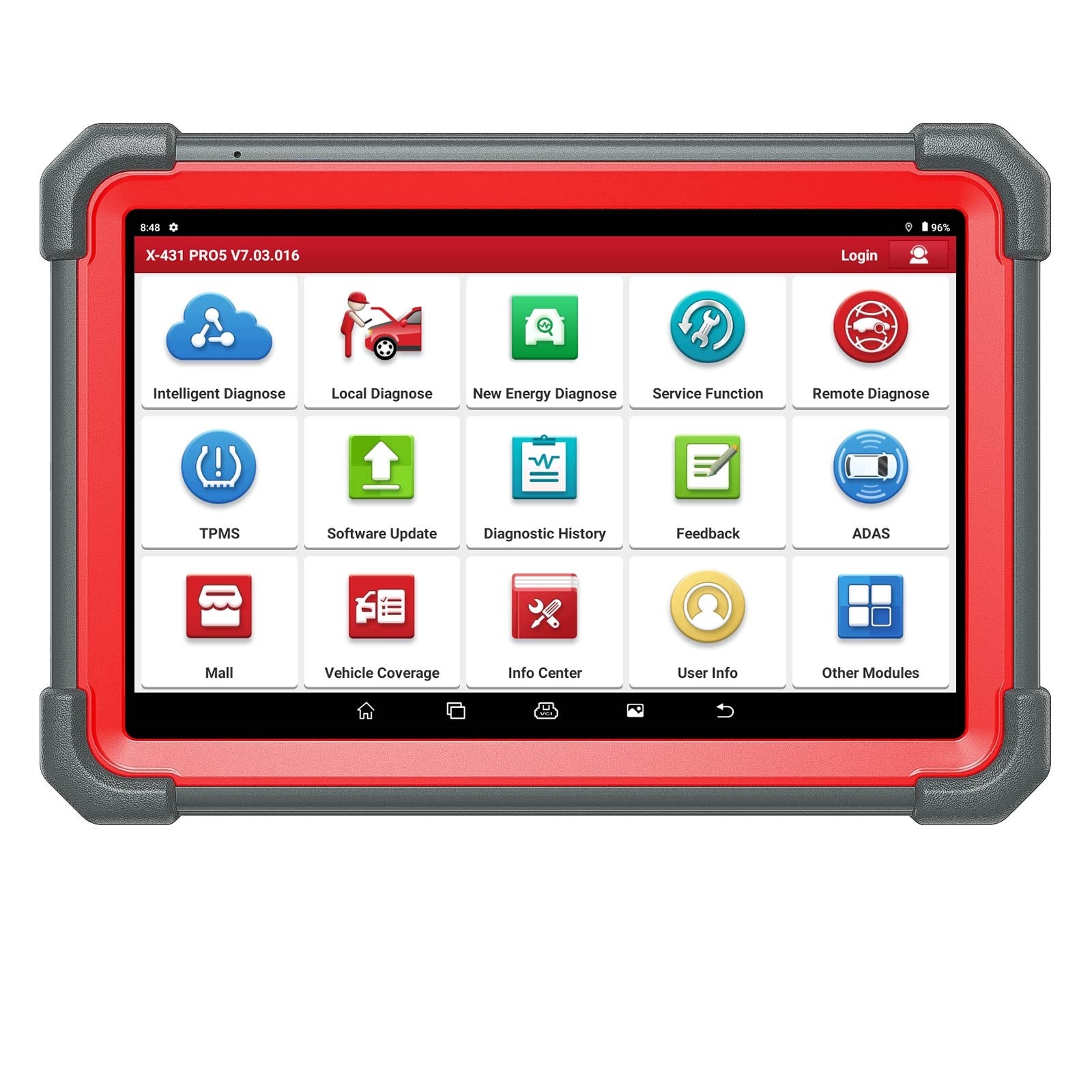

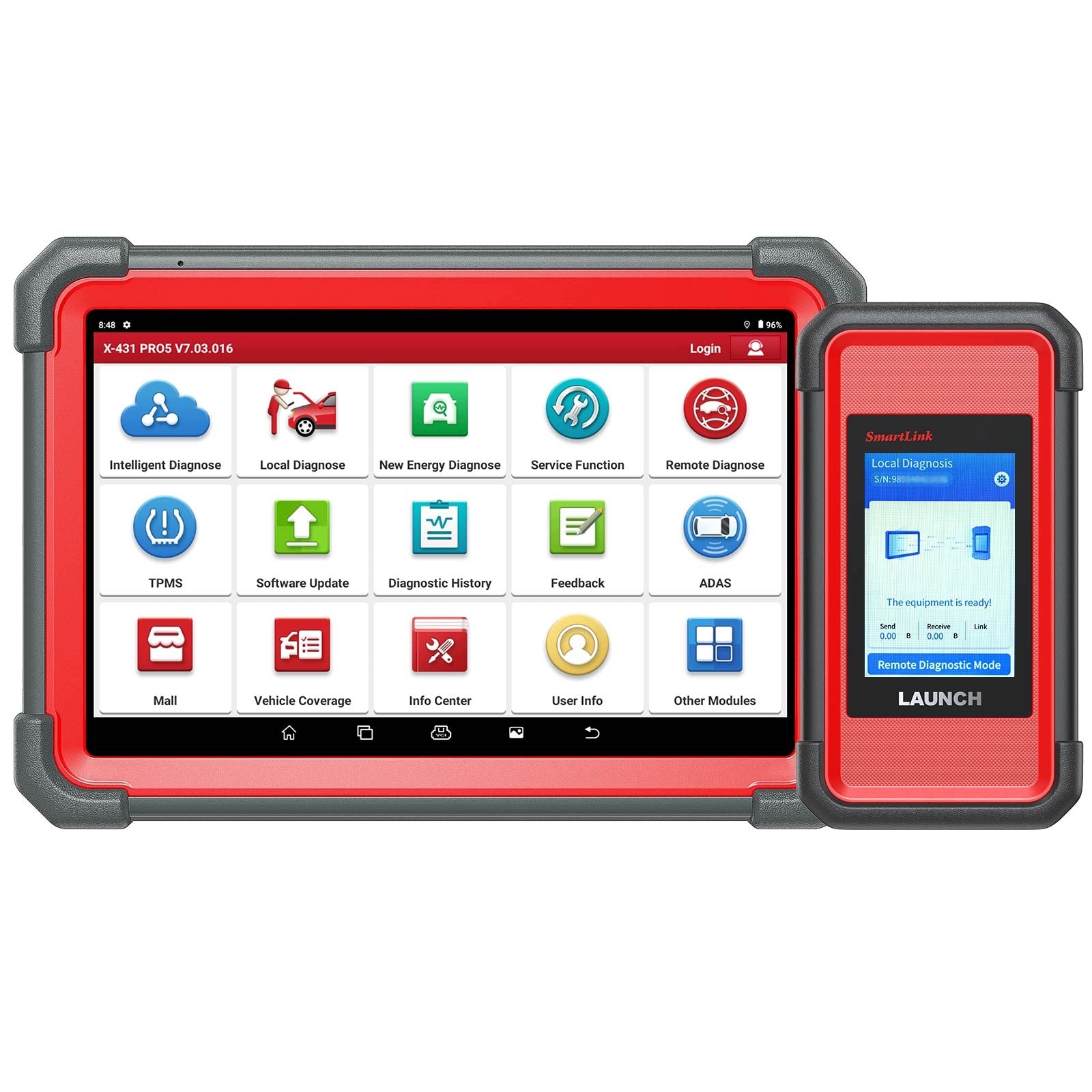

Diagnostinis įrenginys LAUNCH X431 PRO5 su J2534 Smartlink 2.0 CANFD DoIP HD

Trumpai apie prekę

Prekė: Diagnostinis įrenginys LAUNCH X431 PRO5 su J2534 Smartlink 2.0 CANFD DoIP HD. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: CN

LAUNCH X431 PRO5 PRO 5 Two-way diagnostic tool with J2534 Smartlink 2.0 CANFD DoIP HD supports online programming and topology mapping

Key features:

1. This is the EU/UK version, 2 years free upgrade

2. Multi-language support: English, Japanese, Korean, French, Spanish, Portuguese, Italian, Russian, German, Polish, Romanian, Dutch, Arabic, Czech, Danish, Greek, Persian, Finnish, Hungarian, Swedish, Turkish, Serbian,...

3. Updated from X431 V+ / Pros Mini / PRO3 / TURBO / Throttle

4. Smartlink 2.0. The new PRO5 version replaces the VCI from Smartbox 3.0 with Smartlink 2.0 (the new VCI is the same as in PAD VII). Super remote service support is available (requires additional remote service purchase).

5. OE-level car coverage: more than 100 car brands, more than 20 000 models from the US, European and Asian markets; constantly growing.

6. Intelligent diagnostics: AutoVIN and AutoScan allow DTC scanning of all systems with an average duration of < 3 minutes.

7. Full bidirectional active test

8. FCA AutoAuth access: Seamless and fast bypass SGM in FCA vehicles; works on Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. models. from 2017 and later. *Requires an AutoAuth subscription.

9. VAG Guide Function: Skip the routine procedure for entering the safety access code and channel number for VW, Audi, Skoda, Seat vehicles.

10. Add modules to extend functions : ADAS calibration toolkit; VSP-600 videoscope ; X431 TPMS TSGUN ; Bluetooth battery tester BST360 ; Immobilizer X-PROG and X-PROG3 .

11. Non-16-pin connector and cable set: Allows you to work in a variety of vehicles around the world.

12. User-oriented – One-touch software updates

13. Great combination: Android 9.0 operating system, 8-core 1,8 GHz processor, 4 GB RAM and 64 GB ROM, 10,1-inch HD 1920*1200 touch screen, 8 MP rear camera and 5 MP front camera, 7000 mAh battery, etc. 14.

LAUNCH IMMO authorization available. Activate IMMO Plus to run X431 PRO5

15. Truck software license available with adapters to buy with adapters

USB 2.0/3.0, TYPE-C cable not included

Compatible with X431 key programmer

Product Specifications:

Tablet parameters (X-431 PRO5)

Processor: 2,0 GHz 4-core

Operating System: Android 10.0

RAM: 4 GB Memory

ROM: 64 GB

Display: 10,1 inch

Resolution: 1280*800

Camera: 5 MP (front), 8 MP (rear)

Wi-Fi: 2,4 GHz/5 GHz (double frequency)

Operating temperature: 0~50℃

Size: 274 * 190,5 * 39,5 (mm)

VCI parameters (SmartLink C)

Processor: Cortex-A7 + Cortex-M7

Operating System: Linux

RAM: 256 MB

ROM Memory: 8 GB

Display: 3,5 inch touch screen

Wi-Fi: Dual-band

2,4 GHz/5 GHz diagnostic communication: WiFi, Bluetooth and USB

Test Voltage: DC 9~36 V

Operating temperature: 0~50 ℃

Size: 204*110*45 (mm)

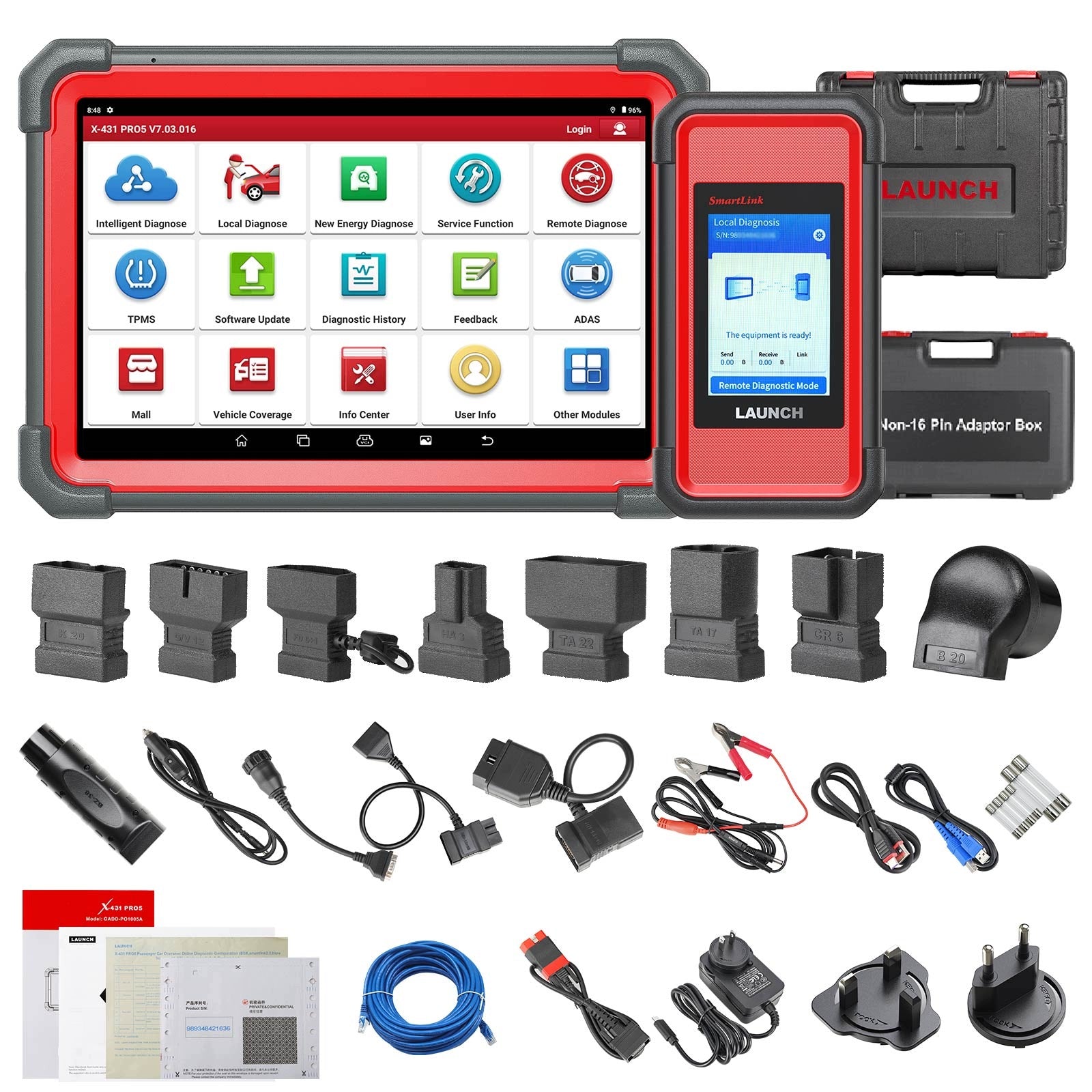

Package includes:

1pcs x Main Unit

1 x SmartLink C V2.0

1pcs x American Plug

1pcs x EU plug

1pcs x UK Plug

1pcs x OBD adapter

1pcs x Type-C Cable

1pcs x USB-B cable

1pcs x Ethernet Cable

1pcs x for K-20 adapter

1pcs x for HA-3 adapter

1pcs x for G/V-12 adapter

1pcs x for FD-6 + 1 adapter

1pcs x for CR-6 adapter

1pcs x for TA-17 adapter

1pcs x for TA-22 adapter

1pcs x for NN-14 + 16 adapter

1pcs x for MH-12 + 16 adapter

1pcs x for B-20 adapter

1pcs x for BZ-38 adapter

1pcs x Cigarette Lighter Cable

1pcs x for BZ-14 adapter

1pcs x Battery Clamp Cable

1 pcs x box

6 pieces x fuses

1pcs x Quick Start Guide

1pcs x PIN envelope

1pcs x User Manual
