Diagnostinė sąsaja sunkvežimiams ir žemės ūkio technikai

Trumpai apie prekę

Prekė: Diagnostinė sąsaja sunkvežimiams ir žemės ūkio technikai. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Launch
• Modelis: X-431 PRO TT SMARTLINK C HD LITE OBD2 x431

• Polish
• NO SUBSCRIPTIONS - NO BLOCKAGES
• 2 YEARS FREE UPDATES for cars and vans ONLINE
• 1 YEAR FREE UPDATES for trucks and construction and agricultural machinery ON-LINE
• WORKS INDEFINITELY
• AUTHORIZED Poland DISTRIBUTION
• PASSENGER AND COMMERCIAL VEHICLES
• Support for the latest diagnostic protocols FD-CAN and DoIP!!!
• Security Gateway SGW (FCA)
• Ability to expand the device with other accessories Launch
• ON-LINE LOGIN
• 8 inch touch screen
• Support more than 134 car brands from the European, Asian, American, etc. market.
• ALL MODULES: errors, live parameters, frozen frames, actuators
• UNLIMITED SPECIAL FEATURES

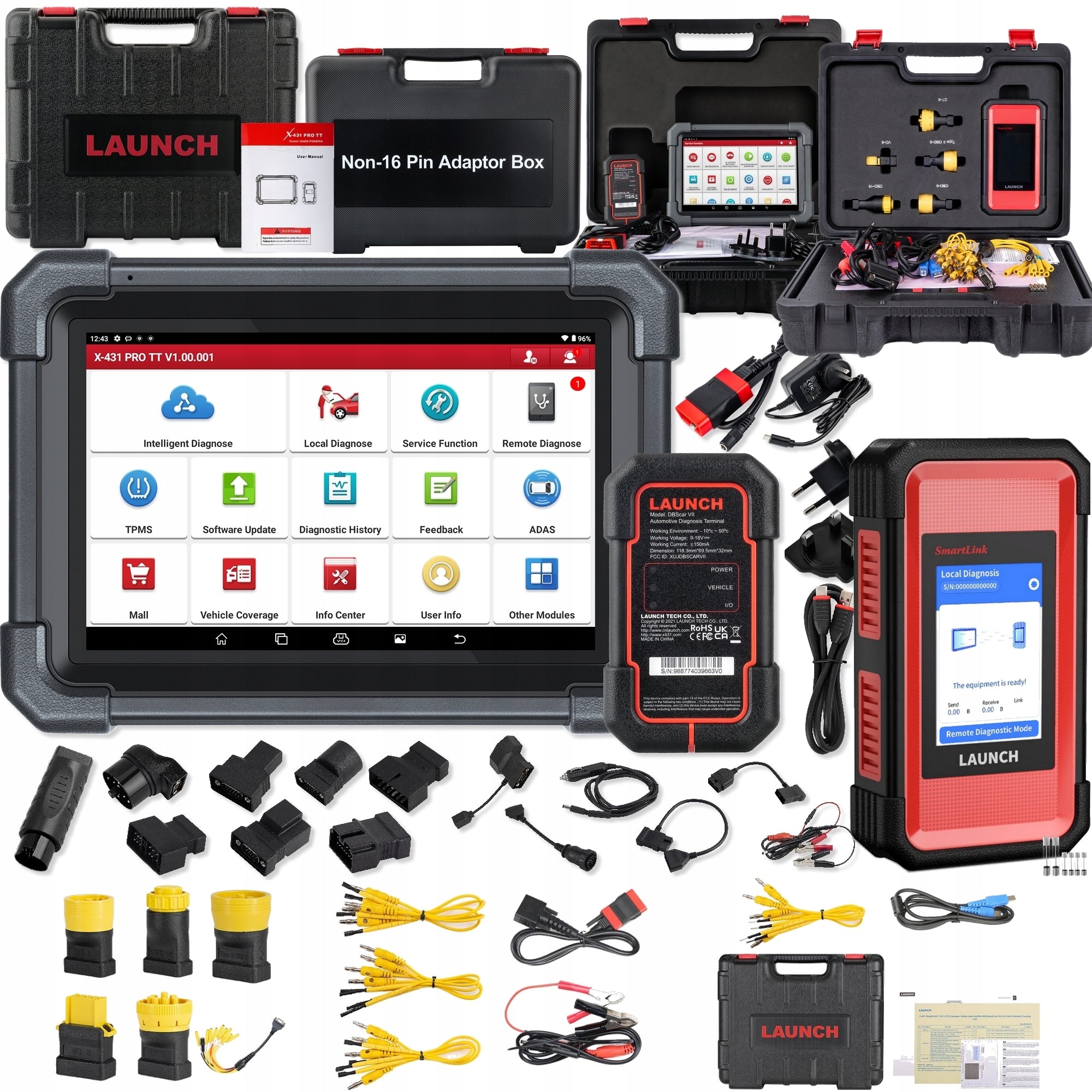

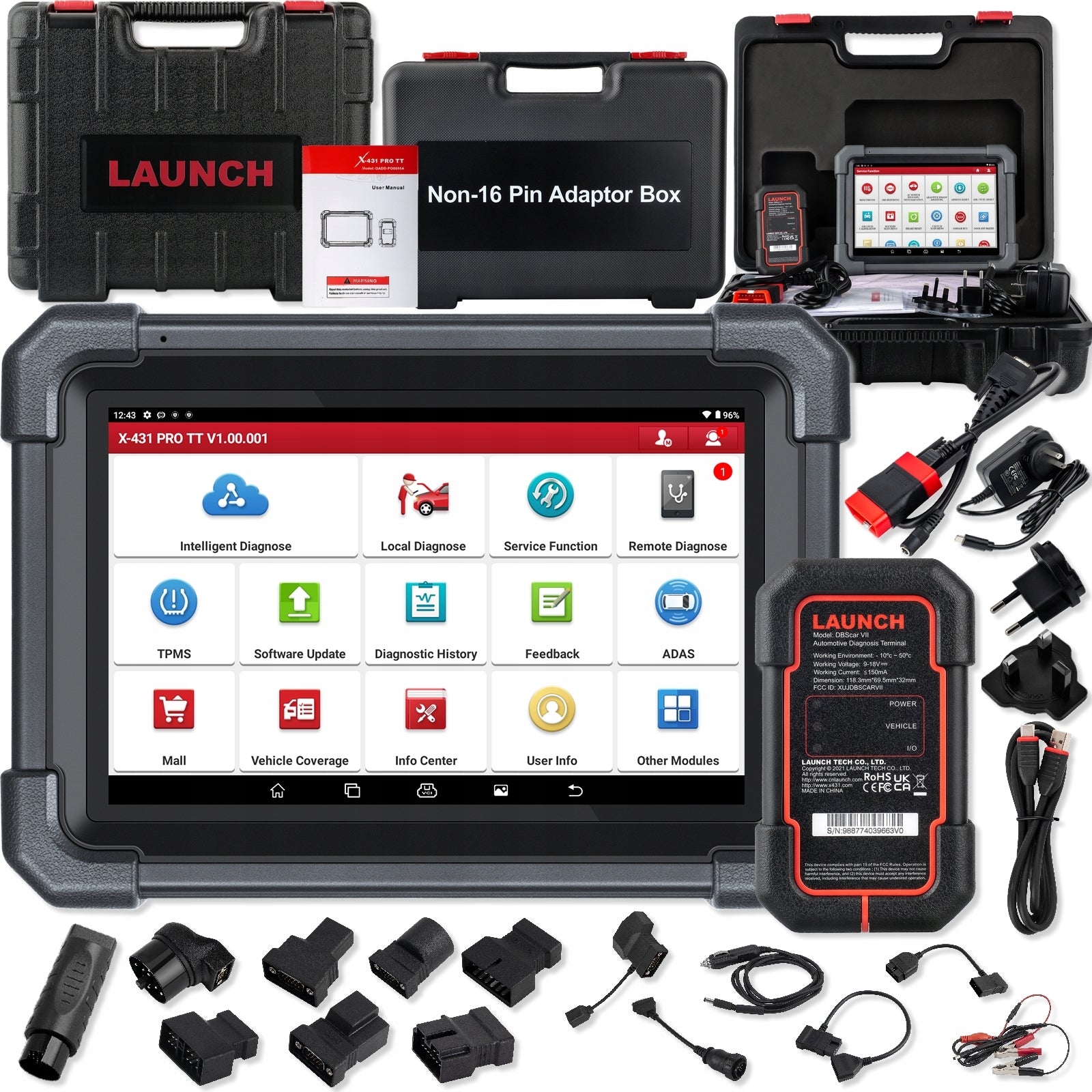

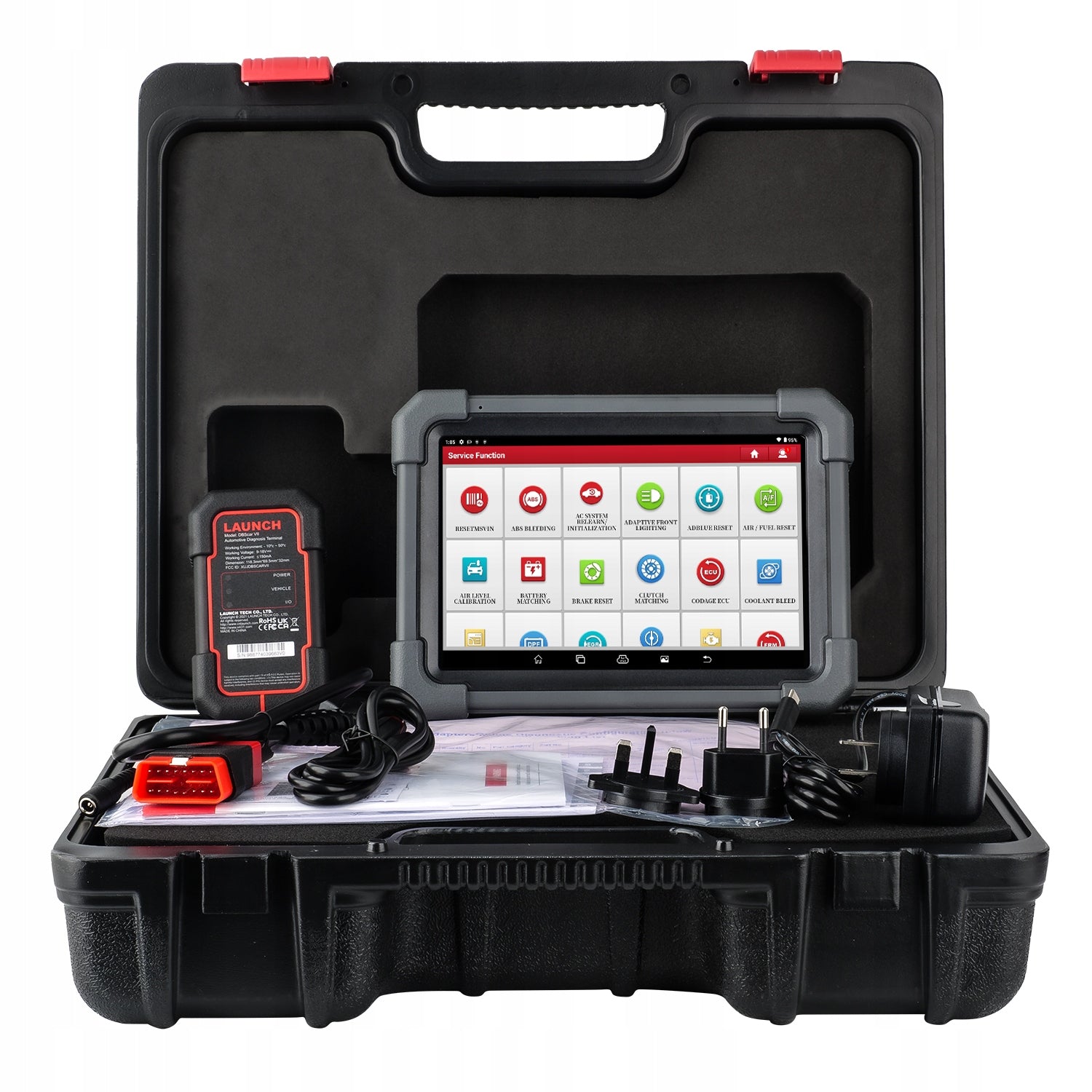

The set includes:

1. Diagnoscope Launch x-431 PRO TT
2. 3x Suitcase with compartments
3. Wireless diagnostic head DBScar VII
4. Module, the latest HD SmartLink C LITE head
5. OBDII cable for diagnostic head
6. Network charger
7. USB cable
8. Certificate for registration and downloading diagnoscope updates
9. Power cable with blade, and lighter
10. 12 pieces adapters for passenger and commercial vehicles
11. 7 pieces adapters for trucks and machinery
12. Guarantee card

Tester includes an OBDII connector and 12 OBDI adapters for diagnosing older vehicles:

• Mercedes 38pin
• Mercedes 14pin
• BMW 20pin
• Honda 3pin
• Toyota 17pin
• Toyota 22pin
• Mitsubishi 12pin
• GM/Daewoo 12pin
• Nissan 14pin
• Kia 20pin
• Ford 6+1pin
• Chrysler 6pin
• OBD2 Power Cable

The X-431 HD SmartLink C HD LITE includes:

• Case with compartments
• CAT adapter / Carter 9PIN
• Volvo 8PIN adapter
• DAF/SCANIA 16PIN adapter
• OBD-6 adapter
• OBD-9 adapter
• OBD2 main cable
• USB cable A to B
• Cable with crocodiles
• Short instruction manual
• Multi-vertical adapter (so-called loose pins)
• Multi-pin tips 4 sets
• Fuse for clamps 5 * 20 mm - 4 pcs.
• Fuse 4 pcs.

It has the most advanced diagnostic functions such as programming, calibration, parameterization, online login, etc. !

• Compatible with Volkswagen / Audi / Skoda / Seat etc.: diagnostics, component programming, online coding, online account login, online calibration, online parameterization, IMMO Service theft protection.
• Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.: component programming.
• Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.: online coding.
• Compatible with Volkswagen / Audi / Skoda / Seat etc.: online account login service, online calibration, online parameterization.
• Compatible with Chrysler / GM / Ford etc.: power balance.
• Compatible with Ford/Mazda etc.: installation of programmable module.
• Compatible with BMW / Porsche / Toyota / Subaru, etc.: flushing hidden functions.
• Compatible with CHRYSLER / FIAT / ALFA / LANCIA: Security Gateway SGW.
• Executive Elements Test: Injector Test, ACC System Lane Maintenance Assistant (LKAS) Shutdown,switching on/off the ACM solenoid valve on the front and rear sides,switching on/off the fuel pump, switching on/off the air conditioning,clutch on/off, left clutch electromagnetic coil test,acceleration device test, oil pressure control test,dynamic camera aiming, vehicle level position calibration,brake vacuum pump tests, inlet and outlet valve tests,open brake tests, parking brake errors,wheel speed sensor power supply, parking brake tests (different depending on the car,hundreds of launch test functions) and others.

You buy equipment from the Authorized Distribution of the LAUNCH on Polish territory!

The main features of LAUNCH HD SmartLink C in other words are:

1. A complete set of software, including diagnostic functions designed for trucks and machines.
2. Diagnostic software with the widest range of compatibility with various car brands.
3. Guarantee of accuracy of test data.
4. Constant updates and improvements to the software, enabling users to take advantage of the latest diagnostic features.
5. Possibility to diagnose trucks with diesel engines that use 12 V or 24 V batteries. No battery conversion is required when testing 24 V trucks. One year software update included in the price.
6. The device software has been developed in accordance with international standards, which ensures compatibility of the diagnostic interface with a wide range of models from different manufacturers from different corners of the world.

Tester Capabilities (depending on vehicle make, model, and year):

• Read fault codes
• Clear fault codes
• View live data (including graphs and gauges: multiple modes)
• Component coding
• Component adaptations (throttle body, EGR valve, engine computer, etc.)
• Transmission calibration
• Actuator tests (e.g., activating EGR valve, fan motor, gauge needles, central locking, etc.)
• Service and oil reset
• Injector coding
• Key coding
• Full Diesel Particulate Filter (DPF) support (soot level check, reset, regeneration, adaptation after replacement)
• Full Electronic Parking Brake (EPB) support (retracting calipers for brake pad replacement, setting piston pressure, pad thickness)
• Automatic scanning of all vehicle modules
• Read control module information
• Clear learned values
• Read VIN code
• Reset control unit programming
• Brake booster bleeding
• Level calibration
• Steering angle sensor calibration
• Idle learning
• Ignition timing
• ----ONLINE CODING!!!!! ------
• And many more...

EXACT CAPABILITIES CAN BE CHECKED ON THE MANUFACTURER'S WEBSITE

The operating system of the LAUNCH X431 PRO TT can be quickly changed to the following languages:

• English
• French
• Spanish
• German
• Russian
• Japanese
• Portuguese
• Korean
• Italian
• Polish
• Dutch
• Hungarian
• Finnish
• Chinese
• Czech
• Turkish
• Greek
• Arabic
• Danish
• Persian
• Romanian
• Serbian
• Swedish

The tester supports practically all control modules in a given vehicle, including the latest models from the current year:

• Engine
• ABS Brake System
• Airbags
• Automatic Transmission
• Comfort Module
• Brake Electronics
• Traction Control ESP/ASR/EBD
• Tire Pressure Monitoring System (TPMS)
• Air Conditioning
• Power Steering
• Dashboard
• Navigation
• Audio System
• Central Locking
• Anti-theft System
• Lighting Electronics
• 4x4 Drive
• Seat Memory
• Door Electronics
• Navigation
• Parking Assist
• Lane Keeping Assist
• Backup Camera
• Cruise Control
• And many other vehicle equipment systems..

Has abbreviations of the MOST IMPORTANT SERVICE PROCEDURES:

1. Oil lamp service reset: perform a reset to calculate the engine oil life system after oil change.

2. EPB Reset: Helps to replace and reset brake pads.

3. BAT battery support (BMS): Clear the low battery information and readjust it.

4. Support for DPF and GPF (particulate filter).

5. Reset the SAS steering angle sensor: Reset the steering angle to zero to make the car move straight.

6. IMMO key programming (anti-theft matching): Disabling lost keys and adding new ones. **Only for cars with a simple IMMO system.

7. ABS venting: Helps remove air from the braking system

8. Coding of fuel injectors: Save the new injector code to the car system for the correct amount of cylinder injection.

9. TPMS support: Displays sensor identifiers from the vehicle ECU, introduces identifiers for new TPMS sensors and tests sensors.

10. Adaptation of throttle: Initialization of throttle actuators to the default state.

11. Reset of AFS headlamps: Initialization of the adaptive headlight system.

12. Sunroof initialization: Sunroof must be reset in case of communication problems or replacement of the control unit.

13. Suspension reset: Adjust the vehicle body height sensor to calibrate the level.

14. Gearbox reset: Helps to train the gearbox to improve the quality of gear shifting.

15. RPM learning: Monitors the signals of certain camshaft position sensors.

16. Tire reset: Sets the size parameters of the modified or replaced tire.

17. Reset A/F (air/fuel): Sets or teaches air/fuel ratio parameters.

18. Reset Adblue (diesel exhaust filter): Resets the calculated power of the catalyst stored in the ECU after replacing or replenishing the exhaust fluid.

19. Cooling system venting: Activates the electronic water pump.

20. Change language: Changes the language of the vehicle system.

21. Nox sensor reset: Resets the learned value of the catalyst stored in the ECU.

22. Reset Start/Stop: Sets the automatic start/stop function in the ECU.

23. Seat Calibration: Calibrates memory in replaced or repaired seats.

24. Transport mode: Deactivates transport mode.

25. Window Calibration: Adjusts the door windows to restore the original ECU memory.

26. Relearning/initiating the air conditioning system.

27. Diagnosis of high-voltage battery.

28. Regeneration of GPF filter.

29. Reset the level of alcohol in fuel.

30. Reset the composition of the fuel mixture.

31. Reset turbocharger VGT.

32. Bsi solenoid valve test.

33. Learning the clutch system.

34. Alignment of cruise control radar.

35. Checking the electronic throttle (ETB).

36. Unlock the event data logger.

37. Learning to adjust the fuel injector pilot.

38. Calibration of the G. sensor

39. Calibration of tilt sensor.

40. Reset the weight of the observed fuel.

41. Learning neutral gear positions.

42. Initialization of the lifted tailgate.

43. Resumption of adaptive gearbox learning.

44. Calibration of the valve.

and many others

Europa: ABARTH, ALFA ROMEO, ASTON MARTIN, AUDI, BENTLEY, BMW, BORGWARD, BUGATTI, CITROEN, DACIA, DR, FORD, FERRARI, FIAT, GAZ, IVECO, JAGUAR, LAMBORGHINI, LANCIA, LAND ROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, VOLV, VOLV, ROLLS-ROYCE, ROVER, SAAB, PORS

Americas: BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, FORD, GM, JEEP, LINCOLN, TESLA

Asia: ACURA, DAEWOO, DAIHATSU, HM, HOLDEN, HONDA, HYUNDAI, IKCO, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MARUTI, MAZDA, MITSUBISHI, MVM, NISSAN, GTR, PERODUA, PROTON, SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, DAD, ISUZU, TOYOTA, etc.

Brands of Trucks and Utility Machines:

Europe: Mercedes-Benz, Man, Volvo, Scania, lveco, OAF, Renault, Daf, Irisbus, Irizar, Neoplan, Setra

United States: Freightliner, International, Kenworth, Peterbilt, Stering, Western Star, Mack, Detroit Engine, Cummins Engine, etc.

Asia: Hino, Fuso, Isuzu, UD, Hyundai

FEATURES AND FUNCTIONS :

• Serving over 200 brands, EUROPE, USA, ASIA.
• Support for all electronic systems.
• Reading and deleting error codes, ECU information, Live data.
• Plenty of Service Features such as Oil Reset, EPB, BMS, SAS, DPF, Injectors, Box Adaptation and more.
• Smart AutoVIN technology for easy identification of vehicles.
• Automatic software update system with real-time push-up notifications via Wi-Fi.

The tester is a standalone workshop device, a diagnostic combine equipped with an 8 inch touch screen, armored, workshop rugget housing! It is powered by a very fast Android operating system and allows wireless diagnostics via bluetooth interface.

Original, legal hardware with online software updates from the diagnostic position!

Diagnoscope works in Polish, it is THE LATEST and MOST ADVANCED version of the software created by engineers of the LAUNCH brand!!!

Original, legal hardware with online software updates from the diagnostic position!

Technical support, online updates, parts, service are only on this listing.

THE TESTER WORKS FULLY in Polish!! - Both MENU and ERROR CODES with their DESCRIPTIONS are translated into Polish Language

LAUNCH X431 PRO TT (expandable)

• X431 ADAS Mobile/PRO: When the Adaptive Cruise Control Module (ACCM), radar sensor, or front bumper is replaced or does not meet calibration requirements, you need to perform "radar calibration."
• VSP600-Videoscope: Helps technicians inspect issues in hard-to-reach areas of a vehicle. With 6 levels of light intensity, technicians can easily adjust brightness to the surroundings.
• LAUNCH X431 TSGUN: This is a professional tire pressure diagnostic tool that integrates TPMS sensor activation, reading, learning, and programming. It activates and reads tire pressure information by receiving low or high-frequency signals.
• X-PROG & X-PROG3 Immobilizer: Transforms this X431 diagnostic scanner into a capable IMMO service tool, providing fast, easy, and intuitive key programming for VAG group vehicles with 2/3/3.5 gen. IMMO, and most Asian cars with low-level anti-theft systems. It also performs full IMMO & Key Programming service (read and write 1200+ EEPROM and MCU chips, etc.) for VW/Audi/Skoda/Seat models manufactured after 2008 with IMMO 4/5/5.5/6 gen. systems.
• X431 PRINTER: Print diagnostic data/reports
• O2-1 ScopeBox, Oscilloscope: For quickly capturing circuit signals and displaying waveforms slowly for better data analysis.
• BTS360 Bluetooth Battery Tester: With the LAUNCH BST360 car battery tester, you can check the overall battery health. It works on all 6 and 12-volt lead-acid batteries, including standard flooded, AGM flat, AGM spiral, GEL, and EFB, with a test range of (100-2000 CCA).

Specifications
