Diagnostinė sąsaja skeneris AMiO OBD2 V410 AMIO-04730

Trumpai apie prekę

Prekė: Diagnostinė sąsaja skeneris AMiO OBD2 V410 AMIO-04730. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Amio
• Modelis: 04730

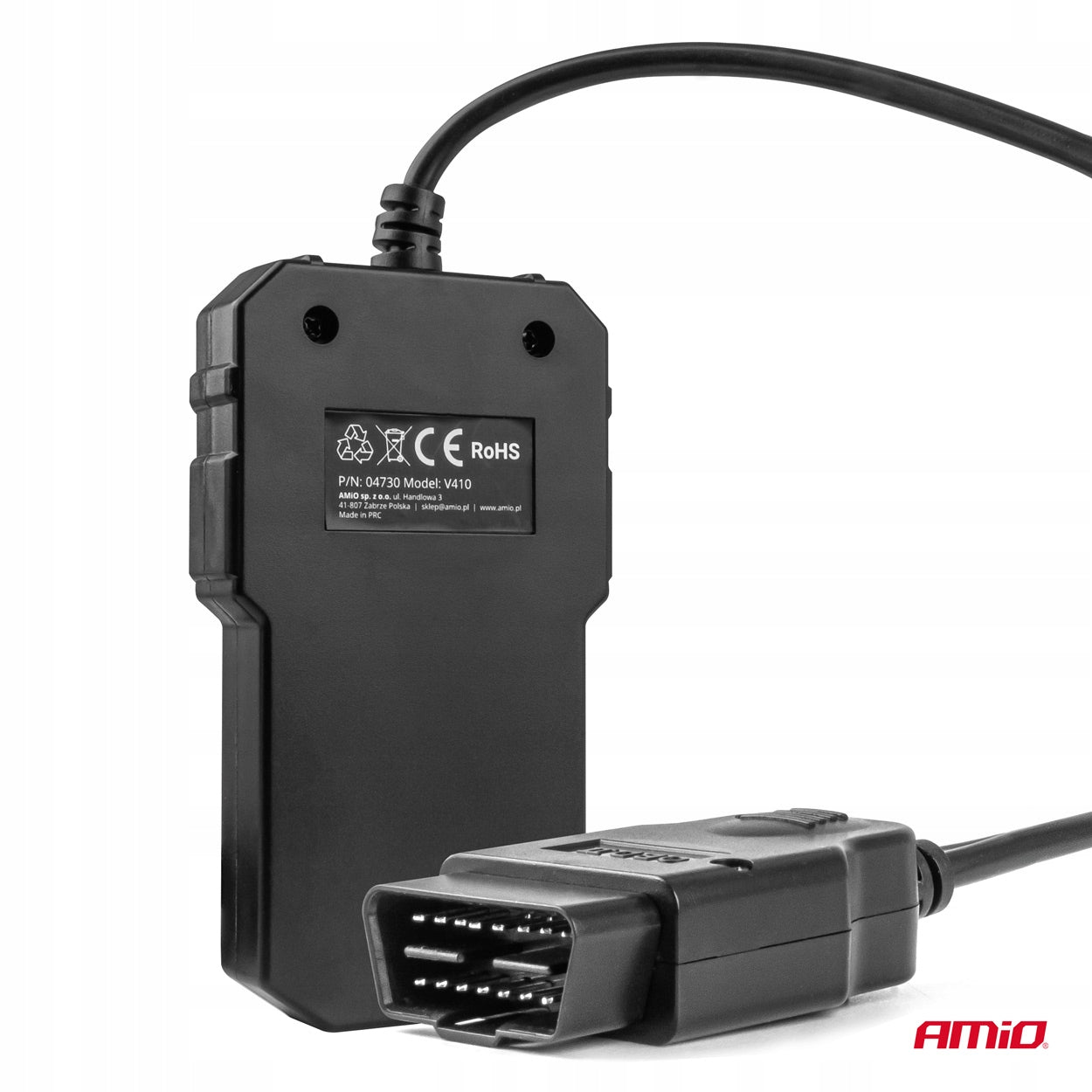

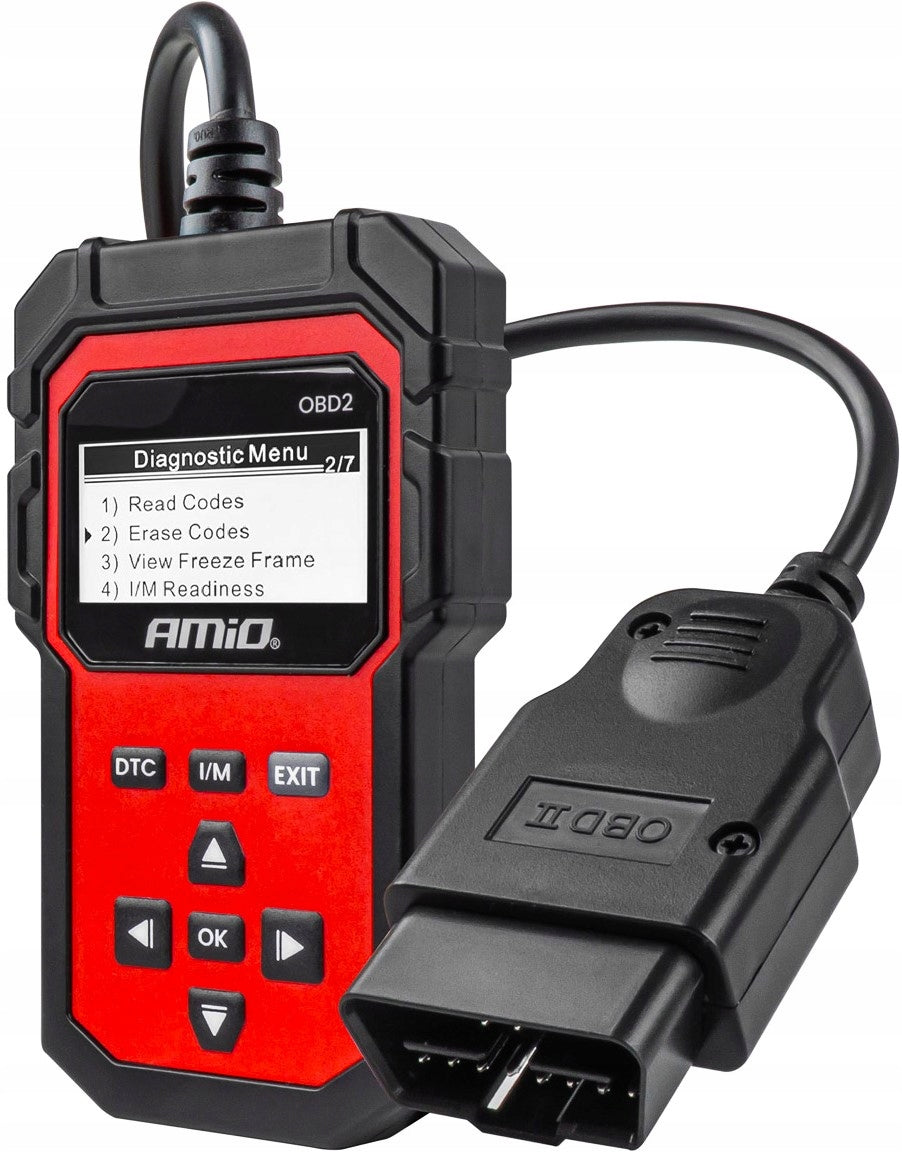

➡ The professional AMiO OBD2 V410 diagnostic interface enables quick and precise diagnosis of vehicles with OBD2 installation. The device supports all popular communication protocols, making it an ideal tool for workshops, mobile services and for individual users who need a reliable diagnostic tool.

➡ Illuminated display with a resolution of 128 × 64 px ensures readability of diagnostic data in all lighting conditions. Power is provided directly from the vehicle battery (8 to 15 V), which eliminates the need for additional energy sources.

➡ ➡ ➡ Supported Protocols:

• SAE J1850 PWM (41.6 Kbaud)
• SAE J1850 VPW (10.4 Kbaud)
• ISO9141-2 (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
• ISO14230-4 KWP (fast init, 10.4 Kbaud)
• ISO15765-4 CAN (11 bit ID, 500 Kbaud)
• ISO15765-4 CAN (29 bit ID, 500 Kbaud)
• ISO15765-4 CAN (11 bit ID, 250 Kbaud)
• ISO15765-4 CAN (29 bit ID, 250 Kbaud)

➡ ➡ ➡ Technical Specifications:

• Display: backlit, 128 × 64 px
• Working temperature: 0 – 60 °C (32 – 140 °F)
• Storage temperature: −20 – 70 °C (−4 – 158 °F)
• Working voltage: 8 to 15 V (from vehicle battery)
• Dimensions: 155 × 85 × 25 mm

➡ ➡ ➡ Advantages:

• Wide compatibility with OBD2 protocols
• Backlit display for good readability
• Solid and lightweight design, easy to store and transport
• Power supply directly from the vehicle – no additional power sources
• Reliable tool for workshops and mobile services
