Trumpai apie prekę
Prekė: Diagnostinė sąsaja Launch x431 hd3 Truck Set CanFD. Kategorija: Diagnostiniai testeriai ir sąsajos.
- Gamintojas: Launch
- Modelis: HD3 v2.0 SKANER TESTER KOMPUTER x-431 OBD2 PL
Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module
Launch X-431 SmartLink C 2.0 is a truck diagnostic module developed by Launch Company based on Linux, dual Cortex-A7+Cortex-M7 processor, 8G storage, 256M storage, 320*480 resolution.
It supports Bluetooth, Wi-Fi, USB and other communication methods and can be used with X-431 PRO3S and PRO5 series.
It also supports full system error diagnostics, with features such as code reading, code cleaning, data stream reading, special functions and performance test. Covering diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and others, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
It also supports full system error diagnostics, with features such as code reading, code cleaning, data stream reading, special functions and performance test. Covering diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and others, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
Features of Launch X-431 SmartLink C:
Supports Bluetooth, Wi-Fi, USB and other communication methods
SmartLink C is applicable to vehicles compliant with the CAN/DoIP/CAN FD/J2534 diagnostic protocol standard.
Linux-based dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution
Launch X-431 SmartLink C 2.0 is a truck diagnostic module developed by Launch Company based on Linux
It also supports full system error diagnostics, with features such as code reading, code cleaning, data stream reading, special functions and operation test
Updated version of Launch X431 HDIII: The transmission speed is faster and more stable, and the visual operational interface makes it more convenient.
The heavy-duty truck module is used to extend the configuration of passenger cars equipped with a lower DBScar computer to an integrated passenger and business configuration, and mainly supports commercial vehicles.
Includes vehicles: Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
SmartLink remote diagnostics system is a newly developed, efficient service system designed for remote diagnostics and vehicle service. In this system, the SmartLink C user, as a subscriber of the SmartLink service, can place remote repair orders to vehicle repair companies (SmartLink B, SmartLink service provider) via the SmartLink service platform
What Launch Smartlink C does:
Works as a VCI (Vehicle Communication Interface)
Works as a local J2534 PassThru device
Works as a remote J2534 PassThru device
LAUNCH X431 HDIII VS Launch X-431 SmartLink C 2.0
Compared to the X-431 HDIII, the SmartLink C 2.0 is more powerful in terms of features.
The transmission speed is faster and more stable.
Visual operation interface makes it more convenient.
It supports commercial vehicles, passenger cars, new energy models and more.
Supports super remote diagnostics.
Set Composition:
1pc x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pc x HD15F to OBDII 16 male integrated test connector, RoHS
1pc x DB15F to HD15F main line test (without DC), L=1000mm, RoHS
1pc x Double clamp power cord (English, without LAUNCH), RoHS
1pc x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pc x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pc x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pc x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
1pc x X431 PAD4HDB15M-CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS Start, RoHS
1pc x X431 PAD4HDB15M-JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS
4pcs x X-431 PAD IV electric control adapter cable 1, RoHS
4pcs x X-431 PAD IV electric control adapter cable 2, RoHS
4pcs x X-431 PAD IV electric control adapter cable 3, RoHS
4pcs x X-431 PAD IV electric control adapter cable 4, RoHS
4pcs x X-431 PAD IV electric control adapter cable 5, RoHS
4pcs x X-431 PAD IV electric control adapter cable 6, RoHS
4pcs x X-431 PAD IV electric control adapter cable 7, RoHS
4pcs x X-431 PAD IV electric control adapter cable 8, RoHS
4pcs x X-431 PAD IV electric control adapter cable 9, RoHS
1pc xUniversal password envelope (without LAUNCH), RoHS
1pc xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick

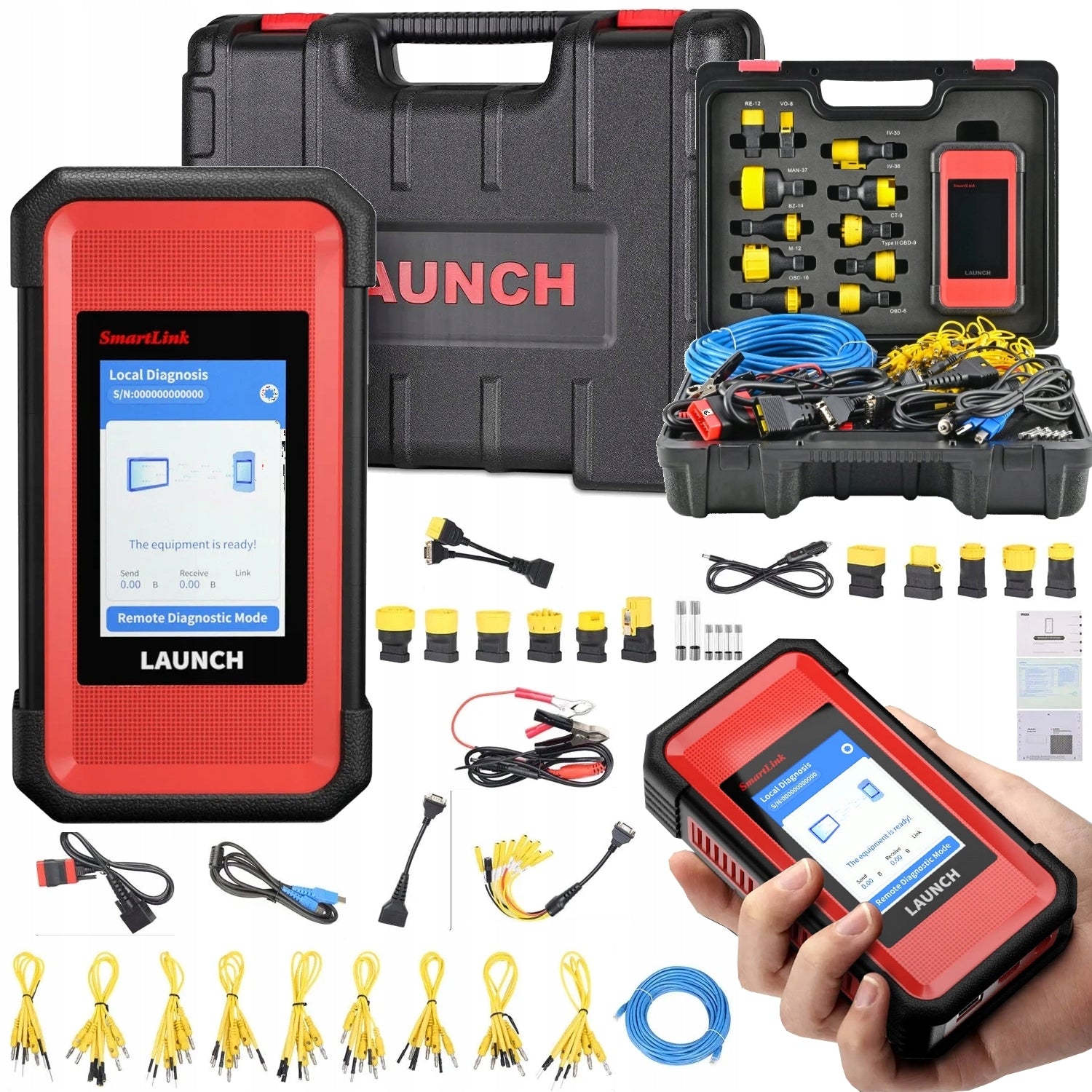

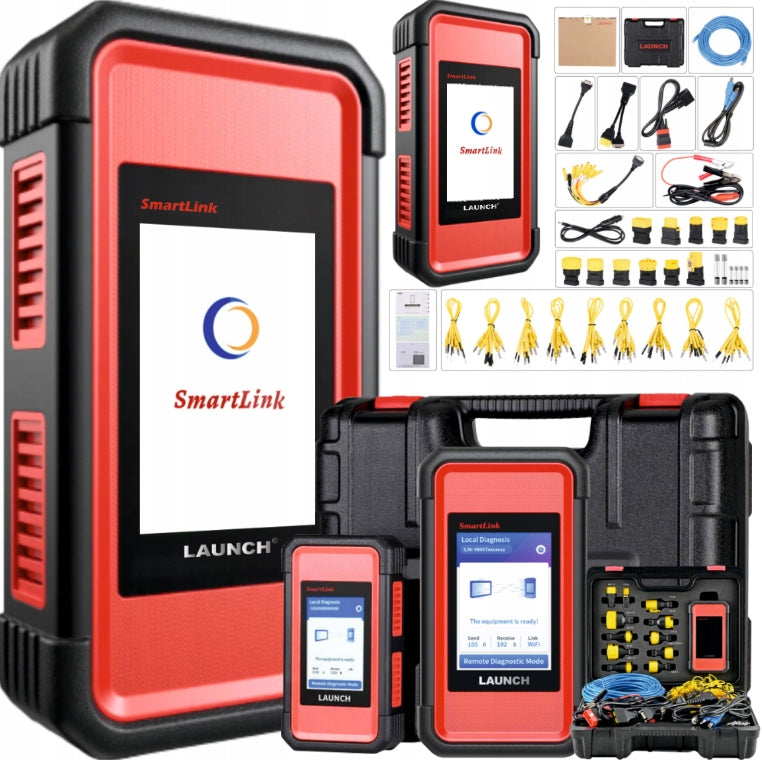

The set includes:
- LAUNCH X-431 HD3 smartlink
- Suitcase with compartments
- OBDII extension
- Certificate for registration and downloading diagnoscope updates
- Power cable
- Set of adapters
- Warranty card
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Launch |
| Parametry | EAN (GTIN) | 5904954303147 |
| Parametry | Manufacturer code | HD3 v2.0 SKANER TESTER KOMPUTER x-431 OBD2 PL |
| Parametry | Batteries included | no |
