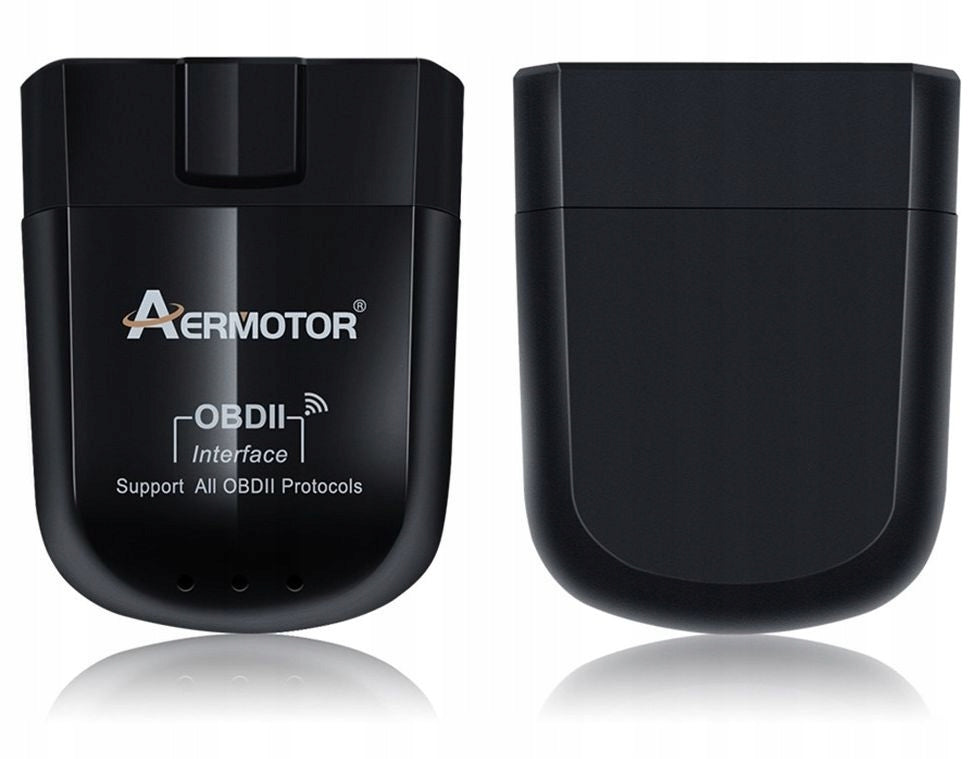

Diagnostinė sąsaja Aermotor Viecar ELM327 Bluetooth OBD2 iPhone Android

Trumpai apie prekę

Prekė: Diagnostinė sąsaja Aermotor Viecar ELM327 Bluetooth OBD2 iPhone Android. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Anytech
• Modelis: Interfejs Diagnostyczny Aermotor ELM327 BT

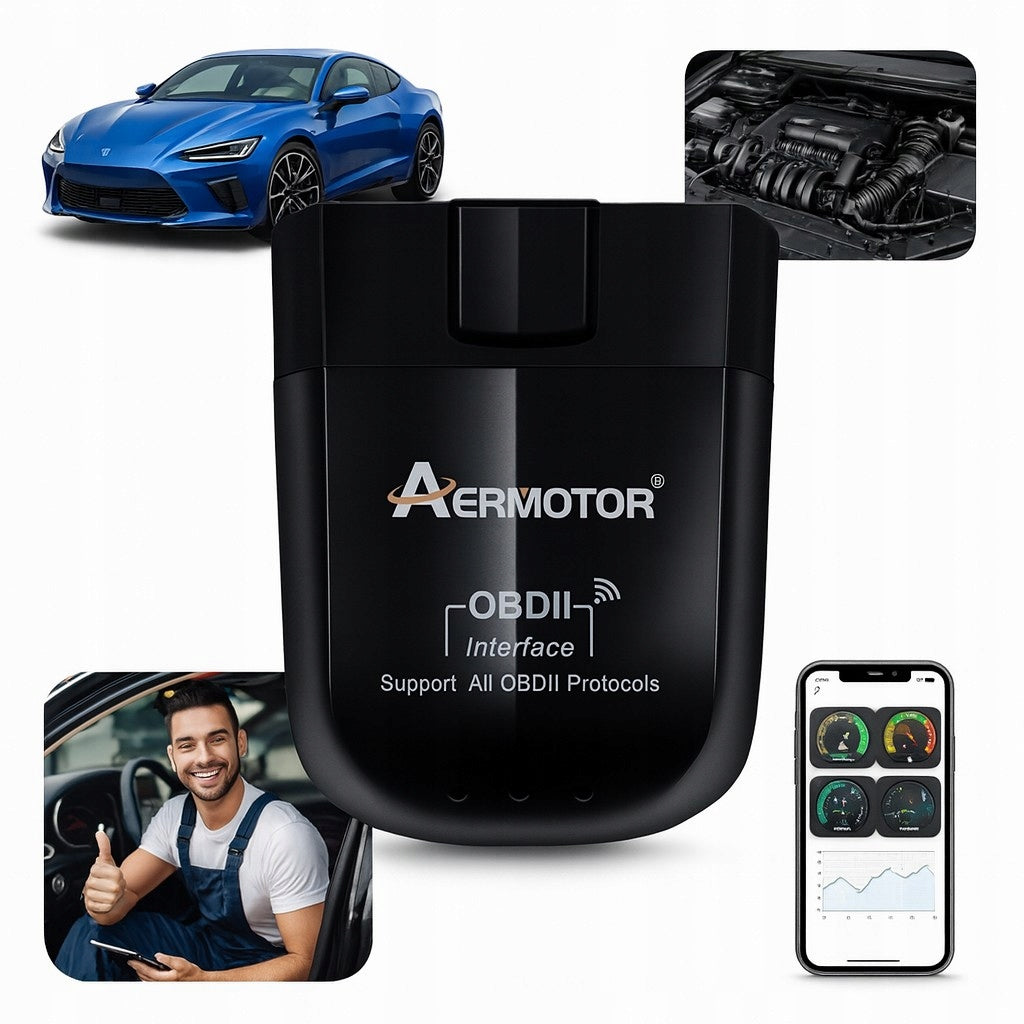

The ELM327 V1.5 Bluetooth engine turns your smartphone or laptop into a full-fledged OBD-II tester.

It connects exclusively via Bluetooth (iOS/Android/Windows), reads and deletes “Check Engine” errors, shows LIVE data, saves driving logs and works with popular applications: Torque, Car Scanner, OBD Auto Doctor, DashCommand.

Supports OBD-II protocols 1.0 - 1.4.

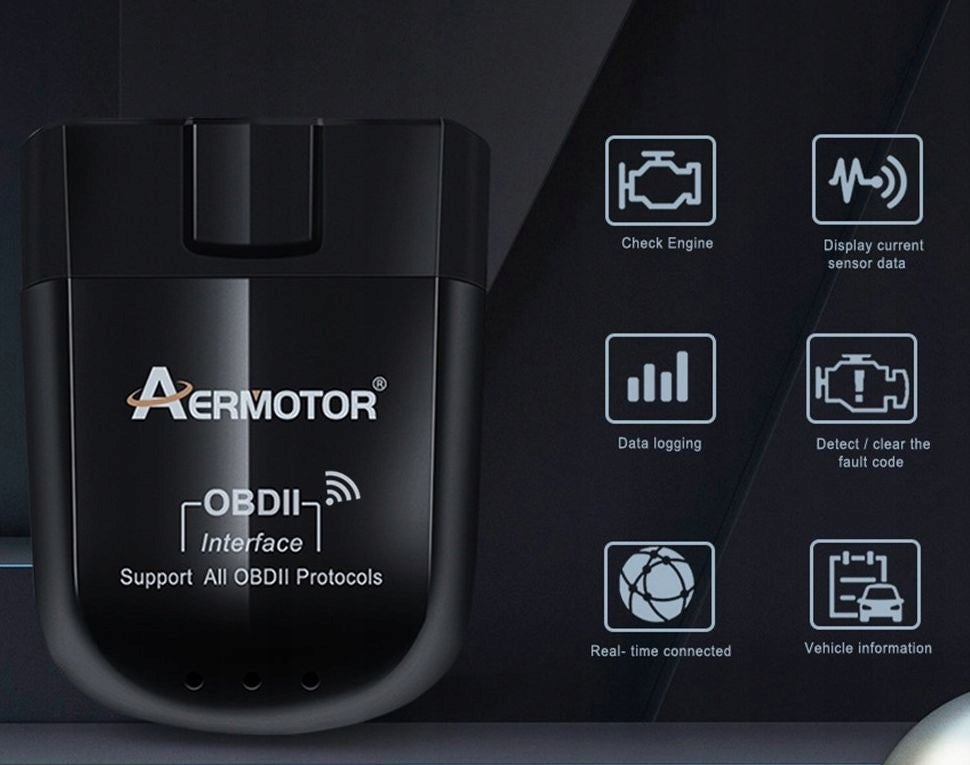

Functions

• Read/delete DTC (standard codes and manufacturer) + Freeze Frame.

• Real-time data: RPM, speed, temp. liquids, load, MAF/MAP, O₂, TPS, IAT, fuel and many others.

• I/M readiness test, basic emission monitors.

• Charts, clocks, login and data export (CSV).

• Permanent Bluetooth connection – fast and stable on all platforms.

• Multilingual interface (including Polish) and the possibility of updating the software.

Features and construction

• Proven Hardware V1.5 with PIC18F25K80 chip (better compatibility than V2.1).

• Compact housing ABS, power supply from OBD-II socket (12 V).

• Very low power consumption ~0,55 W; built-in antenna

• Preconfigured Wi-Fi parameters: SSID: WiFi-OBDII / IP: 192.168.0.10 / Port: 35000 (AP mode – without router).

Advantages

• You save time and money – quick diagnosis and erasure of errors at home or in the parking lot.

• Universal – works with many brands of OBD-II compliant cars (benz. EU since 2001, EU diesel since 2004; USA since 1996).

• Simple operation – connect, connect via Bluetooth, diagnose on iOS/Android/Windows.

Technical data

• Model: ELM327 Aermotor V1.5 Bluetooth

• OBD-II protocols: SAE J1850 PWM/VPW, ISO9141-2, ISO14230-4 KWP (5-baud/fast), ISO15765-4 CAN (11/29-bit 250/500 kbit/s), SAE J1939 CAN + USER CAN.

• Connectivity: Wi-Fi 802.11 a/b/g (AP) — SSID: WiFi-OBDII, IP: 192.168.0.10, Port: 35000

• Power supply: 9 to 16 V (OBD-II connector) | Consumption ~0,55 W

• Working temperature: approx. -40...+65 °C

• Dimensions: approx. 70 × 32 × 30 mm (2.75"×1.25"×1.2")

• Application languages: 12 (PL/EN/DE/FR/ES/PT/RU/TR/CZ/NL/HU/SL)

• Systems: iOS / Android / Windows (PC)

Compatibility and applications

• Android/Windows/iOS (Wi-Fi): Car Scanner, OBD Auto Doctor, Torque, DashCommand, ScanMaster-ELM, etc.

The range of available PIDs depends on the make and year of the car and the application used.

Contents of the set

• Adapter Aermotor ELM327 V1.5 Bluetooth

• Manual (EN) / QR to download the application and PC program

Operating Instructions

Install the application.

On your phone, install OBD: on Android e.g. TORQUE (Google Play) or OBD Car Doctor / DashCommand; on iOS, search for the appropriate app on the App Store.

• Connect the ELM327 to the OBD-II socket in the car.

  It is usually under the steering wheel, next to the handbrake (see photo). Once plugged in, the LED on the ELM327 should light up. If it does not light up – check the power supply/fuse. Note: in some cars, the socket has a fixed 12 V, so disconnect the adapter when you are done driving.

• Connect your phone to your device.

• Wi-Fi: Settings → Wi-Fi → select the network "OBDII/OBD2" (usually without a password).

• Bluetooth: Settings → Bluetooth → pair the device "OBDII"; pairing code 1234.

• Configure the application and read the data.

• OBD Car Doctor: select the connection type (Bluetooth/Wi-Fi), click "Link/Connect". After connection, you can read the parameters (RPM, speed, temp. etc. ).

• TORQUE: Settings → OBD adapter settings → point to Bluetooth or Wi-Fi and select your device. Return to the application – the connection will be established automatically and the data will be read.

Export CSV

– easy analysis of combustion and driving parameters.

Why is it important to have an ELM interface?

Instant diagnosis of “Check Engine”, logs and I/M test at your fingertips – without service.

One device, multiple cars and all major systems thanks to Bluetooth.

Add to cart and start diagnosing today — Bluetooth works with iPhone, Android and Windows.

This is a gadget that pays off quickly: it detects faults earlier, saves your time and money.
