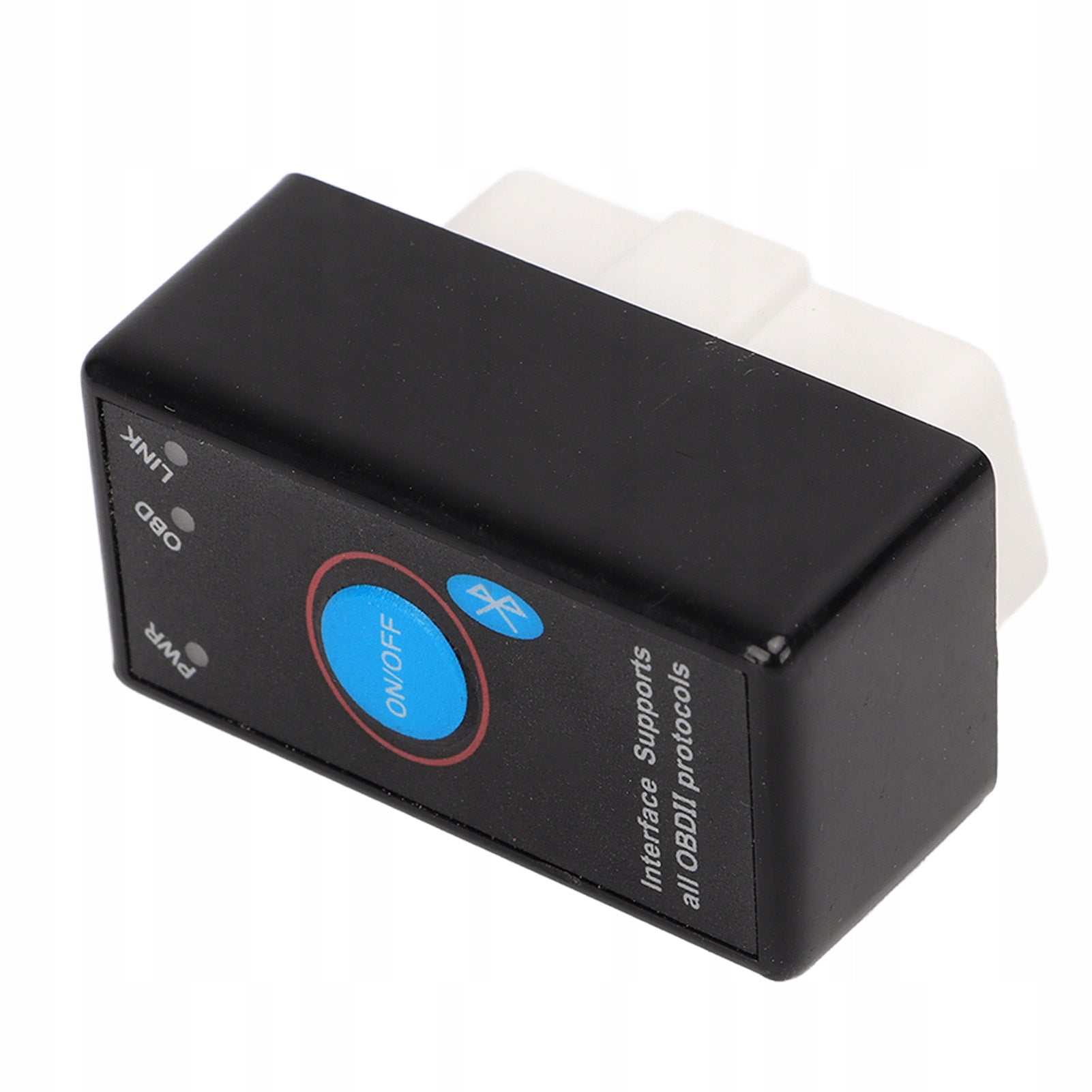

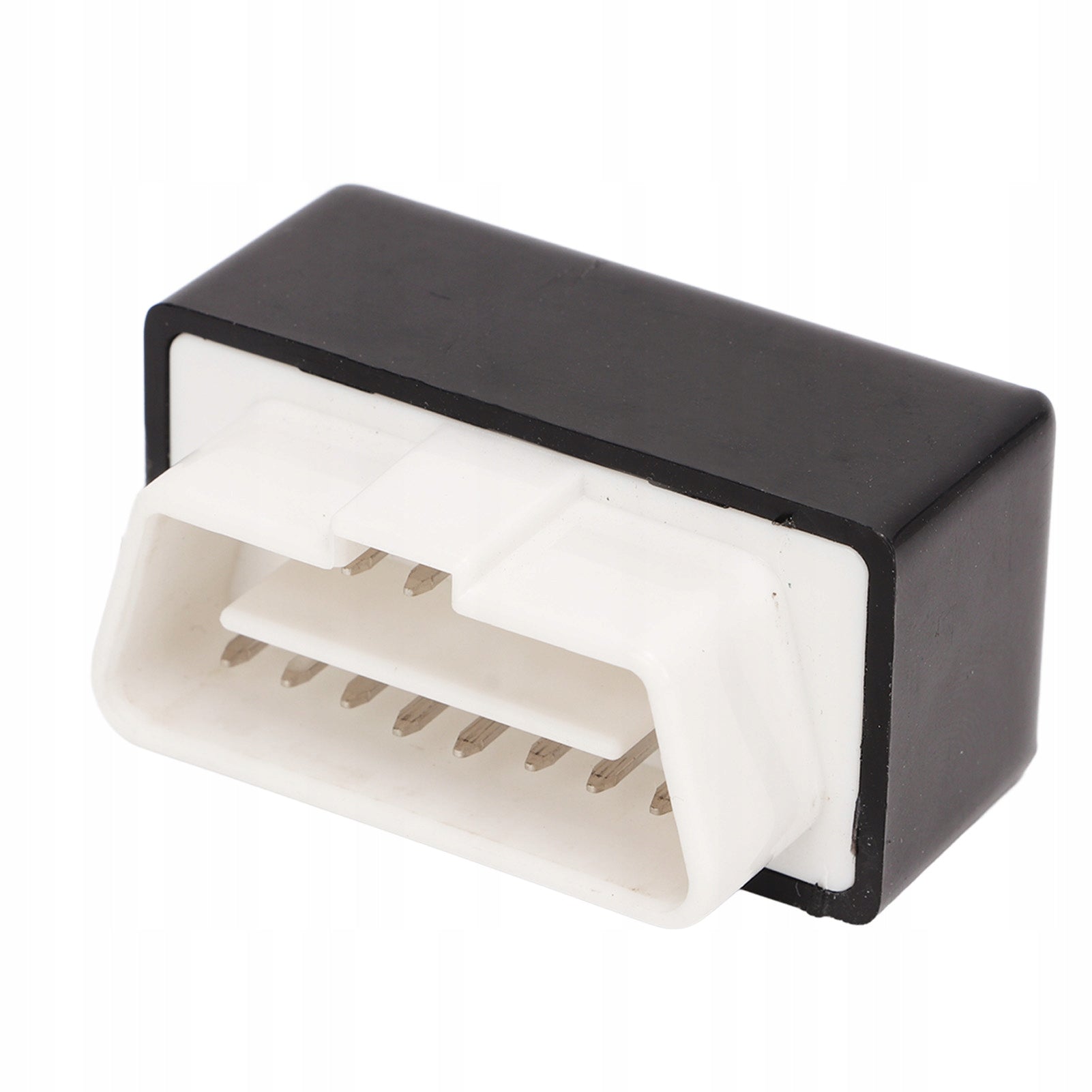

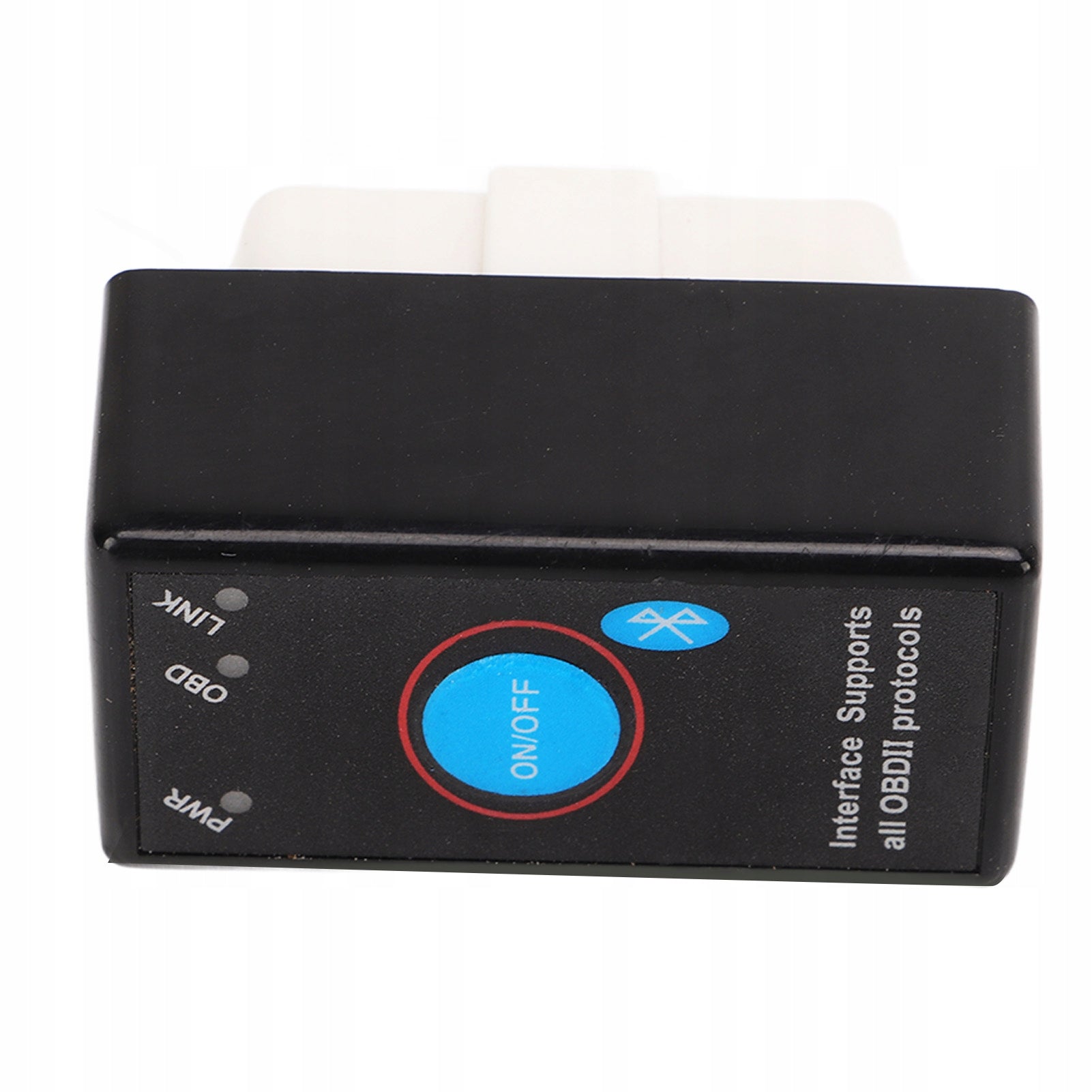

Diagnostinė OBD2 sąsaja Bluetooth Android iOS Windows skaitytuvas

Trumpai apie prekę

Prekė: Diagnostinė OBD2 sąsaja Bluetooth Android iOS Windows skaitytuvas. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: 1613220099611

OBD2 Bluetooth 4.0 Scanner Diagnostic Interface Portable Fault Code Reader Check Engine Light Scanning Tool

Feature:

✅1. Powerful features: can lick the diagnostics of the car engine cavity, clear engine control error code, car data flow and conventional OBD functions.

✅2. Quick diagnosis: wireless Bluetooth 4.0 connection, main control system 25K80, improves the read speed of the obd2 scanner and quickly diagnoses vehicle failure.

✅3. Multi-protocol support: SAE J1850 PWM, SAE J1850 VPW, ISO9141 2, ISO14230 4 KWP, ISO14230 4 KWP, ISO15765 4 CAN, ISO15765 4 CAN, ISO15765 4 CAN, ISO15765 4 CAN.

✅4. Cost savings: A compact and efficient tool that provides fault codes, monitors the condition of the vehicle, finds problems, maintains them on time, and even solves minor problems on its own.

✅5. Plug and Play: even those who use it can use it without complicated configuration and installation, just plug it into the OBD2 port of the car to help make the diagnosis more intuitive.

⏪ Specification:

• Item Type: OBD2 Scanner
• Matter: ABS
• Connection Method: Bluetooth 4.0
• Main control system: 25K80
• Support system: for iOS/for Android/for Windows
• Operating Voltage: 9 V-16 V
• Operating Current: 35mA
• Operating temperature40 -85

⏪Supported protocoy:

• 1. SAE J1850 PWM (41,6 Kbods)
• 2. SAE J1850 VPW (10,4 Kbods)
• 3. ISO9141 2 (5 bod initiation, 10,4 kbps)
• 4. ISO14230 4 KWP (5 bod initiation, 10,4 Kbods)
• 5. ISO14230 4 KWP (quick start, 10,4 Kbody)
• 6. ISO15765 4 CAN (11-bit ID, 500 Kbods)
• 7. ISO15765 4 CAN (29-bit ID, 500 Kbods)
• 8. ISO15765 4 CAN (11-bit ID, 250 Kbods)
• 9. ISO15765 4 CAN (29-bit ID, 250 Kbods)

⭕List of packages:

• 1 x Obd2 Scanner
