Diagnostikos testeris FOXWELL NT809BT, 30+ serviso funkcijų, dirbtuvėms

Trumpai apie prekę

Prekė: Diagnostikos testeris FOXWELL NT809BT, 30+ serviso funkcijų, dirbtuvėms. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Foxwell
• Modelis: BC01249_2

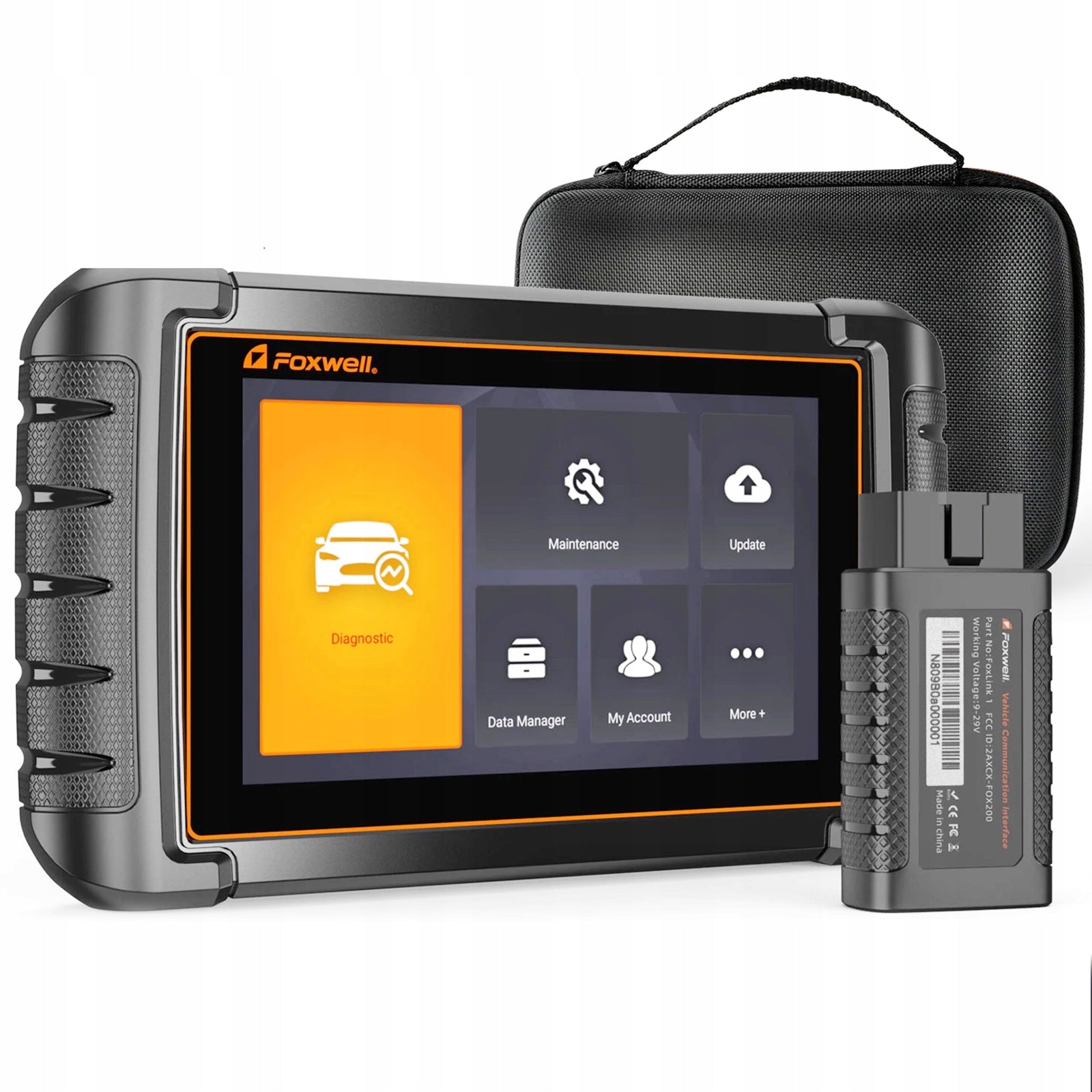

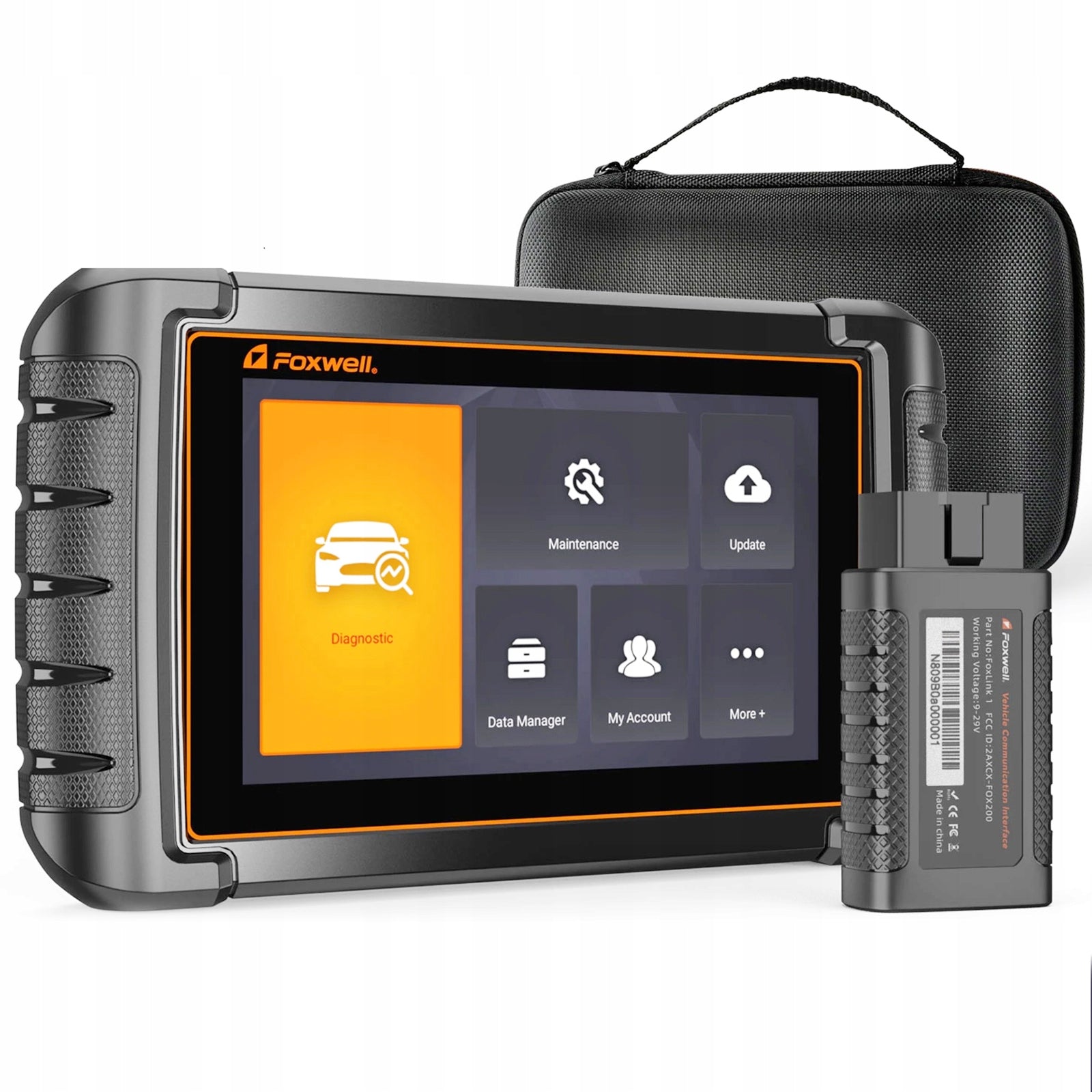

The auction is for the FOXWELL NT809BT diagnostic tester visible in the photo, which is the latest product from FOXWELL company

The tester is an independent workshop equipment equipped with a 7-inch touch screen, armored waterproof, and workshop carpet shell! It is supported by the Android operating system. It can support a complete Polish page, full OBD function, 35 envoy functions, action testing, bidirectional functions, etc.

Foxwell NT809BT Bidirectional Scanner – Ultimate Active Diagnostics Without Disassembly

Product Introduction:

Screen：7" diagonal, daylight readable color LCD screen, 1024*600 pixel

Operation System：Android 9.0

Processor：Quad-CORE,1.3GHZ

Memory：1GB

SSD Hard drive：32GB

Communicationinterface：Built-in WlFl 802.11 big'n Wireless LANUSB2.0 0TG/standard USB 2.0 HOSTBluetooth specification v2.1+EDR;  Bluetooth 4.0 Low Energy (LE)(10-20 m)

Built-in Battery：4000mAh, Lithium-polymer battery, chargeable via 5V USB power supply

Protocols：IS09141-2,1S014230-2,1$015765-4,KL lines, Double K LineSAE-J1850 VPWSAE-J1850PWM.CAN ISO 11898, High-speedMiddle-speed, Lows-peed and Single wire CAN,KW81,KW82GM UART UART Echo Bvte Protocol, Honda Diag-H ProtocolTP2.0,TP1.6,SAE J1939,SAE J1939,SAE J1708,Fault-Tolerant CAN, CAN FD.DOIP

Working Temperature：-10 to 70°C

Storage Temperature：-20 to 80°C

Operating Humidity：5%-95% Non-Condensing

Dimensions：205*135*30mm(L*W*H)

Weight：0 .87kg (Main unit)

3-year free update

MultipleLanguage Support: Korea, Spanish, Portuguese, French,Swedish, English, Dutch, Japanese, Italian, German,Russian, Hungarian, Greek

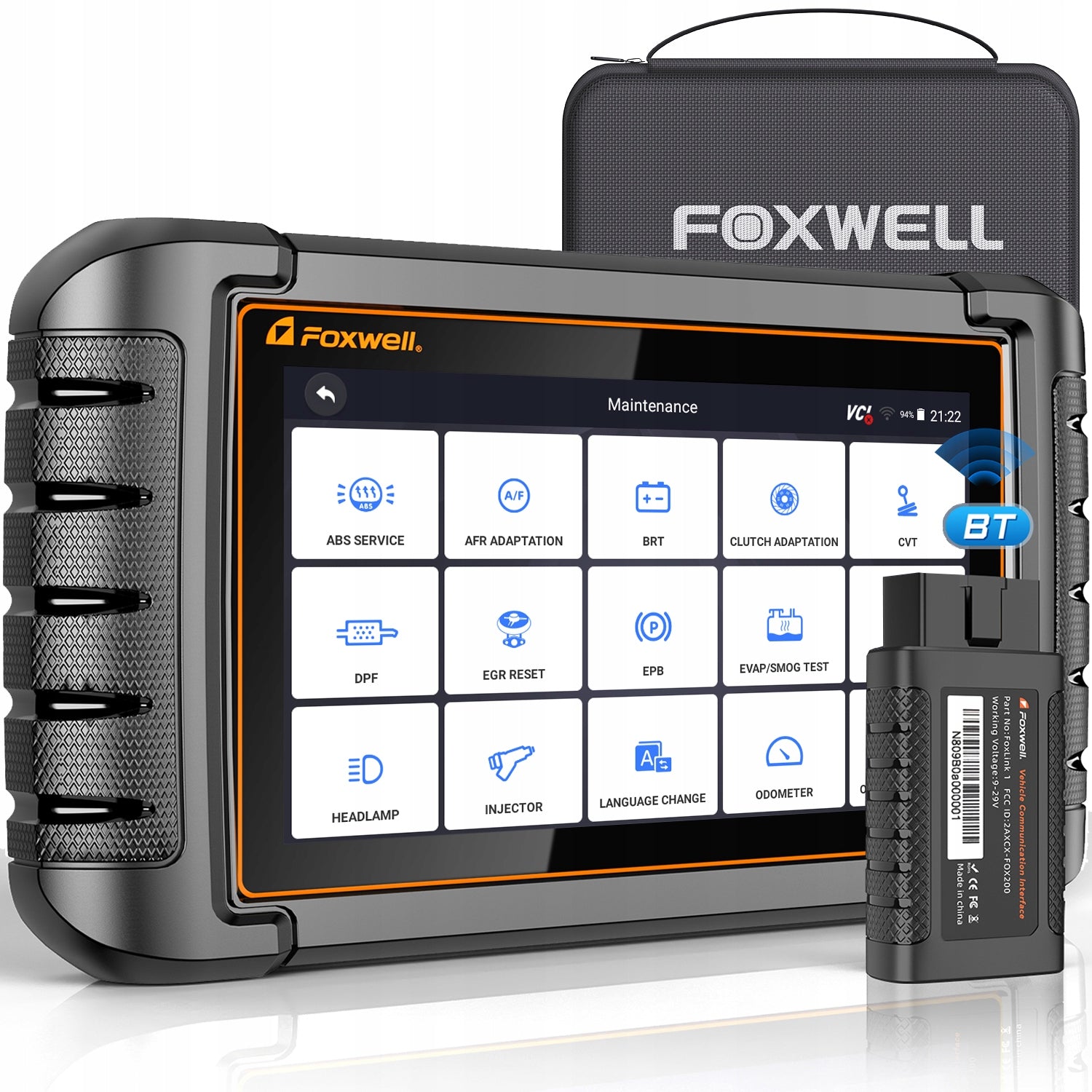

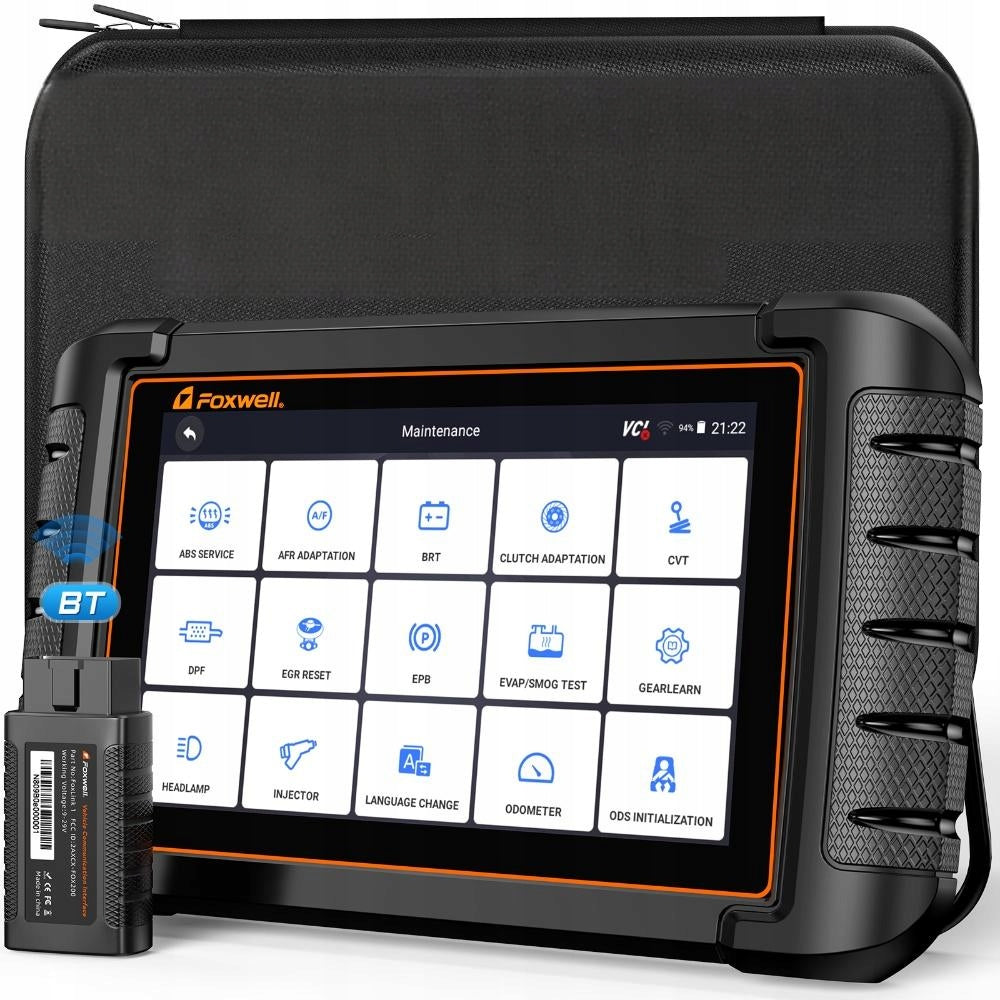

Foxwell NT809 BT Support Special Functions: 35+ Resets Service

1.Oil Lamp Reset Service

Allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset

It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service

Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset

Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset

Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset

Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming

The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding

ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset

The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset

Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset

Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset

'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding

Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation

The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning

The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

16.EGR Reset

Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17.A/F Reset

This function is applied to set or learn Air/Fuel ratio parameters.

18.Adblue Reset(Diesel Engine Exhaust Gas Filter)

After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.

19.Airbag Reset

This function resets the airbag data to clear the airbag collision fault indicator.

20.Coolant Bleeding

Use this function to activate the electronic water pump before venting the cooling system.

21.AT Learning

This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift

22.Language Change

This function is used to change the system language of the vehicle central control panel.

23.Nox Sensor Reset

Nox sensor is a sensor used to detect the content of nitrogen oxides (Nox) in engine exhaust. lf the Nox fault is re-initialized and the Nox catalytic converter is replaced, it is necessary to reset the catalytic converter learned value stored in the engine Ecu.

24.KM Reset

a) KM reset is to copy,write, or rewrite the value of kilometers in the chip of KM by using a car diagnostic computer and data cable, so that the KM shows the actual KM.

b)Usually when the KM is not correct due to the damaged vehicle speed sensor or KM failure, it

is necessary to do KM reset after maintenance.

25.Stop/Start Reset

This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware).

26.Seat Calibration

This function is applied to match the seats with memory function that are replaced and repaired.

27.Transport Mode

ln order to reduce power consumption, the following functions may be disabled, including limiting the vehicle speed, not waking up the door opening network, and disabling the remote control key, etc.At this time, the transport mode needs to be deactivated to restore the vehicle to normal.

28.Windows Calibration

This feature is designed to perform door window matching to recover ECU initial memory, and recover the automatic ascending and descending function of power window.

29.etc..

99% ACTIVE TEST LIST

1.Radiator Fan

2.Doors and Windows

3.Parking Brake

4.Interior light

5.Test lInjector

6.Modulate Throttle

7.Exterior Liahts

8.Left Clutch Elec.Coil

9.Injector

10.BuZ

11.Sound Horn

12.Radio

13.Cycle A/C

14.ACC Lkas

15.Oil Pressure Control

16.360°Camera

17.ACM Solenoid

18.Inlet &Outlet Valve

19.VB65(Front evaporator shutoff valve)

20.Fuel Pump

21.open Brakes

22.Operate Mirrors

23.Brake Vacuum

24.Wheel Speed Sensor

If you have any questions about model compatibility.

Please leave us a message in the following format and we will reply within 24 hours.

For example: xx, 2005, 2.0cc, diesel

2025 New Foxwell NT809 BT Diagnostic Interface OBD2 Automotive Diagnostic Scanner Bluethooth Professional Automotive Diagnostic Scanner OBD2 Code Reader with Bidirectional Testing Function，OBD Eleven

+All system diagnostics

+35 Emission Services

All functions of OBD2

3-year free update

+Multiple languages

+Support 20000

+Vehicle

Update Foxwell NT809, NT809BT Diagnostic Interface is a new diagnostic scanner with Android 9.0 operating system. It inherits the same advantages of Foxwell in the field of automotive fault diagnosis, such as covering multiple manufacturers, service functions, and accurate test data, making it an ideal tool for busy garages or workshops that require the latest technology at an unparalleled price.

Model compatibility: including light-duty vehicles sold globally SUV、 Small trucks and light trucks. For automotive service companies, it is important to obtain as much coverage as possible in order to effectively and quickly provide services to any vehicle. NT809 provides fast and easy diagnostics for over 108 American, Asian, and European car brands.

Supports over 90 brands and more than 20000 vehicle models, including the latest 2023/2024 models.

If you want to know if your car is on the car support list, please leave us a message in this format.

For the Audi A4 2002, 2.0T diesel engine, VIN:XXX， Need throttle position adjustment function

We will reply to you within 24 hours.

All information provided by the seller

NT809BT offers all system diagnostics, vehicle-wide bidirectional active tests, and OBD2 checks for all models. This automotive diagnostic tool can thoroughly inspect systems like the engine, ignition, A/C (air conditioning), and braking (any system your car has). Runs 99% of active tests (Fuel Pump, ACM Solenoid, Parking Brake, etc.). Compatible with most brands (Benz, BMW, Honda, etc.). Supports FCA Autoauth & AutoVIN for easy ECU info access.

NT809BT assists you with common and essential reset tasks like ABS Bleeding, Oil Light Reset, EPB Reset, SAS Calibration, Throttle Matching, Injector Coding, D-PF Regeneration, TPMS Reset, Windows-Door, Transmission Adaptation, Suspension Reset, Battery Registration, and more. It offers 2 extra years of free software updates compared to the standard 1-year period from others. You can keep using it and get lifetime tech support after the update period ends.

Beyond its advanced tablet features, NT809BT is a car code reader. It reads/clears fault codes, checks I/M Readiness for inspections, and displays real-time data charts. The DTC Lookup quickly locates fault sources, saving time by pinpointing the issue. After diagnosis, generate a one-click PDF report and hand it to mechanics for direct car-part repairs, thus avoiding high inspection fees. Use it once or twice to recoup the cost.

No cable mess! Our wireless VCI boasts a 65.62 - foot range for stable car diagnosis. Customize diagnostics with ease! Slide screen to pick modules, adjust font in 6 sizes. 809BT walks beginners through diagnostic steps, simplifying complex tasks. The 4000mAh battery lasts 3+ hours, ideal for all repair lengths. Android 9.0 with one - click WiFi upgrade. 32GB storage for reports, pics, and software. Ergo silicone design and back stand let you diagnose comfortably outside the car.
