Diagnostikos sąsaja MDI 2 WiFi

Trumpai apie prekę

Prekė: Diagnostikos sąsaja MDI 2 WiFi. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: no brand
• Modelis: 1613220053911

▶ 1. Practical diagnostic tool: The scanner with multiple MDI2 diagnostic interfaces is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems.

▶ 2. Easy to use: connect the vehicle to the host computer application, then it works through MDI 2 to transfer data and reprogram the electronic ECU control unit, convenient to use.

▶ 3. Power supply: The scanner with multiple diagnostic interfaces 2 is powered from the vehicle battery via DLC cable, it can also be powered by USB to update the cavity software only by computer.

▶ 4. DLC Cable: The DLC cable is larger than the previous one and connects at the top for easy use. The cable only connects to MDI 2. A wired connection is recommended for larger programming events.

▶ 5. Excellent performance: Multiple diagnostic interfaces with WIFI card. It uses USB 2.0 to download cavity software faster instead of a separate AC adapter. OnMost secure type B connector and protection against ground failure.

▶ Specification:Article type: scanner with multiple MDI2 diagnostic interfaces

Matter: ABS

Product Description

MDI 2 is used by professional technicians to assist in the diagnosis and repair of automotive electrical and electronic defects. MDI 2 is designed to connect the vehicle to a PC application, which then works through MDI 2 to transfer data and reprogram the electronic control unit (ECU).

Multiple MDI 2 Diagnostic Interface with Wi-Fi Card

MDI 2 Description:

Multiple Diagnostic Interface 2 (MDI 2) is used by professional technicians to assist in the diagnosis and repair of automotive electrical and electronic systems. MDI 2 is designed to connect the vehicle to a PC application, which then works through MDI 2 to transfer data and reprogram the electronic control unit (ECU).

PC-based Multiple Diagnostic Interface (MDI 2) offers increased computing power, security, and faster programming speeds in Global A and the future

Global vehicles B.

MDI 2 supports diagnostic applications: GDS 2, Data Bus Diagnostic Tool and Tech2Win. It also supports Pass Thru: TIS2Web SPS development applications. It replaces the first-generation MDI, introduced in 2007, for Pass Thru programming in current models. The MDI 2 is backwards compatible, so it can be used for Pass Thru programming on all vehicles manufactured since 1996 using the J1962 connector using a DLC cable. The connection between MDI 2 and PC can be established via standalone mode (USB) and Dler network (CAT5).

How to use:Connect and play

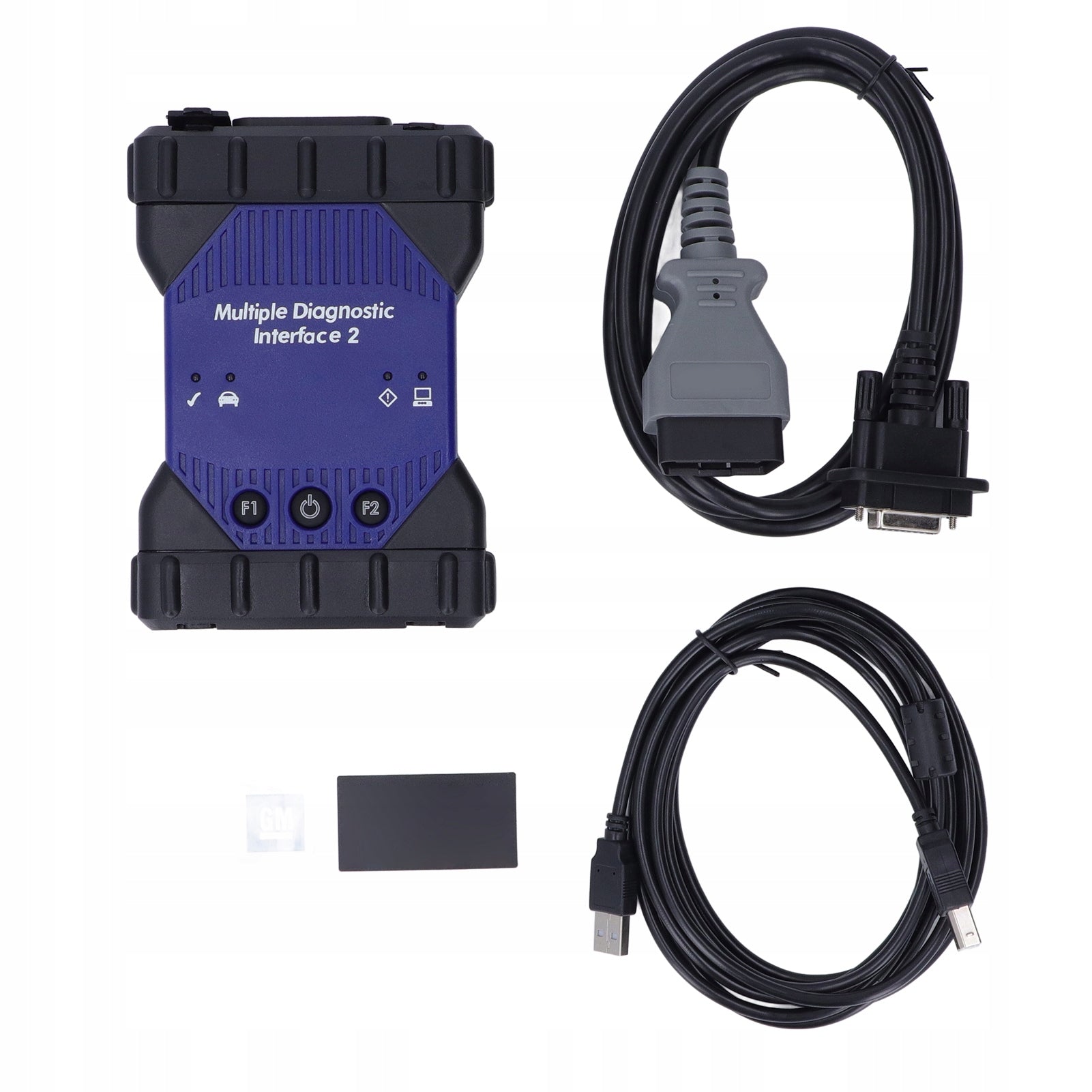

▶ Package list:1 x scanner with multiple MDI2 diagnostic interfaces

1 x Connection Cable

1 x Diagnostic Cable

2 x Sticker
