Diagnostikos įrenginys Autel IM608 PRO su raktų programatoriumi J2534 XP400PRO

Trumpai apie prekę

Prekė: Diagnostikos įrenginys Autel IM608 PRO su raktų programatoriumi J2534 XP400PRO. Kategorija: Diagnostiniai testeriai ir sąsajos.

• Gamintojas: Autel
• Modelis: AUTEL MaxiIM IM608 II

ATTENTION!!!

IMPORTANT BEFORE PURCHASE!!!

CHINESE AUTEL MODELS WITH 1-YEAR SOFTWARE UPDATE HAVE APPEARED ON ALLEGRO, WITHOUT THE POSSIBILITY OF BUYING ACCESS TO SGW GATEWAYS AT AUTEL Poland GLIWICE! (vehicles after 2018, equipment unusable! )

THESE MODELS ARE NOT AUTHORIZED AND ARE NOT COVERED BY AUTEL EUROPE AND AUTEL Poland GLIWICE!

AT THIS AUCTION YOU BUY A MODEL WITH AUTEL EUROPE START LOGO WITH 2-YEAR SOFTWARE UPDATE AT THE PRICE FROM THE OFFICIAL DISTRIBUTION AUTEL Poland GLIWICE WITH THE POSSIBILITY OF BUYING SECURITY GATEWAY "SGW" GATEWAYS (VAG, MERCEDES, FCA, NISSAN, RENAULT, IVECO, FULL PACKAGE) AND WARRANTY DIRECTLY FROM AUTEL Poland GLIWICE!

WHEN BUYING ON THE OFFICIAL ALLEGRO STORE AUTEL BRAND, YOU ARE SURE THAT THE EQUIPMENT IS ORIGINAL, AS WELL AS TECHNICAL, WARRANTY AND POST-WARRANTY SUPPORT.

WE WARMLY INVITE YOU TO PURCHASE THE ORIGINAL, LICENSED, LEGAL DIAGNOSTIC TESTER OF THE TOP BRAND AUTEL !

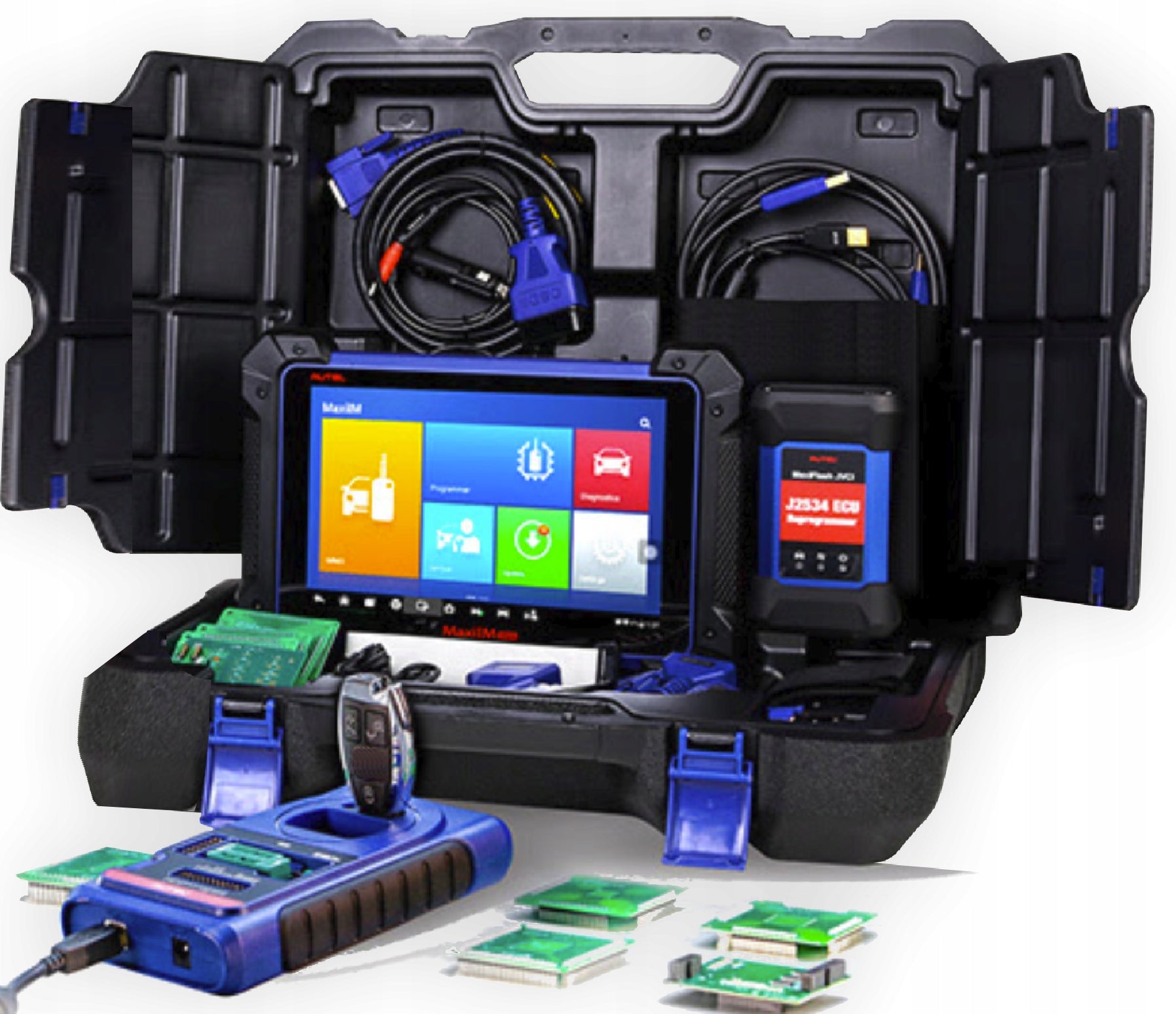

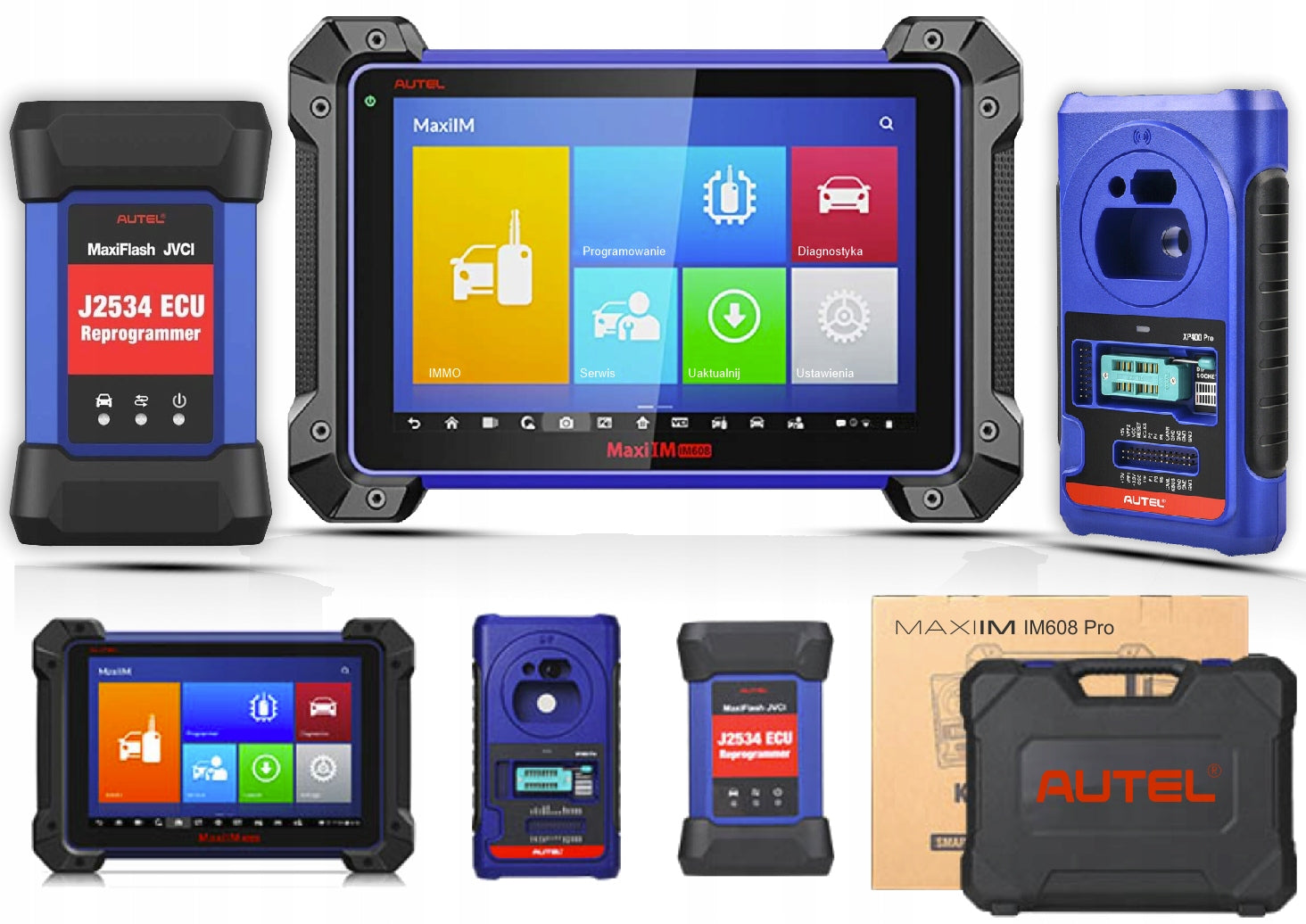

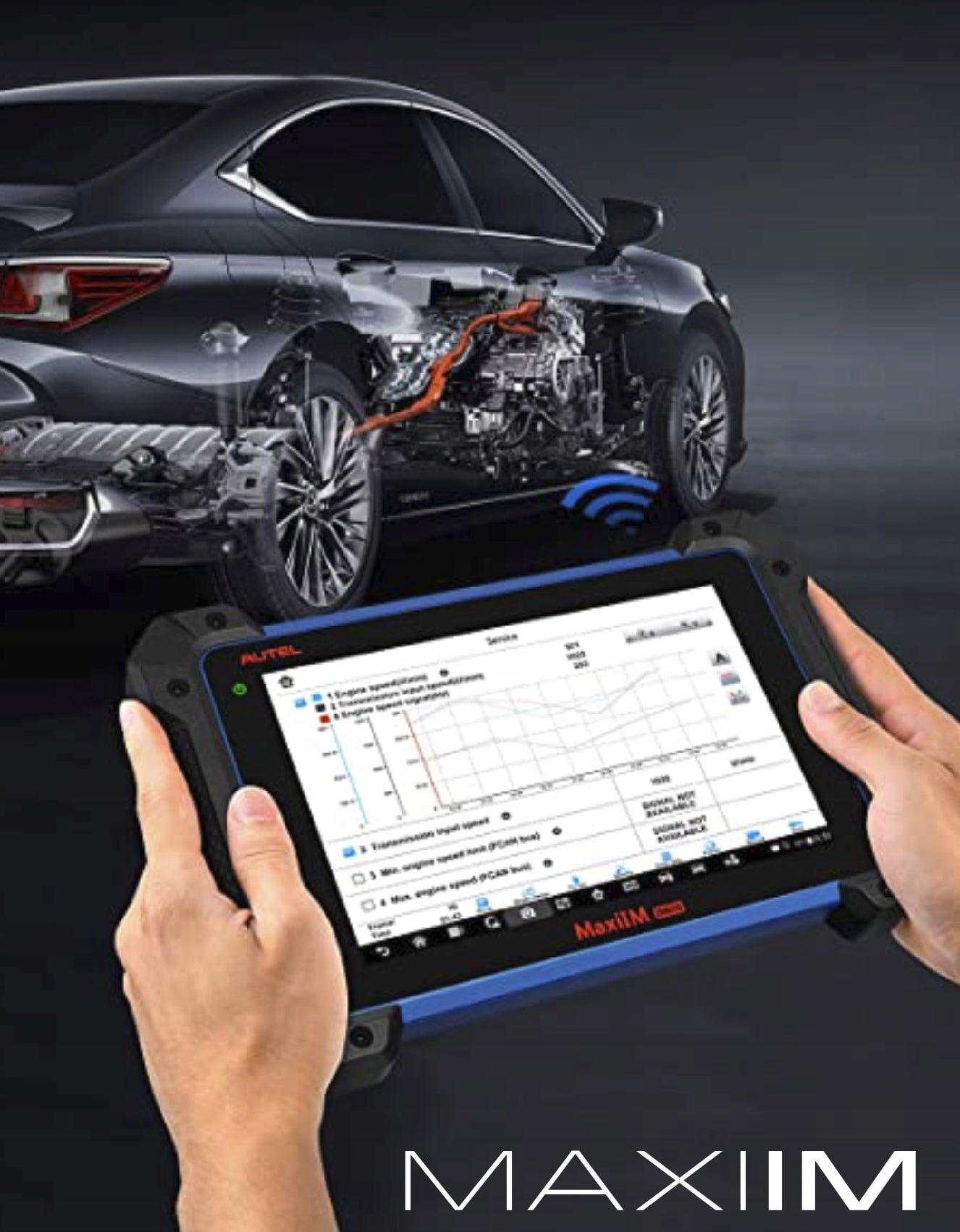

IM608 PRO is the most advanced and unique key programming and diagnostic tool in one. The device combines advanced key programming, diagnostics of all electronic systems and advanced service functions in one 10.1-inch Android touchscreen tablet. The tester is equipped with the XP400 PRO key programmer and the MaxiFlash ECU programmer to provide full support for IMMO functions including programming. Along with the ability to quickly diagnose all modules of most brands and models on the market, the IM608 PRO provides all the special functions. This is the most essential programming and diagnostic tool you've ever needed.

Diagnoskop works in Polish!

Equipment from the authorized polish distribution of the AUTEL brand!

Original, legal equipment with online software updates from the diagnostic tool!

ULTRA ADVANCED - ULTRA STRONG - ULTRA FAST - ULTRA MOBILE

Thanks to the latest technology, diagnostics are really fast...

• Extremely powerful six-core Cortex A7 + A15 processor
• 10,1 inch capacitive LED touch screen with 1920 x 1200 resolution
• Internal reliable built-in 64 GB memory for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• Wi-Fi 802.11 a/b/g/n/ac to access your favorite internet resources
• Open source Android operating system for quick startup and multitasking
• Efficient combination of advanced key programming / diagnostics of all systems / advanced maintenance services
• Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for full Immo support
• Intelligent mode for targeted and automated key learning
• Expert mode for advanced key learning
• Read PIN/CS (lost whole key), generate key, key learning, remote learning
• ECU IMMO Reset/Adaptive, Refresh/Coding
• Read/write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection
• Efficient OE-level diagnostics for more than 80 makes and models in the US, Asia and Europe
• Full capabilities of codes, live data, active testing, ECU information, adaptation, matching, coding, etc.
• All special functions, EPB, DPF, SAS, oil reset, BMS, TPMS sensor ID re-recognition, etc.

UNIVERSAL EUROPE ASIA USA

List of supported brands: https://pro. autel . com/measurecarApp-1-1.html? m=94&operatorType=1

Product Model: IM608 (IMMO)

• Professional key programming via XP400 programmer and MaxiFlash ECU programmer for full Immo support
• Smart mode for guided and automated key learning
• Expert mode for advanced key learning
• Read PIN/CS (all key lost), generate key, learn key, remote learn
• IMMO ECU reset/adaptation, refresh/coding
• Read/Write transponder data, ECU/MCU/EEPROM data (e.g. 9S12 encryption chip), IC card, remote frequency detection

• Diagnosis of all electronic systems of the vehicle (K and CAN line) including: Engine, ABS, Airbag, DPF, SAS, EPB, air conditioning, automatic transmission, comfort modules, etc...
• Information about ECU
• Reading error codes
• Deleting error codes
• Full support for current parameters during Live Data operation
• ECU programming
• Adaptations
• Coding
• Tests of executive elements
• Basic Settings
• Deleting Oil Service Inspections
• Support EPB parking brake (Reversing calipers for brake pad replacement)
• DPF (Particulate Filter) support
• SAS support
• Support for BMS
• Throttle Adaptation
• Flashing ECU, PassThru system

TECHNICAL DATA

Technical data:

• Operating System: AndroidTM 4.4.2, KitKat
• Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
• 2GB RAM & 64GB On-board Memory
• 10.1-inch LED capacitive touch screen with 1920x1200 resolution
• USB Wi-Fi connectivity (802.11 a/b/g/n/ac): 2.0,BT v.2.1 + EDR, SD Card (Support up to 32GB), HDMI
• Camera 8.0 Mexgapixel, AF with Flashlight
• Audio Microphone, Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
• Sensors Gravity accelerometer, ambient light sensor (ALS)
• Power supply and battery 15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
• Input voltage 12 V (9-24 V)
• Power consumption 6.5 W
• Operating temperature -0 to 50 ℃
• Temp. storage -20 to 60 ℃
• Housing Strong plastic housing with rubber protections
• Dimensions 300 mm x 220 mm x 50mm
• Weight NW: 1.42 kg, MaxiSys GW: 8.655 kg
• Protocols:

ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW,

SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN,

GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939,

SAE J1708 Fault-Tolerant CAN

The tester supports practically all control modules equipped in a given vehicle, including the latest models from the current year:

• engine
• ABS braking system
• airbags
• automatic transmission
• comfort module
• brake electronics
• ESP/ASR/EBD traction control
• TMPS tire pressure system
• air conditioning
• power steering
• dashboard
• navigation
• audio system
• central locking
• anti-theft system
• lighting electronics
• 4x4 drive
• seat memory
• door electronics
• navigation
• parking assist
• lane keeping assist
• reversing camera
• cruise control
• and many other vehicle equipment systems..

The tester works in POLISH!

Menu

Fault codes

Actual parameters

Service procedures

(full polish technical descriptions of error codes! )

No forced annual fees, so-called SUBSCRIPTIONS!

The tester works continuously and will never be blocked!
